Fujitsu ASY14FSBCW Operating Manual

Fujitsu ASY14FSBCW Operating Manual

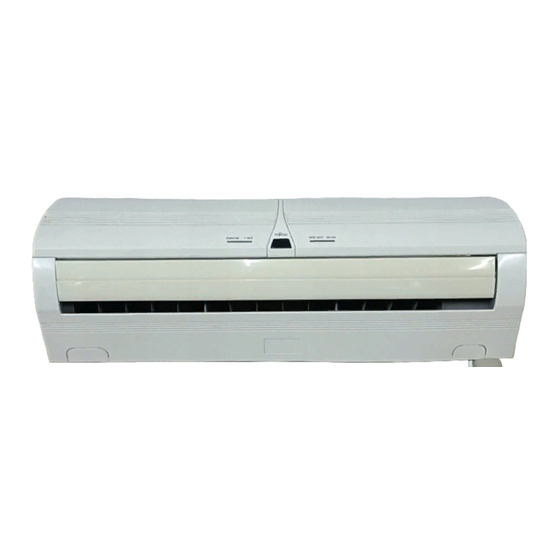

Wall mounted type cooling model
Hide thumbs Also See for ASY14FSBCW:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual
Enlarged version
OPERATING MANUAL
BEDIENUNGSANLEITUNG
MODE D'EMPLOI
MANUAL DE FUNCIONAMIENTO
MANUALE DI ISTRUZIONI
ΕΓΧΕΙΡΙ∆ΙΟ ΛΕΙΤΟΥΡΓΙΑΣ
MANUAL DE INSTRUÇÕES
ROOM AIR CONDITIONER
WALL MOUNTED TYPE
COOLING MODEL
KEEP THIS OPERATION MANUAL
FOR FUTURE REFERENCE
P/N9313732011-02

Advertisement

Table of Contents
loading

Related Manuals for Fujitsu ASY14FSBCW

Summary of Contents for Fujitsu ASY14FSBCW

  • Page 1 OPERATING MANUAL BEDIENUNGSANLEITUNG MODE D’EMPLOI MANUAL DE FUNCIONAMIENTO MANUALE DI ISTRUZIONI ΕΓΧΕΙΡΙ∆ΙΟ ΛΕΙΤΟΥΡΓΙΑΣ MANUAL DE INSTRUÇÕES ROOM AIR CONDITIONER WALL MOUNTED TYPE COOLING MODEL KEEP THIS OPERATION MANUAL FOR FUTURE REFERENCE P/N9313732011-02...

  • Page 2: Table Of Contents

    CONTENTS Fig. 1 SAFETY PRECAUTIONS ........En-1 ADJUSTING THE DIRECTION OF FEATURES AND FUNCTIONS ......En-2 AIR CIRCULATION ..........En-9 NAME OF PARTS ..........En-3 SWING OPERATION ......... En-10 PREPARATION ............ En-4 MANUAL AUTO OPERATION ......En-10 OPERATION ............En-5 CLEANING AND CARE ........

  • Page 3: Features And Functions

    FEATURES AND FUNCTIONS AUTOMATIC OPERATION REMOVABLE INTAKE GRILLE Merely press the START/STOP button, and the unit will be- The indoor unit’s Intake Grille can be removed for easy clean- gin automatic operation in the Cooling or Dry mode as ap- ing and maintenance.
  • Page 4 NAME OF PARTS Fig. 1 Indoor Unit Fig. 6 Remote Controller 1 Operating Control Panel (Fig. 2) K SLEEP button 2 MANUAL AUTO button L MASTER CONTROL button M SET TEMP./SET TIME buttons ( 3 Remote Control Signal Receiver N Signal Transmitter 4 Indicator Lamps (Fig.

  • Page 5: Preparation

    PREPARATION CAUTION! Turn on the Power G Take care to prevent infants from accidentally swallowing batteries. Connect the Power Supply Plug (Fig. 1 D) to an electri- G When not using the Remote Controller cal outlet; in the case of a direct line connection, turn for an extended period, remove the batteries to avoid possible leakage and on the circuit breaker.

  • Page 6: Operation

    OPERATION To Select Mode Operation Press the START/STOP button (Fig.6 R). The indoor unit’s OPERATION indicator lamp (red) (Fig. 3 5) will light. The air conditioner will start operating. Press the MASTER CONTROL button (Fig.6 L) to se- lect the desired mode. Each time the button is pressed, the mode will change in the following order.
  • Page 7 To Stop Operation Press the START/STOP button. The OPERATION indicator lamp (red) (Fig. 3 5) will go out. About Mode Operation G Depending on the room temperature at the time operation begins, the AUTO: operating mode will be switched automatically as shown in the accompanying table.
  • Page 8 TIMER OPERATION Before using the timer function, be sure that the Remote Controller is set to the correct current time (See page 4). To Use the ON timer or OFF timer To Cancel the Timer Press the START/STOP button (Fig. 6 R) Use the TIMER button to select “TIMER (if the unit is already operating, proceed to step 2).

  • Page 9: To Cancel Timer

    SLEEP TIMER OPERATION Unlike other timer functions, the SLEEP timer is used to set the length of time until air conditioner operate is stopped. To Use the SLEEP Timer To Cancel the Timer: While the air conditioner is operating or stopped, press the Use the TIMER button to select “TIMER SLEEP button (Fig.
  • Page 10 ADJUSTING THE DIRECTION OF AIR CIRCULATION Vertical (up-down) direction of airflow is adjusted by pressing the Remote Controller’s AIR FLOW DIRECTION button. Horizon- tal (right-left) airflow direction is adjusted manually, by moving the Air Flow Direction Louvers. Whenever making horizontal airflow adjustments, start air conditioner operation and be sure that the vertical air direction louvers are stopped.
  • Page 11 SWING OPERATION Begin air conditioner operation before performing this procedure. To select SWING Operation Press the SWING LOUVER button (Fig. 6 T). The SWING indicator lamp (orange) (Fig. 3 8) will light. In this mode, the Air Flow Direction Louvers will swing automatically to direct the air flow both up and down.

  • Page 12: Cleaning And Care

    CLEANING AND CARE G Before cleaning the air conditioner, be sure to turn it off and disconnect the Power Supply Cord. CAUTION! G Be sure the Intake Grille (Fig. 1 9) is installed securely. G When removing and replacing the air filters, be sure not to touch the heat exchanger, as personal injury may result.

  • Page 13: Troubleshooting

    TROUBLESHOOTING In the event of a malfunction (burning smell, etc.), immediately stop operation, disconnect the WARNING! Power Supply Plug, and consult authorized service personnel. Merely turning off the unit’s power switch will not completely disconnect the unit from the power source. Always be sure to disconnect the Power Supply Plug or turn off your circuit breaker to ensure that power is completely off.

  • Page 14: Operating Tips

    TROUBLESHOOTING Symptom Items to check See Page G Is the Power Supply Plug disconnected its outlet? CHECK ONCE Doesn’t operate at all: MORE G Has there been a power failure? — G Has a fuse blown out, or a circuit breaker been tripped? G Is the timer operating? 7 - 8 G Is the air filter dirty?
  • Page 15 OPERATING TIPS Temperature and Humidity Range Cooling Mode Dry Mode Outdoor temperature About 21-43 °C About 21-43 °C Indoor temperature About 18-32 °C About 18-32 °C G If the air conditioner is used under higher temperature conditioner than those listed, the built-in protection circuit may operate to prevent internal circuit damage.
