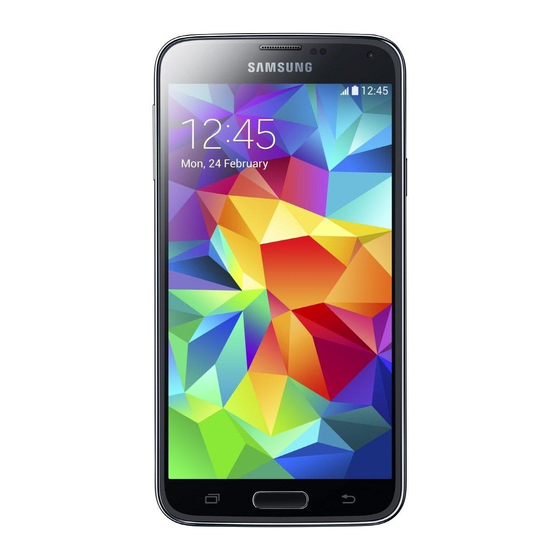

Samsung galaxy S5 Assembly Manual
Hide thumbs
Also See for galaxy S5:
- User manual (397 pages) ,
- Complete manual (132 pages) ,
- Basics handbook manual (80 pages)
Advertisement
Quick Links
Download this manual
See also:
User Manual
Disassembly & Assembly
Guide for Galaxy S5
June, 2014
HHP
This material is a property of Samsung Electronics Co., Ltd. Any unauthorized use of this material can be punished
under applicable International and/or domestic law.
- This document cannot be used without Samsung's Authorization -
Advertisement
Related Manuals for Samsung galaxy S5
Summary of Contents for Samsung galaxy S5
- Page 1 Guide for Galaxy S5 June, 2014 This material is a property of Samsung Electronics Co., Ltd. Any unauthorized use of this material can be punished under applicable International and/or domestic law. - This document cannot be used without Samsung’s Authorization -...
- Page 2 Samsung reserves the right to make changes to this document and the product described herein, at anytime, without obligation on Samsung to provide notification of such change.
- Page 3 Guide of disassembly - This document cannot be used without Samsung’s Authorization -...
- Page 4 2. Guide of disassembly Disassemble Home key Cover & Connector Do NOT use sharp tweezers - This document cannot be used without Samsung’s Authorization -...
- Page 5 2. Guide of disassembly Put the device into the Dryer Temperature: 80℃ Time: 10minutes - This document cannot be used without Samsung’s Authorization -...
- Page 6 (Must treat with gloves) Use Disassembly knife Scrap Bracket and Rear case instead of Glass absorber (Cannot use Absorber due to remained broken glass due to broken glass) (Never re-use Bracket & Rear) - This document cannot be used without Samsung’s Authorization -...
- Page 7 Disassemble Bracket from the Rear case ② ① ① Total 13 points Be careful not to bend bracket, especially Battery plate ③ These 3 screws must be changed with new one whenever it is disassembled. - This document cannot be used without Samsung’s Authorization -...
- Page 8 2. Guide of disassembly Disassemble PBA from the Bracket Disassemble connector - This document cannot be used without Samsung’s Authorization -...
- Page 9 2. Guide of disassembly Disassemble Sub PBA from the Bracket Work via disassembly hole Detach with tweezers via disassembly hole - This document cannot be used without Samsung’s Authorization -...
- Page 10 2. Guide of disassembly Disassemble Motor & Volume key FPCB from the Bracket - This document cannot be used without Samsung’s Authorization -...
- Page 11 Guide of assembly - This document cannot be used without Samsung’s Authorization -...
-
Page 12: Bill Of Material
3. Guide of assembly Bill of material – 1 (SM-G900F) Display Rear Braket Sub PBA Screw(Rear) Screw(IF) Screw(Bracket) Silver Silver Black 1.4×4.0mm 1.4×4.0mm 1.4×3.0mm 10ea - This document cannot be used without Samsung’s Authorization -... - Page 13 3. Guide of assembly Assemble Motor & Volume key FPCB on the Bracket Volume key FPCB guide rib Motor guide rib - This document cannot be used without Samsung’s Authorization -...
- Page 14 3. Guide of assembly Assemble Sub PBA on the Bracket Remove vinyl Join on 3 guide points Remove paper Fold up FPCB - This document cannot be used without Samsung’s Authorization -...
- Page 15 3. Guide of assembly Assemble PBA on the Bracket Assemble connector - This document cannot be used without Samsung’s Authorization -...
- Page 16 Assemble Bracket on the Rear case ③ ② ② Total 13 points Do NOT push Battery plate ① These 3 screws must be changed with new one whenever it is disassembled. - This document cannot be used without Samsung’s Authorization -...
- Page 17 3. Guide of assembly Assemble OCTA unit on the Rear case RCV hole Remove vinyl Use Absorber to avoid finger interference Home key Connector LCD Connector Press OCTA outside - This document cannot be used without Samsung’s Authorization -...
- Page 18 3. Guide of assembly Connect Home key and Assemble Cover - This document cannot be used without Samsung’s Authorization -...
- Page 19 Disassembly & Assembly IF Connector - This document cannot be used without Samsung’s Authorization -...
- Page 20 2. Guide of disassembly Disassemble IF Cover from the Rear (In case of IF Cover defect) Remove all remained substance - This document cannot be used without Samsung’s Authorization -...
- Page 21 3. Guide of assembly Bill of material – 3 (SM-G900F) IF Cover IF Cap Screw Tape - This document cannot be used without Samsung’s Authorization -...
- Page 22 3. Guide of assembly Assemble IF Cover on the Rear - This document cannot be used without Samsung’s Authorization -...
- Page 23 Thank you! - This document cannot be used without Samsung’s Authorization -...
