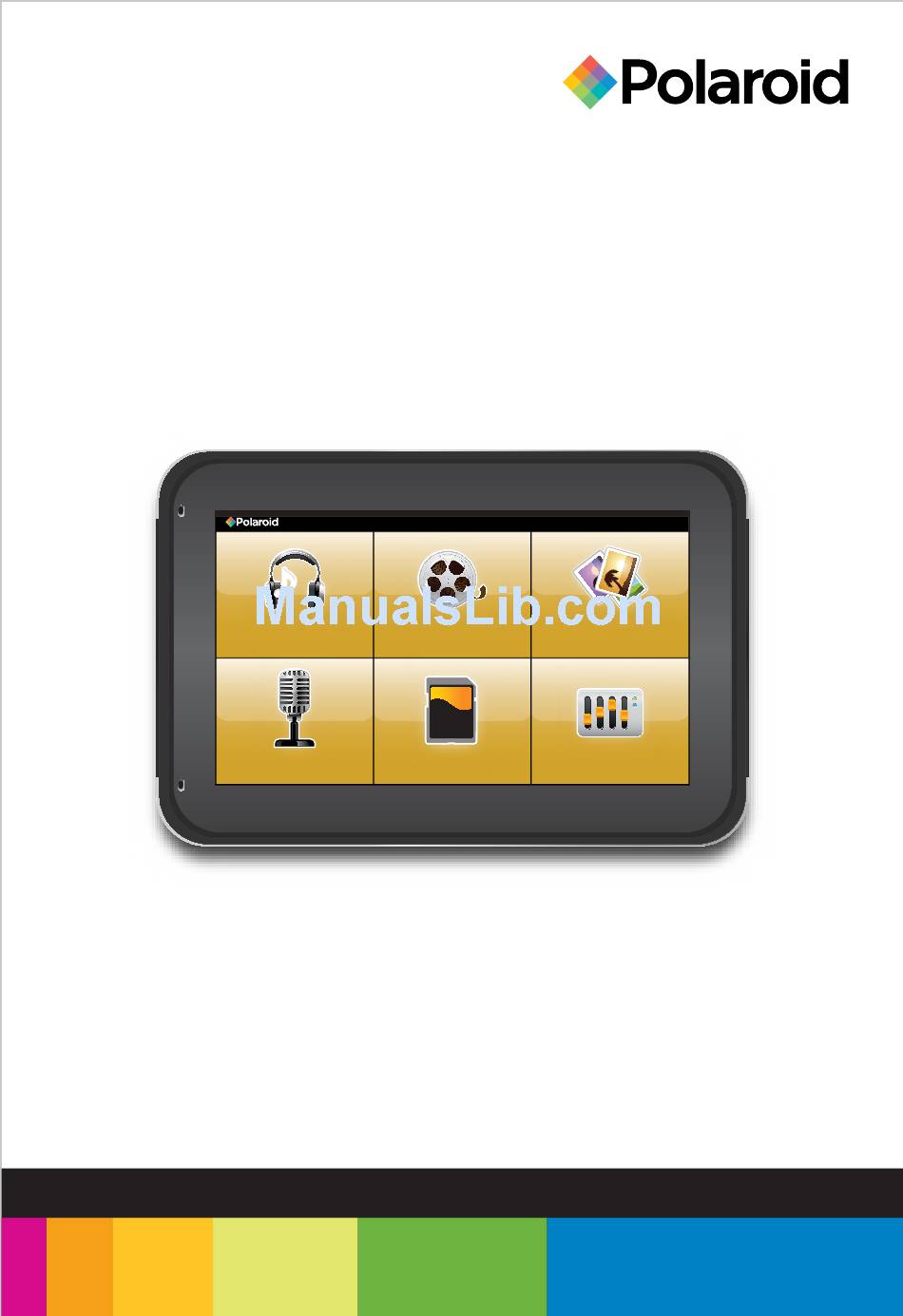

Page 1
Music & Video Player with 4.3” Touch Display PMP430-4 music music record record record record User Manual video video photos photos browser browser browser browser browser browser browser browser browser browser settings settings settings settings...
Page 2
In the box music record Music & Video Player with 4.3” Touch Display PMP430-4 music music video video photos photos record record record record browser browser browser browser browser browser browser browser browser browser settings settings settings settings User Manual...
Location of controls 1. [POWER] Power on/off Play/pause 2. Headphone jack 3. Micro SD card slot 4. Mini-USB port 5. Touch Screen Display music music video video record record record record browser browser browser browser browser browser browser browser browser browser 6.
Basic operation Charging: 1. Connect the player to your computer using the included USB cable. 2. Charge the battery between 3-5 hours (do not charge for more than 8 hours). Turning on/off: Make sure the player is fully charged before turning it on. •...
Inserting the Micro SD card The player supports Micro SD cards (not included), which allow you to add additional memory to the player. To insert the Micro SD card: 1. Insert the Micro SD card into the card slot with the metal contacts facing towards the back of the player, and gently push it in until it clicks.
Transferring media files to the player 1. Find music, picture, or video files on your computer. It is also possible to delete files on the player while connected to the computer. Select the file and press the delete key of the computer’s keyboard.
Page 7
2. Connect the player to the computer, and locate “MP3” . 3. Drag the files as shown below (do not drag the files into the “RECORD” folder). Locate “MP3”...
Page 8
The “RECORD” folder stores and organizes all your recorded voice memos only. *Screenshots above may be slightly different than your computer’s operating system.
Music Main Menu: After turning on the player, the Main Menu appears. Use the touch buttons to control the player and make selections. music record • To set the equalizer, go to “settings” > “Music Settings” > “Equalizer” • To delete music files, select “browser” from the Main Menu Main Menu video browser...
Page 10
1) Select “music” from the Main Menu. 2) Select ”All Songs”, “Artists”, “Albums” or “My Favorites”. 3) Use the [ ] or [ ] button to select a music file and press “OK”, the Now Playing screen appears. 4) Use the [...
Now Playing Screen (music) Artist/Album/Song back Repeat mode Volume down Repeat Mode: Play all songs once and stop Normal Play current song and repeat Repeat Play all songs and repeat Repeat All Elapsed time counter 00:00 -03:38 Sade/Soldier of Love Be That Easy Repeat All In Order...
Page 12
Create your own favorite playlist 1) Select your favorite songs and press the “Add to Favorite” button to make a custom playlist. 2) To listen to songs added to the favorites list, select “My Favorites” from the Music Menu. My Favorites “Add to Favorite”...
Page 13
Video 1) Select “video” from the Main Menu. 2) Use the [ ] or [ ] button to select a video file and press “OK”. 3) Use the [ back] button to go to previous screens or return to the Main Menu. back Movie 01.avi Movie 02.avi...
Page 14
Video Screen Back to previous screen back Volume down Previous Touch the screen to make the video interface appear or disappear. Elapsed time counter 00:00 -03:38 Play/Pause Next Fullscreen Volume level Volume up...
Page 15
Photos 1) Select “photos” from the Main Menu. 2) Use the [ ] or [ ] button to select a photo file and press “OK”. 3) Use the [], [], [] to view the next or previous photo and start/pause the slideshow. back 4) Use the [ Rotate] button to adjust the image.
Page 16
Fullscreen Touch the screen to make the photo interface appear or disappear.
Page 17
Record To record voice memos, select “record” from the Main Menu. Save recording/ Main Menu 1) Press [ 1) Press [ ] to start/pause recording ] to start/pause recording. 2) Press the [Memos ] button to save the recording and enter the Memos Screen where you can playback the recorded voice memos.
Page 18
Browser Select “browser” from the Main Menu to view or delete files on the player or Micro SD card (if inserted). IMG_01.jpg IMG_02.bmp Movie 03.avi Track 01.mp3 Track 02.wmv If a Micro SD card is inserted in the player, the following screen appears - select “SD card”...
Page 19
Deleting files on the player or SD card To delete a file, use the [ ] or [ ] button to select, and press the “Delete” button. IMG_01.jpg IMG_02.bmp Movie 03.avi Track 01.mp3 Track 02.wmv On the “Delete file?” screen that appears, select “YES”...
Page 20
Settings In the settings menu you can customize various player settings, such as: power usage, language, display settings and more. back Music Settings Display Power Options Language Default Settings Adjust the “Display” and “Power Options” to extend and optimize battery performance. Settings...
You may also go to HYPERLINK "http://www.polaroid.com" www.polaroid.com and reference About / Electronic Recycling to learn more about the specific laws in your area and to locate a collection facility near your home.
Troubleshooting Can not power on • The battery may be exhausted, please recharge the battery. Files can not be transferred to the player • Check if the driver is installed correctly in the computer by disconnecting and then reconnecting the player to the computer •...
Limited Warranty This Product as supplied and distributed new by AIT, Inc. (“AIT”) to the original consumer purchaser and is warranted by AIT against defects in material and workmanship for a period of one year from your date of purchase (“Warranty”). In the unlikely event that this product is defective, or does not perform properly, you may within one year from your original date of purchase return it to the authorized service center for repair or exchange.
