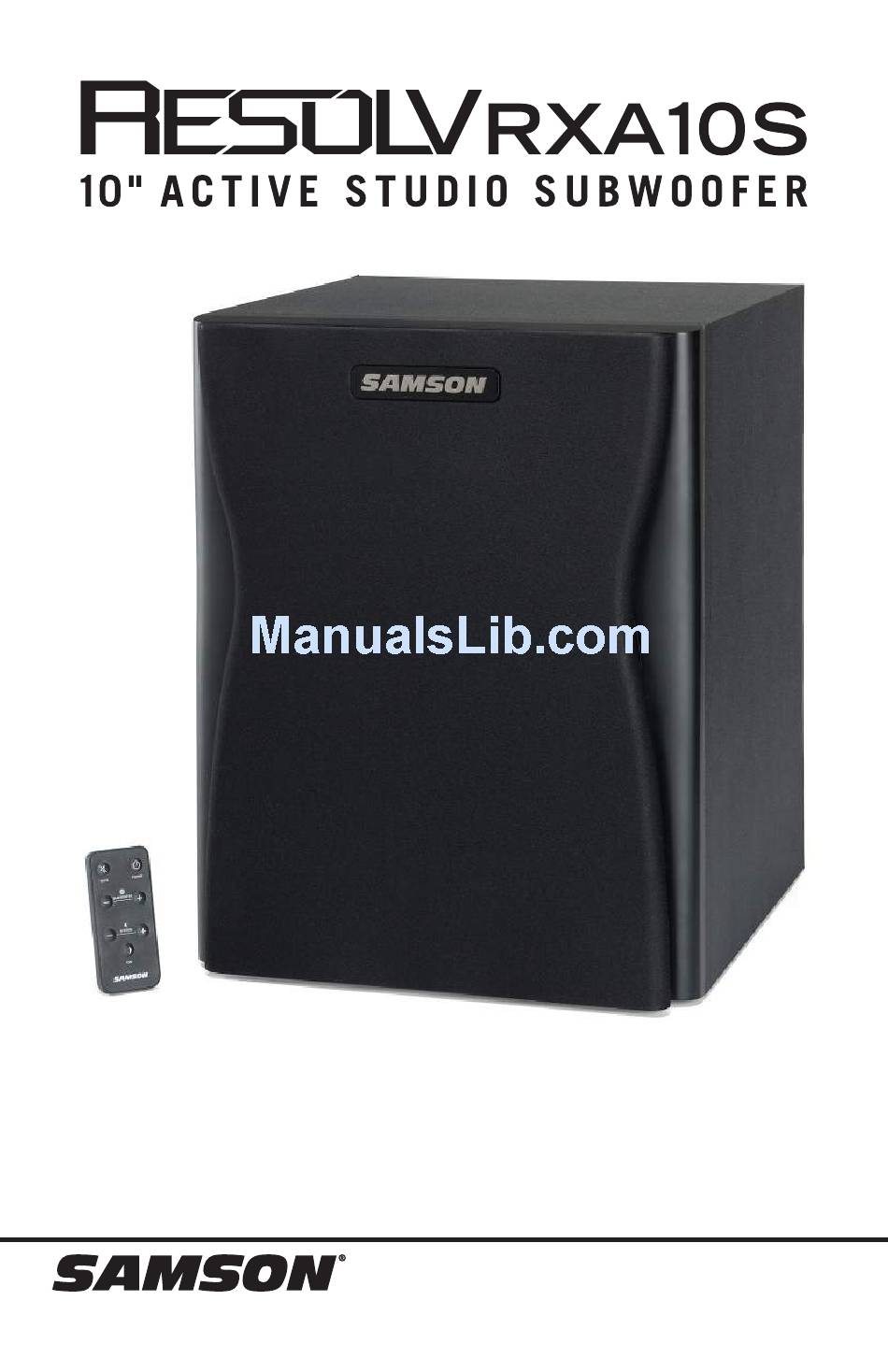

- Page 1 OWNER'S MANUAL...
- Page 2 Introduction Thank you for purchasing the Samson Resolv RXA10S Active Subwoofer. Taking care of the low end for your near-field monitor system, a powerful 150-watt low frequency amplifi- er drives a heavy-duty 10-inch transducer, reproducing tones between 40 –200 Hz. The RXA10S’s low frequency driver is an 10-inch, long excursion transducer with a Butyl sur-...
- Page 3 Features The Samson Resolv RXA10S subwoofer provide deep, tight bass and is the perfect compliment to any studio monitor system. Here are some of their main features: • 10” long excursion coated paper woofer with butyl surround • 150 Watt Power Amplifier •...
-
Page 4: Rear Panel Callouts
9. AC Inlet – Connect the supplied IEC power cable here. 10. Voltage Switch – Used to select the operating voltage. NOTE: Be sure to check that the voltage setting and fuse rating are correct for your country. RESOLV RXA10S 10” Active Studio Subwoofer... -
Page 5: Using The Remote Control
Using the Remote Control You can take advantage of many of the features of the RXA10S using the infrared remote. Make sure that the battery (LR2032) is installed and then follow the sections below that detail the operation of the remote control. - Page 6 You can also use your ears by adjusting the LPF control to the frequency that sounds good to you. Run an audio signal through your system and raise the level to a comfortable listening level. RESOLV RXA10S 10” Active Studio Subwoofer...
-
Page 7: Wiring Guide
Wiring Guide There are several ways to interface the Resolv RXA subwoofer depending on your exact monitoring set-up. Follow the cable diagrams below for connecting your moni- tor system. Pin 2 (hot) Hot to Tip Tip (signal) Pin 3 (cold) Male XLR Sleeve (ground) Pin 1 (shield) -
Page 8: Specifications
SYSTEM VOLUME, BASS VOLUME, LPF, PHASE Power Consumption 200W Fuse AC 100V-120V 6.3A/250V AC 220V-240V 4.0A/250V Dimensions (L x W x H) 14.17" x 12.75" x 16.1" 360mm x 324mm x 409mm Weight 27.33 lb 12.4 kg RESOLV RXA10S 10” Active Studio Subwoofer...
