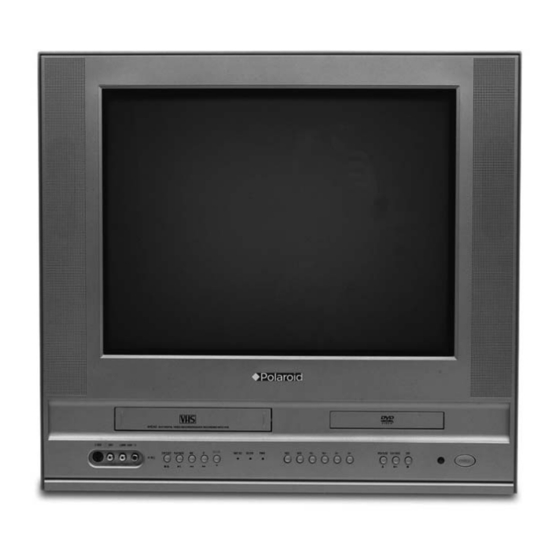

- Page 1 20” TV/DVD/VCR Combo TBX-2000AF Instruction Manual...
-
Page 2: Introduction Safety Precautions
Instruction ManualManual WARNING To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. -
Page 3: Important Safety Instructions
Instruction ManualManual IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8. -
Page 4: Notes On Discs
•DO NOT TOUCH THE PLAYBACK SIDE OF THE DISC. •DO NOT ATTACH PAPER OR TAPE TO DISCS. Note: Polaroid SHALL NOT BE RESPONSIBLE FOR DAMAGE THAT MAY OCCUR TO A DISC FROM BEING OPERATED IN THE UNIT. Cleaning discs •Fingerprints and dirt on the disc cause picture and sound deterioration. -
Page 5: Table Of Contents
Instruction ManualManual INTRODUCTION Safety Precautions ...1 Feature Descriptions ...5 Specifications ...5 Front and Rear Unit Profiles ...6 Remote Control Features ...6 INSTALLATION Connecting the Antenna ...8 Installing the Remote Control Batteries ...8 Connecting A/V Equipment ...9 FUNCTIONS & FEATURES Turn On/Off ...11 Basic Functions ...11 Function Selection Menus Picture Menu ...11... -
Page 6: Feature Descriptions
Instruction ManualManual Feature Descriptions 181 Channel Tuner - Total number of channels the TV can receive: 2-69 in Air mode, or 1-125 in Cable mode AV Input (Front) - Input designed for infrequent use, such as with a camcorder or video game unit S-Video Input (Front) - Input designed for greater clearity and sharpness AV Input (Rear) - Standard composite input designed for use with A/V devices, such as a DVD player AV Output (Rear) - Output signals from TV to devices such as VCR's... -
Page 7: Front And Rear Unit Profiles
Instruction ManualManual Front and Rear Unit Profiles Front panel 3 4 5 6 7 1 AV IN1 JACK 7 REC/OTR 2 VCR DECK 8 TIMER REC INDICATOR 3 STOP/EJECT 9 REC/OTR INDICATOR 4 PLAY/PAUSE 10 POWER INDICATOR 5 FAST REVERSE 11 TV/VIDEO SELECT 6 FAST FORWARD 12 MENU SELECT... -
Page 8: Remote Control Features
Instruction ManualManual Remote Control Features The keys marked with * have composite functions. Button To enter DVD mode TV/VCR Channel number (0~9) VIDEO PICTURE DVD SET UP CH-/+(TRK-/+) C C (SUB-T) MTS/SAP(AUDIO) ANGLE(SKIP) REPEAT PAUSE(STEP) To pause during recording SPEED PLAY/PAUSE PREV(VCR SEARCH) NEXT(VCR TIMER) -
Page 9: Installation
Instruction ManualManual INSTALLATION - Please read the safety instructions in this manual completely before installation. - Install your unit in an area where direct sunlight will not fall upon the screen. - Soft, indirect light is best for television viewing. - Allow enough space (at least 4 in.) between the TV and any walls or enclosures for proper ventilation. -
Page 10: Connecting A/V Equipment
Instruction ManualManual INSTALLATION (continued) Connecting A/V Equipment The following are diagrams showing basic instructions for attaching external equipment, like a VCR or DVD player, to your unit. Please refer to operation manuals of external audio/video equipment that will be connected to your set for additional instructions. PLEASE TURN OFF ALL POWER BEFORE CONNECTING DEVICES TOGETHER. - Page 11 Instruction ManualManual INSTALLATION (continued) Connecting A/V Equipment (continued) Enjoying Digital Stereo Sound (Digital Stereo) Enjoy the dynamic sound of Digital Stereo by connecting an amplifier equipped with a digital audio input and speaker system (right and left front speakers). Set "SPDIF Output" to "SPDIF/PCM" via the setup menu. Enjoy DTS DTS programming can deliver surround sound with five discrete full range channels plus a sixth channel for a...
-
Page 12: Functions & Features Turn On/Off
Instruction ManualManual FUNCTIONS & FEATURES Turn On/Off 1. Turn On Plug in the power cord, and the TV should enter into Standby mode. Pressing STANDBY key will turn on the TV and its power indicator light. 2. Standby While the TV is on, press the STANDBY key will put the TV in Standby mode. The power indicator light on the TV set will turn off. -
Page 13: Tuner Menu
Instruction Manual FUNCTIONS & FEATURES Tuner Menu Note: This menu is only accessible while the TV is in Tuner mode. Channel: This feature allows you to change the channel displaying on < / > screen. Press or the numeric keypad to change the channel. Add/Erase: This feature allows you to add or remove the channel currently display on screen to the "active channel list"... - Page 14 Instruction ManualManual FUNCTIONS & FEATURES (continued) General Menu (continued) Parental Guide This feature allows parents to block certain programs from being viewed, based on the program’s rating. In order to access this menu, you must first enter a pass code. The factory default is 6688. Enter the pass code while the Parental Guide is highlighted.
-
Page 15: Useful Remote Control Features
Instruction ManualManual FUNCTIONS & FEATURES (continued) Useful Remote Control Features DISPLAY Pressing this key will display the current information of the TV on the screen. (channel, antenna mode, time, video, etc.) Pressing it again allows you to display the current information of the VCR. To turn off the display, press the key repeatedly. -
Page 16: Dvd Functions
Instruction ManualManual DVD FUNCTIONS Playing Back a Disc 1. How to playback a disc 1) Press DVD to enter the DVD mode. 2) Press OPEN/CLOSE to open the disc tray. 3) Place the disc on the disc tray. Be sure the playback side is face down. Note: A disc may be damaged if not correctly placed on the guides in the disc tray. -
Page 17: Using The On-Screen Display
Instruction ManualManual DVD FUNCTIONS(continued) Playing Back a Disc (continued) Note: The DVD Player may not playback sound during scan reverse or forward playback of DVD video discs. The DVD Player will play sound during fast forward or fast reverse playback of audio CDs. The speeds may vary slightly from disc to disc and the 2x, 4x, 8x, and 16x speeds are only approximate speeds. -
Page 18: Locating A Specific Title, Chapter Or Track
Instruction ManualManual DVD FUNCTIONS(continued) Locating a Specific Title, Chapter or Track THE DVD VIDEO DISCS ARE NORMALLY DIVIDED INTO TITLES. THE TITLES ARE SUB-DIVIDED INTO CHAPTERS. AUDIO CD AND MP3 DISCS ARE DIVIDED INTO TRACKS. YOU CAN CONVENIENTLY LOCATE ANY SPECIFIC TITLE, CHAPTER, OR TRACK WITH THIS UNIT. Chapter1 Chapter2 Chapter3 Chapter4 Chapter5... -
Page 19: Selecting Subtitles
Instruction ManualManual DVD FUNCTIONS(continued) Selecting Subtitles THIS UNIT ALLOWS YOU TO DISPLAY SUBTITLES INCLUDED ON THE DISC ON YOUR TV SCREEN. How to display subtitles You have the option to select a preferred subtitle from those included on the DVD video disc. Press the SUB-T during playback until the subtitles disappears. -
Page 20: Playing Back Your Kodak Picture Cd
Instruction ManualManual DVD FUNCTIONS(continued) Playing Back Your Kodak Picture CD 1. Normal When a Kodak Picture CD is inserted, an automated slide show is launched, each picture in the current directory will be displayed consecutively in a slide-show fashion and will be scaled to fit most of the TV screen. -
Page 21: Setting The Parent Lock
Instruction ManualManual DVD FUNCTIONS(continued) Setting the Parental Lock YOU CAN USE THE PARENTAL LOCK FUNCTION ONLY WITH DVD VIDEO DISCS EQUIPPED WITH THE PARENTAL LOCK FEATURE. Setting the parental lock DVD video discs equipped with the parental lock function are rated according to their content. The contents allowed by a parental lock level and the way a DVD video disc can be controlled may vary from disc to disc. -
Page 22: Customizing The Function Settings
Instruction ManualManual DVD FUNCTIONS(continued) Customizing the Function Settings THIS UNIT ALLOWS YOU TO CUSTOMIZE THE PERFORMANCE TO YOUR PERSONAL PREFERENCES. Displaying the setup menu screen The SETUP MENU screen asks you to select a setting category from General Setup, Speaker Setup, Audio Setup, and Preferences. -
Page 23: Vcr Funtions
Instruction ManualManual VCR FUNCTIONS VCR Playback Insert the desired tape. (In the DVD mode, you must first press the TV/VCR key to change to TV mode.) 2. If you want to playback it, press PLAY/PAUSE key. When the playback picture is partially noisy, adjust with TRK-/+ key. -
Page 24: Search Function
Instruction ManualManual VCR FUNCTIONS(continued) Search Function Go to Zero Search As soon as the counter searches 0:00:00 , the tape will play automatically. Counter Search With or Number key, enter the desired time and press ENTER. The counter appears on screen. When the counter searches the set number, the tape will play automatically. -
Page 25: Other Remote Control Features
Instruction ManualManual VCR FUNCTIONS(continued) Other Remote Control Features During tape playback, press the key once. The player will memorize the beginning of a segment (point A) and continue to play. Press it again. The combo will memorize the end of a segment (point B). At the same time, it will return to point A and start to repeat playback of the selected segment (A-B). -
Page 26: Troubleshooting Guide
Instruction ManualManual TROUBLESHOOTING GUIDE Check the following guide for a possible correction to a problem before contacting customer support. Symptoms No power • Connect the power plug into the wall outlet securely. • Verify the connection from the VCR video output to the TV video input is secure. Then switch Dark, Poor or No picture •... - Page 27 1-866-289-5168 aux États-Unis et le 1-866-301-7922 au Canada. Au Mexique appeler le 01-800-400-2443. "Polaroid" est une marque déposée de Polaroid Corporation, Waltham, MA, États-Unis, et dont l'usage est autorisé pour le TBX-2000AF auprès de Petters Consumer Brands, LLC. Spanish Para información relacionada al mantenimiento, soporte y garantía, visite www.polaroidelectronics.com o, en los...
