Operating Instructions

Model No. /

Electric Thermo Pot

NC-HU401P

NC-HU301P

12/1/11 9:55:22 AM

Table of Contents

Summary of Contents for Panasonic NC-HU401P

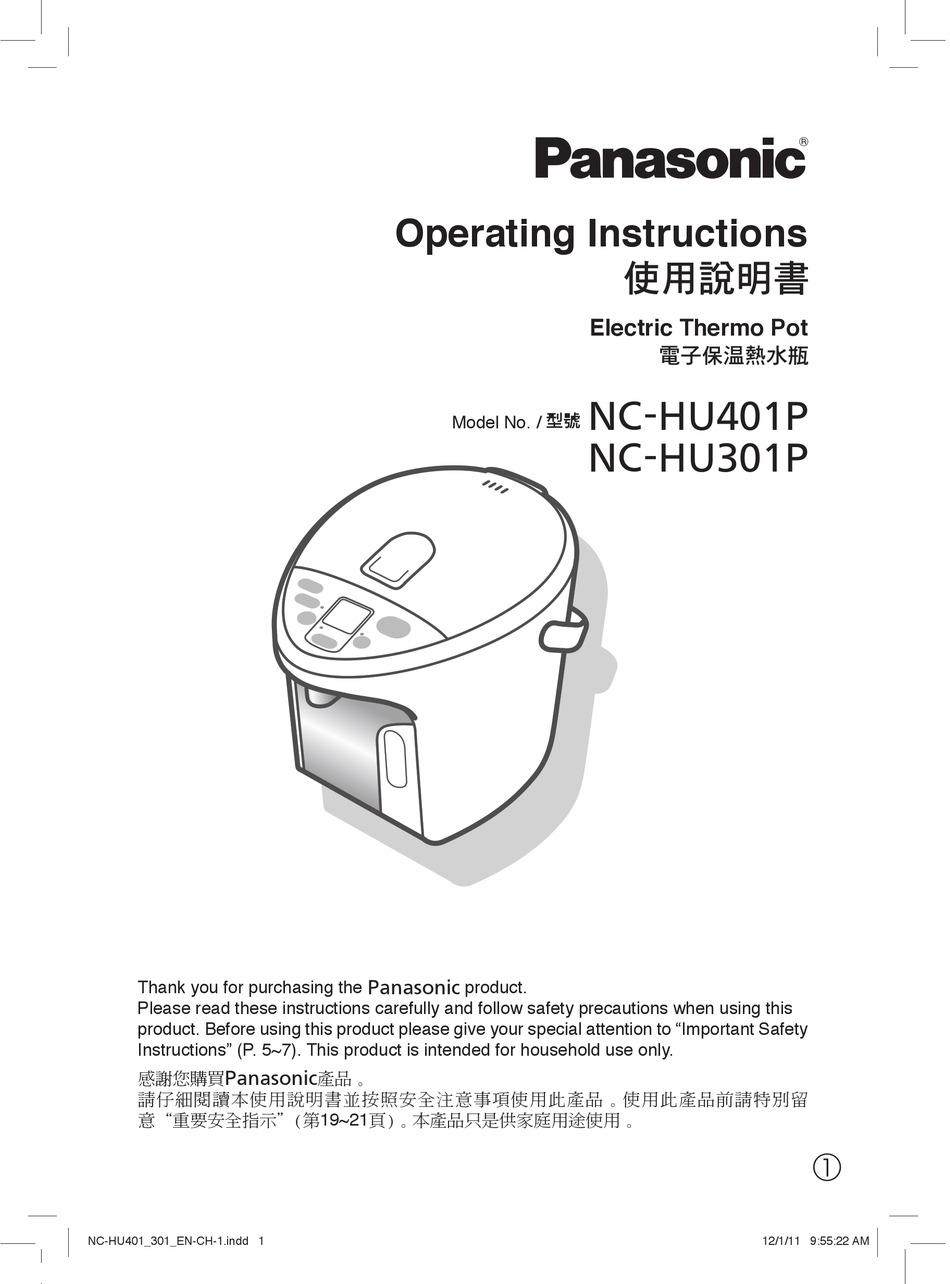

Page 1: Operating Instructions
NC-HU401P Model No. / NC-HU301P Thank you for purchasing the Panasonic product. Please read these instructions carefully and follow safety precautions when using this product. Before using this product please give your special attention to “Important Safety Instructions” (P. 5~7). This product is intended for household use only.
Page 2: Table Of Contents
Table of Contents Main Features ................. 4 Safety Precautions ..............5 Part Names and Handling Instructions ........8 Preparation before Using ............9 How to Use ................10 Convenient use methods ............12 Care & Cleaning ..............14 Troubleshooting ..............16 Replacement of Parts ............
Page 3 ................18 ................19 ............. 22 ..............23 使用前的準備工作 ................24 ............... 26 ................28 保養和清洗 ................30 ................31 封底 ..................NC-HU401_301-EN+CH-1.indd 3 6/18/08 2:56:24 PM...
Page 4: Main Features
Main Features Tasty Boiling with diamond fluorine and BINCHO charcoal. Particle of diamond and ground BINCHO charcoal are ● mixed with fluorine and used for inner container. Color, taste and aroma of tea can be maintained. Charcoal filter (refer to P.9 for fixing) Approx.
Page 5: Safety Precautions
Safety Precautions Please observe these precautions fully For safety sake and in order to prevent property damage and the hazardous to users and others, please read the following instructions strictly. ■ The signals indicate harm and damage when the product is used wrongly. Indicating Indicating "the user "it may cause...
Page 6 Safety Precautions Please observe these precautions fully WARNING Power Cord Never do anything that might cause damage Power cord to the cord, power plug or body plug, such as damage them, modify them, place hot objects near to them, bend them, twist them, stretch them, place heavy objects on them, or Power plug* bundle them together.
Page 7 CAUTION To Prevent Burns Do not place the unit on unstable surfaces. The appliance may topple over causing burns. Do not open the lid or dispense hot water while boiling. Splashing hot water or steam may cause burns. Do not rotate the unit while dispensing hot water. Splashing hot water may cause burns.
Page 8: Part Names And Handling Instructions
Part Names and Handling Instructions Operation panel If the protective ﬁlm is still covering the surface of the operation panel, peel it off before using the operation panel. Steam vent Lid opening lever Liquid crystal display Handle Main unit Dispensing spout Container Window rim...
Page 9: Preparation Before Using
Preparation before using Before you use this pot for the first time Before you use this pot for the first time Boil water in it to clean the thermo pot container and the sections through which the hot water is dispensed. 1 Boil some water.
Page 10: How To Use
How to Use Boiling water Pouring out Conn Boiling water Pour in water with another container! w MAX. WATER LEVEL Do not ﬁll with water above maximum water level. Pouring Minimum water level Fill the water higher than the minimum water level. To reduce the chlorine in the water (Long Boil) Where water is added There may be a case boiling does not start...
Page 11 Connect the power plug after ﬁll the water and close the lid. (1 → Notiﬁes when boiled. Fall in temperature Starts boiling peep peep Automatically switches automatically. peep peep to 90 warm keeping Cleaning Cleaning Cleaning Cleaning Cleaning Cleaning Light on Light off (Displayed temperature is indicative) Start of battery charging for cordless...
Page 12: Convenient Use Methods
Convenient use methods Timer Energy Saving When the unit will not be used for a short time, such as when you go out for a day... Setting the timer While setting the timer, the electriﬁ- ● cation of heater stops. Setting the energy saving No boiling while no use (water tempera- ●...
Page 13 Keep-warm Function Reboil Healthy Tea When the water will be boiled 8 hours later Remaining time will be indicated on 1 hour base. When cancel the timer key again 8 hours later, timer will go off and water starts boiling When the water is brought up to boiling temperature, keep-warm at the settled temperature.
Page 14: Care & Cleaning
Daily Clean with Care & Cleaning Citric Acid Maintenance (Before cleaning, be sure to disconnect the plug from outlet, dispense water and allow to cool the unit.) Main unit and lid Clean with a damp, well-wrung cloth. Do not wet or soak the main unit in water. ●...
Page 15 Once every two or three months to take care of scale. How to clean with citric acid Make sure that the mesh ﬁlter is attached to the container. Put citric acid in the inner container. Amount of citric acid to be used at one time: ●...
Page 16: Troubleshooting
Troubleshooting Before calling a service supplier, please check the following possible causes. If... How to ﬁx Possible cause The cause of this is “scale”. (See P.14) ● It is not ﬂakes of ﬂuororesin. Clean the inner container White or glittering ●...
Page 17: Replacement Of Parts
You poured in water directly from a tap. ● It is broken if the electric ● You put the unit on the sink. ● components are taken in The unit doesn’t water. Contact the stores You turned the unit upside down with turn on electricity.
Page 18 美味使用金剛氟和備長炭燒水。鑽石和備長炭粉的粒子與氟混合用作內瓶。 ● 茶的顏色、味道和香味可以保存。炭濾器 (請參閱第7頁有關如何安裝) 大約90%的氯、菌類氣味和三鹵甲烷被濾去。 ● (可消耗部件,請參閱第31頁) 健康的沏茶方法 (如何使用,請參閱第27頁) 燒水被鹼化,和幫助萃取兒茶酚等茶的成分。 ● 熱水可以以4種速度按出 (如何使用,請參閱第25頁) 所按出的熱水容量視按的力度和出水時間而有 ● 所不同。無電線按熱水 (如何使用,請參閱第25) 熱水在電線被拔除後仍然可以被按出。 ● 4個定時器選擇 ● 可以選擇 4 / 6 / 8 / 10 小時定時器。 (請參閱第27頁的“設置定時器”) 節能...
Page 19 為確保您的安全和避免財物損壞和危及用戶,請細讀以下指示。 ■ 當產品使用不當,此信號表示危險和損壞。表示 “可能會導致用戶受傷或有關產品可能會導致財物受損。 ” 主機若本機倒，熱水可能會濺出導致燒傷。 NC-HU401_301-CH-1.indd 19 7/30/08 3:33:52 PM...
Page 20 別讓嬰孩接近插頭! 您必須特別留意以避免嬰孩將插頭放入嘴裏。這可能會導致觸電或受傷。別讓小件的金屬零件放在插頭附近。這可能會導致觸電、短路或火災。主機這可能會導致電流短路和可能導致觸電，若水溢滿容器並滲入主機內置的電氣零件則可能會導致故障。 NC-HU401_301-CH-1.indd 20 7/30/08 3:33:56 PM...
Page 21 這可能會導致電流短路和可能導致觸電，若水溢滿容器並滲入主機內置的電氣零件則可能會導致故障。（切勿使用非特別為本機設計的電線。）切勿在散熱差的表面使用本機。 NC-HU401_301-CH-1.indd 21 7/30/08 3:34:00 PM...
Page 22 液晶顯示屏主機紅球當水位超過窗框時將看不見水位指示。 NC-HU401_301-CH-1.indd 22 7/30/08 3:34:02 PM...
Page 23 使用前的準備工作 Before you use this pot for the first time 第一次使用前加水入內煮沸以清洗熱水瓶容器和出熱水的部分。 1 煮一些水。 2 按出熱水。 3 按 “DRAIN” 標記倒空瓶子。如何拆除上蓋 1 按開開杆按鈕,打開上蓋然後拉開球形捏手。 2 打開上蓋。如何關上 : 按直至發出“滴答”聲。 2 斜斜地往上拉。如何設置炭濾器 1 按開蓋球形捏手時。 1 在水內抖動...
Page 24 倒水加水和倒水加水位置有些情況下燒水可能不會自動煮沸。延長燒水時間大約 6 分鐘以減低水內大約 90% 的氯。指示燈熄滅時按使亮起。 ● NC-HU401_301-CH-1.indd 24 7/30/08 3:34:07 PM...
Page 25 → 加水和關上上蓋後接上電源插頭。 (1 煮沸時發出聲響。下降溫度開始自動煮沸。嗶嗶嗶嗶自動轉換至90度保溫 Cleaning Cleaning Cleaning Cleaning Cleaning Cleaning 指示燈亮起指示燈亮起 (被顯示的溫度是象徵性的) 當更改保暖溫度的設置 (☞ 第27頁) 無電線按熱水的電池開始充電當調節適合泡茶的溫度 (☞第27頁) 指示燈亮起 (電池充電顯示) 指示燈亮起按倒水按鈕所按出的熱水容量視按的力度和出水時間而有所不同。出水時間(持續按的時間) 倒水完畢後10秒鐘自動鎖定。 5秒鐘以下 5至12秒鐘 12秒鐘以上輕輕按電線被拔除後倒水。 (無電線按熱水) 用力按...
Page 26 定時器能源節省當短時間內不會使用本機,例如當您要外出... 設置定時器設置定時器時,加熱器電源被中斷每次按 ● 將會跳至設置能源節省取 (將返沒有使用時不會煮沸(保持最低大約60°C ● 的溫度)並加熱至預設溫度以調節時間以便使用。建議您如此設置若出水時間通常固定。 ● ● 保暖溫度越低越節省能源。 ● 大約80°C 的水溫最適合天然茶葉茶。 ● 在發生電源和顯示故障而又恢復供電後, 使水適合泡茶。 “98” “80” (健康飲茶) 指示燈亮起再翻煮沖咖啡/泡茶/泡杯面等等 ● 時,最好使用沸水。注意...
Page 27 設置能源節省再翻煮保健茶當有關水會在8小時後再次煮沸當您要外剩餘時間將會以1小時為基本計算。斷當再次取消定時器按鈕每次按按鈕，指示燈將會跳至下一個選擇。 8小時後,定時器將解除並開始燒水當水被煮至沸點時轉換至保暖。若設置了“能源節省” 取消出水時間前開始煮沸 (將返回溫度顯示) 並保持在預設溫度。 60°C 間以便 “OFF”指示燈熄滅。沒有出水時顯示“OFF” 。固定。小心當設置了能源節省,本機自動在出水時間煮水。若同時與其它設備一起使用,斷路器可能會跳閘。每次按按鈕，標記...
Page 28 保養和清洗 ● ● ● 活性炭濾器每數個月用力在水內抖動並用軟海綿擦拭表面。請勿用清潔劑洗。 ● (這會導致臭味) 請勿用有烘乾機的洗碗機或烘 ● 碗機。(這會造成變形) 儲存時 ● 將其放入塑料袋中然後密封以避免昆蟲進入。 ● NC-HU401_301-CH-1.indd 28 6/18/08 3:20:12 PM...
Page 29 每兩個或三個月一次以清洗水垢。如何使用檸檬酸清洗接上插頭,然後選擇內的。嗶嗶嗶嗶清洗開始清洗完畢同時閃爍亮起熄滅熄滅清洗時液晶指示將會旋轉。指示燈提示清洗完畢。若要清除最高水位以上的變色,用濕海綿輕輕擦拭。 ● ● 若在沒有拆除炭濾器的情況下清洗,使用前請把活性炭濾器清洗,裝入內瓶,把首次煮沸的水倒去。 ● 小心本公司生產的。 ● ● ● NC-HU401_301-CH-1.indd 29 6/18/08 3:20:18 PM...
Page 30 請檢查一下問題可能性。成因／解決方法 Long Boil/Reboil 若本機尚新，生產過程所使用的樹脂可能會產生異味。這會在使用時消失。若將本機放在乙基子等等表面上使用，子的氣味可能會被傳入水內。沒有防止煮沸功能指示燈閃爍同時蜂鳴器發出防止過熱故障,這在沒有聲響 ● 加水直至超過水位標記,關水加熱時激活 ● (電供中斷) 被加入的水是否超過水上上蓋然後按。 ● 位標記? 加水時上蓋是否開著? 嗶嗶嗶嗶 ● 它可能亮起: ● 當加入熱水。 ● 按 ● 。視加水方法而定。 ● 交替閃爍 VIP Keep-warm 用檸檬酸清洗時檸檬酸...
Page 31 主機不會開電源。主機將主機上下倒置，而其底部仍然未乾。主機不會開電源。主機主機指示燈交替閃爍若無法恢復或發掘有任何不妥,拔出插頭,在 30 分鐘後重新連接然後再次操作。 ● 這是因為傳感器故障。請聯絡購買本機的商店。將主機上下倒置，而其底部仍然未乾。和顯示。 ● 內上蓋可能會變黃,但是對操作沒有不好的影響。 ● 打開和關上上蓋時發出的“哢嗒哢嗒”聲是閥轉動避免熱水流出來時製造出來的聲音。主機機身外的溫度會在室溫高時保暖為 45°C 。 ● 指示燈交替閃爍這是因為傳感器故障。請聯絡購買本機的商店。和顯示。若使用刷子刷洗仍無法清除諸塞過濾網上的異物,請替換過濾網。設置墊炭濾器更換時間:1年...
Page 32: Specifications
24.5 (大約) 44.5 37.5 使用檸檬酸的清理時間 : 20°C 室溫以下盛滿水。 : 20°C 室溫的水溫,盛滿水。所描述的性能可能無法在高地或極度寒冷等特定地區保持。 ● 沒有使用時,例如在冬季時把水排出。請記住,水可能會結冰和損壞零件。 ● Panasonic Corporation Website : http://www.panasonic.com Panasonic Corporation 2008 © PZ05H6284 T0608-4036 Printed in Thailand NC-HU401_301_EN-CH-1.indd 32 12/1/11 9:55:27 AM...
