Icom IC-F8101 Service Manual page 29

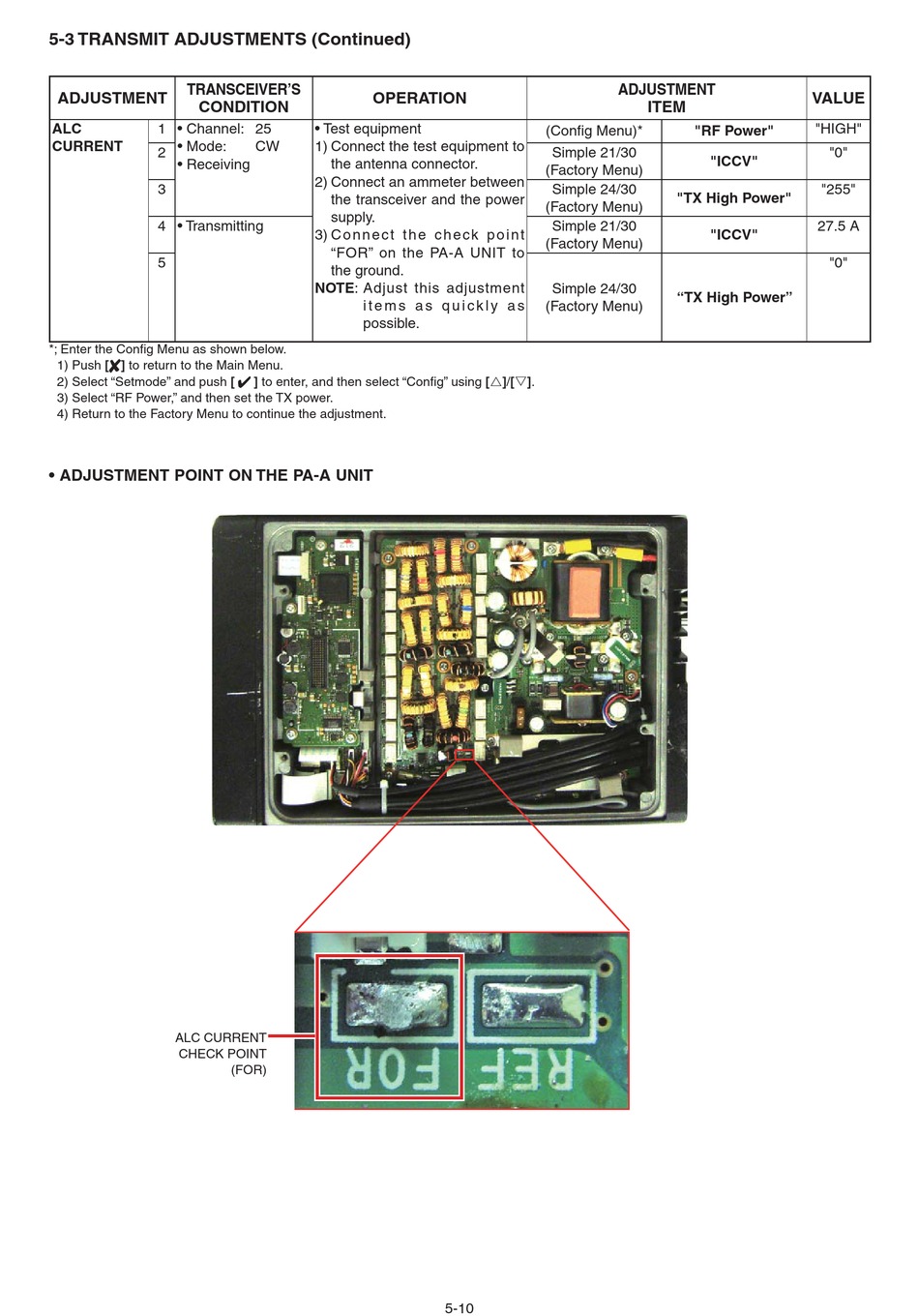

5-3 TRANSMIT ADJUSTMENTS (Continued)
TRANSCEIVER'S
ADJUSTMENT
CONDITION
ALC 1 • Channel: 25
CURRENT • Mode:
2
• Receiving
3
4 • Transmitting
5
*; Enter the Confi g Menu as shown below.
1) Push [ ] to return to the Main Menu.
2) Select "Setmode" and push [
3) Select "RF Power," and then set the TX power.
4) Return to the Factory Menu to continue the adjustment.
• ADJUSTMENT POINT ON THE PA-A UNIT
ALC CURRENT
CHECK POINT
OPERATION
• Test equipment
CW 1) Connect the test equipment to
the antenna connector.
2) Connect an ammeter between
the transceiver and the power
supply.
3) C o n n e c t t h e c h e ck p o i n t
"FOR" on the PA-A UNIT to
the ground.
NOTE: Adjust this adjustment
i t e m s a s q u i c k l y a s
possible.
] to enter, and then select "Confi g" using []/[].
(FOR)
ADJUSTMENT
(Confi g Menu)*
Simple 21/30
(Factory Menu)
Simple 24/30
(Factory Menu)
Simple 21/30
(Factory Menu)
Simple 24/30
(Factory Menu)
5-10
VALUE
ITEM
"HIGH"
"RF Power"
"ICCV"
"255"
"TX High Power"
27.5 A
"ICCV"
"TX High Power"
"0"
"0"
