Summary of Contents for Jabra Noise Guide

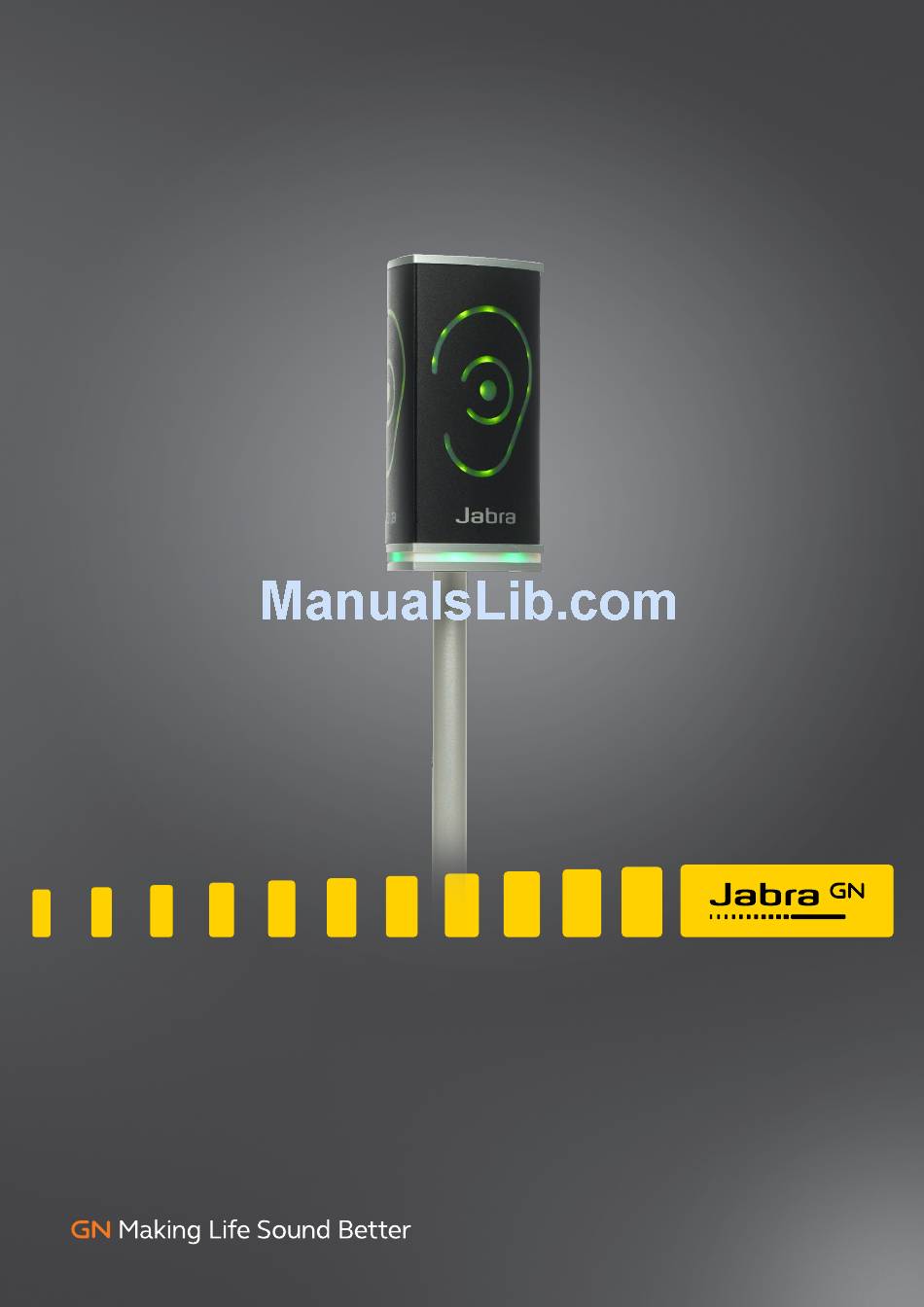

- Page 1 Jabra Noise Guide User manual...
- Page 2 This applies not only to your device but also to any enhancements marked with this symbol. Do not dispose of these products as unsorted municipal waste. Made in Taiwan Model: ANG001 Declaration of Conformity can be found on www.jabra.com/footerpages/declarations-of-conformity...
-
Page 3: Table Of Contents
TABLE OF CONTENTS CONGRATULATIONS ON YOUR NEW JABRA NOISE GUIDE BEFORE YOU START Box Contents Installing the device How to insert the USB memory How does Jabra Noise Guide work? Mounting – Aluminum Table Stand SOFTWARE SETUP Software Installation Set time... - Page 4 In order to fully understand the features and possibilities of Jabra Noise Guide, we advice you to read this manual carefully before you start using your Jabra Noise Guide. Please find the latest software and manual updates on our web site: www.jabra.com/support...
-
Page 5: Before You Start
5. Base 6. Table grip 7. Tube A and B INSTALLING THE DEVICE Jabra Noise Guide has 2 inputs at the bottom of the device. 1) A micro USB for power supply and export of data via a PC. 2) A standard USB input for exporting data from the internal log memory via the USB, and for offline configuration. -
Page 6: How To Insert The Usb Memory
HOW TO INSERT THE USB MEMORY STICK IN THE NOISE GUIDE 1. Face the Noise Guide, so you 2. Insert the USB memory stick have the USB port on the left with the JABRA logo facing from the tube. forward. -
Page 7: Mounting - Aluminum Table Stand
MOUNTING – ALUMINUM TABLE STAND CONTENT: • Base • Table grip • Tube A • Tube B (extension tube) Pass the cable through the disc base, and then through the hole in the table grip. J A B R A N O I S E G U I D E – M A N U A L R E T U R N T O “... - Page 8 Assemble tube A and B. Screw tube AB onto the base disc and connect the Jabra Noise Guide to the power cable. Screw the Jabra Noise Guide onto the tube. Mout to a flat surface as shown below. Please ensure that the cable comes out where there is a hole in the disc base so the cable is not pinched.
-
Page 9: Software Setup
Read more about this in the chapter ”About Jabra Noise Guide” p. 17. SET TIME 1. Connecet your Jabra Noise Guide to a PC 2. Move the cursor to the clock in the upper right corner of the screen 3. -
Page 10: Formatting The Usb-Key
WE RECOMMEND that you format the USB memory stick before either reading log data from the internal memory of the Jabra Noise Guide to the USB memory stick, or transferring a new configuration by USB to the Jabra Noise Guide. -
Page 11: Configuration
CONFIGURATION There are 2 ways of saving your configurations: 1. Connect the device directly to your PC while performing the configuration. 2. Uploading your configuration to the USB-key. 1. DIRECT CONFIGURATION: Connect the device directly to your PC. Click ”Configure” every time you have changed settings. This way, your settings will be saved directly on the device. -
Page 12: Operating The Software
OPERATING THE SOFTWARE QUICK SETUP There are 3 types of standard settings to choose from. To help decide which of the 3 op- tions to choose, click on the ques- tion mark to get further details. NOISY OFFICE: • The device is lit green when the noise level is below 60 dB. •... - Page 13 QUICK SETUP NORMAL OFFICE: • The device is lit green when the noise level is below 55 dB. • The device is lit yellow when the noise level ranges from 55 dB to 65 dB. • The device is lit red when the noise level exceeds 65 dB. QUIET OFFICE: •...
-
Page 14: Setup
SETUP DEVICE INFORMATION Version: Shows the firmware version that is installed on the Jabra Noise Guide. Name: Name your device. Files in the internal log memory will be saved with this name and the date. Please note that the Jabra Noise Guide must be connected directly to the PC in order to name the device. - Page 15 USB key before making the update. 1. Connect Jabra Noise Guide to your PC. Make sure that your PC is connected to the internet. 2. Click on ”Check for firmware updates”.
-
Page 16: Light Settings
SETUP LIGHT SETTINGS Under “Light Settings” you can adjust the settings for the alarm levels. Here is an example: 1. The Ear-symbol is lit green up 2. The Ear-symbol is lit yellow 3. The Ear-symbol is lit red to 60 dB. from 60 dB to 70 dB. - Page 17 PLEASE NOTE! If your Jabra Noise Guide is connected directly to your PC, remember to save your settings by clicking on ”Configure”. Click ”Export to USB” if you are performing an offline configuration.
-
Page 18: User Manual
The”Software Update” button links to our web site where you can find the latest software version. Always remember to update your Jabra Noise Guide with latest versions of both software (for your PC) and firmware (for the Jabra Noise Guide device). -
Page 19: Measurements Data
MEASUREMENTS DATA LIVE MEASUREMENT You can view live measurements in the software by connecting your Jabra Noise Guide directly to your PC. All data will be saved automatically to the ”Noise Guide Data” folder on the C-drive every 24 hours. - Page 20 MEASUREMENTS DATA SUMMARY Click the right tab ”Summary” to get a statement of your measurements in percentage. R E T U R N T O “ TA B L E O F C O N T E N T S ” J A B R A N O I S E G U I D E –...
-
Page 21: Navigating In The Software
NAVIGATING IN THE SOFTWARE READING THE GRAPH Place the cursor over the graph to view time and noise level values. Select what values you want the graph to show. In the bottom right corner a box shows the chart statistics for the certain period. -
Page 22: Show Marker
NAVIGATING IN THE SOFTWARE SHOW MARKER The “Show marker” function allows you to examine the measurements in a certain period of time. To select a period on the graph, check the box “Show marker”. A red and a blue marker will now appear. Move the markers by pulling them from side to side. -
Page 23: Zoom Funktion
NAVIGATING IN THE SOFTWARE ZOOM FUNKTION Whenever data is shown on the graph, it is possible to zoom in to look more closely on a specific area. 1. Current measurement. How to zoom in: 2. Position your cursor anywhere on the graph. 3. - Page 24 NAVIGATING IN THE SOFTWARE ZOOM FUNKTION The screen is now showing the magnified area. How to exit the zoom function: 1. Position your cursor anywhere on the graph. 2. Left-click and use the cursor to pull a grey area, pulling towards the left. 3.
-
Page 25: Measurement Library
Jabra Noise Guide automatically saves all live measurements to the C-drive in the folder called ”Noise Guide data”. Data imported from the Jabra Noise Guide via USB are also saved in this folder. All files are saved in a CSV format that is compatible with Excel. -
Page 26: The Csv File - What You See
NAVIGATING IN THE SOFTWARE WHAT YOU SEE IN THE CSV FILE FOR THE NOISE GUIDE When you open your Noise Guide measurements as SCV files, you are able to see the full picture of what is being measured. Date: Shows the date of the measurement LASmax: LAS is an A-weighted slow measurement. -
Page 27: Import Data From Usb
FACTORY SETTINGS If you wish, you can always restore the Jabra Noise Guide’s Factory Settings. We recommend that you install the Factory Settings whenever the firmware is being updated. You can also restore the Factory Settings if you want to reset the internal memory in your Jabra Noise Guide. -
Page 28: Faq
/ service, a functionality check and a visual inspection of the device must be performed before it may be used again. DESINFECTION / CLEANING Jabra Noise Guide contains materials that cannot tole-rate substances used in conventional surface disinfec- tants. Therefore, use only alcohol to clean the product. Desinfection by wiping: •... - Page 29 J A B R A N O I S E G U I D E – M A N U A L R E T U R N T O “ TA B L E O F C O N T E N T S ”...
