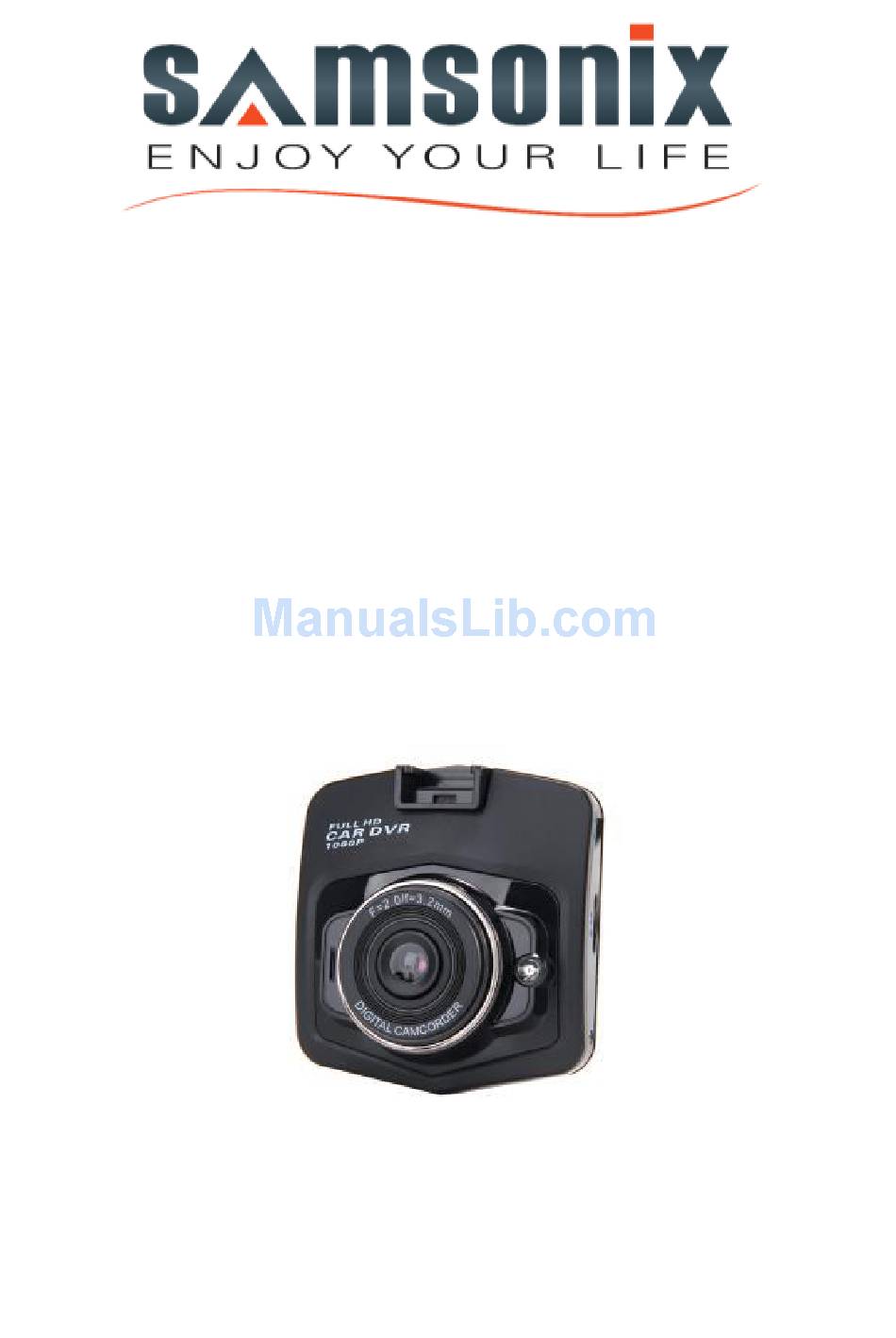

Page 1: User Manual
DVR-100 User Manual... - Page 2 Product structure...
- Page 3 1.Power button 2.OK button 3.Mode 4.Up button 5.Down button 6.Parking monitoring button 7.Lock button 8.Len 9.Night lights 10.USB 11.AV-OUT 12.HDMI –OUT 13.Mic 14.TF Slot 15.LCD screen 1. the power button: Features a: switch machine function In the shutdown of the state, through the short press [power] can work to boot into the standby state.
-
Page 4: Mode Button
2.OK button : function 1: Open/close video recording. In standby mode, short press [OK] open video, video is short press [OK ] stop video. Function 2: camera In photo mode short press [OK] to perform taking pictures. Features three: file playback function In playback mode short press [OK] can perform the play/pause video files. - Page 5 In picture mode, short press [mode key] into the playback mode at a time. In playback mode, short press [mode key] into video mode at a time. 4.up button: Function 1:in the menu choose function according to [up]. Function 2: there is video, to play the video files to the decrease of the volume, long press fast rewind.
- Page 6 Function 1: press the parking monitoring [parking monitoring] before the shutdown, then the machine P "along the right of the screen will be displayed, the machine will enter the parking mode. After parking mode to turn it off, if there is a foreign substance to the machine or the car, then the machine will automatically boot for video about 20 seconds to turn it off again.
- Page 7 In playback mode, short press the pattern lock into the file operations menu, press it again to enter the Settings menu, in the Settings menu mode then/lock key will automatically exit to playback mode. 8. lane migration: To choose the models, the corresponding models, choose according to their own cars, and then select the region temporarily only support in mainland China and Taiwan, China started the speed when the car is how speeds to launch this feature, the sensitivity is offset the...
- Page 8 TF card requirements: speed in CLASS6 TF card capacity is required. Installation and TF card 1, according to the correct direction of the TF card insert TF card slot, until TF card is fixed in the card slot. 2, remove the TF card, please gently press down the TF card, after waiting for TF card pop-up can be removed.
- Page 9 The machine before the lens by bracket can rotate 360 degrees before and after, in order to better cooperate with the vehicle traveling data recorder fixed position, and achieve good effect. Open and close the unit 1. The manual switch machine: short press the "power key" button once, the screen lights up, then long press "power"...
- Page 10 System Settings Parking mode: shut / 2 g / 4 g / 8 g Time/date: Automatic shutdown: shut/third/minute Screen saver: shut / 3/5/10 minutes (automatic Guan Bing) Keys: on/off Language: English/Russian/Hebrew uses. TV modes: NTSC/PAL Light source frequency: 50/60Hz : as the fill light on/off Image rotation: on/off Formatting: cancel/sure The default setting;...
- Page 11 photography The camera into the camera model, the top left corner of the screen has video signal, according to the confirm button start video, video screen when the top left corner of the symbol flashing, press [confirm key] again to stop video, disappear in the upper left corner. At the same time;...
- Page 12 Photo models and photo set 1, press the [power], the camera into the camera mode, press the mode button into photo mode, have a photo symbol at the upper left of the screen, at this time into the photo mode. 2, when the press [confirm key], click a sound, a preview picture waiting, about 1 second later, take pictures, photos, caught the camera don't shake, as far as possible so as not to affect the image...
- Page 13 The hand shake: on/off Quick preview: close, 2 seconds, 5 seconds Date label: pass, date, date/time Playback modes 1, browse the file: When the vehicle traveling data recorder to complete the boot program and enter the camera mode, press mode key twice, at this time into the playback mode, press the button [over] or [under turn key] can to browse pictures audio data.
- Page 14 Power button: when is the video short opening/closing according to [power] night lights. Short press [over] close the microphone, state of the video, short press then [key] can quickly open/close the microphone. Charging while video mode Use the USB car charger is connected to the machine, boot that can enter the charge/video mode Video is read and USB function.
- Page 15 Connect the TV play 1, use the TV cable/HDMI cable can connect the high quality television replay Tip: don't need to install the driver. Product features - large screen can more clearly see the effect of pre - recorded. Ultra wide Angle lens perfect combination design vision, more convenient to various occasions a multi-angle, high resolution video shooting - 1/3 inch built-in low noise high quality sensor, can be in the dark...
-
Page 16: Product Structure
G - sensor lens Ultra wide Angle lens 140 degrees Option language English/simplified Chinese/traditional Chinese/Japanese/Korean/ Video AVI video format Russian/Spanish/Arabic/Du TF card slot Micro TF tch/French/German/Italian/ Portuguese / microphone Built-in Car power DC input 5V 1A battery lithium polymer batteries System requirements Windows 2000 / XP/Vista/Windows 7 and... -
Page 17: Troubleshooting
