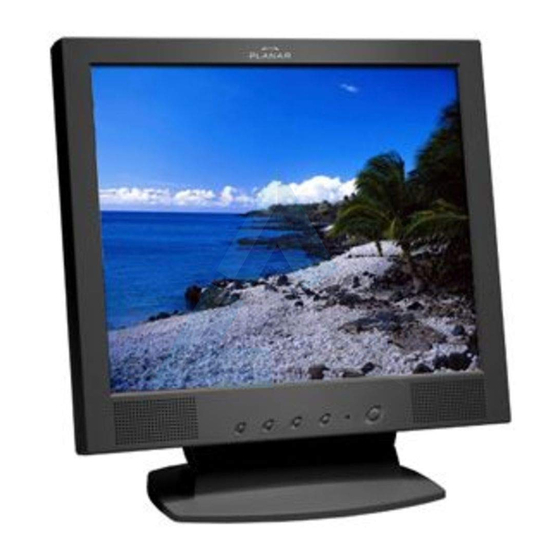

Summary of Contents for Planar PL1910 M
-
Page 2: Table Of Contents
Table of Contents Preface ... i Chapter 1 Installation... 1 Unpacking... 1 Connecting the LCD Monitor and Base ... 2 Viewing Angle Adjustment ... 2 Connecting the Display to your Computer ... 2 Connecting the AC Power ... 2 Connecting the Audio Cable... 2 Multi-Mount Ready ™... -
Page 3: Preface
Preface This manual is designed to assist users in setting up and using the PL1910M LCD Monitor. Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. -
Page 4: Chapter 1 Installation
* Monitor-to-PC VGA Cable * Monitor-to-PC DVI-D Cable Planar Connections CD-ROM If you find that any of these items is missing or appears damaged, contact your dealer immediately. For future reference, write the following information about your monitor in the space below. -
Page 5: Connecting The Lcd Monitor And Base
Connecting the LCD Monitor and Base When you open the box to take the base and put on the desk first. Then connect the LCD Monitor and base. Viewing Angle Adjustment The LCD Monitor is designed to allow users to have a comfortable viewing angle. -
Page 6: Multi-Mount Ready ™ Optional Mounting Alternatives
Multi-Mount Ready ™ Optional Mounting Alternatives Detaching LCD Monitor from Its Stand Unscrew screws the swivel base support column and pull down second. Interface for Wall Mount, Arm, or Alternate Deskstand Applications The rear of this LCD display has four integrated 4 mm, 0.7 pitches threaded nuts, as well as four 5 mm access holes in the plastic covering as illustrated in Figure 1-4. -
Page 7: Chapter 2 Display Controls
Chapter 2 Display Controls User Controls A brief description and the location of all LCD Monitor functions control and indicator: Stereo Speakers Speaker Volume Control Soft Power Switch Power-On Indicator Function Select Buttons Adjustment Control Buttons External Headphone Jack Adjusting the Monitor's Display The monitor has four function control buttons to select among functions shown on OSD menu, designed for easy user-viewing environments. -
Page 8: Function Description
Function Description Function Brightness 101 scales of brightness are available to choose from (0 to 100). Contrast 101 scales of contrast are available to choose from (0 to 100). This function adjusts the display's horizontal position H. Position V. Position This function adjusts the display's vertical position. -
Page 9: Chapter 3 Technical Information
Chapter 3 Technical Information Specifications LCD Panel PL1910M Size 19" (48 cm) Display Type Active matrix color TFT LCD Resolution 1280 x 1024 Display Dot 1280 x (RGB) x 1024 Display Area (mm) 376.32 x 301.056 (H x V) Display Color 16.7M Brightness 300 cd/m... - Page 10 Sync Input Signal Separate TTL compatible horizontal and vertical synchronization Digital TMDS Polarity Positive and negative Plug & Play Supports VESA DDC2B functions External Connection Power Input (AC input) Power cord Video Cable 15-pin D-sub connector, 24-pin DVI-D Audio Cable Stereo Jack Environment Operating Condition:...
-
Page 11: Standard Timing Table
Standard Timing Table If the selected timing is NOT included in table below, this LCD monitor will use the most suitable available timing. TIMING FH(KHZ SYNC FV(HZ) POLARITY 640x350 31.469 VGA-350 70.087 – 640x400 24.83 – NEC PC9801 56.42 – 640x400 31.469 –... -
Page 12: Troubleshooting
Troubleshooting This LCD Monitor has pre-adjusted using factory standard VGA timings. Due to the output timing differences among various VGA cards in the market, users may initially experience an unstable or unclear display whenever a new display mode or new VGA card is selected. Attention This LCD Monitor Supports Multiple VGA Modes.
