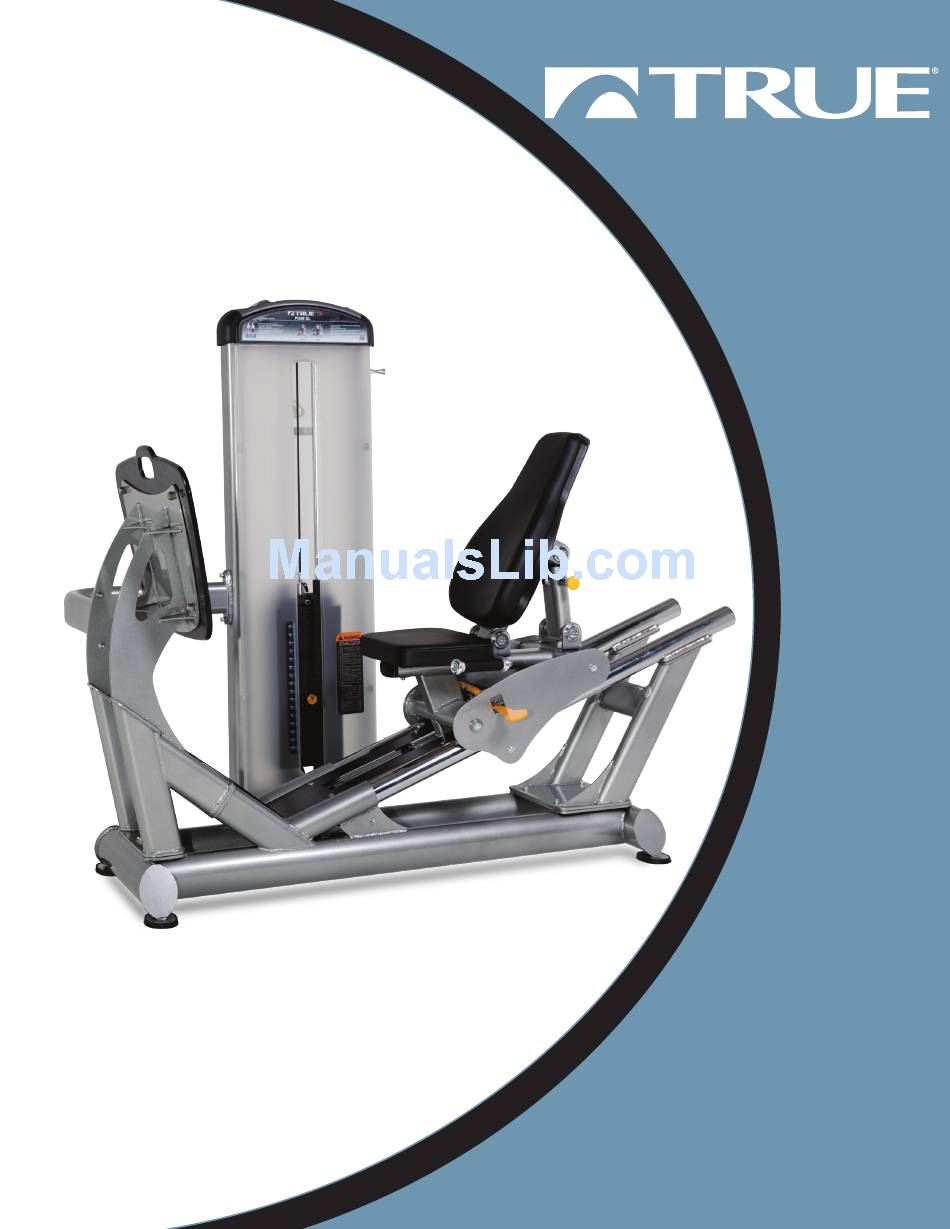

Fuse XL-0300
Leg Press
OWNER'S
MANUAL
Model # FUSE XL-0300
Revision 011617

Advertisement

Table of Contents
loading

Related Manuals for True Fuse XL-0300

Summary of Contents for True Fuse XL-0300

  • Page 1 Fuse XL-0300 Leg Press OWNER’S MANUAL Model # FUSE XL-0300 Revision 011617...
  • Page 2 Технические характеристики, особенности и программного обеспечения могут быть изменены без предварительного уведомления. Для получения самой последней на сегодняшний день руководство по эксплуатации пожалуйста, посетите www.truefitness.com .Для документов на другие языки, пожалуйста, посетите www.truefitness.com/resources/document-library/ Page # 2 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 3 The proud manufacturing tradition of quality and the culture of innovation at TRUE have given rise to a full line of extraordinary cardio and strength equipment. As a result, people all over the world are benefiting from the TRUE experience.

  • Page 4: Table Of Contents

    CHAPTER 4: CUSTOMER SERVICE ..........................33 • CONTACTING SERVICE: ......................33 • CONTACTING SALES: .......................33 • REPORTING FREIGHT OR PARTS DAMAGE: ..............34 CHAPTER 5: ADDITIONAL INFORMATION: ......................36 Page # 4 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 5: Chapter 1: Safety Instructions

    9. If the machine appears damaged or inoperable, contact a facility staff member to place an “OUT OF ORDER, DO NOT USE” sign on the machine until it is repaired. Only use TRUE supplied replacement components to service this machine.
  • Page 6 3. Install this piece of equipment on a solid level surface that does not deviate more than 1/8” over a 10’ distance (or as defined and required by local building and architectural codes.) 4. TRUE strongly recommends that all equipment be anchored to the floor to prevent movement and increase stability.
  • Page 7 • Frames and Lifting Arms: Inspect weekly for integrity and function. Replace any component at first signs of wear. Use only TRUE supplied components. 4. Replace any warning label at the first sign of wear. Labels and the facility safety sign may be obtained from TRUE.
  • Page 8 13. Be sure all hardware is tight before using the machine. Retain these instructions for future reference. If you have any questions, do not hesitate to contact your TRUE dealer or TRUE Fitness Technology at (800)883-8783 or service@truefitness.com. Page # 8 of 38...

  • Page 9: Compliances

    LUBRICATE: Pivot bearings and linear bearings. REPLACE: Cables COMPLIANCES: This equipment complies with all fitness product standards. For a complete list of compliances, please visit www. TrueFitness.com. Page # 9 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 10: Chapter 2: Assembly Guide

    • For standard 210 lb. stack it is 37 lb/ft (179 kg/m2) • For optional 310 lb. stack it is 42 lb/ft2 (205 kg/m Page # 10 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 11: Required Tools

    (4) x 10 lb. weight plates 15 lb. weight plate box • Optional 310 lb. stack: Part Number: B1603 comprised of (4) x 15 lb. weight plates Page # 11 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 12 LPPAD04000X SEAT PAD TRXL2-03U500X UPRIGHT ASSY FUS-03TC001X FRONT TOP CAP FUS-00TC002 REAR TOP CAP FUS-00TC004 TOP CAP FUS-00MT001 TOP CAP PAD TRXL2-03GR511 GUIDE ROD Page # 12 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 13 LOWER CONNECTING BRACE TRXL2-03MF750 UPPER CONNECTING BRACE TRXL2-03SF700X SEAT BACK ADJ TUBE TRXL2-03SF600X SEAT BACK ADJ LBL-WS-FU210 WT LABEL 210 LB LBL-WS-FU310 WT LABEL 310 LB Page # 13 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 14 TRXL2-03MF800X FRONT FRAME PLATFORM on the tooling card may not match the harware TRXL2-03SF000X SEAT FRAME item numbers shown in the TRXL2-03MF700X REAR SUPPORT FRAME owner’s manual. Page # 14 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 15: Assembly Steps

    LOCK NUT, 3/8”-16 TRXL2-03U500X UPRIGHT ASSY Note: Do not fully tighten main frame TRXL2-03CB000X CABLE and upright assembly hardware until step 14 (Front Shroud). Page # 15 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 16 14 (Front Shroud). C-749 WASHER, LOCK, 3/8” C-627 SH SCREW, 3/8”-16, 2” C-766A LOCK NUT, 3/8”-16 C-740A LOCK NUT, 1/4”-20 C-920 HH SCREW, 1/4”-20, 2” Page # 16 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 17 TRXL2-03MF700X REAR SUPPORT hardware. FRAME TRXL2-03RD600X RIGHT RAIL TRXL2-03RD500X LEFT RAIL C-754C WASHER, FLAT, 3/8” C-749 WASHER, LOCK, 3/8” C-623 SH SCREW, 3/8”-16, 1” Page # 17 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 18 TRXL2-03MF500X BASE FRAME TRXL2-03MF800X FRONT FRAME C-750 WASHER, LOCK, 1/2” C-755B WASHER, FLAT, 1/2” C-641 SH SCREW, 1/2”-13, 1-1/4” C-766 LOCK NUT, 1/2”-13 Page # 18 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 19 TRXL2-03MF500X BASE FRAME TRXL2-03MF800 FRONT FRAME C-755B WASHER, FLAT, 1/2” C-641 SH SCREW, 1/2”-13, 1-1/4” C-766 LOCK NUT, 1/2”-13 Page # 19 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 20 WASHER, LOCK, 3/8” C-754C WASHER, FLAT, 3/8” C-622 SH SCREW, 3/8”-16, 3/4” C-624 SH SCREW, 3/8”-16, 1-1/4” C-766A LOCK NUT, 3/8”-16 TRXL2-03U500X UPRIGHT ASSY Page # 20 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 21 Note: Do not fully tighten seat frame TRLPROL04000X ROLLER hardware until step 14 (Front Shroud). C-755 WASHER, FLAT, 1/2” C-750 WASHER, LOCK, 1/2” C-684 BH SCREW, 1/2”-13, 1” Page # 21 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 22 Strength Fuse XL-0300 CHAPTER 2: ASSEMBLY GUIDE ASSEMBLY STEPS: Step 7b (Seat Frame Installation): Page # 22 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 23 SEAT BACK ADJ TRXL2-03SF700X SEAT BACK ADJ TUBE TRXL2-03AX502 SEAT BACK AXLE (SHORT) IN-S51102100 AXLE COVER (ALUMINUM CAP) C-657A FH SCREW, 3/8”-16, 3/4” TRXL2-03U500X UPRIGHT ASSY Page # 23 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 24 Note: Seat assembly may need to be C-752 WASHER, FLAT, 1/4” actuated to allow access for attaching C-675D BH SCREW, 1/4”-20, 1/2” button head screws. C-740 LOCK NUT, 1/4”-20 Page # 24 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 25 C-749 WASHER, LOCK, 3/8” LPPAD04000X SEAT PAD C-631 SH SCREW, 3/8”-16, 3” C-624 SH SCREW, 3/8”-16, 1-1/4” 9005BPD000X BACK PAD FUS-00PT001 SEAT BACK TRAY Page # 25 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 26 Item Part Number Description Quantity frame using the identified hardware. TRXL2-03MF800 FRONT FRAME S-540 FOOT PLATE C-755B WASHER, FLAT, 1/2” C-766 LOCK NUT, 1/2”-13 Page # 26 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 27 Secure the guide rods to the upright FUS-00TP020X 20 WT TOP PLATE assembly using the identified hardware. XL2-00PN000 SELECTOR PIN C-417 HH SCREW, 1/4”-20, 2-1/2” Page # 27 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 28 LOCK NUT, 3/8”-16 Before tightening the pulley hardware, C-626 SH SCREW, 3/8”-16, 1-3/4” make sure that the cable is seated in the pulley groove. Page # 28 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 29 FUS-00FS201X FRONT SHROUD hardware. C-1003 M5x16 PHMS Note: Do not over tighten the screws securing the shroud in place. Page # 29 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 30 REAR SHROUD assembly using the identified hardware. C-1003 M5 x 16 PHMS FUS-00TC002 REAR TOP CAP FUS-00TC001 FRONT TOP CAP C-1004 M6 x 60 PHMS Page # 30 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 31 WT LABEL 310 LB Note: Select the appropriate weight stack label based on your weight stack selection (standard 170 lbs. or optional 250 lbs.). Page # 31 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 32: Chapter 3: Care & Maintenance

    The following items are critical to the safety of users and maintenance staff as well as ensuring the optimum performance of the machines. These inspections should be performed each day before the equipment is subject to use. TRUE Fitness is not responsible for performing or scheduling regular maintenance or inspections.

  • Page 33: Other Scheduled Preventive Maintenance

    CAUTION: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Fitness Warranty. Never pour or spray liquids on any part of the equipment. Allow the equipment to dry completely before using.

  • Page 34: Cable Inspection & Maintenance

    If any of these conditions are apparent, the machine should immediately be taken out of service and repaired. Be sure to use only cables supplied by TRUE Fitness. DO NOT use cables that have fittings attached with hand- crimp tools.
  • Page 35 Ensure that the snap-link opens and closes easily and is fully engaged when closed. Replace the snap-link as needed. Page # 35 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com Truefitness.com / 800.426.6570 / 636.272.7100...

  • Page 36: Contacting Service

    HOURS OF OPERATION: 8:30 A.M. - 5:00 P.M. CST E-MAIL: service@truefitness.com CONTACTING SALES: Interested in TRUE products? Please contact us with any sales or product inquires so that we may direct you to the appropriate sales representative to answer your questions. TRUE FITNESS HOME OFFICE 865 HOFF ROAD ST.

  • Page 37: Reporting Freight Or Parts Damage

    Obvious damage to external packaging / internal product. Please refuse the shipment and it will be returned to TRUE Fitness by the carrier. Contact the TRUE Fitness customer support team by calling 800.883.8783 or sales support team by calling 800.426.6570 Monday-Friday during normal hours of operation to notify us that the shipment has been refused.

  • Page 38: Chapter 5: Additional Information

    View Instructional Video Page # 38 of 38 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com t r u e f i t n e s s . c o m 8 0 0 . 4 2 6 . 6 5 7 0 6 3 6 .
  • Page 39 Frame: The frame is warranted for defects in material and workmanship for a 10 years. The frame is warranted for labor and freight (for parts shipped from TRUE) for one year from date of purchase. * This limited warranty on structural frame does not include paint or coatings.
  • Page 40 DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. TRUE within 30 days of purchaser’s receipt of this Product. The serial number must be intact on the Product for this Limited Warranty to be valid.
  • Page 41 If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to TRUE Fitness within 30 days from the date of equipment installation.
