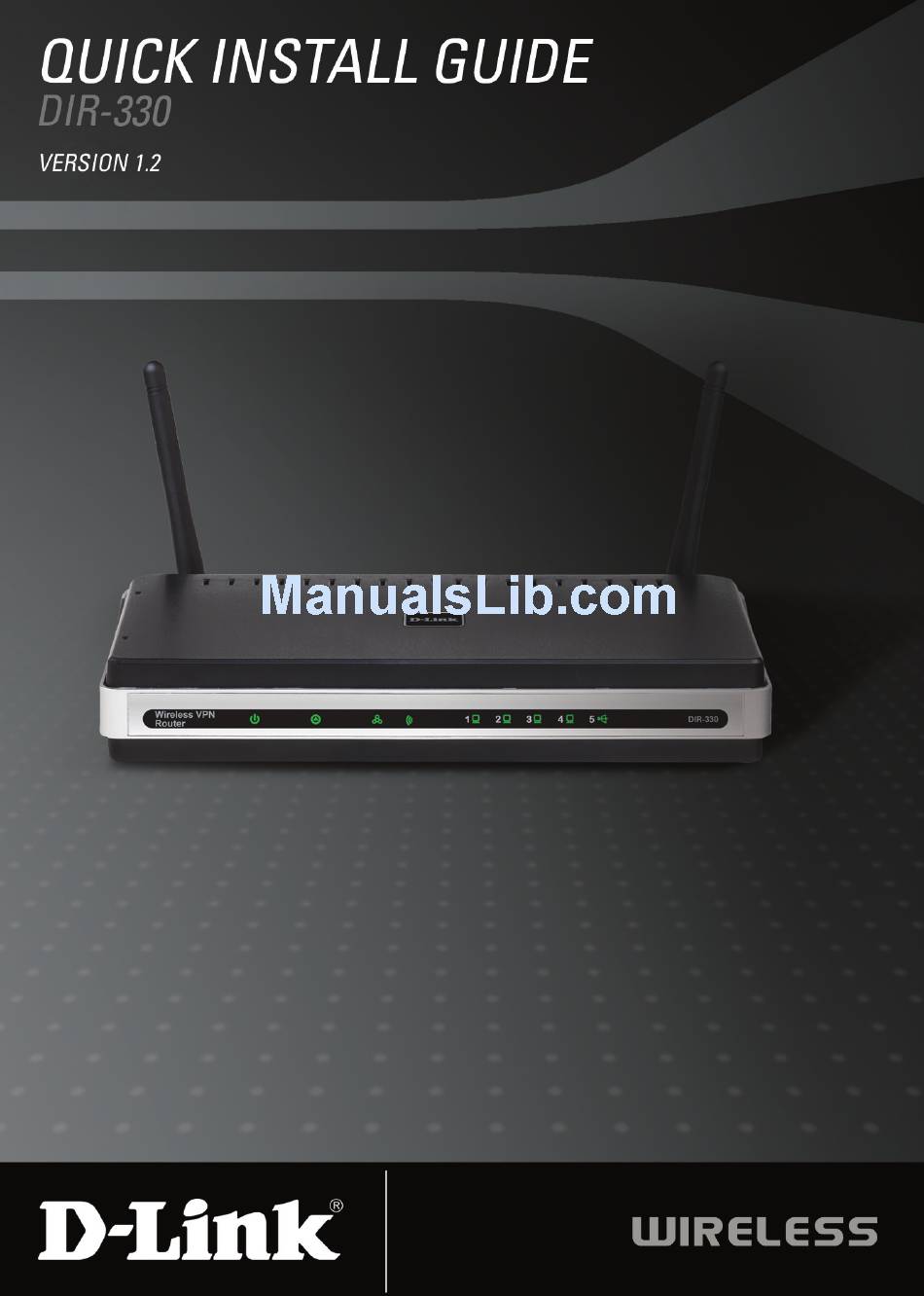

D-Link DIR-330 Quick Install Manual
Hide thumbs
Also See for DIR-330:
- User manual (112 pages) ,
- Brochure & specs (3 pages) ,
- Brochure & specs (2 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
Advertisement
Table of Contents
Related Manuals for D-Link DIR-330
Summary of Contents for D-Link DIR-330
-
Page 2: Package Contents
If any of the above items are missing, please contact your reseller. System Requirements Network Requirements • An Ethernet-based Cable or DSL modem • 10/100 Ethernet devices • 802.11g/b wireless clients Web-based Configuration Utility Requirements Computer with the following: • Windows , Mac OS, or Linux-based operating system ® • An installed Ethernet adapter Browser Requirements: • Internet Explorer 7.0 or higher • Firefox 3.0.5 or higher • Chrome 1.0.154.43 or higher Make sure that you have the latest version of Java installed. Visit www.java. com to download the latest version. D-Link DIR-330 Quick Install Guide... -
Page 3: Wireless Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines: 1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum. Each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized. 2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick. Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception. -
Page 4: Hardware Overview
A blinking light indicates during wireless data transmission. that the DIR-330 is ready. Local Network LEDs Power LED A solid light indicates a connection A solid light indicates a to an Ethernet-enabled computer proper connection to the on ports 1-4. This LED blinks power supply. during data transmission. Internet LED A solid light indicates connection on the Internet port. This LED blinks during data transmission. D-Link DIR-330 Quick Install Guide... -
Page 5: Hardware Overview Connections
LAN Ports (1-4) settings. Connect Ethernet devices such as computers, switches, and hubs. Internet Port Power Receptor The auto MDI/MDIX Internet port Receptor for the supplied is the connection for the Ethernet power adapter. cable to the cable or DSL modem. * The USB port is currently inactive. D-Link DIR-330 Quick Install Guide... -
Page 6: Connect To Your Network
If you are connecting the router to a cable/DSL/satellite modem, please follow the steps below: 1. Place the router in an open and central location. Do not plug the power adapter into the router. 2. Turn the power off on your modem. If there is no on/off switch, then unplug the modem’s power adapter. Shut down your computer. 3. Unplug the Ethernet cable (that connects your computer to your modem) from your computer and place it into the Internet port on the router. 4. Plug an Ethernet cable into one of the four LAN ports on the router. Plug the other end into the Ethernet port on your computer. 5. Turn on or plug in your modem. Wait for the modem to boot (about 30 seconds). 6. Plug the power adapter to the router and connect to an outlet or power strip. Wait about 30 seconds for the router to boot. 7. Turn on your computer. 8. Verify the link lights on the router. The power light, Internet light, and the LAN light (the port that your computer is plugged into) should be lit. If not, make sure your computer, modem, and router are powered on and verify the cable connections are correct. D-Link DIR-330 Quick Install Guide... -
Page 7: Using The Setup Wizard
Using the Setup Wizard Open your web browser and type http://192.168.0.1 into the URL address box. Press Enter. The logon pop-up screen will appear: Type admin for the username and leave the password blank. Once you have logged in, the Setup screen will appear: Click Setup Wizard *PPTP, L2TP, Russian PPPoE, and Russian PPTP Internet configurations referenced in this section do not apply in North America. D-Link DIR-330 Quick Install Guide... - Page 8 Click Next to continue. Click Next Create a new password and then click Next to continue. Click Next Select your time zone from the drop-down menu and then click Next to continue. Click Next Select the type of Internet connection you use and then click Next to continue. Click Next D-Link DIR-330 Quick Install Guide...
- Page 9 Next to continue. Select Static if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses. Note: Make sure to remove your PPPoE software from your computer. The software is no longer needed and will not work through a router. Click Next If you selected PPTP, enter your PPTP settings supplied by your ISP and your PPTP username and password. Click Next to continue. Click Next D-Link DIR-330 Quick Install Guide...
- Page 10 If you selected L2TP, enter your L2TP settings supplied by your ISP and your L2TP username and password. Click Next to continue. Click Next If you selected Big Pond, select your authentication server from the drop down menu. You will also need to enter your Big Pond username and password. Click Next to continue. Click Next If you selected Static, enter your network settings supplied by your Internet provider. Click Next to continue. Click Next D-Link DIR-330 Quick Install Guide...
- Page 11 Click Next to continue. Select Static if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses. Note: Make sure to remove your PPPoE software from your computer. The software is no longer needed and will not work through a router. Click Next If you selected Russian PPTP, enter your PPTP settings supplied by your ISP and your PPTP username and password. Click Next to continue. Click Next Click Connect to save your settings. Once the router is finished rebooting, click Continue. Please allow 1-2 minutes to connect. Close your browser window and reopen it to test your Internet connection. It may take a few tries to initially connect to the Internet. Click Connect D-Link DIR-330 Quick Install Guide...
-
Page 12: Technical Support
Copyright ©00-00 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States and other countries. Other trademarks are the property of their respective owners. Maximum wireless signal rate derived from IEEE Standard 0.11g specifications. Actual data throughput will vary.
