Klipsch KMC 3 User Manual

Thank You

Thank you for your purchase of the Klipsch Music Center KMC 3!
®
The KMC 3 combines legendary Klipsch technology with Bluetooth
and aptX ™ technology for truly hi-fidelity music playback from
your favorite music device. Its contemporary styling compliments
any décor and you can take it almost anywhere with both AC and
battery-power options.

aC Power

To operate on AC power plug AC adapter into back of the KMC 3
marked DC IN, then plug AC adaptor into a functioning wall socket.
On AC power, if no streaming or connected audio is detected for
one hour the KMC 3 will automatically go into standby mode.

BaTTerY Power

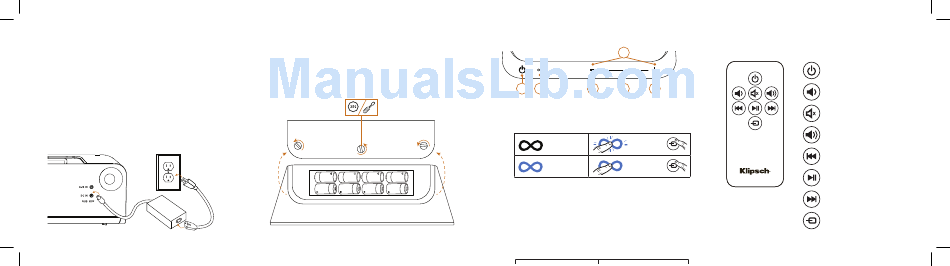

To operate on battery power, install 8 D Cell (LR20) alkaline
batteries as shown. If batteries are installed, the KMC 3 operates
®
on battery power unless AC power is utilized. On battery power,
if no streaming or connected audio is detected for five minutes,
the KMC 3 will automatically power off.

illuMinaTed ConTrol FunCTions

6
1 2 3 4 5
1. POWER ON / OFF - Tap to turn on. Hold to turn off. Solid
Red indicates Power On, flashes if batteries are weak
2. BLUETOOTH
Hold to Pair
No Connection
Tap to Exit
Hold to
Connected
Disconnect
3. VOLUME DOWN
4. VOLUME LEVEL INDICATOR
5. VOLUME UP
6. SOURCE SELECT - Pressing + and – together toggles
between Bluetooth mode and AUX (3.5mm input) for playback
reMoTe ConTrol FunCTions
POWER ON / OFF
VOLUME DOWN
MUTE
VOLUME UP
TRACK REVERSE
( Bluetooth mode only)
PLAY / PAUSE
( Bluetooth mode only)
TRACK FORWARD
( Bluetooth mode only)
SOURCE / BLUETOOTH
(See Illuminated Control Functions #2)
