BL620-US D
ONGLE
G
S
ETTING
TARTED
Quick Start Guide
I
NTRODUCTION
The goal of this document is to explain how to install the BL620-US dongle for use on your PC.
R
EQUIREMENTS
The following equipment and utilities are required:
BL620-US Dongle
Windows PC (Windows 7 or newer)
UwTerminal (Windows) – free download from www.lairdtech.com
The BL620-US dongle has a Segger J-Link chip on board; when you connect the dongle to your computer, it
searches for the relevant driver which can be obtained from http://www.segger.com/jlink-software.html. You need
the serial number printed on the underside of your dongle next to the text SEGGER # to be able to download the
driver from the Segger website.
I
NSTALLATION
1. Connect the dongle to your PC.
2. With the J-Link driver installed, wait until Windows finishes installing device driver software.
3. Check that the device is listed in the Device Manager. See
Note:
The JLink UART port number varies on different computers.

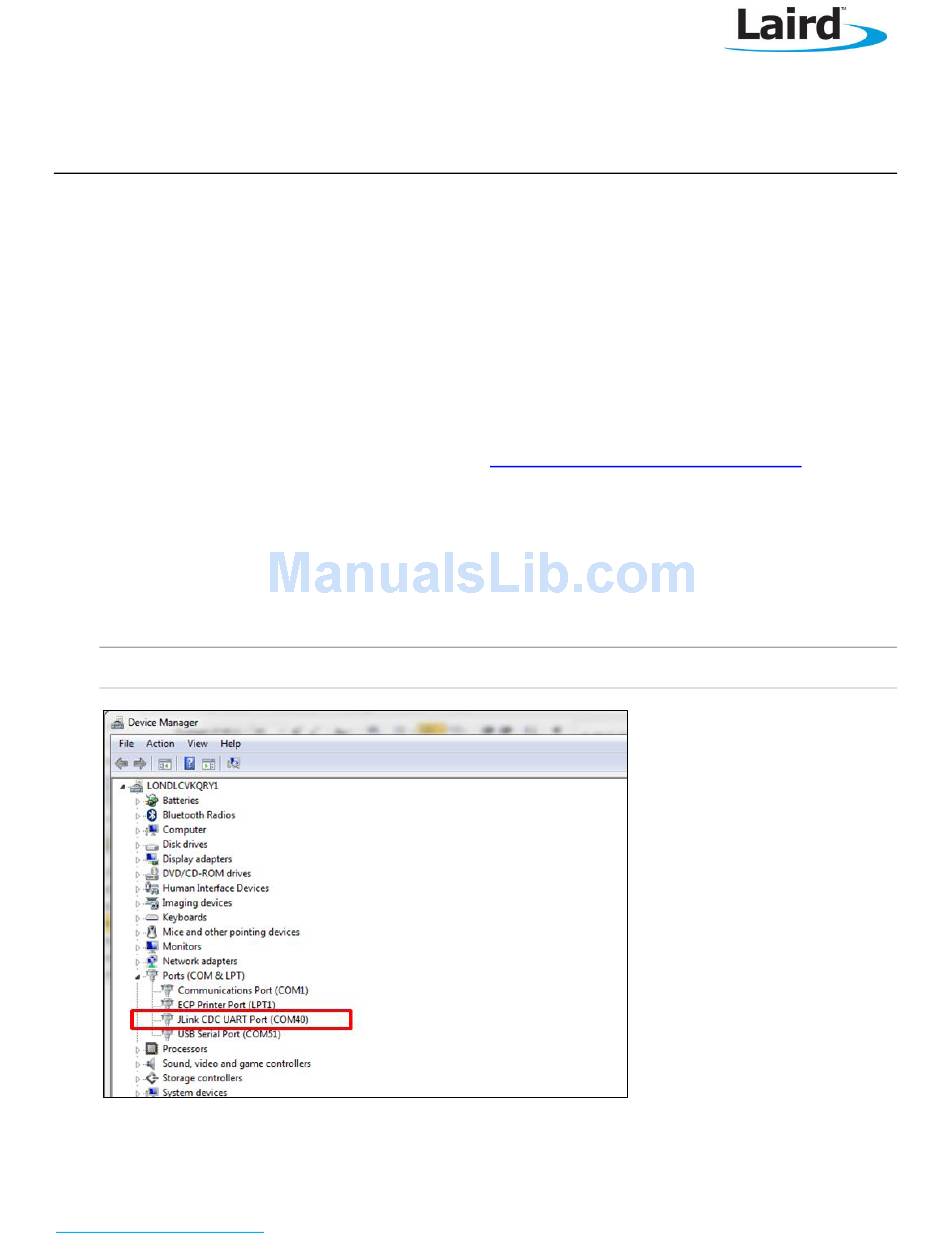

Figure 1: BL620-US as shown in Device Manager
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/wireless
Figure
1.
1
v1.2
Americas: +1-800-492-2320
Europe: +44-1628-858-940
Hong Kong: +852 2923 0610
