Pioneer AVIC AVIC-X920BT Quick Start Manual

FLASH MEMORY MULTIMEDIA AV NAVIGATION RECEIVER
AVIC-X920BT
Quick Start Guide
This guide is intended to guide you through the basic functions of this navi-
gation system. For details, please refer to Operation Manual.
Basic Hardware buttons
1  button
1
Press to display the touch panel keys for eject-
ing the media.
2
2 VOL (+/–) button
Press to adjust the AV (Audio and Video)
3
source volume.
3 HOME button
4
Press to display the "Top Menu" screen.
5
4 MODE button
Press to switch between the map screen and
6
the AV operation screen.
5 TRK (/) button
button
6
Press briefly to start the voice operation.
Press and hold to mute the AV source.
Published by Pioneer Corporation.
Copyright © 2010 by Pioneer Corporation.
All rights reserved. Printed in Thailand
<KYTNX> <10L00000> <CRB3203-A/N> UC
Display the menu screen
Top Menu
Shortcut Menu

Destination Menu

Phone Menu AV operation screen
Basic items on the map
1 2
Dragging the map
3
allows scrolling.
9
4
8
5
7
6
1 Name of the street to be 6 Street name that your vehi-
used (or next guidance cle is traveling along
point) 7 Eco-Meter
2 Current time 8 Zoom in/Zoom out
3 Estimated time of arrival 9 Next direction of travel
4 Current route
5 Current position
Destination Menu
Touch Destination on the "Top Menu" screen.
1 2 3 4
5 6 7 8 9 a b
1 Searches for location by 6 Returns to the previous
address screen
2 Calculates the route home 7 Selects a previously routed
3 Searches for a place from destination
stores, restaurants, and 8 Searches for a location by
other businesses in the coordinates
points of interest database 9 Cancels your current route
4 Searches for POIs by using a Displays the current route
the data on external storage information
devices (microSD card) b Displays information on
®
5 Selects your stored location MSN Direct

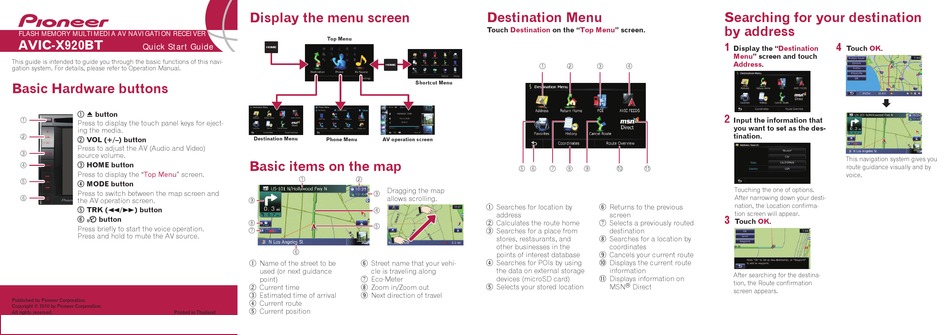

Searching for your destination
by address
1 4
Display the "Destination Touch OK.
Menu" screen and touch
Address.
2
Input the information that
you want to set as the des-
tination.
This navigation system gives you
route guidance visually and by
voice.
Touching the one of options.
After narrowing down your desti-
nation, the Location confirma-
tion screen will appear.
3
Touch OK.
After searching for the destina-
tion, the Route confirmation
screen appears.
