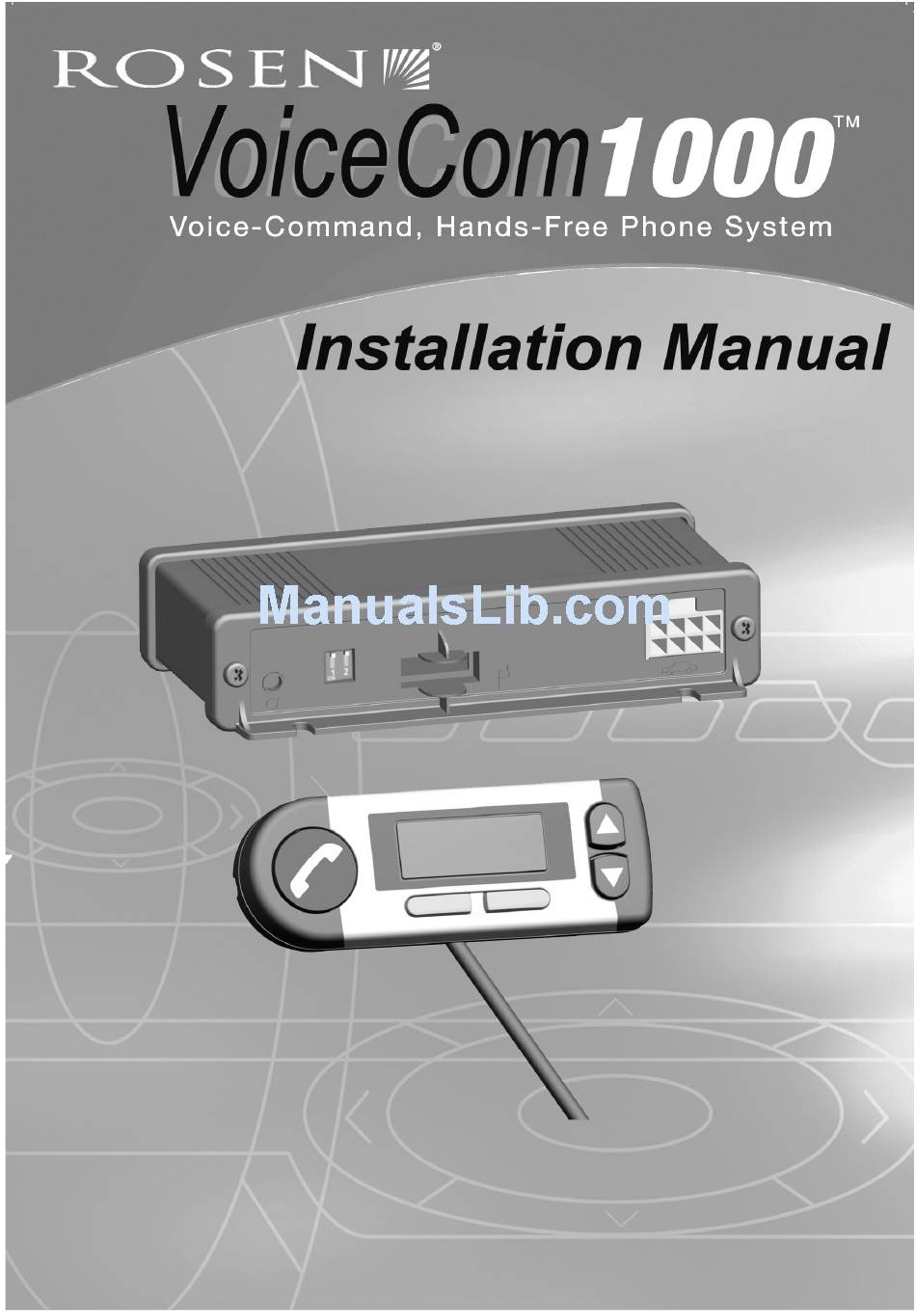

Rosen VoiceCom1000 Installation Manual

Voice-command, hands-free phone system

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Summary of Contents for Rosen VoiceCom1000

Page 2 Rosen Entertainment Systems, LLC 1120 California Avenue Corona, CA 92881, USA T: +1 951 898-9808 F: +1 951 898-9897 www.rosenentertainment.com Sales, Service and Support: Customer Service: +1 866 467-6736 Technical Support: +1 888 883-2790 info@rosenentertainment.com techelp@rosenentertainment.com...
Page 3: Table Of Contents
VoiceCom 1000 Table of Contents Table of Contents Introduction ………………………………………………………………………..… 4 Parts List …………………………………………………………………………..5 Safety Precautions …..…………………………………………………..……….. 6 Installation Guide ........………………......…..7 Required Accessory Items and Tools ..………………......…..8 Getting Started .........………………......... 8 Selecting the Mounting Positions ....………………....…..9 Mounting the Microphone ........…………….....
Page 4: Introduction
ROSEN Limited Warranty is void unless installed by a qualified professional installer. Please visit our website www.rosenentertainment. com for a listing of ROSEN qualified professional installers near you. The installer may also provide you with the initial training on the proper operation of the...
Page 5: Parts List
• Mounting Screws and Washers for Control Unit (4 sets) - (2) • Remote Control - (3) • Microphone with Holder - (4) • Installation Manual • Installation Report • Registration and Warranty Card • ROSEN Limited Warranty Policy • Operating manual...
Page 6: Safety Precautions
Improper installation may cause damage to the unit or to the vehicle! We therefore strongly recommend having the installation done by a professional installer. THE ROSEN LIMITED WARRANTY IS VOID UNLESS THE VOICECOM 1000™ IS INSTALLED BY A QUALIFIED PROFESSIONAL INSTALLER Personal Injury: Inappropriate places for the installation of the VoiceCom 1000™...
Page 7: Installation Guide
Damage Caused by Wrong Replacement Parts or Accessories: Use of replacement and accessories parts other than those recommended by ROSEN my cause damage to the VoiceCom 1000™ system and voids the ROSEN Limited Warranty. Only use replacement and accessories parts listed in the chapters Spare Parts and Accessory Parts, or visit ROSEN website www.rosenentertainment.com for further information!
Page 8: Required Accessory Items And Tools
• Universal Wiring Harness: In case there is no Wiring Harness available for a specific car, ROSEN offers a Universal Wiring Harness which may be purchased separately from authorized distributors and dealers or through ROSEN website www.rosenentertainment.com, and follow the wiring instructions given in this Installation Manual.
Page 9: Selecting The Mounting Positions
VoiceCom 1000™ Selecting the Mounting Positions • Check if the vehicle's installed radio has line-in and/or mute connector pins. Properly installed and using the car specific Wiring Harness or the Universal Wiring Harness as per the instructions of this Installation Manual, the radio will be muted automatically when receiving or making a call.
Page 10 Selecting the Mounting Positions VoiceCom 1000™ Suitable Places for the Microphone: • When the sound of the driver's voice can hit the microphone without obstructions, and the distance between the microphone and the next speaker is at least 32 inches (80 cm); •...
Page 11: Mounting The Microphone
VoiceCom 1000™ Selecting the Mounting Positions Mounting the Microphone There is a self-adhesive tape affixed to the rear of the microphone holder. The selected mounting place must suit in size and shape the self-adhesive surface of the microphone holder. The microphone cable must extend up to the place of mounting the Control Unit! Check the best routing of the microphone cable and position the cable.
Page 12: Mounting The Remote Control
Selecting the Mounting Positions If such a console is not available, the Control Unit should be mounted behind the radio under the dashboard. Carefully remove the console panels or dashboard panels and determine a suitable mounting position. Be sure that there is at least 2 ¾ inches (70 mm) free space behind the Control Unit for the plug-in connectors.
Page 13: Power Connection
Plug-and-play electrical connection is the preferred way of making the required electrical wiring of the VoiceCom 1000™ Control Unit. The car specific Wiring Harness available from ROSEN as an accessory part is specifically designed for your car, and makes for an error-free and fast electrical connection of the system components.
Page 14: Audio Connection Type A
Power Connection VoiceCom 1000™ Audio Connection Type A If your car radio has line-in and mute pins, you are able to make the best performing audio connection. Consult the radio's owner's manual! Locate the line-in positive (+) pin on the radio connector and connect the purple wire (position 4) of the Universal Wiring Harness to it.
Page 15: Audio Connection Type C
Audio Connection Type C In case your car radio has no mute-pin, ROSEN offers an optional accessory Radio Muting unit, which allows muting of the car radio‘s speakers, when a phone call is made or received. You can find details and the connection...
Page 16: Audio Connection Type D
Power Connection VoiceCom 1000™ diagram of this unit on ROSEN website www.rosenentertainment.com as well as how you may purchase this accessory unit. Audio Connection Type D Should you have to use an external speaker for the audio of the mobile phone as required when the conditions as mentioned in the section 'Getting Started,"...
Page 17: Testing The Voicecom 1000 Tm System
VoiceCom 1000™ Power Connection ~ Connect the vehicle specific Wiring Harness to the Control Unit , the car radio and car wiring harness as per instructions of the vehicle specific Wiring Harness, or ~ Insert the Universal Wiring Harness into its position on the Control Unit Testing the VoiceCom 1000™...
Page 18: Accessory Parts
Accessory Parts To successfully install and operate the VoiceCom 1000™ systems you must have several accessory parts which are offered by ROSEN either through authorized distributors, dealers and retailers. • Wiring Harness A variety of vehicle specific Wiring Harnesses are available from ROSEN distributors and dealers.
Page 19: Spare Parts
Support Product assistance is available by e-mail: techelp@rosenentertainment.com If you like to speak to a ROSEN technical support representative, please call on weekdays between 8 am and 5 pm pacific time ROSEN hotline: (888) 883-2790. One of our customer support representatives will be glad to assist you.
