PARTS CATALOGUE / TECHNICAL GUIDE

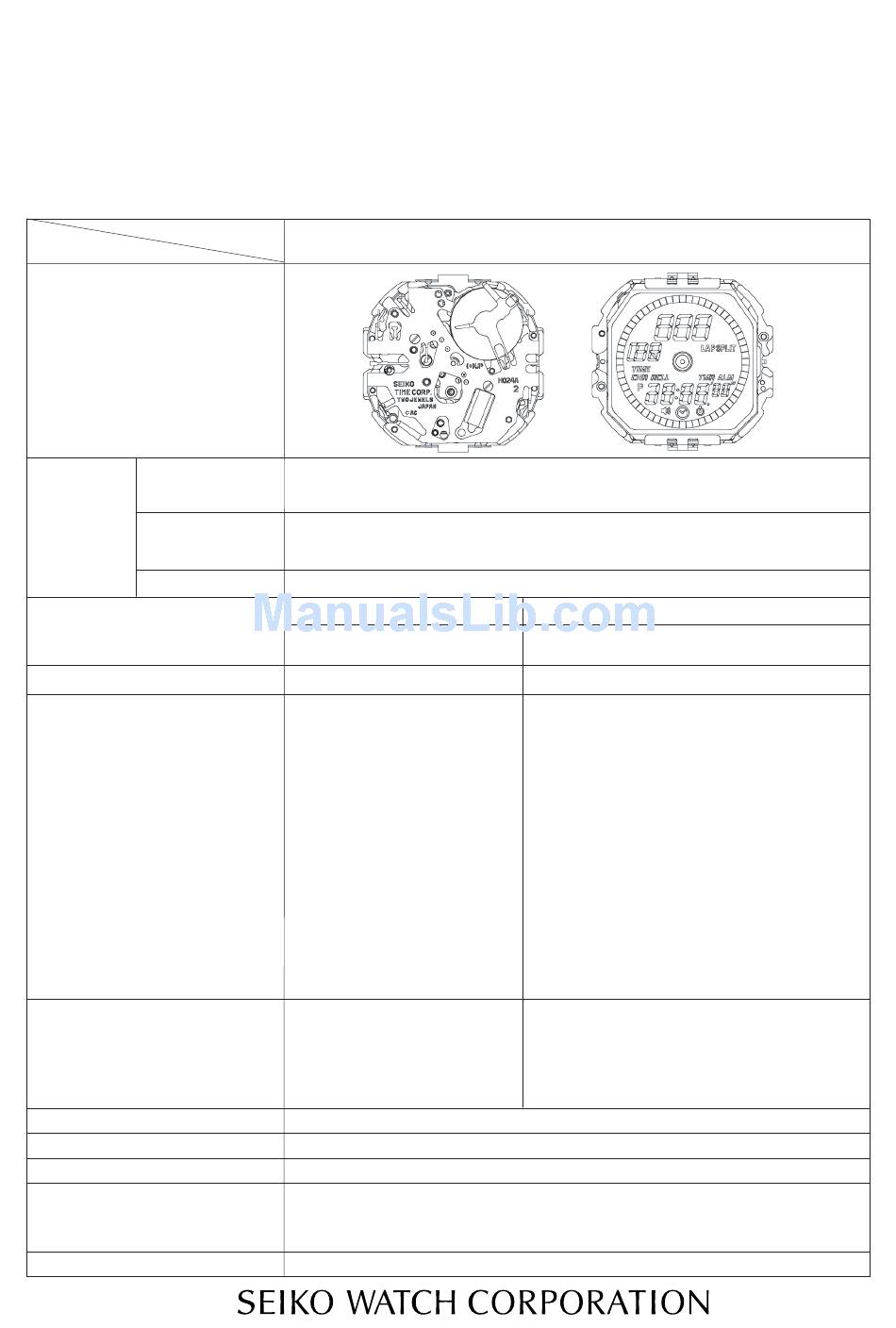

[SPECIFICATIONS]
Item
Movement
Outside diameter
Movement
Casing diameter
size
Height
Time indication
Driving system
Display system
Additional mechanism
Loss/gain
Regulation system
Measuring gate by quartz tester
Battery
Jewels
Cal. H024A
Cal. No.
ø31.0 mm
29.0 mm between 3 o'clock and 9 o'clock sides
28.5 mm between 12 o'clock and 6 o'clock sides
ø30.0mm
29.0 mm between 3 o'clock and 9 o'clock sides
28.5 mm between 12 o'clock and 6 o'clock sides
5.5 mm
Analogue section
2 hands
(Hour and minute hands)
Step motor, 1 piece
• Time display
• Hour and minute hands, two
hands straight 10-second
increments
Monthly rate within normal temperature range: less than 15 seconds
Nil
Use 10-second gate.
SB-BU (SR1130W)
Battery life is approximately 3 years.
Voltage: 1.55V
2 jewels

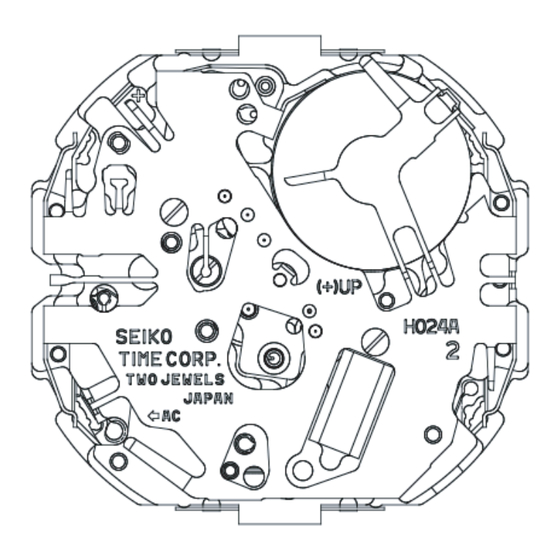

H024A
(x 1.2)
Nematic Liquid Crystal, FEM (Field Effect
Mode)
Multiplex driving system
• Time/calendar display
• Hour, minute and second
• Selection of 12h/24h-format indication
• Year, month, date, day of the week and
fully automatic calendar between the year
2006 and 2055
• Stopwatch display
•Hour, minutes, seconds and 1/1000
seconds
• Up to 23 hours 59 minutes 59 seconds and
999
• Data recall function
• Alarm display
• Daily alarm (2 channels)
• Timer
• Up to 23 hours and 59 minutes
• Hourly time signal
—
• Alarm test system
• Sound for button operation confirmation
• Battery life indicator
Digital section
