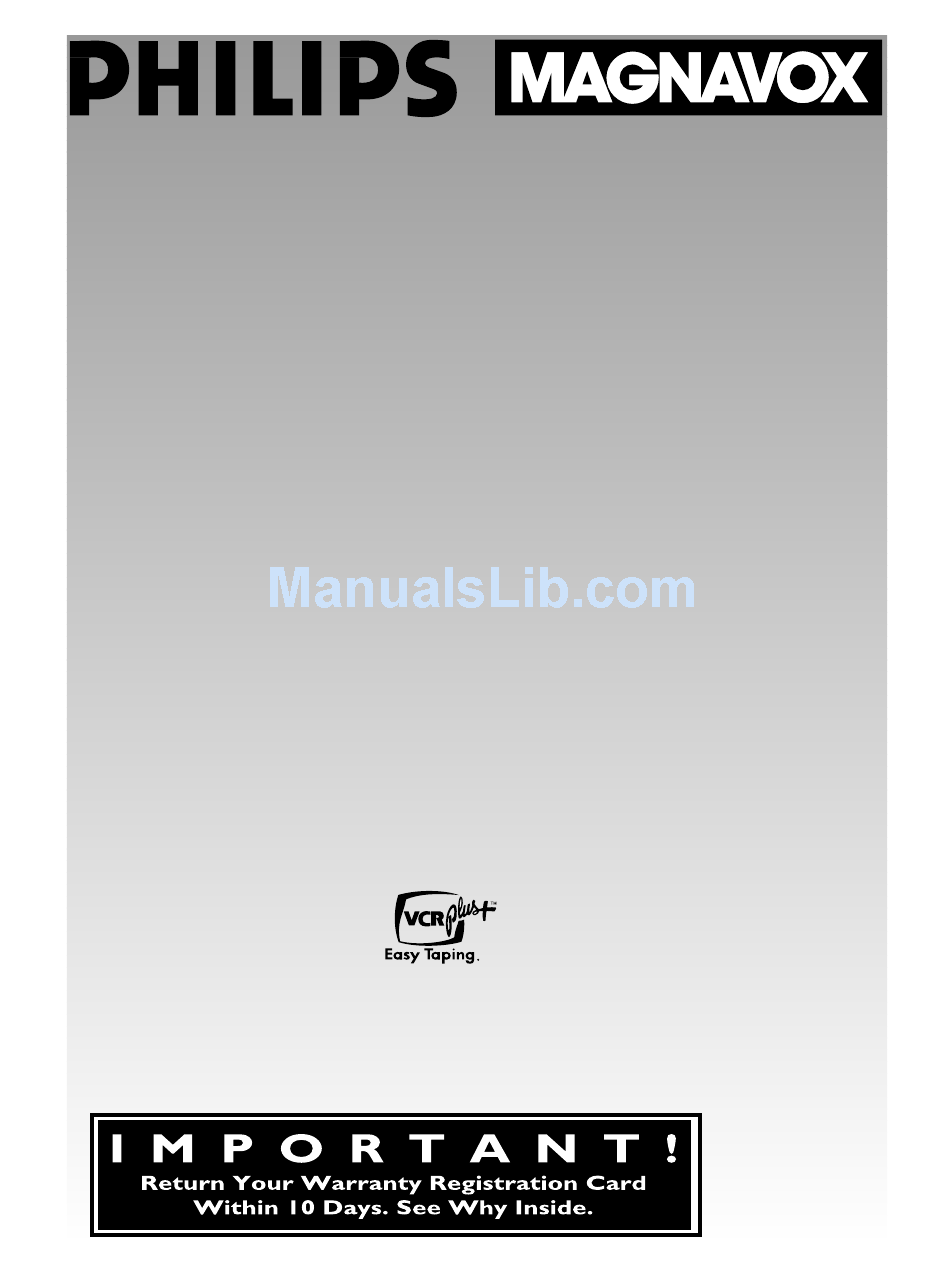

- Page 1 Video Cassette Recorder VRX360AT Owner’s Manual...
- Page 2 Return your Warranty Registration card today to ensure you receive all the benefits you’re entitled to. Once your PHILIPS MAGNAVOX purchase is registered, you’re eligible to receive all the privileges of owning a PHILIPS MAGNAVOX product. So complete and return the Warranty Registration Card enclosed with your purchase at once.
-
Page 3: Introduction 3
This VCR, equipped with a HQ (High Quality) system, is compati- ble with existing VHS (video home system) equipment. Philips Consumer Electronics Company recommends that you use only video cassette tapes that have been tested and inspected for use in two, four, six, and eight hour VCRs, and which are labeled with the mark. -
Page 4: Table Of Contents
4 Table of Contents Setting Up Your VCR Introduction ............3 Table of Contents . -
Page 5: Before Using Your Vcr 5
Putting Batteries in the Remote Control Remove the battery compartment lid on the bottom of the remote control by sliding it in the direction of the arrow. Insert two AA batteries inside the battery compartment with their polarities ( + and – ends) aligned as indicated. Replace the battery compartment lid. -
Page 6: Hookups Without A Cable Box
6 Hookups Without a Cable Box The basic VCR/TV connection – antenna/cable to VCR to TV – is shown below. If you have a Cable Box or a descrambler box, please refer to pages eight-nine. If you have a Stereo TV, please go to page 10. - Page 7 Connect the RF coaxial cable (supplied) to the OUT jack on the back of the VCR and to the ANTENNA IN Jack on the TV. (You may use either a snap-on type or screw-on type of coaxial cable, whichever you prefer. A snap-on type is supplied.) Antenna or Cable AUDIO...
-
Page 8: Hookups With A Cable Box
8 Hookups With a Cable Box This connection allows you to view any channel. After you connect the Cable Box, VCR, and TV as shown below, the features described on this page will be available. 1. Connect Cable signal to IN Jack on Cable Box. - Page 9 This connection allows you to program an unattended recording of more than one unscram- bled channel and to watch one channel while recording another. After you connect the VCR, Cable Box, and TV as shown below, the features on this page will be available. 1.
-
Page 10: Hookups With A Stereo Tv
10 Hookups With a Stereo TV VIDEO (yellow) and AUDIO (red and white) OUT Jacks Audio and Video cables are not supplied. Connect the antenna or cable to the ANT(enna) IN Jack on the back of the VCR. Connect a video cable to the yellow VIDEO OUT Jack on the back of the VCR. -
Page 11: Turning On Your Vcr 11
Before turning on your VCR, make sure there are batteries in the remote control and the VCR and TV are connected correctly. Follow the steps on this page only when you plug the VCR power cord into the wall outlet for the first time. You may not be able to program channels at step 5 if you are using a Cable Box. -
Page 12: Channel Memory
12 Channel Memory Programming Channels Although your VCR may automatically memorize the channels you receive when you turn it on for the first time, this function lets you reprogram channels. Press the VCR button, then the MENU button to bring up the main menu display. -
Page 13: Adding/Deleting Channels
Adding/Deleting Channels Press the VCR button, then the MENU button to bring up the main menu display. Press the Number 3 button to select TUNER SET UP. Press the Number 4 button to select ADD/DELETE CH. SELECT CHANNEL NUMBER CH – – TO END PUSH EXIT Within 60 seconds, press the Number buttons to enter the desired channel number. -
Page 14: Channel Memory
14 Channel Memory (cont’d) Reviewing Programmed Channels Press the VCR button, then the MENU button to bring up the main menu display. TO SELECT PUSH NO. SHOWN 1 PROGRAM 2 VCR SET UP 3 TUNER SET UP 4 SET CLOCK TO END PUSH EXIT Press the Number 3 button to select TUNER SET UP. -
Page 15: Setting The Clock 15
Setting the Clock Follow the steps below to set your VCR’s clock. Make sure: The VCR is on and the VCR light appears on the display panel. (If it does not, press the VCR/TV button once.) You make each entry within 60 seconds of the previous entry. If you do not, you may start over. -
Page 16: Daylight-Saving Time Selection
16 Daylight-Saving Time Selection Daylight-Saving Time Selection You may program the VCR so its clock will automatically move forward one hour in April and turn back one hour in October. Daylight-Saving Time is set to ON prior to shipment from the fac- tory. -
Page 17: Language Selection 17
Language Selection Follow the steps below to change the language of the on-screen displays. Press the VCR button, then the MENU button to bring up the main menu display. TO SELECT PUSH NO. SHOWN 1 PROGRAM 2 VCR SET UP 3 TUNER SET UP 4 SET CLOCK TO END PUSH EXIT... -
Page 18: Setting The Remote To Operate A Tv
TV. PHILCO ....14 PHILIPS ....01 PHILIPS MAGNAVOX. .01, 02, 03 QUASAR . -
Page 19: Setting The Remote To Operate A Cable Box/Digital Satellite System 19
Setting the Remote to Operate a Cable Box/Digital Satellite System 19 Your VCR remote control may operate your Cable Box or Digital Satellite System. If the remote control doesn’t operate your Cable Box or Satellite System now, follow the steps below to program your remote control. -
Page 20: Remote Control Buttons
20 Remote Control Buttons Press to turn on or off the VCR, TV, Cable Box, or Digital Satellite System. (You must first press the VCR, TV, or CABLE/DSS button.) Use to select channels at the VCR, TV, Cable Box, or Digital Satellite System;... -
Page 21: Remote Control Buttons
Press to operate the Cable Box or Digital Satellite System. Details are Press to operate the TV. Details are on page 18. Use to select the signal that your TV receives. Use to watch a tape, to watch a program while recording it, or to watch a TV broadcast using the CHANNEL (Up/Down) or Number buttons. -
Page 22: On-Screen Status Displays
22 On-Screen Status Displays A status display, which includes the current time, channel, and other information (see illustration) will appear when you press the STA- TUS/EXIT button or certain function buttons. The contents of the sta- tus display may vary. There are three status display modes: ON SCREEN ON: When you press the STOP button or the PLAY button, the status display appears for five seconds. -
Page 23: Vcr Display Panel 23
h e a d POWER PWR(power). Light This light appears when the power is turned on. Cassette-Inside Light This light appears when there is a tape in the VCR. VCR Light This light appears when the VCR is in VCR position. This light does not appear when the VCR is in TV posi- tion. -
Page 24: Front Panel
24 Front Panel Remote Sensor Receives an infrared signal from your remote control so you can operate your VCR from a distance. POWER Button Press to turn the VCR power on and off. h e a d POWER VCR/TV Button Use to select the signal that your TV receives. -
Page 25: Rear Panel 25
VIDEO OUT Jack Connect a cable going to the VIDEO IN Jack of a camcorder, another VCR, or an audio- visual source (laser disc, video disc player, etc.) here. Details are on pages 10, 38 and 44. AC Power Cord Connect to a standard AC outlet to supply power to the VCR. -
Page 26: Playing
26 Playing Read and follow the steps below to play a tape. Turn the TV on and set it to channel 3 or 4, whichever the CH3/CH4 switch on the back of the VCR is set to. Insert a tape in the VCR. The power will come on. The VCR will place itself in VCR position automatically (the VCR light and the Cassette-Inside light on the display panel of the VCR will appear). -
Page 27: Recording 27
Read and follow the steps below to record a television program. Turn the TV on and set it to channel 3 or 4, whichever the CH3/CH4 switch on the back of the VCR is set to. Insert a tape with its record tab intact (see page five) in the VCR. -
Page 28: Recording One Channel/Watching Another
28 Recording One Channel/Watching Another Start a recording (see page 27). Press the VCR button. Press the VCR/TV button to put the VCR in TV position. The VCR light will disappear from the VCR’s display panel. Press the TV button, then press the CHANNEL (Up/Down) or Number buttons to choose the channel you want to watch. -
Page 29: One Touch Recording 29
The one touch recording (OTR) function allows you to set an immediate timed recording 30 minutes to eight hours long with- out setting the timer. Before you begin, make sure: Channels are programmed. The desired recording speed (SP, LP, SLP) has been selected with the (Tape) SPEED button. - Page 30 30 Timer Recording Follow the steps below to program your VCR to record TV pro- grams while you’re away from home. You can program up to eight timer recordings. For each one, the VCR will turn itself on, record, and turn itself off automatically. If you are using a Cable Box, timer recordings may be pro- grammed differently.
- Page 31 Use the Number buttons (1 - 8) to select a slot in which to store the timer recording. There are eight timer recording slots. Open slots will flash on-screen. NOTE: If you enter a number for a slot that has already been used to store a timer recording, PREVIOUSLY SET PROGRAM will appear on- screen for a few seconds.
-
Page 32: Timer Recording
32 Timer Recording (cont’d) Press the Number 1 button to record in SP speed, press the Number 2 button to record in LP speed, or press the Number 3 button to record in SLP speed. For details, see the chart below. You cannot use the (Tape) SPEED button at this time. - Page 33 Reviewing or Cancelling Timer Recordings Press the VCR button, then the POWER button to turn on the VCR. Make sure the VCR light appears on the display panel of the VCR. If it does not, press the VCR/TV button. Press the MENU button. Press the Number 1 button to select PROGRAM.
-
Page 34: Setting Up The Vcr Plus+ Programming System
34 Setting Up the VCR Plus+ Programming System First, fill in the boxes on this page. It will only take a few minutes, and you must do it if you want the VCR Plus+ programming system to work properly. Since the channel numbers of the stations you receive may not be the same as the station numbers, and since channel numbers differ from area to area, you must program the VCR with your local channel infor- mation. - Page 35 Setting Up the VCR Plus+ Programming System (cont’d) 35 Now, compare the channel numbers you have written in the VCR PLUS+ CH. and CABLE/TV CH. columns. You’ll notice that some stations have VCR Plus+ and Cable/TV channel numbers that are the same, and other stations have channel numbers that do not match.
-
Page 36: Timer Recording With The Vcr Plus+ Programming System
36 Timer Recording With the VCR Plus+ Programming System Follow the steps below to program a timer recording using the PlusCode programming numbers in your TV guide. Before you begin, make sure: Channels are programmed (page 12). The VCR Plus+ and Cable/TV channel numbers are entered (pages 34-35). - Page 37 Timer Recording With the VCR Plus+ Programming System (cont’d) 37 Press the Number 1 button to record in SP speed, press the Number 2 button to record in LP speed, or press the Number 3 button to record in SLP speed. For details, see pages 32 and 50.
-
Page 38: Rerecording (Tape Duplication)
38 Rerecording (Tape Duplication) VCR 1 - Playing VCR AUDIO VIDEO 1. Audio cables from AUDIO OUT Jacks of VCR 1 to AUDIO IN Jacks of VCR 2 2. Video cable from VIDEO OUT Jack of VCR 1 to VIDEO IN Jack of VCR 2 Audio and Video cables are not supplied. -
Page 39: Repeat Playback 39
Repeat Playback Follow the steps below to program the VCR to play a tape over and over. Press the VCR button, then the MENU button to bring up the main menu display. TO SELECT PUSH NO. SHOWN 1 PROGRAM 2 VCR SET UP 3 TUNER SET UP 4 SET CLOCK TO END PUSH EXIT... -
Page 40: Time Search
40 Time Search Time Search Follow the steps below to program the VCR to search forward or backward a specific length of time. Press the VCR button, then the TIME SEARCH button to bring up the Time Search display. TIME SEARCH 0:00 ENTER SEARCH TIME Within 10 seconds, use the Number buttons to enter the... -
Page 41: Real Time Counter Memory 41
Real Time Counter Memory Follow the steps below to reset the real time counter to zero at a tape location you want to refer to later. Play, fast forward, or rewind a tape to the location that you would like to refer to later. Press the STOP button on the remote control or the STOP/EJECT button on the VCR to stop the tape. -
Page 42: Special Effects Playback
42 Special Effects Playback Forward and Reverse Searching (SP/LP/SLP) During tape playback, press and release the F.FWD (Fast Forward) button or the REW(ind) button. A fast forward or reverse picture search will begin. To return to playback, press the PLAY button. Super High Speed Searching (LP/SLP) During tape playback, press the F.FWD (Fast Forward) button or the REW(ind) button, then press again. -
Page 43: Automatic Operation Features 43
Automatic Playback When you put a tape in the VCR, the power will come on auto- matically. If the tape’s record tab is missing, playback will begin. If a timer recording is set, the power will not come on automati- cally when you insert a tape with the record tab intact. -
Page 44: Multi-Channel Television Sound System
44 Multi-Channel Television Sound System Your VCR can play recordings broadcast in Hi-Fi (high fidelity) stereo, which produces a crisp, clear sound from two sources. Your VCR also can play tapes recorded in a second audio (usually, that means your program is recorded in a second language). - Page 45 Multi-Channel Television Sound System (cont’d) 45 Press the VCR button, then the MENU button to bring up the main menu display. Press the Number 3 button to select TUNER SET UP. TO SELECT PUSH NO. SHOWN 1 TV 2 CABLE TV 3 AUTO PROGRAMMING 4 ADD/DELETE CH 5 CH MEMORY REVIEW...
-
Page 46: Hi-Fi Stereo Sound System
46 Hi-Fi Stereo Sound System Multi-Channel Television Sound system broadcasts are automati- cally recorded in Hi-Fi stereo sound. To play in Hi-Fi stereo tapes recorded in Hi-Fi stereo, however, you’ll need to follow the steps below. Press the VCR button, then the MENU button to bring up the main menu display. - Page 47 Press the MENU button to bring up the main menu display. Press the Number 3 button to select TUNER SET UP. TO SELECT PUSH NO. SHOWN 1 TV 2 CABLE TV 3 AUTO PROGRAMMING 4 ADD/DELETE CH 5 CH MEMORY REVIEW 6 TV STEREO 7 2ND AUDIO TO END PUSH EXIT...
-
Page 48: Helpful Hints
48 Helpful Hints If you are having problems with your VCR, check the following list of problems and possible solutions before requesting service. You may be able to solve the problem yourself. No power • Make sure the power plug is completely connected to an AC (alternating current) outlet. •... -
Page 49: Helpful Hints
There is no playback picture or the playback picture is noisy or contains streaks. • Make sure the TV and the Cable Box, if applicable, are on the same channel as the VCR’s CH3/CH4 switch (pages six-nine). • Make sure the VCR is in VCR position (page 24). The VCR light will appear on the display panel of the VCR when the VCR is in VCR position. -
Page 50: Glossary
50 Glossary AUDIO IN/OUT Jacks: jacks located on the back of the VCR which are used to record audio from another source (IN) or to send audio to another source (OUT). Automatic Channel Programming: process in which the VCR scans all available channels and places the ones you receive in its memory. -
Page 51: Specifications 51
Specifications 51 Video Heads Four heads – Hi-Fi Video Signal EIA standards; NTSC color Antenna VHF/UHF – 75 ohm external antenna terminal VHF Output Signal Channel 3 or 4 (switchable) 75 ohms unbalanced Power Requirement 120V AC; 60Hz Power Consumption Operating Temperature 41°F (5°C) to 104°F (40°C) Relative Humidity... -
Page 52: Limited Warranty
RENEWED 90 DAY LIMITED WARRANTY... -
Page 53: Index 53
ac power cord...25 accessories ...56 ant(enna) in jack ...6-10, 25 audio in/out jacks...10, 25, 38, 50 automatic playback ...43 rewind, eject, off...43 batteries ...5 cable/dss button ...5, 19, 21 cassette compartment...23 cassette-inside light ...23 ch3/ch4 switch ...6-9, 25 channel above 100...20 adding ...13 deleting ...13 memory ...12... -
Page 56: Supplied Accessories
Two “AA” Batteries (4835 138 17012) RF Coaxial Cable, 75 ohm (4835 323 27011) If any of these items are not included, or if you need to replace an item, contact Philips Service Company at the address below. Philips Service Company P.O.
