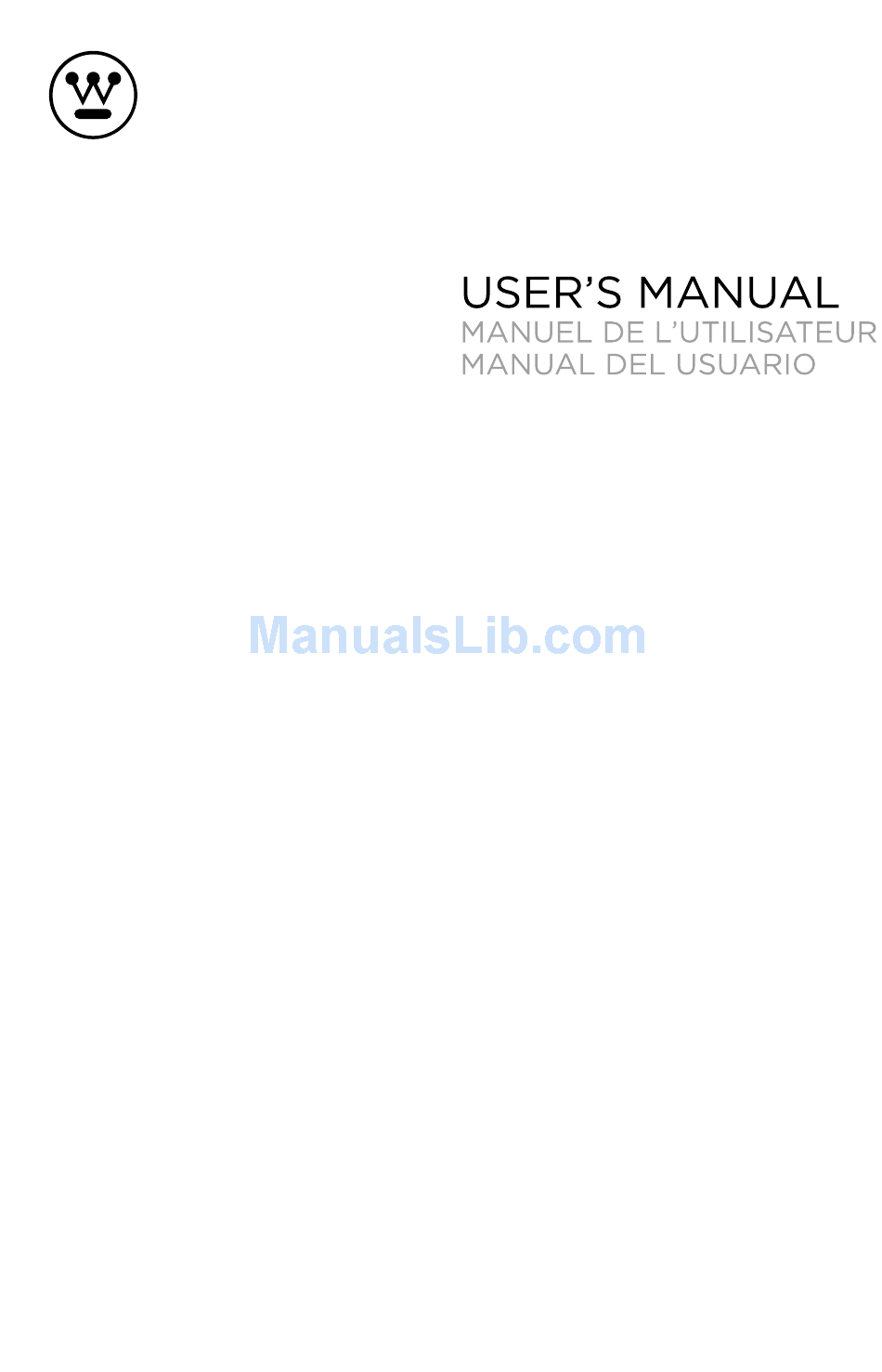

- Page 1 WD24HB2600...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safety Instructions Safety Information What's Included Front View Preparation Rear View Installing the Stand Remote Control Connecting External Devices Initial Setup Navigating the Setup Settings APPS Media Viewing JPEG Viewing MJPEG Customizing TV Source Settings Setup Settings Audio Picture... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS • Read these instructions – All the safety • Refer all servicing to qualified service and operating instructions should be read personnel. Servicing is required when before this product is operated. the apparatus has been damaged in any •... -
Page 4: Safety Information
SAFETY INFORMATION To ensure reliable and safe operation of this equipment, please carefully read all the instructions in this user guide, especially the safety information below. Electrical Safety • The TV set should only be connected to a main power supply with voltage that matches the label at the rear of the product. -
Page 5: Preparation
PREPARATION What's Included TV Set Remote Control with Batteries Four Screws (ST4x10 ) TV Stand Quick Warranty User Manual Connect Card Guide User Manual Quick Connect Guide Warranty Card... -
Page 6: Front View
PREPARATION Front View 1. POWER Switch the TV between On / Standby mode. 2. SOURCE Press to select among different input signal sources. 3. MENU Display the main menu. 4. CH / Press to select a channel. 5. VOL -/+ Press to adjust the volume. -
Page 7: Rear View
PREPARATION Rear View 1. Power Cord 8. DTV/TV Input Connect to AC power outlet. Connect to the antenna (75Ω VHF/UHF) 2. Headphone Socket socket with the RF coaxial cable. 9. OPTICAL Output Connect to the Headphones. 3. USB Port Connect a digital sound system to this Connect to a USB storage device to play jack. -
Page 8: Installing The Stand
PREPARATION Installing the Stand • 1. Lay the TV face down on a flat, cushioned surface to avoid damaging or scratching. • 2. Fix the Left Connecting Base to the main unit using the 2 provided screws. (ST4x10 ) • 3.Fix the Right Connecting Base to the main unit using the 2 provided pcs provided screws. -
Page 9: Remote Control
PREPARATION Remote Control 1. HO ME : Dis play t he Home menu. 2. POWER:Turn the LED TV on or off. 3. APPS:Press to select the desired APPS. : D i s p l a y t h e m a i n T V menu. -
Page 10: Connecting External Devices
CONNECTING EXTERNAL DEVICES Blu-ray Player / Recorder Game Console Satellite Video Camera Antenna Cable Digital Audio System Satellite Receiver Composite/Component Cable (not included) Optical Cable Audio Cable (not included) (not included) RF Cable(not included) HDMI 2 HDMI 1 PC AUDIO VGA Cable 3.5mm Audio Cable... -
Page 11: Customizing Tv Settings
CUSTOMIZING TV SETTINGS Initial Setup • Connect the power cord to the power socket after you have completed all the physical connections. At this stage, the TV will enter Standby Mode and the red LED indicator will illuminate. • In Standby Mode, press the button on the main unit or on the remote control to turn the TV on. -
Page 12: Navigating The Setup Settings
CUSTOMIZING TV SETTINGS • If channels can not be found, this frame will be displayed automatically. Navigating the Setup Settings • Press the MENU button to display the main menu. • Use buttons to select setup menu and then press OK buttons to enter, then press to navigate and select the available menu. -
Page 13: Apps
CUSTOMIZING TV SETTINGS APPS • Press the MENU button on the main unit or on the remote control to display the main menu. Then use to select the apps and press OK button to enter. Use to select the desired app. Or press the hotkey on the remote control to enter the APP directly. -
Page 14: Media
CUSTOMIZING TV SETTINGS MEDIA NOTE:Portable storage devices( USB disk or Hard disk) should be inserted. • Press the MENU button on the main unit or on the remote control to display the main menu. Then use to select the media and press OK button to enter. to select the desired option. -
Page 15: Viewing Mjpeg
CUSTOMIZING TV SETTINGS Viewing MJPEG • After entering MEDIA, press buttons to select MJPEG and then select the disk type to enter. Then use buttons to navigate in the video folder and then select the desired video and press OK button, when √ appears on the to play the video, or press menu button to display the control top-left, press to select Play to display the video. -
Page 16: Setup
, or you may also type in the TV in the same network) Portable Remote "Westinghouse Remote" in Google Play or APP store to download the APP. Secondly, enter the 6 digits code after app installation. 6 digits code: N/A... -
Page 17: Audio
CUSTOMIZING TV SETTINGS CC Mode Select CC mode :CC On, CC Off. Basic Selection: CC1, CC2, CC3, CC4, Analog CC Text1, Text2, Text3, Text4. Closed Caption Advanced Selection: Service1, Service2, Digital CC Service3, Service4, Service5, and Service6. Mode, Font Style, Font Size, Font Edge Option Style, Font Edge Color, FG Color, BG Color, FG Opacity, BG Opacity. -
Page 18: Picture
CUSTOMIZING TV SETTINGS PICTURE • Press buttons to select PICTURE menu and then press OK button to enter. Press buttons to select the following picture options and then press buttons to adjust each option’s setting. Cycle among picture mode: Energy Saving/User/Retail/ Picture Mode Movie. -
Page 19: Channel
COSTOMIZING TV SETTINGS CHANNEL • Press buttons to select CHANNEL menu and then press OK button to enter. Press buttons to select the following channel options and then press buttons to adjust each option’s setting. Select antenna between Air and Cable. Signal Type Cable: Select your cable system from: Auto/STD/IRC/HRC. -
Page 20: Lock
CUSTOMIZING TV SETTINGS Select a period of time after which the TV automatically Sleep Timer switches to standby mode: Off/5/10/…/180/240 min. LOCK • Press buttons to select LOCK menu and then press OK button to enter. Use the 0-9 buttons to input 4-digit password to enter the LOCK menu. • Press buttons to select the following lock options and then press buttons to adjust each option’s setting. -
Page 21: Network
COSTOMIZING TV SETTINGS NETWORK Network Settings Network Status Deactivate Netflix Deactivate • Press buttons to select NETWORK menu and then press OK button to enter. Press buttons to select the following network options and then press buttons to adjust each option’s setting. Select two types of network: Wireless Network or Wired Network Settings Network. -
Page 22: Parental Control
PARENTAL CONTROL Press the MENU button on the main unit or on the remote control and then press buttons to select LOCK menu. Use the 0-9 buttons to input the 4-digit password to enter the LOCK menu. If used, this option feature can "block'' undesirable programming from appearing on the TV. - Page 23 PARENTAL CONTROL • Motion Picture Association of America (MPAA) Rating System Grade Meaning General Audiences Content not offensive to most viewers. Parental Guidance Content is such that parents may not want their Suggested children to view the program. Program is inappropriate for preteens, with a greater Parents Strongly PG-13 degree of offensive material suggested than a PG...
-
Page 24: Troubleshooting
TROUBLESHOOTING If your TV does not operate normally or cannot be turned on, please check the following troubleshooting questions. Remember also to check any other connected electronic device, such as DVD or Blu-ray player to pinpoint the problem. If the TV still fails to operate normally, please contact technical support. The TV does not operate properly • The TV may freeze up during use. -
Page 25: Maintaining
TROUBLESHOOTING The audio function does not work • Press the VOL +/- buttons. • Sound muted? Press the MUTE button. Picture OK but no sound • Try another channel. The problem may be caused by the broadcaster. No output from one of the •... -
Page 26: Specification
SPECIFICATION Panel Size 23.8inch diagonally Display Type DLED Panel Technology Panel 60 Hz Vs. 120 Hz 60 Hz Display Resolution 1366 x 768 HDMI Support 1366 x 768 Panel Resolution 1366 x 768 Aspect Ratio 16:9 Dynamic Contrast Ratio-Panel 800:1 Response Time (G To G) 8 ms Lamp Life (Typ. -
Page 27: Ott App Service
OTT APP SERVICE If you want to know about these APP information or get more service. Please refer to following content. • Netflix You can call the following telephone for more help: 866-579-7172 If your matter is regarding customer service, please refer to https://contactus.netflix.com/help for alternative contact information. - Page 28 SE-UM-2401 -1601...
