Panasonic HDC-MDH1GC Service Manual

High definition
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
4

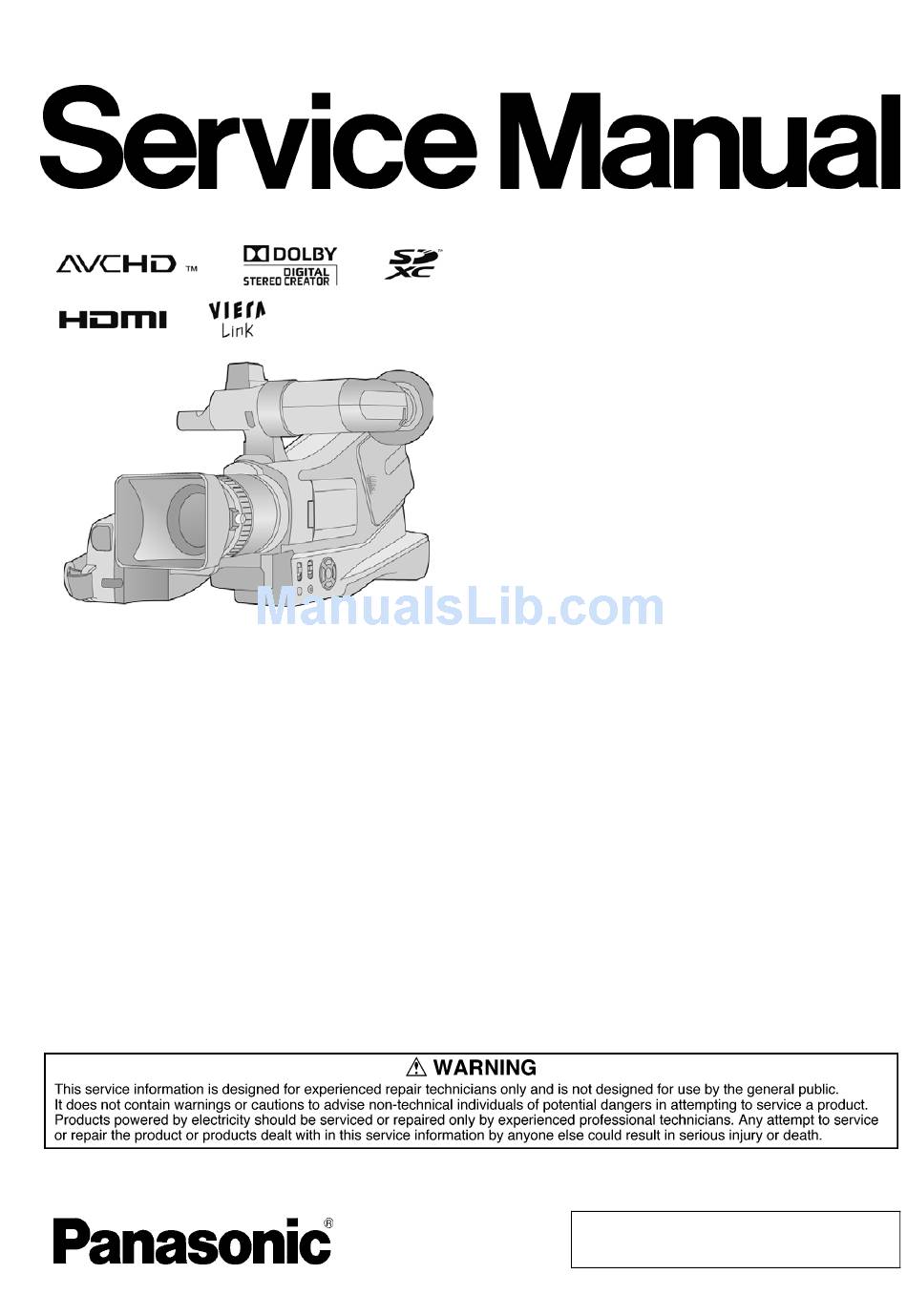

High Definition Video Camera
HDC-MDH1GC
Model No.
HDC-MDH1GK
Vol. 1
Colour
(K)...........Black Type
© Panasonic Corporation 2010 Unauthorized copy-
ing and distribution is a violation of law.
ORDER NO. VM1009041CE
B27

Advertisement

Table of Contents
loading

Related Manuals for Panasonic HDC-MDH1GC

Summary of Contents for Panasonic HDC-MDH1GC

  • Page 1 ORDER NO. VM1009041CE High Definition Video Camera HDC-MDH1GC Model No. HDC-MDH1GK Vol. 1 Colour (K)...Black Type © Panasonic Corporation 2010 Unauthorized copy- ing and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3 1.1. General Guidelines ----------------------------------------3 1.2. Leakage Current Cold Check ---------------------------3 1.3. Leakage Current Hot Check (See Figure 1.)--------3 2 Warning --------------------------------------------------------------4 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices ----------4 2.2.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1.3. Leakage Current Hot Check 1. IMPORTANT SAFETY NOTICE (See Figure 1.) There are special components used in this equipment 1. Plug the AC cord directly into the AC outlet. Do not use which are important for safety. These parts are marked by an isolation transformer for this check.

  • Page 4: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip"...

  • Page 5: Caution For Ac Cord (For

    2.2.2.3. How to Replace the Fuse A replacement fuse cover can be purchased from your local Panasonic Dealer. 1. Remove the Fuse Cover with a screwdriver. If the fitted moulded plug is unsuitable for the socket outlet in your home then the fuse should be removed and the plug cut off and disposed of safety.

  • Page 6: How To Replace The Lithium Battery

    NOTE: This Lithium battery is a critical component. (Type No.: ML-614S/ZTK Manufactured by Energy Company, Panasonic Corporation) It must never be subjected to excessive heat or discharge. It must therefore only be fitted in requirement designed specifically for its use.

  • Page 7: Service Navigation

    When a part replacement is required for repairing MAIN P.C.B., replace as an assembled parts. (Main P.C.B.) 2. The following category is /are recycle module part. Please send it/them to Central Repair Center. • MAIN P.C.B. (VEP03H99A: HDC-MDH1GC/GK) 3.4. After replacing the MAIN P.C.B., be sure to achieve adjustment The adjustment instruction is available at "software download"...

  • Page 8: How To Define The Model Suffix

    How to Define the Model Suffix There are two kinds of HDC-MDH1. • a) HDC-MDH1GK • b) HDC-MDH1GC What is the difference is that the “INITIAL SETTING” data which is stored in Flash ROM mounted on Main P.C.B.. 3.5.1. Defining methods: To define the model suffix to be serviced, refer to the rating label which is putted on the Unit.

  • Page 9: Specifications

    4 Specifications...

  • Page 11: Location Of Controls And Components

    5 Location of Controls and Components LCD monitor (Touch screen) It can open up to 90 . ● It can rotate up to 180 towards the lens ● or 90 towards the opposite direction. Due to limitations in LCD production technology, there may be some tiny bright or dark spots on the LCD monitor screen.
  • Page 12 34 HDMI connector [HDMI] 35 USB terminal [ 36 DC input terminal [DC IN] Always use the supplied AC adaptor or a genuine Panasonic AC adaptor (optional). 37 Status indicator 38 Power switch 39 Recording start/stop button 40 Grip belt Adjust the length of the grip belt so that it fits your hand.

  • Page 14: Selecting A Mode

    Selecting a mode Change the mode to recording or playback. Operate the mode switch to change the mode to Motion picture recording mode Still picture recording mode Playback mode How to use the touch screen You can operate by directly touching the LCD monitor (touch screen) with your finger. It is easier to use the stylus pen (supplied) for detailed operation or if it is hard to operate with your fingers.

  • Page 15: Service Mode

    6 Service Mode 1. Indication method of the service menu Set the mode switch “Motion Picture Recording” mode. 2. Turn the power on, and then while keep pressing the “Zoom lever” to W side, “Focus” switch and “Menu” button for more than 3 seconds until the top screen of the Service Mode Menu being displayed.

  • Page 16: Lock Search History Indication

    6.1. Lock Search History Indication Touch the [ 4 ] of LCD, select Lock search history indication. Operation specifications Indication contents • Lock search history indication Display the camera system error cord for three histories saved in EEPROM. • The error cord contents which are displayed Error code Function Focus control is abnormal...

  • Page 17: Service Fixture & Tools

    7 Service Fixture & Tools 7.1. When Replacing the Main P.C.B. After replacing the MAIN P.C.B., be sure to achieve adjustment. The adjustment instruction is available at “software download” on the “Support Information from NWBG/VDBG-AVC” web-site in “TSN system”, together with Maintenance software. 7.2.

  • Page 18: Disassembly And Assembly Instructions

    8 Disassembly and Assembly Instructions 8.1. Disassembly Flow Chart This is a disassembling chart. When assembling, perform this chart conversely. 8.2. PCB Location...

  • Page 19: Disassembly Procedure

    8.3. Disassembly Procedure Item Removal Batt Power P.C.B. Unit Fig. D15 2 Screws (U) Item Removal Battery Catcher Unit P6751 (Connector) Face Panel Fig. D1 8 Screws (A) FP6752 (Flex) Shoulder Pad Face Panel 2 Locking tabs Shoulder Pad Batt Power P.C.B. Unit Hood ND Case Unit Fig.
  • Page 20 Item Removal Front P.C.B. Unit Fig. D31 2 Screws (n) FP6801(Connector) Remote Controller Window Fig. D32 2 Screws (o) P.C.B. Angle Front P.C.B. Unit LCD Case Unit Fig. D33 3 Screws (p) Fig. D34 2 Screws (q) 6 Locking tabs LCD Case Top Unit FP901 (Flex) LCD Case Unit...
  • Page 21 8.3.2. Removal of the Hood ND Case Unit 8.3.3. Removal of the Side Case-R Unit and Focus Ring Fig. D2 Fig. D3...
  • Page 22 8.3.4. Removal of the Speaker 8.3.5. Removal of the Side-R OP P.C.B. Unit Fig. D5 Fig. D4 Fig. D6...
  • Page 23 8.3.6. Removal of the Side-R Int P.C.B. 8.3.7. Removal of the Lens Unit Unit Fig. D7 Fig. D9 Fig. D8...
  • Page 24 Fig. D10 8.3.8. Removal of the Lens Int P.C.B. Unit and Main P.C.B. Unit Fig. D12 Fig. D11...
  • Page 25 8.3.9. Removal of the SD Holder P.C.B. 8.3.10. Removal of the Jack P.C.B. Unit Unit Fig. D14 Fig. D13...
  • Page 26 8.3.11. Removal of the Batt Power P.C.B. 8.3.12. Removal of the Handle Mic Unit Unit and Battery Catcher Unit Fig. D16 8.3.13. Removal of the Mic Case Unit and Ext Mic P.C.B. Unit Fig. D15 Fig. D17...
  • Page 27 Fig. D18 8.3.14. Removal of the Handle Zoom P.C.B. Unit Fig. D20 Fig. D19...
  • Page 28 8.3.15. Removal of the EVF Case Unit Fig. D22 8.3.16. Removal of the EVF Angle Adj. Case Unit Fig. D21 Fig. D23...
  • Page 29 8.3.17. Removal of the EVF Unit and EVF Int P.C.B. Unit Fig. D25 Fig. D24...
  • Page 30 8.3.18. Removal of the Grip Cover Unit Fig. D26 8.3.19. Removal of the Zoom Photo P.C.B. Unit Fig. D28 8.3.20. Removal of the SS GYRO P.C.B. Unit Fig. D27 Fig. D29...
  • Page 31 Fig. D32 8.3.22. Removal of the LCD Case Unit Fig. D30 8.3.21. Removal of the Front P.C.B. Unit Fig. D33 Fig. D31...
  • Page 32 8.3.23. Removal of the LCD Unit and Moni- tor P.C.B. Unit Fig. D35 Fig. D34...
  • Page 33 8.3.24. Removal of the MOS Unit and IR Fil- Fig. D37 Fig. D36...
  • Page 34 8.3.25. Removal of the Focus Motor 8.3.26. Removal of the Zoom Motor Fig. D38 Fig. D39...

  • Page 35: Measurements And Adjustments

    9 Measurements and Adjustments 9.1. Electric Adjustment • Adjustment method is different from a conventional High definition video camera. • An exclusive jig and PC (including software for adjustment “Tatsujin”) are necessary for electric adjustment. • A USB driver for service is necessary to communication with PC. •...
  • Page 36 Adjustment Items • Adjustment item as follows. The adjustment instruction is available at "Software download" on the "Support Information from NWBG/VDBG-AVC" web-site in "TSN System".

  • Page 37: Factory Setting

    10 Factory Setting 10.1. How To Turn On The Factory Settings? 1. Set the mode switch “Motion Picture Recording” mode. 2. Turn the power on, and then while keep pressing the “Zoom lever” to W side, “Focus” switch and “Menu” button for more than 3 seconds until the top screen of the Service Mode Menu being displayed.
  • Page 38 "Standard-Playback" mode when there is no specify mode is mentioned. Model No. HDC-MDH1GC 4.Although the voltage and waveform available on here is measured with standard frame, it may be differ from actual measurement due to modification of circuit and so on.

  • Page 39: S2. Voltage Chart

    S2. Voltage Chart Note) Indicated voltage values are the standard values for the unit measured by the DC electronic circuit tester (high-impedance) with the chassis taken as standard. Therefore, there may exist some errors in the voltage values, depending on the internal impedance of the DC circuit tester. S2.1.

  • Page 40: S3. Block Diagram

    S3. Block Diagram S3.1. Overall Block Diagram : VIDEO SIGNAL NOTE : AUDIO SIGNAL : CLK or CONTROL LINE LENS(F1.8-2.6 16.8x) IC201 ZOOM/ MOS IMAGE FOCUS IRIS/ SENSOR MOTOR/ IC851 COLOR EVF EVF COLOR PANEL DRIVER Analog COLOR LCD PANEL X301 (72MHz) IC701...

  • Page 41: S4. Schematic Diagram

    S4. Schematic Diagram S4.1. Interconnection Diagram EVF B/L P.C.B. (FOIL SIDE) FP822 EVF INT P.C.B. D GND (FOIL SIDE) D GND MOS UNIT D GND ECM FPC PW EVF8R5V HCK2 LENS UNIT HCK1 MIC P.C.B. PW EVFBL5V PW EVF3V (FOIL SIDE) HANDLE ZOOM P.C.B.

  • Page 42: S4.2. Evf Bl Schematic Diagram

    S4.2. EVF BL Schematic Diagram TO EVF PANEL C803 FP802 10V1[18] K1MY20BA0370 [0.5mm][SHITA] TO EVF_INT FP801 VSSG K1MN18A00064 [0.5mm][STRAIGHT] D_GND HCK2 D_GND HCK1 C805 D_GND PW_EVF8R5V 16V0.1 PW_EVF8R5V CLK2_EVFCKH2 HCK2 CLK2_EVFCKH1 HCK1 XSTB PW_EVFBL5V PW_EVF3V PW_EVF3V BLUE G_BOUT EVF_B GREEN G_ROUT EVF_R PSIG...

  • Page 43: S4.3. Sd Holder Schematic Diagram

    S4.3. SD Holder Schematic Diagram FP3901 K1MN22BA0197 R3906 E_CARD_PRO R3907 E_CARD_DET E_CARD_DET CARD_DET E_CARD_PRO CARD_PRO R3904 R3908 SD_GND $[18] PW_SD3R2V_1 SD_GND Q3901 SD_GND R3905 B1ADKB000015 R3910 CLK49_SDCARD SDCLK 15[18] SD_GND RX3902 PW_SD3R2V C3911 R3909 D1H81034A024 1u[15] PW_SD3R2V PW_SD3R2V PW_SD3R2V SD_GND R3901 SD_GND SD_GND...

  • Page 44: S4.4. Jack Schematic Diagram

    S4.4. Jack Schematic Diagram [D JACK] JK4503 K2HZ110E0003 LB4503 R4503 LINE1 J0JCC0000408 75[D] G_PBOUT PBOUT LINE2 LB4504 R4504 DA_GND J0JCC0000408 75[D] G_HDYOUT HDYOUT LINE3 D_PLUGIN_L DA_GND DA_GND LB4505 R4505 R4501 D_PLUG_DET J0JCC0000408 75[D] G_PROUT TO MAIN PROUT DA_GND C4503 DA_GND K1MN16AA0058 0.01 DA_GND...

  • Page 45: S4.5. Batt Power Schematic Diagram

    S4.5. BATT Power Schematic Diagram BATTERY CATCHER TO MAIN PCB P6751 K1KA04BA0050 K1MN14AA0058 IP6751 FP6752 K5H4021A0011 UL_(IP6751 4) BATT_+ BATT_+ S_BATT_D BATT_+ ADP_DET BATT_+ BATT_+ VA1504 VA1001 C6751 D4ED1270A011 10V10u[22] D4ED18R00008 LB6701 $[J0JJC0000015] K2EZYE000004 JK6751 FL6751 D6751 LB6751 J0MAB0000221 B0ECKP000002 J0JJC0000015 PW_ADP_+ ADP_+...

  • Page 46: S4.6. Lens Int Schematic Diagram

    S4.6. Lens INT Schematic Diagram TO LENS (Z119K2) TO MAIN PS6201 FP6108 K1KB40AA0021 K1MY33AA0199 ZLEDCONT_LEN ZLEDCONT ZLEDCONT ZABS_LEN ZABS ZABS PW_ZENCVCC ZENCVCC ZENCVCC G_IRHIN+_LEN IRHIN+ IRHIN+ G_IRHO+_LEN IRHO+ IRHO+ G_IRHIN-_LEN IRHIN- IRHIN- G_IRHO-_LEN IRHO- IRHO- D_GND IRM+ G_IRM+_LEN IRM+ IRM- G_IRM-_LEN IRM- FLEDCONT...

  • Page 47: S4.7. Ss Gyro Schematic Diagram

    S4.7. SS Gyro Schematic Diagram / S4.8. Zoom Photo Schematic Diagram POWER FRAME S6603 S6601 VA6602 $[K0H1BA000433] TO FRONT ESE22MV21T TO ZOOM_PHOTO S6692 $[D4ED1270A006] FP6602 K0H1BA000338 K1KA04BA0047 K1KA02BA0014 S6602 K0H1BA000338 J0JCC0000276 FP6603 J0JCC0000276 POWER_SW LB6603 LB6601 VZ6603 PHOTO_SW PHOTO_SW TALLY_LED $[D4ED1270A006] LB6604 J0JHC0000078...

  • Page 48: S4.9. Ext Mic Schematic Diagram

    S4.9. EXT MIC Schematic Diagram Q4907 B1ABDF000017 R4906 R4913 10K[22] Q4902 10K[22] Q4904 R4902 B1ADCF000161 B1ADCF000161 4700 R4907 R4914 150K[22] 150K[22] R4910 [EXTMIC] R4917 R4912 C4908 C4906 5600 5600 LB4923 F3F0J226A032 EXTMIC_L J0JCC0000276 TO MAIN R4905 C4903 6.3V FP4802 LB4924 MIC[L] J0JCC0000276 K1MY10BA0370...

  • Page 49: S4.10. Handle Zoom Schematic Diagram

    S4.10. Handle Zoom Schematic Diagram / S4.11. EVF INT Schematic Diagram TO MAIN P821 S6685 K1KA20AA0184 $[K0H1BA000433] [0.5mm][BtoB] TO EVF_B/L [0.5mm][UE] FP822 S6683 S6684 [TELE] [WIDE] PW_EVFBL5V K0H1BA000338 K0H1BA000338 K1MY18BA0370 EVF_B PW_EVF3V D_GND EVF_R D_GND S6681 S6682 $[K0H1BA000433] $[K0H1BA000433] D_GND EVF_G PW_EVF8R5V [SUB_REC]...

  • Page 50: S4.12. Side-R Int Schematic Diagram

    S4.12. Side-R INT Schematic Diagram C6701 TO SP C6702 P6701 C6703 K1KA02BA0014 C6704 [1.0mm][WtoB] C6709 C6710 SP_OUT2 C6711 SP_OUT1 C6705 C6706 C6707 C6708 S6701 [LCD_OPEN] ESE22MV21T HDC-MDH1 Side-R INT Schematic Diagram S-13...

  • Page 51: S4.13. Side-R Op Schematic Diagram

    S4.13. Side-R OP Schematic Diagram TO SIDE_R_INT [DOUN] FP6951 S6954 K1MY08BA0370 K0F111A00589 R6962 R5963 D_GND D_GND D_GND S6958 S6959 VTR_KEY_1 K0D113B00027 K0D113B00008 VTR_KEY_3 [iA] [MNL] [MF] [PLAY] [STILL] [MOVING] [RIGHT] VTR_KEY_2 S6955 REGD3V K0F111A00589 [ENTER] VTR_KEY_5 S6952 K0F111A00589 R6960 R6958 R6959 4700 R6957...

  • Page 52: S4.14. Front Schematic Diagram

    S4.14. Front Schematic Diagram / S4.15. MF SENS Schematic Diagram TO LENS_INT P2701 K1KA04BA0014 PW_LENS3R2V TO SS_GYRO MF_RING1 Q2701 FP6801 MF_RING2 B3NBA0000017 K1KA02BA0014 D_GND TALLY_LED D_GND Q2702 B3NBA0000017 FLAMEGND HDC-MDH1 HDC-MDH1 Front MF SENS Schematic Diagram Schematic Diagram S-15...

  • Page 53: S4.16. Monitor Schematic Diagram

    S4.16. Monitor Schematic Diagram TO SIDER INT TO LCD PANEL FP901 FP904 K1MN28BA0197 K1MY41BA0369 [0.5mm][UE] [0.3mm][SHITA][T=0.2mm] CLK18_LCD S_CLK_LCD VGL2 S_CLK_LCD S_CS_LCD S_CS_LCD PW_REG3V S_DO_LCD VCC1 S_DO_LCD C905 PW_REG1R8V PW_REG1R8V C902 C906 6.3V F1H1A105A036 BUS9_LCDYC0 $[18] BUS9_LCDYC0 VCOMH C903 C907 BUS9_LCDYC1 BUS9_LCDYC1 VCOML 6.3V...

  • Page 54: S5. Print Circuit Board

    S5. Print Circuit Board S5.1. EVF BL P.C.B. D801 C804 D803 C801 R804 R803 FP801 R805 C802 FP802 (Component Side) (Foil Side) HDC-MDH1 EVF BL P.C.B. S-17...

  • Page 55: S5.2. Sd Holder P.c.b

    S5.2. SD Holder P.C.B. S5.2.1. SD Holder P.C.B. (Component Side) D3901 RL3902 (Component Side) HDC-MDH1 SD Holder P.C.B. (Component Side) S-18...

  • Page 56: S5.2.2. Sd Holder P.c.b. (Foil Side

    S5.2.2. SD Holder P.C.B. (Foil Side) RL3901 R3908 Q3901 R3902 C3907 C3909 C3906 VA3901 C3910 R3906 C3908 (Foil Side) HDC-MDH1 SD Holder P.C.B. (Foil Side) S-19...

  • Page 57: S5.3. Jack P.c.b

    S5.3. Jack P.C.B. HDC-MDH1 Jack P.C.B. (Component Side) JK4503 JK4502 R4503 R4504 (Component Side) S-20 S-20...
  • Page 58 HDC-MDH1 Jack P.C.B. (Component Side) JK4501 S-21 S-21...
  • Page 59 (Component Side) C4504 LB4510 LB4511 C4506 LB4509 LB4508 CL4501 LB4506 C4501 CL4502 LB4507 FP4501 C4599 (Foil Side) HDC-MDH1 Jack P.C.B. (Foil Side) S-22...
  • Page 60 VZ4502 R4599 CL4502 LB4507 C4505 R4506 LB4501 HDC-MDH1 Jack P.C.B. (Foil Side) S-23...

  • Page 61: S5.4. Batt Power P.c.b

    S5.4. BATT Power P.C.B. S5.4.1. BATT Power P.C.B. (Component Side) JK6751 RL6751 FP6752 (Component Side) HDC-MDH1 BATT Power P.C.B. (Component Side) S-24...

  • Page 62: S5.4.2. Batt Power P.c.b. (Foil Side

    S5.4.2. BATT Power P.C.B. (Foil Side) D6751 LB6751 R6752 (Foil Side) HDC-MDH1 BATT Power P.C.B. (Foil Side) S-25...

  • Page 63: S5.5. Lens Int P.c.b

    S5.5. Lens INT P.C.B. P6109 FP6108 (Component Side) PS6201 (Foil Side) HDC-MDH1 Lens INT P.C.B. S-26...

  • Page 64: S5.6. Ss Gyro P.c.b

    S5.6. SS Gyro P.C.B. D6601 CL6601 LB6603 VA6602 LB6604 VA6601 CL6602 LB6605 LB6606 VZ6603 LB6602 S6603 LB6601 S6602 VZ6604 L6401 CL6401 IC6401 CL6402 C6402 CL6403 C6401 CL6405 CL6404 HDC-MDH1 (Component Side) (Foil Side) SS Gyro P.C.B. S-27...

  • Page 65: S5.7. Zoom Photo P.c.b

    S5.7. Zoom Photo P.C.B. S6690 (Component Side) (Foil Side) HDC-MDH1 Zoom Photo P.C.B. S-28...
  • Page 66 S-29...

  • Page 67: S5.8. Ext Mic P.c.b

    S5.8. EXT MIC P.C.B. HDC-MDH1 EXT MIC P.C.B. (Component Side) JK4901 R4817 R4818 C4816 S-30 S-30...
  • Page 68 HDC-MDH1 EXT MIC P.C.B. (Foil Side) C4902 R4908 R4915 R4909 R4916 Q4901 Q4903 R4911 R4918 S-31 S-31 R4906 R4913...
  • Page 69 R4817 R4818 C4816 IC4803 R4815 R4809 C4810 C4804 R4814 R4808 C4809 C4803 R4801 R4804 C4906 C4815 C4813 FP4801 (Component Side) HDC-MDH1 EXT MIC P.C.B. (Component Side) S-32...
  • Page 70 R4908 R4915 R4909 R4916 Q4901 Q4903 R4911 R4918 R4906 R4913 Q4902 Q4904 FP4802 (Foil Side) HDC-MDH1 EXT MIC P.C.B. (Foil Side) S-33...

  • Page 71: S5.9. Handle Zoom P.c.b

    S5.9. Handle Zoom P.C.B. S6684 S6682 S6683 S6681 P6681 S6680 (Component Side) (Foil Side) HDC-MDH1 Handle Zoom P.C.B. S-34...

  • Page 72: S5.10. Evf Int P.c.b

    S5.10. EVF INT P.C.B. (Component Side) C821 R821 C826 R822 C827 C822 C823 P821 C824 C825 (Foil Side) HDC-MDH1 EVF INT P.C.B. S-35...

  • Page 73: S5.11. Side-R Int P.c.b

    S5.11. Side-R INT P.C.B. S5.11.1. Side-R INT P.C.B. (Component Side) S6701 (Component Side) HDC-MDH1 Side-R INT P.C.B. (Component Side) S-36...

  • Page 74: S5.11.2. Side-R Int P.c.b. (Foil Side

    S5.11.2. Side-R INT P.C.B. (Foil Side) FP6702 C6706 R6702 R6703 FP6701 VZ6704 VZ6703 VZ6702 VZ6701 ZB6701 (Foil Side) HDC-MDH1 Side-R INT P.C.B. (Foil Side) S-37...

  • Page 75: S5.12. Side-R Op P.c.b

    S5.12. Side-R OP P.C.B. S5.12.1. Side-R OP P.C.B. (Component Side) S6957 S6956 S6952 S6955 S6953 S6950 S6954 (Component Side) HDC-MDH1 Side-R OP P.C.B. (Component Side) S-38...

  • Page 76: S5.12.2. Side-R Op P.c.b. (Foil Side

    S5.12.2. Side-R OP P.C.B. (Foil Side) R5963 R6958 R6960 R6951 R6957 R6959 VZ6951 R6953 FP6951 (Foil Side) HDC-MDH1 Side-R OP P.C.B. (Foil Side) S-39...

  • Page 77: S5.13. Front P.c.b

    S5.13. Front P.C.B. D6801 FP6801 R6801 (Component Side) (Foil Side) HDC-MDH1 Front P.C.B. S-40...

  • Page 78: S5.14. Mf Sens P.c.b

    S5.14. MF SENS P.C.B. Q2701 R2701 (Component Side) (Foil Side) HDC-MDH1 MF SENS P.C.B. S-41...

  • Page 79: S5.15. Monitor P.c.b

    S5.15. Monitor P.C.B. S5.15.1. Monitor P.C.B. (Component Side) (Component Side) HDC-MDH1 Monitor P.C.B. (Component Side) S-42...

  • Page 80: S5.15.2. Monitor P.c.b. (Foil Side

    S5.15.2. Monitor P.C.B. (Foil Side) C908 C909 C914 C901 C919 C916 C912 C917 R506 R507 FP903 (Foil Side) HDC-MDH1 Monitor P.C.B. (Foil Side) S-43...
  • Page 81 S-44...

  • Page 82: S6. Replacement Parts List

    S6. Replacement Parts List Note: 1.* Be sure to make your orders of replacement parts according to this list. 2. IMPORTANT SAFETY NOTICE Components identified with the mark have the special characteristics for safety. When replacing any of these components, use only the same type. 3.
  • Page 83 HDC-MDH1GC-K,GK-K vol.1 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VEP03H99A-S MAIN P.C.B. UNIT 1 (RTL) E.S.D. VEP04969A JACK P.C.B. UNIT (RTL) E.S.D. VEP29227A EVF BL P.C.B. UNIT 1 (RTL) E.S.D. VEP03J00A SD HOLDER P.C.B.
  • Page 84 HDC-MDH1GC-K,GK-K vol.1 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks R4815 ERJ2GEJ683 M.RESISTOR CH 1/16W 68K VEP06G57A SS GYRO P.C.B. UNIT (RTL) E.S.D. R4817 ERJ2GEJ223 M.RESISTOR CH 1/16W 22K R4818 ERJ2GEJ333 M.RESISTOR CH 1/16W 33K...
  • Page 85 HDC-MDH1GC-K,GK-K vol.1 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks R6956 ERJ2GEJ183 M.RESISTOR CH 1/10W 18K FP905 K1MN04BA0262 CONNECTOR R6957 ERJ2GEJ223 M.RESISTOR CH 1/16W 22K R6958 ERJ2GEJ472 M.RESISTOR CH 1/10W 4.7K R901 ERJ2GEJ824 M.RESISTOR CH 1/16W 820K...
  • Page 86 HDC-MDH1GC-K,GK-K vol.1 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VEP06G55A SIDE-R INT P.C.B. UNIT 1 (RTL) E.S.D. VEP002E8A SIDE-R OP P.C.B. UNIT 1 (RTL) E.S.D. VEP27227A MF SENS P.C.B. UNIT 1 (RTL) E.S.D.
  • Page 87 HDC-MDH1GC-K,GK-K vol.1 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VEP03H99A-S MAIN P.C.B. UNIT 1 (RTL) E.S.D. VEP03J00A SD HOLDER P.C.B. UNIT 1 (RTL) E.S.D. VEP04969A JACK P.C.B. UNIT 1 (RTL) E.S.D.
  • Page 88 HDC-MDH1GC-K,GK-K vol.1 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VEP04970A EXT MIC P.C.B. UNIT 1 (RTL) E.S.D. VEP06G54A HANDLE ZOOM P.C.B. UNIT 1 (RTL) E.S.D. VYK1Q65 HANDLE UNIT VKF4044 HANDLE COVER...
  • Page 89 HDC-MDH1GC-K,GK-K vol.1 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VEP06G57A SS GYRO P.C.B. UNIT 1 (RTL) E.S.D. VEP06G58A ZOOM PHOTO P.C.B. UNIT 1 (RTL) E.S.D. VEP06G56A FRONT P.C.B. UNIT 1 (RTL) E.S.D.
  • Page 90 HDC-MDH1GC-K,GK-K vol.1 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VEP29227A EVF BL P.C.B. UNIT 1 (RTL) E.S.D. VEP29228A EVF INT P.C.B. UNIT 1 (RTL) E.S.D. VGQ0Q49 LCD PIECE L5BDDXH00033 LCD VGL1304...
  • Page 91 HDC-MDH1GC-K,GK-K vol.1 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VEP26334A MONITOR P.C.B. UNIT 1 (RTL) E.S.D. L5BDDXM00034 LCD VYK4H41 LCD CASE TOP UNIT VSC6282 LCD FRAME K0RE00100033 LCD FRAME (W/PANEL SW)
  • Page 92 HDC-MDH1GC-K,GK-K vol.1 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VPK0825 ACCESSORY BOX  302 DE-A51CB AC ADAPTOR 1 GC  302 DE-A51DB AC ADAPTOR 1 GK K2GJYDC00004 DC CABLE K2KA6CA00001 AV CABLE...

  • Page 93: S7. Exploded View

    S7. Exploded View S7.1. Frame and Casing Section (1) B142 B132 B143 B144 B201 B126 B202 B127 B128 B129 B206 B205 B204 B130 B203 B131 B120 B121 B137 B111 B138 B139 B110 B124 B122 B123 B136 B108 B109 S-56...

  • Page 94: S7.2. Frame And Casing Section (2

    S7.2. Frame and Casing Section (2) B150 B149 B125 B146 B134 B135 B119 B133 B145 B102 B103 B106 B107 B104 B105 B147 B148 S-57...

  • Page 95: S7.3. Handle Section

    S7.3. Handle Section B101 B100 B115 B114 B151 B152 B113 B112 B140 B141 S-58...

  • Page 96: S7.4. Cover Section

    S7.4. Cover Section B118 B117 B116 S-59...

  • Page 97: S7.5. Evf Section

    S7.5. EVF Section EVF UNIT B2 B3 EVF ANGLE ADJ. CASE UNIT EVF ANGLE ADJ. EVF UNIT CASE UNIT S-60...

  • Page 98: S7.6. Lcd Section

    S7.6. LCD Section S-61...

  • Page 99: S7.7. Packing Parts And Accessories Section

    S7.7. Packing Parts and Accessories Section Battery (Not Supplied) S-62...
