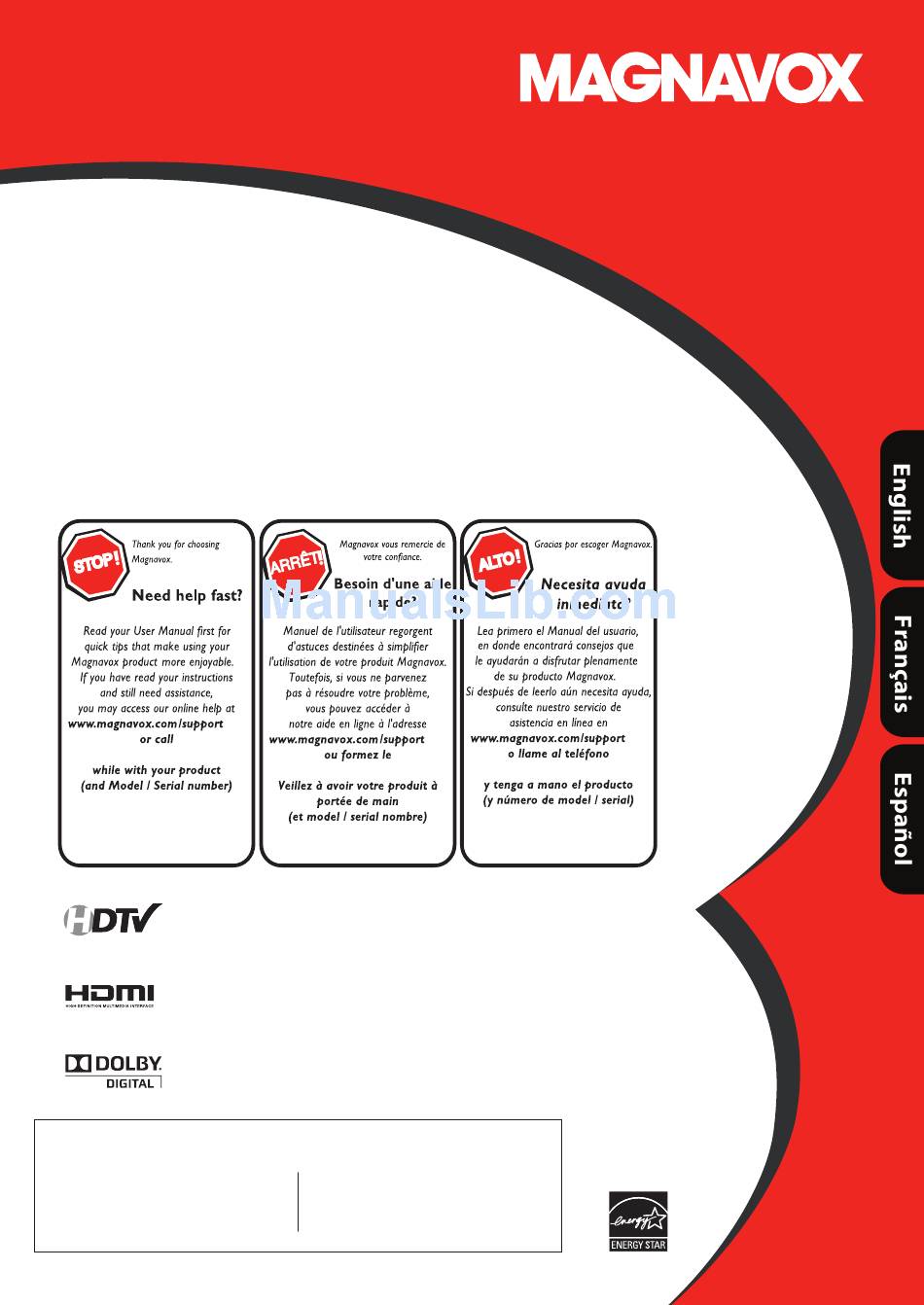

- Page 1 Owner’s manual Manuel du propriétaire Manual del propietario 26MD350B LCD TV/DVD 1-866-341-3738 Quick Use Guide Inside! HIGH-DEFINITION TELEVISION Guide d’usage Rapide Incluse! ® Guía de Uso Rápido Incluida! MODEL NUMBER 1-866-341-3738 1-866-341-3738 SERIAL NUMBER...
- Page 2 Return your Product Registration Card or register online at www.magnavox.com/support today to get the very most from your purchase. Registering your model with MAGNAVOX makes you eligible for all of the valuable benefits listed below, so don’t miss out. Complete and return your Product Registration Card at once, or register online at www.magnavox.com/support to ensure: *Proof of Purchase Returning the enclosed card guarantees that your date of...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 4: Introduction
NTRODUCTION Precaution Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death. FCC WARNING This apparatus may generate or use radio frequency energy. -
Page 5: Trademark Information
TO AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE • Do not handle the AC power cord with wet hands. • Do not pull on the AC power cord when disconnecting it from an AC outlet. Grasp it by the plug. •... -
Page 6: Supplied Accessories
NTRODUCTION Supplied Accessories Owner’s manual (1EMN26500) • If you need to replace these accessories, please refer to the part No. with the illustrations and call our toll free customer support line found on the cover of this manual. Attaching the Stand You must attach the stand to the unit to have it as a table top unit. -
Page 7: Features
Features • DTV/TV/CATV - You can use your remote control to select channels which are broadcast in digital format and conventional analog format. Also, cable subscribers can access their cable TV channels. • Information Display (DTV only) - You can display the title, contents and other information of the current DTV program on the TV screen. -
Page 8: Table Of Contents
NTRODUCTION Contents Important Safety Instructions ......3 INTRODUCTION Precaution ..........4 Trademark Information. -
Page 9: Control Panel
Control Panel STAND BY POWER ON VOLUME VOLUME MENU CHANNEL Terminals Note: service terminal (service use only) • Use this terminal only when a software update is necessary. • User should not connect any devices to the service terminal such as digital camera, keyboard, mouse, etc. -
Page 10: Remote Control Function
NTRODUCTION Remote Control Function When using a universal remote control to operate this unit. • Make sure the component code on your universal remote control is set to our brand. Refer to the manual accompanying your remote control for more details. 1. -
Page 11: Installing The Batteries
10. REV E / FWD D (p. 39) Press to begin slow forward or slow reverse playback during the pause mode (DVD) and search forward or backward through a disc. 11. PLAY B (p. 38) Press to begin the disc playback. 12. -
Page 12: Preparation
REPARATION No supplied cables are used with these connections: Please purchase ease ase the necessary cables at your local store. Use an HDMI cable with the HDMI logo (a certified HDMI cable). High Speed HDMI cable (also known as HDMI category 2 cable) is recommended for the better compatibility. Before you connect... -
Page 13: External Device Connection
External Device Connection [HDMI Connection] HDMI connection offers the highest picture quality. HDMI (High-Definition Multimedia Interface) transports high definition video and multi-channel digital audio through a single cable. e.g.) TITLE CHAPTER 15 REPEAT A-B BD/DVD recorder with the HDMI output jack Note: •... - Page 14 REPARATION [Component video Connection] Component video connection offers better picture quality for video devices connected to the unit. If you connect to the unit’s Component video Input jack, connect audio cables to the Audio L/R jacks below the Component video connector. e.g.) TITLE CHAPTER 15...
- Page 15 [Video Connection] Video connection offers standard picture quality for video devices connected to the unit. If you connect to the unit’s Video Input jack, connect audio cables to the Audio L/R jacks below the Video connector. When the audio jack of the video device is monaural, connect an audio cable to the Audio L Input jack. e.g.) camcorder video game...
-
Page 16: Cable Management
REPARATION [PC Connection] This unit can be connected to your PC that has a DVI terminal. Use an HDMI-DVI conversion cable for this connection and it requires stereo mini plug conversion cable as well. If you connect this unit to your PC, you can use this unit as a PC monitor. e.g.) DVI OUT personal computer... -
Page 17: Tv Functions
These operations are accessible by remote control. Some may also be accessible by controls on the main unit. Initial Setup This section will guide you through the unit’s initial setting which includes selecting a language for your on-screen menu and autoprogram, which automatically scans and memorizes viewable channels. -
Page 18: Watching Tv
ATCHING TV Channel Selection Select channels by using [CH ] or [the Number buttons]. • To select the memorized channels, use [CH [the Number buttons]. • To select the non-memorized channels, use [the Number buttons]. To Use [the Number buttons] ATSC - When selecting digital channel 11.1 Be sure to press [ •... -
Page 19: Freeze Mode
Freeze Mode You can freeze the image shown on the TV screen. Press [FREEZE] to freeze the image shown on the TV screen. FREEZE • The sound output will not be paused. • The still function will be released after 5 minutes. To cancel freeze mode, press any button except [y y (power)]. -
Page 20: Tv Screen Information
ATCHING TV TV Screen Information You can display the currently selected channel or other information such as the audio mode on the TV screen. ATSC In the digital mode, the detailed broadcasting information for the current channel such as program title, program guides are displayed. Press [INFO] to display the details of the currently selected program. -
Page 21: Tv Screen Display Mode
TV Screen Display Mode 4 types of display modes can be selected when the broadcasting station is sending 4:3 or 16:9 video signal. And 3 types of display modes can be selected for PC input signal. Press [FORMAT] repeatedly to switch the TV aspect ratio. -
Page 22: Optional Setting
PTIONAL SETTING Main Menu This section describes the overview of the main menu displayed when you press [MENU]. For more details, see the reference page for each item. The main menu consists of the function setting items below. Press [MENU]. PICTURE SOUND SETUP... -
Page 23: Channel List
Channel List The channels selected here can be skipped when selecting the channels using [CH Those channels can still be selected with [the Number buttons]. Press [MENU] to display the main menu. Use [Cursor K / L] to select “SETUP”, then press [OK]. PICTURE SOUND SETUP... -
Page 24: Antenna Confirmation
PTIONAL SETTING Antenna Confirmation ATSC This function lets you check the digital signal strength of each channel. Press [MENU] to display the main menu. Use [Cursor K / L] to select “SETUP”, then press [OK]. PICTURE SOUND SETUP FEATURES LANGUAGE Use [Cursor K / L] to select “Antenna”, then press [OK]. -
Page 25: Picture Adjustment
Picture Adjustment You can adjust brightness, contrast, color, tint, sharpness and color temperature. Before you begin: You must set ”Home” in ”Location”. Refer to page 35. Otherwise, the settings you adjusted will not be memorized after you turn off the unit. Press [MENU] to display the main menu. -
Page 26: Sound Adjustment
PTIONAL SETTING Sound Adjustment You can adjust the smart sound, equalizer and some other sound functions. Before you begin: You must set ”Home” in ”Location”. Refer to page 35. Otherwise, the settings you adjusted will not be memorized after you turn off the unit. Press [MENU] to display the main menu. -
Page 27: Closed Caption
Closed Caption You can view closed captioning (CC) for TV programs, movies and news. Closed caption refers to text of dialogue or descriptions displayed on- screen. Press [MENU] to display the main menu. Use [Cursor K / L] to select “FEATURES”, then press [OK]. - Page 28 PTIONAL SETTING B. Digital Caption Service B. Digital Caption Service ATSC In addition to the basic closed caption described on page 27, DTV has its own closed caption called digital caption service. Use this menu to change the settings for digital caption service. Use [Cursor K / L] to select “Digital Caption Service”, then press [OK].
- Page 29 Font Style Closed Captioning font style can be changed as below. PICTURE User Setting SOUND Font Style SETUP Font Size FEATURES Font Color LANGUAGE Font Opacity Background Color Background Opacity Edge Color Edge Type Font Size Font size of the displayed caption can be switched as below.
-
Page 30: Child Lock
PTIONAL SETTING Child Lock Child lock reads the ratings for programs, then denies access to the programs which exceed the rating level you set. With this function, you can block certain programs inappropriate for children and any channels or external input modes can be invisible. - Page 31 A. Channel Lock A. Channel Lock Particular channels or external input modes can be invisible in this function. Use [Cursor K / L] to select “Channel Lock”, then press [OK]. PICTURE SOUND SETUP FEATURES LANGUAGE Use [Cursor K / L] to select the desired rating, then press [OK] repeatedly to switch between “View”...
- Page 32 PTIONAL SETTING C. US TV ratings lock C. US TV ratings lock Use [Cursor K / L] to select “US TV ratings lock”, then press [OK]. PICTURE SOUND SETUP FEATURES LANGUAGE Use [Cursor K / L / s / B] to select the desired rating, then press [OK] repeatedly to switch between “View”...
- Page 33 D. Change PIN D. Change PIN Although the default code (0000) is supplied with the unit, you can set your own PIN Code. Use [Cursor K / L] to select “Change PIN”, then press [OK]. PICTURE SOUND SETUP FEATURES LANGUAGE Press [the Number buttons] to enter the new 4-digit PIN Code.
-
Page 34: Pc Settings
PTIONAL SETTING PC Settings This function lets you adjust the PC screen position during PC input through the HDMI 1 Input jack. Press [MENU] to display the main menu. Use [Cursor K / L] to select “FEATURES”, then press [OK]. -
Page 35: Energy Saving Mode
Energy Saving Mode You can set whether the power consumption is saved or not. Press [MENU] to display the main menu. Use [Cursor K / L] to select “FEATURES”, then press [OK]. PICTURE SOUND SETUP FEATURES LANGUAGE Use [Cursor K / L] to select “Energy Saving Mode”, then press [OK]. -
Page 36: Current Software Info
PTIONAL SETTING Current Software Info This function shows what version of the software currently used. Press [MENU] to display the main menu. Use [Cursor K / L] to select “FEATURES”, then press [OK]. PICTURE SOUND SETUP FEATURES LANGUAGE Use [Cursor K / L] to select “Current Software Info”, then press [OK]. -
Page 37: Dvd Functions
PERATING DVD Playable Media Media Type DVD-VIDEO Logo Recorded digital video (MPEG2) Signal Media Size Unplayable Media NEVER play back the following discs. Otherwise, malfunction may result! 3 inches (8 cm) disc, DVD-RAM, DVD-audio, CD-i, photo CD, Video CD, DVD with region codes other than 1 or ALL, DTS-CD, DVD-ROM for personal computers, CD-ROM for personal computers, the discs with labels, scratches, stains, blemishes, etc., HD DVD, Blu-ray Disc, CD-RW/-R with MP3 files and CD-RW/-R with JPEG files including Kodak Picture CD. -
Page 38: Playback
PERATING DVD These operations are accessible by remote control. Some may also be accessible by controls on the main unit. Playback Before you begin: Turn on the amplifier and any other equipment which is connected to this unit. Make sure the external audio receiver (not included) are set to the correct channel. Press [y y (power)] to turn on the unit. -
Page 39: Fast Forward / Fast Reverse
Fast Forward / Fast Reverse Press [FWD D] or [REV E] repeatedly during playback to select the desired forward or reverse speed. To continue playback, press [PLAY B]. Note: • Set “STILL MODE” to “FIELD” in the “OTHERS” menu if pictures in the fast playback mode are blurred. -
Page 40: Search Functions
PERATING DVD Search Functions Chapter / Title / Track Search Chapter / Title / Track Search You can select chapters, titles or tracks on the disc. During playback, press [MODE] repeatedly until “ “ / “ “ appears. • If you want to perform the title search, use [Cursor K / L] repeatedly until “... -
Page 41: Repeat Playback
Time Search Time Search You can select the desired time which the disc is played back from. During playback, press [MODE] repeatedly until “ “ “ “ appears. e.g.) DVD Use [Cursor K / L] repeatedly until “ Press [the Number buttons] to select your desired time lapse within 60 seconds. -
Page 42: Repeat A-B Playback
PERATING DVD Repeat A-B Playback You can repeat playback between A and B on a disc. During playback, press [MODE] repeatedly until “ ” appears. Press [OK] at your desired starting point (A). Press [OK] at your desired ending point (B). •... -
Page 43: On-Screen Display
On-screen Display You can check the information about the current disc by pressing [INFO] on the remote control. appears only when multi- angle is available on the DVD current playback status 11/16 0:00:00 - 0:03:30 remaining time of the current chapter elapsed time of the current chapter... - Page 44 PERATING DVD (no subtitles) (English subtitles) (French subtitles) Press [BACK] to exit. Note: • To cancel the subtitle, select “OFF” at step 2. • If your language is not shown after pressing [Cursor K / L] several times, the disc may not have that language.
- Page 45 Stereo Sound Mode Stereo Sound Mode This unit allows you to select a sound mode during CD playback. During playback, press [SAP/AUDIO] repeatedly until the desired sound mode appears. STEREO • Each time you press [SAP/AUDIO], the sound mode changes as example below. STEREO (stereo sound with left and right channels) L-ch...
-
Page 46: Dvd Setting
VD SETTING Settings are only effective when the unit is in DVD mode and any discs should not be played back. DVD Language Setting You can change the desired language when playing back the disc. Press [MENU] to display the main menu. PICTURE Smar t Picture SOUND... -
Page 47: Dvd Audio Setting
DVD Audio Setting Choose the appropriate audio settings for your equipment. It only affects during the playback of DVD. Press [MENU] to display the main menu. PICTURE Smar t Picture SOUND Brightness SETUP Contrast FEATURES Color LANGUAGE Tint Sharpness Color Temperature Use [Cursor K / L ] to select “DVD”, then press [OK]. -
Page 48: Parental Setting
VD SETTING Parental Setting Parental setting prevents your children from viewing inappropriate materials. (password protected.) Playback will stop if the ratings exceed the levels you set. Press [MENU] to display the main menu. PICTURE SOUND SETUP FEATURES LANGUAGE Use [Cursor K / L ] to select “DVD”, then press [OK]. PICTURE SOUND SETUP... -
Page 49: Others
Others You can change the other functions. Press [MENU] to display the main menu. PICTURE Smar t Picture SOUND Brightness SETUP Contrast FEATURES Color LANGUAGE Tint Sharpness Color Temperature Use [Cursor K / L ] to select “DVD”, then press [OK]. PICTURE SOUND Press “OK”... -
Page 50: Reset To The Default Setting
VD SETTING Reset to the Default Setting You can reset all the settings except for the parental setting and on-screen menu language. Press [MENU] to display the main menu. PICTURE Smar t Picture SOUND Brightness SETUP Contrast FEATURES Color LANGUAGE Tint Sharpness... -
Page 51: Troubleshooting
ROUBLESHOOTING FAQ Question My remote control does not work. What should I do? How come the Initial setup appears every time I turn on this unit? Why I cannot watch some RF signal TV programs. How come there is no image from the connected external devices? Whenever I entered channel number, it changes automatically. -
Page 52: Troubleshooting Guide
ROUBLESHOOTING Troubleshooting Guide If the unit does not perform properly when operated as instructed in this manual, check the following chart and all connections once before calling for service. Symptom No power Control button does not work. Power is ON but no screen image. - Page 53 Symptom Different color marks on the TV screen You switch to a different input and the volume changes. You switch to a different input and the screen size changes. The display image does not cover the entire screen. Captions are displayed as a white box.
-
Page 54: Glossary
NFORMATION Glossary ATSC Acronym that stands for Advanced Television Systems Committee and the name of the digital broadcasting standards. Aspect Ratio The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the TV screen is almost square); widescreen models are 16:9 (the TV screen is almost twice as wide as its height). -
Page 55: General Specifications
General Specifications TV format: ATSC / NTSC-M TV standard Closed caption system: §15.122 / FCC (digital CC) §15.119 / FCC (analog CC) Channel coverage (ATSC / NTSC): Terrestrial DTV (ATSC) VHF: 2~13 UHF: 14~51 each channel has e.g.) Terrestrial Analog (NTSC) VHF: 2~13 UHF: 14~69 CATV 2~13, A~W, W+1~W+94 (analog W+1~W+84),... -
Page 56: Limited Warranty
NINETY ( 90 ) DAY LABOR / ONE ( 1 ) YEAR PARTS WARRANTY COVERAGE: This warranty obligation is limited to the terms as set forth below. WHO IS COVERED: This product warranty is issued to the original purchaser or the person receiving the product as a gift against defects in materials and workmanship as based on the date of original purchase (“Warranty Period”) from an Authorized Dealer.
