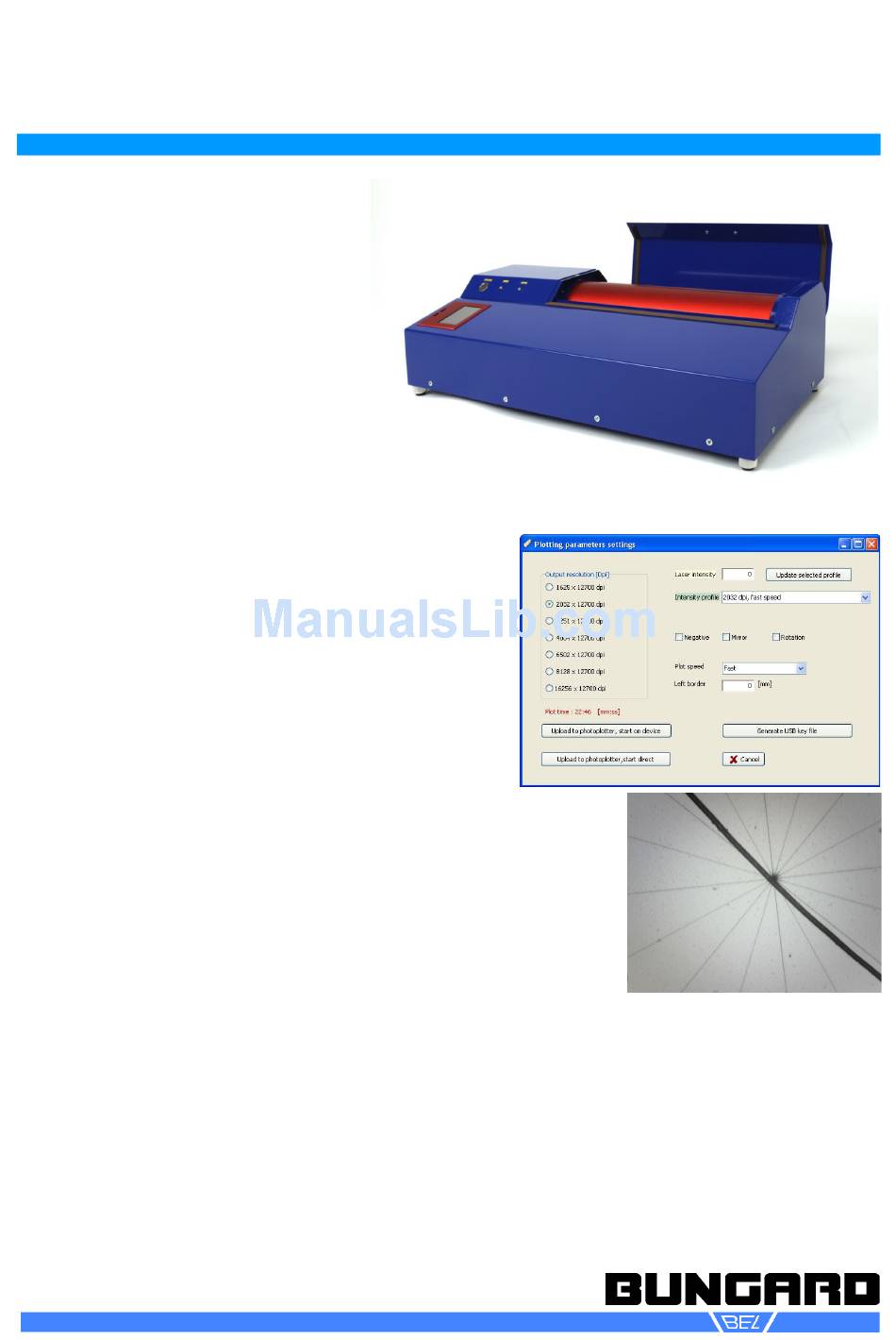

Photoplotter FilmStar-PLUS
Instructions to Use
Introduction
Filmstar-Plus is the name of the
next generation of our bitmap pho-
toplotter series. Optimized for in-
house production of high end film
layouts at reasonable price level the
system can directly process Gerber
files or bitmap files. Filmstar-PLUS
does an excellent job, comes with
an attractive design and a remark-
ably low price.
Features:
• precise edge definition in photo
quality
• perfect blackness results in perfect opacity
• extended software package included in delivery
Improvements compared to Filmstar FP 8000:
• higher resolution; up to 16 256 x 25 400 dpi
• Stand alone unit - no separate PC necessary.
Data can be transferred to plotter either via USB-
stick or via USB-cable
• New electronics with Touch-Display and intuitive
user interface
• Software update: customized Windows optics,
Windows routine for opening and saving of files,
higher resolutions in Gerber2Bitmap, various cal-
ibration programs in Run_Filmstar
• 3 different plot speeds for either high precision or
less time consumption
Description:
• The film is fixed on a rotating drum. A highly focused red light
laser diode is moving step-wise alongside that drum, driven by
a precise stepper motor with worm and gear drive. Of course,
all settings are software adjustable, calibrated and controlled.
• Data are either transferred via USB-cable from your computer
to the plotter or read in from any USB stick. Software is part of
delivery. It allows panelization of layout and drill data, rework
of aperture tables and contains functions like negative plot, mirroring, preview and drill data export.
• Interactive, absolute or relative positioning of the layouts on the film.
• Preview and rework of various aperture tables of different layout systems.
