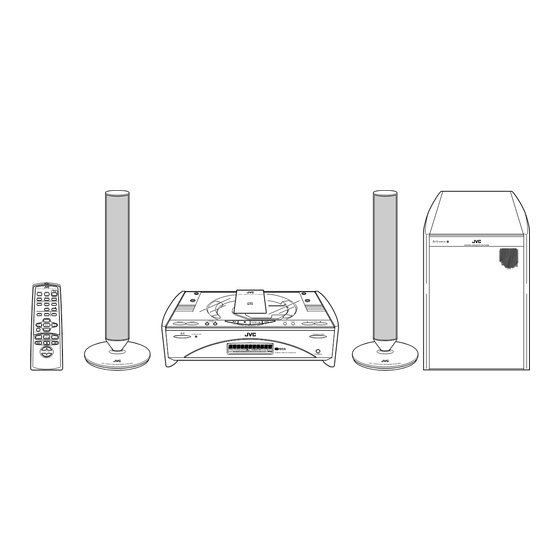

JVC CA-FSSD1000R Service Manual

Compact component system
Hide thumbs

Advertisement

Quick Links

Download this manual
SERVICE MANUAL
COMPACT COMPONENT SYSTEM
REMOTE CONTROL RM-SFSSD1000J
STANDBY/ON
DIMMER
SLEEP
AUTO
DISPLAY
PRESET
FM MODE
PROGRAM
RANDOM
REPEAT
DOOR
SLIDE
CD
BASS
TREBLE
CANCEL
UP
SET
DOWN
FADE MUTING
CD
MD/AUX
FM / AM
VOLUME
SP-FSSD1000
Contents
This model not have adjustment.
Safety Precautions
Important for laser products
Preventing static electricity
Disassembly method
Maintenance of laser pickup
Replacement of laser pickup
FS-SD1000R
CA-FSSD1000R
Flow of functional operation
1-2
1-4
Method of connecting
1-5
1-6
Description of major ICs
1-17
1-17
COPYRIGHT
2001 VICTOR COMPANY OF JAPAN, LTD.
B
E
EN
SP-FSSD1000
SP-PW1000
unit TOC read
treatment device wire
FS-SD1000R
Area Suffix
U.K.
Continental Europe
Northern Europe
1-18
1-19
1-20~32
No.20976
Jun 2001

Advertisement

loading

Related Manuals for JVC CA-FSSD1000R

Summary of Contents for JVC CA-FSSD1000R

  • Page 1 DOOR SLIDE BASS TREBLE CANCEL DOWN FADE MUTING MD/AUX FM / AM VOLUME SP-FSSD1000 CA-FSSD1000R SP-FSSD1000 SP-PW1000 Contents This model not have adjustment. Safety Precautions Flow of functional operation Important for laser products unit TOC read 1-18 Preventing static electricity...
  • Page 2 FS-SD1000R 1. This design of this product contains special hardware and many circuits and components specially for safety purposes. For continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Services should be performed by qualified personnel only.
  • Page 3 FS-SD1000R (U.K only) 1. This design of this product contains special hardware and many circuits and components specially for safety purposes. For continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits.

  • Page 4: Important For Laser Products

    FS-SD1000R Important for laser products 5.CAUTION : If safety switches malfunction, the laser is able 1.CLASS 1 LASER PRODUCT to function. 2.DANGER : Invisible laser radiation when open and inter 6.CAUTION : Use of controls, adjustments or performance of lock failed or defeated. Avoid direct exposure to beam. procedures other than those specified herein may result in 3.CAUTION : There are no serviceable parts inside the hazardous radiation exposure.

  • Page 5: Preventing Static Electricity

    FS-SD1000R Preventing static electricity 1.Grounding to prevent damage by static electricity Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs. 2.About the earth processing for the destruction prevention by static electricity Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as CD players.

  • Page 6: Disassembly Method

    FS-SD1000R Disassembly method <Main body> Removing the CD door (See Fig.1) Remove the four screws A attaching the CD door on the upper side of the body. CD door Fig.1 Removing the rear cover (See Fig.2) Rear cover Piror to performing the following procedure, remove the CD door.
  • Page 7 FS-SD1000R Removing the front panel assembly Bottom (See Fig.4 to 6) Prior to performing the following procedure, remove the CD door, the rear cover and the side covers. Remove the three screws E on the bottom of the body. Release two joints a and two joints b on both sides of the body using a screwdriver and remove the front panel assembly toward the front.
  • Page 8 FS-SD1000R Remove the screw G attaching the power amplifier CD mechanism base assembly board on the back of the body. Disconnect the wire from connector CN301 and pull the power amplifier board fully outward. Raise the right and left door arms by turning the gear a in the rear of the power amplifier board.
  • Page 9 FS-SD1000R Removing the door arm assembly / the Door arm board (R) Door arm door arm board (R) and (L) Door arm (See Fig.15 to 20) Prior to performing the following procedure, remove the rear cover, the side covers, the front panel assembly and the CD mechanism base assembly.
  • Page 10 FS-SD1000R Power amplifier board Removing the power amplifier board Door arm assembly (See Fig.21 and 22) CN191 CN193 CN106 Prior to performing the following procedure, remove Cord stopper the CD mechanism base assembly. Disconnect the wires from connector CN102 and Cord stopper CN193 on the main board and release them from the...
  • Page 11 FS-SD1000R Removing the fan motor assembly (See Fig.25 and 26) Fan motor Prior to performing the following procedure, remove the CD mechanism base assembly. Disconnect the wires from connector CN181 on the main board. Remove the two screws P on the left side of the body.
  • Page 12 FS-SD1000R <CD mechanism base assembly> Speaker terminal board CD mechanism board CN706 Prior to performing the following procedure, remove the CD mechanism base assembly. CD mechanism cover Refer to "Dismantling and assembling the CD mechanism assembly" on page 1-5 for the treatment of optical pickup.
  • Page 13 FS-SD1000R Solder the short circuit land on the sub board. CD mechanism assembly Cushion Cushion Disconnect the wire from connector CN605 on the CD mechanism cover main board. Disconnect the sub board from connector CN603 on the main board while peeling off the adhesive tape on the underside of the sub board.
  • Page 14 FS-SD1000R Removing the jack board (See Fig.35) Jack board Prior to performing following procedure, remove the CD mechanism board. Disconnect the wire from connector CN502 on the jack board. Switch board Remove the two screws V attaching the jack board. CN502 Fig.35 CD mechanism board...
  • Page 15 FS-SD1000R Power woofer section Amplifier board <Main body> Removing the amplifier assembly (See Fig.1) Remove the eleven screws A attaching the amplifier assembly on the back of the body. Disconnect each relay harness connected to the speaker and the LED indicator board. Fig.1 <Amplifier>...
  • Page 16 FS-SD1000R Removing the amplifier board assembly Amplifier board assembly (See Fig.4 and 5) Prior to performing procedure, remove the input amplifier / filter board assembly. CN281 CN291 Disconnect the harness from connector CN291 and CN281 on the amplifier board assembly. Remove the six screws D attaching the amplifier board assembly.
  • Page 17 FS-SD1000R Replacement of laser pickup Maintenance of laser pickup (1) Cleaning the pick up lens Before you replace the pick up, please try to Turn off the power switch and,disconnect the clean the lens with a alcohol soaked cotton power cord from the ac outlet. swab.

  • Page 18: Flow Of Functional Operation Until Toc Read

    FS-SD1000R Flow of functional operation until TOC read Check Point Slider turns REST Play Key Power ON Confirm that the voltage at the pin4 SW ON. of CN605 is "H"/"L"/"H". Automatic tuning of TE offset Check that the voltage at the Laser ON pin40 of IC603 is + 5V? Detection of disc...
  • Page 19 FS-SD1000R Method of connecting treatment device wire First short-circuit the pickup circuit before removing the pickup. Then carry out the replacement. Refer to "Disassembling and assembling the traverse unit". KSM-900AAH Sub board (Reverse side) Shorting Flexible cable When the KSM-900AAH mechanism is used, the expansion cable is used as follows. EXTFSSD5-JIG extension wire QUQB12-0840CJ...

  • Page 20: Description Of Major Ics

    FS-SD1000R Description of major ICs UPD780024AGKB19 (IC701) : CPU 1. Pin layout 2. Block diagram 16-bit TIMER/ PORT0 EVENT COUNTER PORT1 8-bit TIMER/ EVENT COUNTER50 8-bit TIMER/ PORT2 EVENT COUNTER51 PORT3 WATCHDOG TIMER 78K/0 WATCH TIMER PORT4 (32K BYTE) CORE SERIAL PORT5 INTERFACE30...
  • Page 21 FS-SD1000R 3. Pin function UPD780024AGKB19 Symbol Function CD door motor control signal 0 output CD door motor control signal 1 output Motor speed control output (L:Normal, H:Slow) BLCTL Back light power supply control output AHB ON/OFF control signal output (L:ON, H:OFF) SMUTE System mute control signal output TUST...
  • Page 22 FS-SD1000R AN22000A (IC601) : RF & Servo amp 1. Pin layout 2. Block OFTR RF IN C.AGC CBDO COFTR RF OUT OFTR RF_EQ 3TENV NRFDET 3TOUT NRFDET SUBT FEOUT SUBT TEOUT TEBPF VDET VDET VREF GCTL TBAL FBAL CDDG VCC 3.
  • Page 23 FS-SD1000R BA15218F-XE (IC102) : Dual operation amplifier 1. Pin layout OUT1 1 8 Vcc -IN1 2 7 OUT2 +IN1 3 6 -IN2 VEE 4 5 +IN2 2. Block diagram OTHER Q114 OUTPUT GP1U271X (IC801) : Receiver for remote controller – Integrator Limiter Amp.
  • Page 24 FS-SD1000R BD3861FS-X (IC501) : Audio sound control 1. Pin layout 2. Block diagram 0dB~ Middle2 Middle1 Treble1 Treble2 Bass1 Bass2 -70dB f0=1kHz f0=1kHz f0=10kHz f0=10kHz f0=90Hz f0=90Hz Vcc/2 Vcc/2 0dB~ 0dB~ -59dB -59dB Vcc/2 Vcc/2 Vcc/2 Vcc/2 Vcc/2 Vcc/2 Vcc/2 Logic 100k 3.
  • Page 25 FS-SD1000R LA4905 (IC301) : 2ch BTL power IC 1. Pinlayput 2. Block diagram Vcc(SW) STBY Switching Standby SW regulator block Ripple H.L.S. SW B filter drive A B C D SW E H.L.S. : SW OUT1 Higher Level signal SW OUT2 selector SW GND Amplifier output stage...
  • Page 26 FS-SD1000R LA6541-X (IC601) : Servo driver 1. Pin layout & Block diagram Vref Vin4 Vin3 Level B T L B T L Level RESET shift driver driver shift Level B T L B T L Level Regulator shift driver driver shift Mute Vin1...
  • Page 27 FS-SD1000R LC72136N (IC2) : PLL frequency synthesizer 1. Pin layout FM/AM LPFOUT LPFIN CLOCK FM/ST/VCO FMIN AM/FM AMIN IFCONT SDIN IFIN 2. Block diagram Phase Reference Detector Driver Charge Pump Swallow Counter Swallow Counter 1/16,1/17 4bit 1/16,1/17 4bit Unlock Detector 12bit Programmable DriverS...
  • Page 28 FS-SD1000R MN662748RPMFA (IC603) : Digital servo & Digital signal processer 1. Pin layout 20 ~ 41 ~ 2.Pin functions Symbol Function Symbol I/O Function Tracking error shunt signal output (H:shunt) BCLK Not used LRCK Not used PLAY Not used SRDATA WVEL Not used Not used...
  • Page 29 FS-SD1000R STK411-210E (IC221) : Power amplifier 1.Block diagram 1-29...
  • Page 30 FS-SD1000R TA2057N (IC1) : FM / AM IF amp & Detector 1.Block d iagrams IF IN Vstb IF IN QUAD FM OUT AM OUT MPX IN LPF 1 LPF 2 L OUT DIVIDE DECODE MUTE LEVEL AM/FM MONO BUFF IF REQ BUFF IF OUT R OUT...
  • Page 31 FS-SD1000R TA8409F-W (IC108) : Motor driver 1.Block diagram Vref Standby circuit OUT1 OUT2 Heat interception 2.Pin function Input Output Mode OUT1 OUT2 MOTOR STOP CW/CCW CCW/CW BRAKE NJM4580D-D (IC101,IC211,IC213) : Dual ope amp. 1. Pin layout & Block diagram A OUT 1 8 V+ A -IN 2 7 B OUT...
  • Page 32 FS-SD1000R KIA78S06P-T (IC702) : Regulator 1. Pin layout 2. Block diagram 3 INPUT 1 2 3 1 OUTPUT 2 COMMON TC74HCU04AP (IC251) : 2ch NOR gate 1. Pin layout & Block diagram 2.True table 1-32...
  • Page 33 FS-SD1000R < M E M O > 1-33...
  • Page 34 FS-SD1000R VICTOR COMPANY OF JAPAN, LIMITED AUDIO & COMMUNICATION BUSINESS DIVISION PERSONAL & MOBILE NETWORK BUSINESS UNIT. 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan 200106 (No.20976)

  • Page 35: Block Diagram

    FS-SD1000R Block diagram AMOSC IC301 SIGL,SIGR SIGL,SIGR SIGL,SIGR +OUT1,-OUT1 IC101 SPEAKER MW RF POWER OPE AMP POUT,SMUTE +OUT2,-OUT2 SMUTE IFOUT POUT,SMUTE W3901 FM IF/DET/MPX AM RF/IF/DET IC108 MT0,MT1 CN193 OSCOUT DOOR MOTOR MTS,LOCK DRIVER AMOSCOUT Lch,Rch T1901 AC IN IFCONT CN101 IC102 SIGL...
  • Page 36 FS-SD1000R FS-SD1000R Standard schematic diagrams Power supply section IC301 LA4905 LF111 QQR0590-001 R1108 C1110 R1118 LF311 J3001 C1104 QQR0797-002 0.0027 2.2K QNB0092-002 C1103 R1110 R1101 1.2K R1103 6.8K R1201 1.2K 0.012 0.012 C1106 C3101 10/35 Q1914 R3101 22/16 2SA1037AK/R/-X R1931 6.8K C3201 R3201...
  • Page 37 FS-SD1000R CD servo control section J6001 GP1FA550TZ C6015 R6005 180k 0.022 TBAL R6006 270k C6016 FBAL 0.022 C6159 R6007 R6009 R6012 8.2K C6020 R6025 C6019 C6017 R6024 470P 0.022 330P R6008 390K VDET R6028 2.2K R6026 2.2K C6053 0.022 C6154 100P CN603 CN606...
  • Page 38 FS-SD1000R FS-SD1000R LCD & Key R8302 2.2K control section R8301 2.2K L8101 QQL231K-470Y L8201 QQL231K-470Y J8301 C8101 R8101 Q8101 QNS0162-001 K8301 220/10 2SD2114K/VW/-X R8103 QQR0601-001Z 2.7K R8005 Q8201 2SD2114K/VW/-X R8006 R8203 IC801 GP1U271X 2.7K C8003 0.022 Q8003 R8010 100K R8201 DTA114EKA-X C8201 220/10...
  • Page 39 FS-SD1000R Tuner section QQL231K-2R7Y 0.047 0.01 QAU0034-001 0.001 0.001 0.0012 0.01 0.001 0.01 QQR0870-001 0.001 0.001 10/16 0.022 100K 0.047 0.047 3.3/50 10/16 4.7K 3.9k 3.3K 0.01 0.001 100/10 0.018 0.001 2.2K 4.7K QAX0420-001 0.01 QAX0421-001 TA2057N 0.0039 QQL231K-221Y 2.2/50 2.2K 0.047 3.9k...
  • Page 40 FS-SD1000R FS-SD1000R Sub woofer amp section IC221 STK411-290E C2201 100P/50 D2201 D2202 R2223 R2224 R2203 MTZJ8.2C-T2 MTZJ8.2C-T2 C2213 C2219 C2218 C2217 1/50 S2101 10/35 10/35 8.2P/50 R2202 QSW0834-001 VR211 10KB C2204 C2252 10/35 R2252 C2101 R2103 R2105 10/50 D2205 D2206 C2203 MTZJ33C-T2 MTZJ33C-T2...
  • Page 41 FS-SD1000R Printed circuit boards Printed circuit boards Power IC board Main board C1108 R1113 R1307 R1114 R1924 W3001 B1021 IC102 R1213 R1215 R1214 C1921 C1209 R3107 CN103 R3101 R1926 R3102 R3202 D1911 R3201 R1309 C1925 CN104 C1922 D1304 R3207 R1311 C1915 C3202 C1917...
  • Page 42 FS-SD1000R FS-SD1000R Line board (Forward side) Line board (Forward side) W8004 W5001 C5306 W5001 C5305 W8004 S8021 CN501 CN501 S8021 R5104 R5204 R5211 C5102 IC501 R5111 C5102 C5202 C5202 C5103 WR502 C5310 S8022 S8022 C5103 C5302 C5203 R5301 C5203 Q5301 R5208 R5108 CN502...
  • Page 43 FS-SD1000R Subwoofer power amp board R2252 C2254 R2254 W2801 WC281 Q2701 C2219 R2705 EP281 R2704 W2931 B7003 C2232 D2702 C2215 R2702 R2228 R2233 C2205 C2702 C2236 Q2702 Q2204 C2204 B7004 R2206 C2704 C2202 C2922 C2921 R2214 C2222 R2202 C2231 B7016 W2911 B7007 R2229...
  • Page 44 FS-SD1000R Subwoofer input board D2501 R2501 R2502 R2506 B8009 C2107 C2509 R2112 C2504 C2106 B8601 R2108 R2514 R2115 R2512 B8001 C2505 B8005 R2515 R2103 R2117 D2507 C2101 R2518 R2114 C2110 Q2502 R2519 C2113 C2507 R2104 B8006 C2122 R2124 R2119 R2516 C2112 C2508 R2105...

  • Page 45: Parts List

    Area suffix B ------------------------------- U.K. E ----------- Continental Europe EN ------------ Northern Europe - Contents - Exploded view of general assembly and parts list(CA-FSSD1000R) 3- 2 Exploded view of general assembly and parts list(SP-PW1000) 3- 5 Electrical parts list 3- 7...
  • Page 46 FS-SD1000R Parts list(General aseembly) CA-SFSD1000R Block No. M1MM Item Parts number Parts name Q'ty Description Area LV10325-001A FRONT PANEL MIPS/PAINT/SILK LV31677-001A PUSH BUTTON 1 ABS/PLATING QYSDSF2608Z SCREW FRONT+SW PWB+BT GN30001-001A LENS PMMA/HOT STAMP LV31679-001A LCD.CASE LV41519-001A LCD.SHEET LCD FILTER LV31680-001A PROTECTOR PMM/MILKY LV41520-001A...
  • Page 47 FS-SD1000R Parts list(General assembly) CA-SFSD1000R Parts list(General assembly) CA-FSSD1000R Block No. M1MM Block No. M1MM Item Parts number Parts name Q'ty Description Area Item Parts number Parts name Q'ty Description Area QQT0286-003 POWER TRANS T1901 LV41587-001A SPECIAL SCREW CD DOOR+D.BASE...
  • Page 48 FS-SD1000R Exploded view of general assembly and parts list Block No. (CA-FSSD1000R) Power board Speaker jack board Sub board 38 32 37 34 CD servo board Line board LCD board Main board DI801...
  • Page 49 FS-SD1000R Exploded view of general assembly and parts list Block No. (SP-PW1000)
  • Page 50 FS-SD1000R Parts list(General assembly) SP-PW1000 Block No. M2MM Item Parts number Parts name Q'ty Description Area LV10253-002A COVER LV20470-008A BACK PANEL LV41146-001A VOLUME BRACKET LV41147-001A AC BRACKET LV31303-002A HEAT SINK LV41211-001A HEAT SINK LV41148-002A CORD COVER LV30225-025A SPACER LV30225-026A SPACER LV30225-027A SPACER LV30225-028A...
  • Page 51 FS-SD1000R Electrical parts list(Main board) Block No. 01 Item Remarks Item Remarks Parts number Parts name Area Parts number Parts name Area NCB21HK-223X C CAPACITOR C 90 NCB21HK-103X C CAPACITOR NCB21HK-103X C CAPACITOR C 91 NCB21HK-103X C CAPACITOR NCB21EK-473X C CAPACITOR C 92 NCB21HK-103X C CAPACITOR...
  • Page 52 FS-SD1000R Block No. 01 Electrical parts list(Main board) Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area C1917 NCB21HK-103X C CAPACITOR CD6.5 D8001 SPR-39MVWF POWER/STANDBY C1918 QTE1E06-476Z E CAPACITOR CD6.5 D8002 1SS133-T2 SI DIODE C1919 QETN1CM-106Z E CAPACITOR D8021...
  • Page 53 FS-SD1000R Electrical parts list(Main board) Block No. 01 Item Remarks Item Parts number Parts name Remarks Area Parts number Parts name Area Q1909 2SC2412K/R/-X TRANSISTOR CD6.5 RY191 QSK0116-001 RELAY Q1910 2SC2412K/R/-X TRANSISTOR CD6.5 R1101 NRSA02J-122X MG RESISTOR Q1912 2SA1175/FE/-T TRANSISTOR R1102 NRSA02J-562X MG RESISTOR...
  • Page 54 FS-SD1000R Block No. 01 Electrical parts list(Main board) Item Parts number Parts name Remarks Area Item Remarks Parts number Parts name Area R1921 QRZ9006-4R7X F RESISTOR S8003 QSW0683-001Z PUSH SWITCH VOL+ R1922 QRZ9006-4R7X F RESISTOR US5V S8004 QSW0683-001Z PUSH SWITCH VOL- R1923 QRZ9006-4R7X...
  • Page 55 FS-SD1000R Block No. 02 Electrical parts list(CD board) Item Parts number Parts name Remarks Area Item Remarks Parts number Parts name Area CN501 QGF1201F3-08 CONNECTOR TO MAIN C6029 QEKC0JM-107Z E CAPACITOR 100MF 20% 6.3V CN502 QGA2001C1-04 4P PLUG ASSY TO TOPKEY C6031 QEKC1AM-227Z E CAPACITOR...
  • Page 56 FS-SD1000R Block No. 02 Electrical parts list(CD board) Item Parts number Parts name Remarks Area Item Remarks Parts number Parts name Area D6001 1SS355-X SI DIODE R5205 NRSA63J-473X MG RESISTOR LINE OUT D6031 MTZJ5.6C-T2 ZENER DIODE R5206 NRSA63J-392X MG RESISTOR LINE OUT D6033 1SR35-400A-T5...
  • Page 57 FS-SD1000R Block No. 02 Electrical parts list(CD board) Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area R6205 NRSA63J-393X MG RESISTOR R7057 NRSA63J-103X MG RESISTOR R6251 NRSA63J-102X MG RESISTOR R7058 NRSA63J-103X MG RESISTOR R6252 NRSA63J-105X MG RESISTOR R7059 NRSA63J-103X...
  • Page 58 FS-SD1000R Block No. 04 Electrical parts list(Sub woofer board) Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area CN211 QGB2016J1-15 CONNECTOR TO WOOF.PWB C2912 QEZ0223-478 E CAPACITER 4700MF CN221 QGB2016K1-15 B TO B CONNE TO CONT.PWB C2914 QFG32AJ-223Z PP CAPACITOR...
  • Page 59 FS-SD1000R Block No. 04 Electrical parts list(Sub woofer board) Item Parts number Parts name Remarks Area Item Remarks Parts number Parts name Area R2103 QRE141J-563Y C RESISTOR 56K 5% 1/4W R2507 QRE141J-222Y C RESISTOR 2.2K 5% 1/4W R2104 QRE141J-563Y C RESISTOR 56K 5% 1/4W R2512 QRE141J-472Y...

  • Page 60: Packing Materials And Accessories Parts List

    FS-SD1000R Packing materials and accessories parts list Block No. Block No. P1 A1,A2,A3,A9 3-16...
  • Page 61 FS-SD1000R Parts list(Packing) Block No. M3MM Item Parts number Parts name Q'ty Description Area QPA02503503P POLY BAG FOR INST QPA01503503 POLY BAG FOR P.CORD QPA01702503P POLY BAG FOR AM ANT QPF02604415 SHEET QPC04504515P POLY BAG FOR SET LV32723-002A CARTON LV20760-001A CUSHION TOP(L) TOP (L) LV20760-002A...
