Product Overview

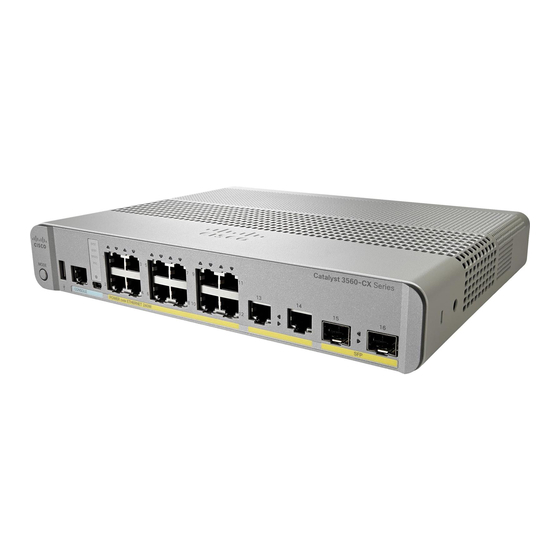

The Catalyst 3560-CX and 2960-CX switches are Ethernet switches to which you can connect devices such
as Cisco IP Phones, Cisco Wireless Access Points, workstations, and other network devices such as servers,
routers, and other switches.
You can deploy these switches outside of the traditional wiring closet environment, such as in office
workspaces, hotel rooms, slot machines, kiosks, and classrooms. The switch is suitable for deployments
where there are space and power constraints (access to power outlets).
See the switch software configuration guide for deployment examples.
This chapter contains these topics:
•
•
•
•
•

Switch Models

Table 1: Catalyst 3560-CX and 2960-CX Switch Models and Descriptions
Switch Model
WS-3560CX-8PC-S
WS-3560CX-8TC-S
WS-3560CX-12PC-S
Switch Models, page 1
Front Panel, page 2
Rear Panel, page 9
Management Options, page 13
Network Configurations, page 14
Software
IP Base
IP Base
IP Base
Description
8 10/100/1000 Power over Ethernet plus (PoE+) ports (PoE budget of
240 W); 2 Gigabit Ethernet and 2 small form-factor pluggable (SFP)
module uplink slots.
8 10/100/1000 Ethernet ports; 2 Gigabit Ethernet and 2 small form-factor
pluggable (SFP) module uplink slots.
12 10/100/1000 PoE+ ports (PoE budget of 240 W); 2 Gigabit Ethernet
and 2 SFP module uplink slots.
Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide
1
1

Advertisement

Table of Contents
loading

Related Manuals for Cisco Catalyst 3560-CX

Summary of Contents for Cisco Catalyst 3560-CX

  • Page 1: Product Overview

    Product Overview The Catalyst 3560-CX and 2960-CX switches are Ethernet switches to which you can connect devices such as Cisco IP Phones, Cisco Wireless Access Points, workstations, and other network devices such as servers, routers, and other switches. You can deploy these switches outside of the traditional wiring closet environment, such as in office workspaces, hotel rooms, slot machines, kiosks, and classrooms.

  • Page 2: Front Panel

    ◦ 10/100/1000 PoE+ Note The Catalyst 3560CX-8XPD-S has 6 PoE+ ports and 2 Multigigabit PoE+ ports. • Two 10/100/1000 uplink ports and two SFP or SFP+ module ports depending on the switch model. Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide...
  • Page 3 USB mini-Type B (console) port SFP module slots Figure 2: Catalyst 3560CX-8XPD-S Front Panel View Mode button System LEDs USB Type A port 10/100/1000 PoE+ ports RJ-45 console port Multigigabit PoE+ ports Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide...
  • Page 4 The ports provide PoE+ support for devices compliant with IEEE 802.3af, IEEE 802.3at, and ePoE and also provide Cisco prestandard PoE support for Cisco IP Phones and Cisco Aironet Access Points. The maximum switch power output is either 124 W or 240 W, depending on the switch mode. Intelligent power management allows flexible power allocation across all ports.

  • Page 5: Multigigabit Ports

    • USB mini-Type B console port (5-pin connector). If you use the USB mini-Type B console port, the Cisco Windows USB device driver must be installed on any PC connected to the console port (for operation with Microsoft Windows). Mac OS X or Linux do not require special drivers.
  • Page 6 The switch has either two 1-Gigabit SFP or 10-Gigabit SFP+ module slots. The slots marked SFP+ support both SFP and SFP+ modules. The SFP slots support only the SFP modules. For Cisco SFP and SFP+ modules documentation, including compatibility matrixes, refer to this URL: http:/ /www.cisco.com/en/US/products/hw/modules/ps5455/products_device_support_tables_list.html...

  • Page 7: System Led

    Port Mode Description STAT Port status The port status. This is the default mode. SPEED Port speed The port operating speed: 10, 100, or 1000 Mb/s. PoE port power The PoE status. Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide...
  • Page 8 RJ-45 console port is active. Port LEDs RJ-45 ports and SFP-module slots have port LEDs. These LEDs, as a group or individually, provide information about the switch and about the individual ports. Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide...

  • Page 9: Rear Panel

    STP searches for loops. Rear Panel • A security slot • An AC power connector or a power adapter connector (on Catalyst 3560CX-8PT-S only) • A loop (for the optional power cord retainer) Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide...
  • Page 10 Figure 5: Rear Panel of a Non-PoE Switch Figure 6: Rear Panel of a PoE Switch • A security slot • An AC power connector • A loop (for the optional power cord retainer) Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide...
  • Page 11 A loop (for the optional power cord retainer) An AC power connector Figure 8: Rear Panel of a PoE Switch Security Slot A loop (for the optional power cord retainer) An AC power connector Heat sink fins Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide...

  • Page 12: Internal Power Supply

    Catalyst 3560CX-8PT-S switches can be powered either through the 10/100/1000 uplink ports receiving power from a PoE, PoE+ or UPOE switch or through an auxiliary AC-DC or DC-DC power adapter. You can order Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide...

  • Page 13: Management Options

    Cisco Network Assistant is a PC-based network management GUI application for LANs of small and medium-sized businesses. You can use the GUI to configure and manage switch clusters or standalone switches. Cisco Network Assistant is available at no cost and can be downloaded from this URL: http:/ /www.cisco.com/en/US/products/ps5931/index.html...

  • Page 14: Network Configurations

    • Cisco Prime Infrastructure Cisco Prime Infrastructure combines the wireless functionality of Cisco Prime Network Control System (NCS) and the wired functionality of Cisco Prime LAN Management Solution (LMS), with application performance monitoring and troubleshooting capabilities of Cisco Prime Assurance Manager. For more information, see the Cisco Prime Infrastructure documentation on Cisco.com.
