Summary of Contents for Philips MCV250/21

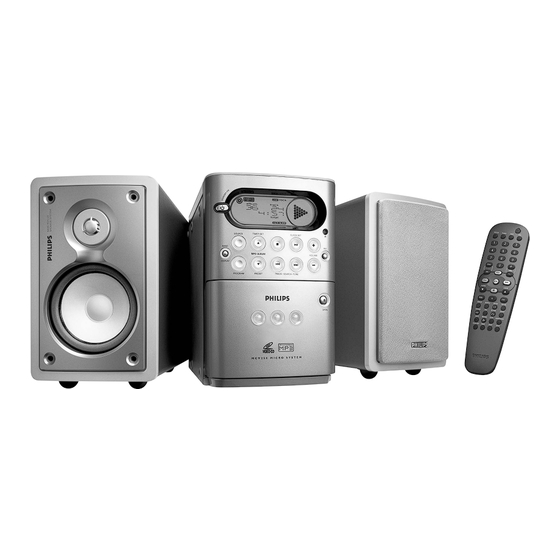

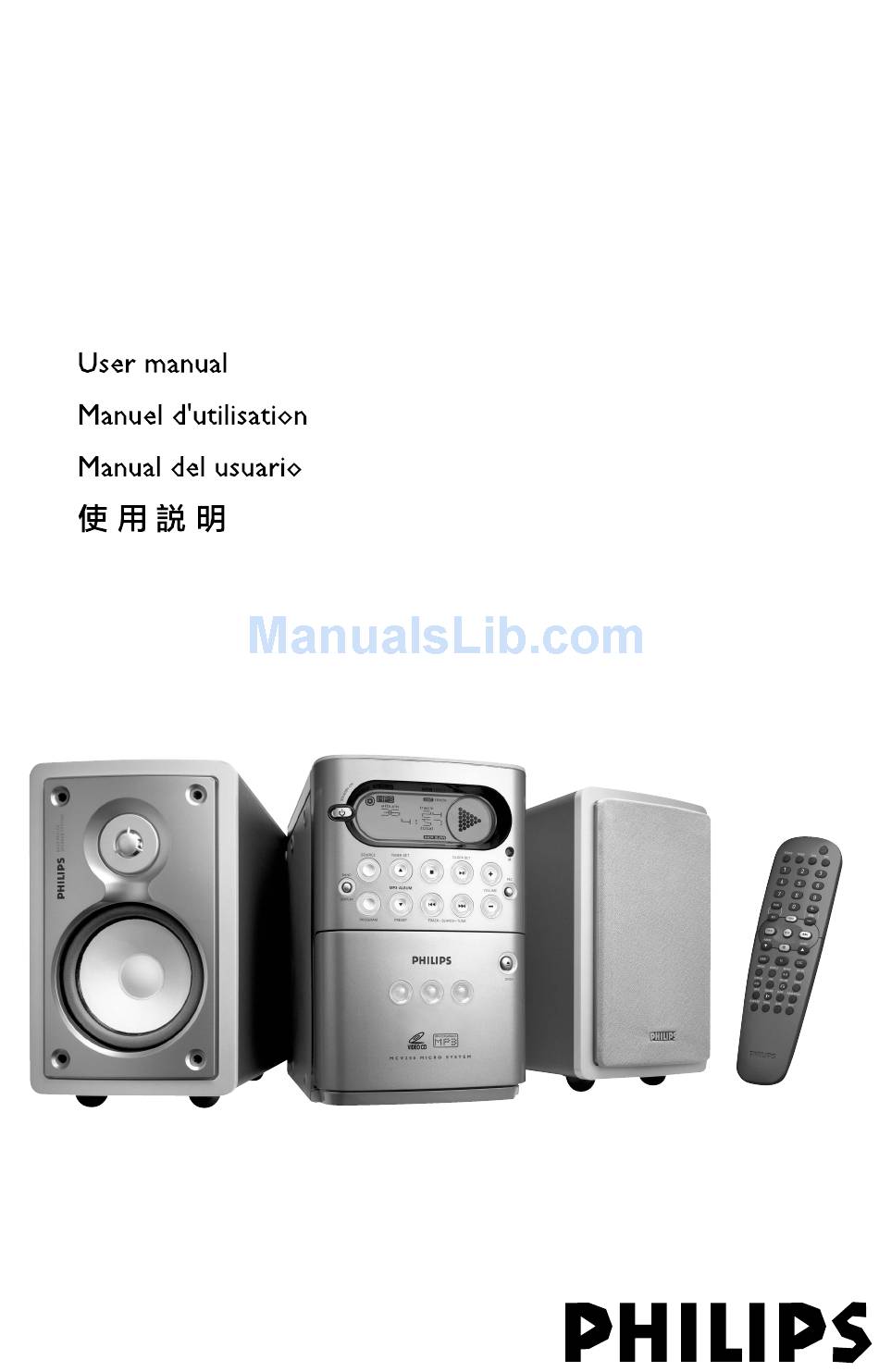

- Page 1 MCV250 Micro Hi-Fi System...
- Page 2 País de Origen: China Nº de Serie: LEA CUIDADOSAMENTE ESTE INSTRUCTIVO AVISO IMPORTANTE Philips Mexicana, S.A. de C.V. no se hace responsable por daños o desperfectos causados por: – Maltrato, descuido o mal uso, presencia de insectos o roedores (cucarachas, ratones etc.).
- Page 3 &...
- Page 4 ¡ · ° ‡ fi fl › ‹ ¤ ⁄ VCD/CD TUNER TAPE ECHO PROG ALBUM ALBUM REPEAT SHUFFLE REPEAT MIX SEL DISPLAY RETURN DIGEST GOTO RESUME SLOW AUDIO/VOCAL CLOCK SET TIMER SLEEP MUTE ‚ ™ ≤ £ § ∞ ≥...
- Page 5 Index English ------------------------------------------------ 6 Français -------------------------------------------- 27 Español --------------------------------------------- 48 -------------------------------------------------------- 69...
-
Page 6: Table Of Contents
Contents General Information Environmental information ... 7 Supplied accessories ... 7 Safety information ... 7 Preparations Rear connections ... 8 – 9 Optional connection ... 9 Inserting batteries into the Remote Control ... 9 Controls Controls on the system and remote control ... -
Page 7: General Information
IMPORTANT! PLEASE NOTE THAT THE VOLTAGE SELECTOR LOCATED AT THE REAR OF THIS SYSTEM IS PRESET AT 220V FROM THE FACTORY. FOR COUNTRIES THAT OPERATE AT 110V-127V, PLEASE ADJUST TO 110V-127V BEFORE YOU SWITCH ON THE SYSTEM. Environmental Information All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags,... -
Page 8: Preparations
Preparations Speaker (right) AC power cord Rear connections The type plate is located at the rear of the system. Power Before connecting the AC power cord to the wall outlet, ensure that the following are done; – If your system is equipped with a Voltage Selector, set the VOLTAGE SELECTOR to the local power line voltage. -
Page 9: Optional Connection
Position the antenna as far as possible from a TV, VCR or other radiation source. FM Antenna Not for all versions For better FM stereo reception, connect an outdoor FM antenna to the FM AERIAL (FM ANTENNA) terminal. For some versions, a built-in FM attenna is provided. -
Page 10: Controls
Controls (main set’s illustration on page 3&4) Controls on the system and remote control STANDBY ON y – Switches the system on or to standby mode. Display screen – Views the current status of the system. SOURCE – Selects the respective sound source : VCD/CD TUNER, TAPE or AUX. - Page 11 or switches between mono or stereo mode during audio disc playback. – Selects channel left / channel right / stereo suond, or selects a luanguage in a billingual VCD. • SLOW – Watches the VCD at a slower speed. ª MUTE –...
-
Page 12: Basic Functions
Basic Functions IMPORTANT! Before you operate the system, complete the preparation procedures. Switching the system on Press 2 STANDBY ON. The system will switch to the last selected source. Press SOURCE on the system or VCD/CD, TUNER, TAPE or AUX on the remote control. -
Page 13: Cd/Vcd/Mp3-Cd Operation
IMPORTANT! – This system is designed for regular discs. Therefore, do not use any accessories such as disc stabiliser rings or disc treatment sheets, etc., as offered on the market, because they may jam the disc mechanism. – Do not load more than one disc into the tray. -
Page 14: Playing A Disc
CD/VCD/MP3-CD Operation Playing a disc Select VCD/ CD source. Press OPEN/CLOSE on the top of the system to open the CD compartment. OPEN is displayed when you open the CD compartment. Load a disc with the printed side facing up. Push the top panel to close. -
Page 15: Text Display And Id3 Text
To select your play mode, press the REPEAT or SHUFFLE on the remote control before or during playback until the display shows the desired function. (SHUFFLE, REP, REP ALL) Press ÉÅ to start playback if in the STOP position. To return to normal playback, press REPEAT or SHUFFLE until the various SHUFFLE / REPEAT modes are no longer displayed. -
Page 16: Video Cd
VIDEO CD VCD/CD TUNER TAPE ECHO PROG ALBUM ALBUM REPEAT SHUFFLE REPEAT MIX SEL DISPLAY RETURN DIGEST GOTO RESUME SLOW AUDIO/VOCAL CLOCK SET TIMER SLEEP MUTE Adjusting the TV System Before viewing the Video CD, ensure that the set is switched to corresponding PAL or NTSC system of your TV set (except Multi–system TV). -
Page 17: Digest
Digest This feature allows you to scan through a VCD for a quick review. PBC mode must be switched off. In the stop mode Press DIGEST on the remote control. The first 6 seconds of each track are played. Press digit 0 – 9 on the remote control to play the desired tracks. -
Page 18: Slow
VIDEO CD Slow Press SLOW on the remote control to watch a VCD at a slower speed. There are 4 types of slow modes to select. The sound is muted. On TV screen, “SLOW 1/2”, “SLOW 1/4”, “SLOW 1/8”, SLOW 1/16 or PLAY is displayed. To resume playback at normal speed, press É... -
Page 19: Radio Reception
Tuning to radio stations Select TUNER source. “TUNER” is displayed briefly. Press BAND to select the desired waveband : FM or MW. Press and hold S or ¢ and then release it. The display will show "SEARCH" until a radio station with sufficient signal strength is found. -
Page 20: Tuning To Preset Radio Stations
Radio Reception Tuning to preset radio stations Press 4 or 3 until the desired preset station is displayed. Changing tuning grid all versions) In North and South America, the frequency step between adjacent channels in the MW band is 10 kHz (9 kHz in some areas). The preset frequency step in the factory is 9 kHz. -
Page 21: Tape Operation/Recording
Tape playback Select TAPE source. TAPE TAPE The display shows “TAPE TAPE” briefly. TAPE Press OPEN ç to open the tape door. Insert a recorded tape and close the tape door. Load the tape with the open side downward and the full spool to the left. -
Page 22: Preparation For Recording
Tape Operation/Recording Preparation for recording Select TAPE source. Load a recordable tape into the tape deck with the full spool to the left. Prepare the source to be recorded. CD/VCD – load the disc. TUNER – tune to the desired radio station. AUX –... -
Page 23: Clock/Timer
Clock setting In standby mode, press and hold CLOCK SET. The clock digits for the hours flash. Press VOLUME +/- to set the hours. Press CLOCK SET again. The clock digits for the minutes flash. Press VOLUME +/- to set the minutes. Press CLOCK SET to confirm the time. -
Page 24: Specifications
Specifications AMPLIFIER Output power ... 2 x 10 W RMS ... 400 W PMPO Signal-to-noise ratio ... ≥ 62 dBA Frequency response ... 63 – 16000 Hz, ± 3 dB Input sensitivity AUX ... 0.5 V (max. 2 V) Impedance loudspeakers ... 8 Ω Impedance headphones ... -
Page 25: Maintenance
Cleaning the disc lens After prolonged use, dirt or dust may accumulate at the disc lens. To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner. - Page 26 Troubleshooting Problem Radio reception is poor. Recording or playback cannot be made. “CHECK TAPE” is displayed. The tape deck door cannot open. The system does not react when buttons are pressed. Sound cannot be heard or is of poor quality. The left and right sound outputs are reversed.
