Summary of Contents for Extreme Networks Extreme Wireless

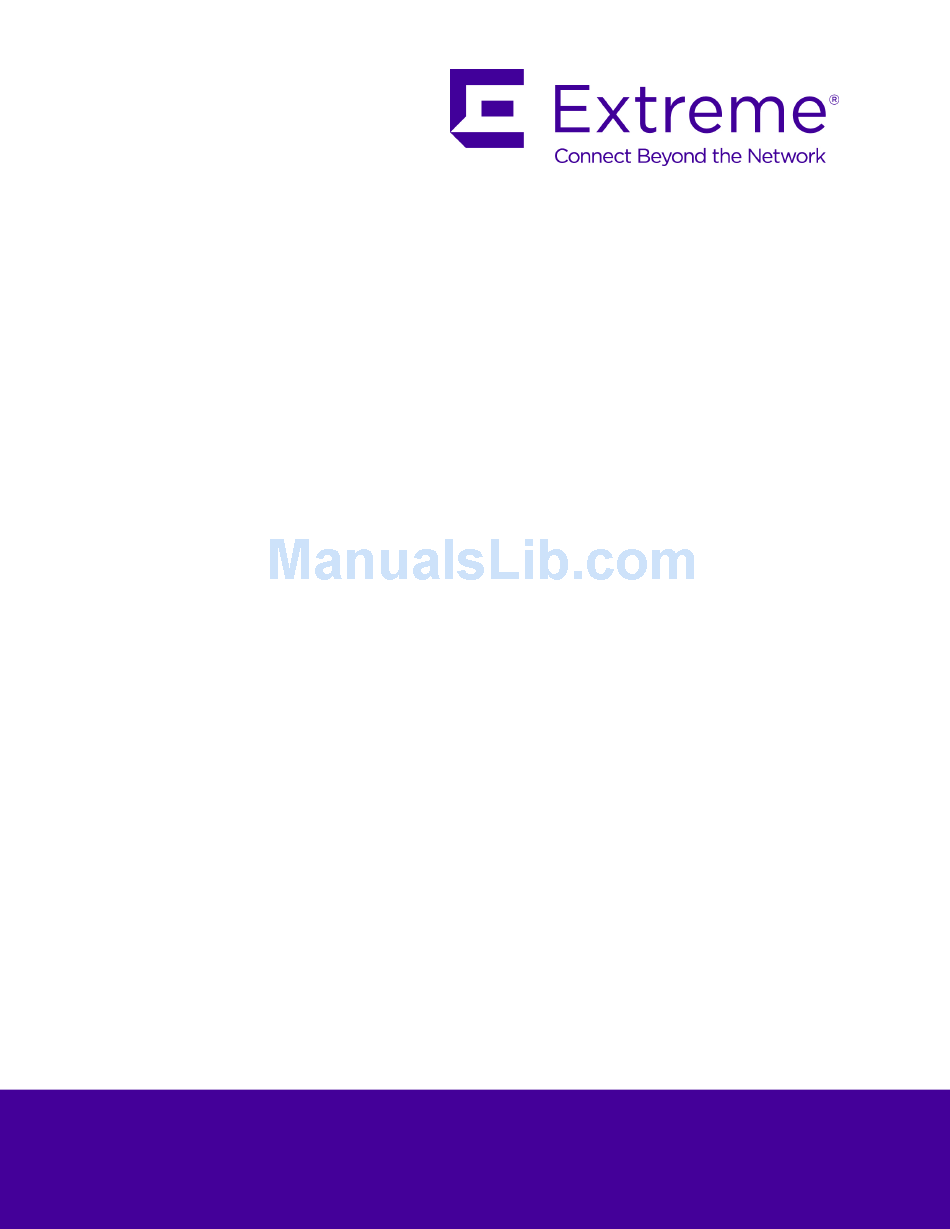

  • Page 1 ExtremeWireless External ™ Antenna with Wave 2 Site Preparation and Installation Guide 9034959 Published May 2016...
  • Page 2 Copyright © 2016 Extreme Networks All rights reserved. Legal Notice Extreme Networks, Inc. reserves the right to make changes in specifications and other information contained in this document and its website without prior notice. The reader should in all cases consult representatives of Extreme Networks to determine whether any such changes have been made.
  • Page 3: Table Of Contents

    Table of Contents About This Guide........................4 Intended Audience................................4 Text Conventions...................................4 Providing Feedback to Us..............................5 Getting Help.....................................5 Related Publications................................6 Chapter 1: AP Site Preparation....................7 ExtremeWireless Access Points that Support External Antennas..............7 Choosing Antennas for Wireless Network Configurations................7 Determining the Antenna Locations...........................
  • Page 4: About This Guide

    About This Guide This guide describes the requirements for the successful installation of the ExtremeWireless external antennas used in a wireless network. An ExtremeWireless network consists of access points, controllers, antennas, and associated accessories. Warning Only qualified personnel should perform installation procedures. Intended Audience The ExtremeWireless external antennas must be installed by an antenna installation professional who can determine, provide, and install the necessary support structure and grounding system.
  • Page 5: Providing Feedback To Us

    Ideas for improvements to our documentation so you can find the information you need faster. • Broken links or usability issues. If you would like to provide feedback to the Extreme Networks Information Development team about this document, please contact us using our short online feedback form.
  • Page 6: Related Publications

    About This Guide • A description of any action(s) already taken to resolve the problem • A description of your network environment (such as layout, cable type, other relevant environmental information) • Network load at the time of trouble (if known) •...
  • Page 7: Chapter 1: Ap Site Preparation

    Warning Site prerequisites should be verified by a person familiar with national codes, local electrical codes, and with other regulations governing this type of installation. Extreme Networks, its channel partners, resellers, and distributors assume no liability for personal injury, property damage, or violation of government regulations that may arise from failing to comply with the instructions in this guide.
  • Page 8: Determining The Antenna Locations

    AP Site Preparation Table 3: Antennas for Wireless Network Configurations Network Configuration Description Antenna Type LAN-to-LAN Point-to-Point This is a wireless link between two WDS Directional antennas APs that connects two separate wired LANs. (WDS APs are configured to operate as Workgroup bridges.) LAN-to-LAN Point-to-Multipoint In a point-to-multipoint network, up to Omni-Directional antenna—...
  • Page 9 AP Site Preparation Figure 1: Fresnel Zone and Line of Sight Clearance The radius can be calculated using the following formula: Where D = Distance between the antennas in kilometers f = Frequency in GHz 60% of the Fresnel Zone has to be clear of obstructions to be line of sight. In addition to the Fresnel Zone height requirement, earth curvature may become a factor in paths longer than 2 Km.
  • Page 10 AP Site Preparation Table 4: Typical Antenna Height Requirements—2.4 GHz (continued) Distance between Tx and Fresnel Zone radius Earth curvature (meters) Minimum antenna height Rx antennas (km) (meters) requirements (meters) 7.77 32.77 12.14 40.14 30.6 17.48 48.08 Table 5: Typical Antenna Height Requirements—5 GHz Distance between Tx and Fresnel Zone radius Earth curvature (meters)
  • Page 11 AP Site Preparation Figure 2: Potential Obstacles to Line of Sight (not to scale) Additional Location Requirements This section describes other requirements to meet before installing the outdoor antennas. • Lightning Protection A lightning rod must be placed close to the antenna mast or wall bracket. This is required to protect the antenna from direct lightning strikes.
  • Page 12: Antenna Models

    The AP should be located indoors, and connected to the outdoor antenna using the shortest cable possible to reduce the loss of the cable. Antenna Models This section provides a brief description of the antenna models offered by Extreme Networks for use with ExtremeWireless APs. Table 6 lists antennas supported by the 39xx series APs.
  • Page 13 AP Site Preparation Table 6: AP39xx External Antennas Listed by AP Antenna Gain (dBi) Extreme Networks Antenna Model Type Description Frequency 2.4G Wireless AP (GHz) 3965e 30711 (WS-AO-DQ05120N) Outdoor 120 degree, 2.4G/5G Sector The AP3965 30712 (WS-AO-5Q04060N) Outdoor 60 degree,...
  • Page 14 AP Site Preparation The following table lists existing antennas supported by AP38xx models. Table 7: AP38xx External Antennas Listed by AP Antenna Gain (dBi) Extreme Networks Antenna Model Type Description Frequency 2.4G Wireless AP (GHz) AP3865e WS-AO-DT05120N Outdoor 120 degree, 2.3–2.7/4.9–6.1 5...
  • Page 15: Cable Options

    Dipole 2 pack. Cable Options Extreme Networks offers optional low-loss, outdoor and indoor cables. The outdoor cables are watertight cables to connect the outdoor APs to an antenna. The optional outdoor cables have a Standard Polarity Type-N Plug and Type-N Jack. The indoor cables have a Reverse Polarity SMA-Type connector.
  • Page 16: Line Of Sight

    AP Site Preparation Line of Sight • Determine the mounting location for the antenna. • Ensure that the back of the antenna is clear. • Ensure that remote and local antennas can see each other. • Ensure that no obstacles are in the direct path or within the defined zone of the two sites. •...
  • Page 17: Chapter 2: Extremewireless Aps That Support External Antennas

    For a list ofExtremeWireless outdoor APs and the supported antennas, see External Antennas for Use with Outdoor APs on page 41. • Extreme Networks recommends using PFP240 or PFP400 cable for 2.4 GHz and PFP600 for 5GHz. For more information, see Cable Specifications on page 141. •...
  • Page 18: Extremewireless Ap3935E

    ExtremeWireless APs That Support External Antennas internal antennas, and the AP3965e (Figure 3) supports a variety of external antennas, providing range and coverage versatility. For a list of supported antennas for the AP3965, see Table 6 on page 13. Figure 3: AP3965e Front View Component Description 4 Radio Antenna Connection ports on each side...
  • Page 19: Extremewireless Ap3865E

    The WS-AP3865e is designed to extend your wireless LAN around indoor locations. It operates fully with the Extreme Networks wireless LAN, including support for Extreme Networks wireless VoWLAN, branch office mode, availability and mobility features. This AP operates in 802.11ac and 802.11n mode...
  • Page 20: Extremewireless Ap3825E

    The AP3825e is designed to extend your wireless LAN around indoor locations. It operates fully with the Extreme Networks wireless LAN, including support for Extreme Networks wireless VoWLAN, branch office mode, availability and mobility features. This AP operates in 802.11ac and 802.11n mode and also support 802.11a/802.11g and 802.11b standard legacy devices.
  • Page 21: Extremewireless Ap3805E

    The WS-AP3805 is designed to extend your wireless LAN around indoor locations. It operates fully with the Extreme Networks wireless LAN, including support for Extreme Networks wireless VoWLAN, branch office mode, availability and mobility features. This AP operates in 802.11ac and 802.11n mode and also support 802.11a/802.11g and 802.11b standard legacy devices.
  • Page 22 ExtremeWireless APs That Support External Antennas Figure 7: AP3805e External Antenna Cable Installation Component Description Antenna Port Radio 1 - Right (5 GHz) Antenna Port Radio 2 - Right (2.4 GHz) Antenna Port, Radio 2 - Left (2.4GHz,) Antenna Port, Radio 1 - Left (5 GHz LEDs External Antenna (1 of 4) Refer to the...
  • Page 23: Chapter 3: Antenna Installation

    Cable Installation Guidelines Routine Maintenance This section provides the information necessary for a professional antenna installer to install the Extreme Networks antennas. Warning Antennas should only be installed by a qualified antenna installer. The antenna installation professional should be licensed or certified in accordance with local regulations.
  • Page 24: Grounding System

    Antenna Installation 3 Install the lightning protector (if applicable). 4 Provide and install an antenna support structure as necessary. Make sure that the support structure is connected to the grounding system (if applicable). 5 Connect the exposed metal connectors of the low-loss antenna cable to the grounding system (if applicable).
  • Page 25: Antenna Polarization

    The wireless link transmissions cross another radio beam from a neighboring installation. Approved Antennas for the ExtremeWireless APs Extreme Networks APs using certified external antennas must comply with local laws and regulations. An approval may be required by the local regulatory authorities.
  • Page 26 Antenna Installation Table 8: AP3825e Approved Antennas External Antenna Mounting Instructions WS-ANT-2DIP-3 Mounting Antenna Model WS-ANT-2DIP-3 WS-ANT-5DIP-3 Mounting Antenna Model WS-ANT-5DIP-3 WS-AI-DX10055 Mounting Antenna Model WS-AO-DX10055N and Related Antenna Models WS-AI-DT05120 Mounting Antenna Model WS-AI-DT05120 WS-AI-DX02360 Mounting Antenna Model WS-AI-DX02360 WS-AI-DX07025 and WS-AI-DX07025N Mounting Antenna Models WS-AO-DX13025 and WS- AI-DX07025...
  • Page 27 Antenna Installation Figure 8: WS-AO-DX10055N Antenna Table 10: Antenna Cable and Connector Information Antenna Model Cable Type Cable Length Connector Type WS-AO-DX10055N RG316 39 inches Standard Polarity, Type N Plug WS-AI-DX10055 RG316 39 inches Reverse Polarity SMA Plug Connector Mounting Instructions: WS-AO-DX10055N, WS-AI-DX10055 The antenna includes a fully adjustable mount for pipe or wall mounting.
  • Page 28 Antenna Installation Table 11: Mount Kit Contents Item Quantity Description Nut, 5/16-18,1/2" Hex. 17/64" Thick, Steel Grade 2,NlZN Trivalent Bolt, Carriage, 5/16-18 x 3/4 Bracket, Mount. Antenna Bolt, 5/16-18 x 2 1/2", Hex Head, Steel, Nl ZN Trivalent Tube, Aluminum, 0.37" ID x 0.50" OD x 1.415" Washer, Flat, 5/16, 5/8"...
  • Page 29 Antenna Installation 3 Assemble the brackets item 3) with the arc toward the outside. Slide aluminum spacer (item 5) in between and feed pivot bolt (item 4) through. Install washers and nut (items 1, 6, 7), but do not tighten at this point. Figure 10: Assemble the Brackets 4 Assemble locking carriage bolt (item 2) and attach washers and nut (items 1, 6, 7), but do not tighten at this point.
  • Page 30 Antenna Installation 5 If mounting hole can be slid over pipe, install V-bolt (item 11) into the pole side bracket (one hole in flange) and loosely secure the washers and nuts (items 1, 6, 7). Otherwise, locate bracket assembly on pipe, and feed the V-bolt through and secure with washers and nut. Figure 12: Install V-bolt 6 Attach mount assembly to the antenna using the 1/4-20 hardware in the hardware kit (Items 12, 13, 14).
  • Page 31 Antenna Installation 7 Set down tilt angle and tighten pivot and carriage bolts. Figure 14: Set Angle ExtremeWireless™ External Antenna with Wave 2...
  • Page 32 Antenna Installation Mounting Antenna Model WS-ANT-2DIP-3 Figure 15: WS-ANT-2DIP-3 Antenna To install the antenna, secure the antenna in place by tightening the single nut. Note The AP3825 supports up to six antennas. One 3-pack of WS-ANT-2DIP-3 antennas and one 3- pack of WS-ANT-5DIP-3 antennas.
  • Page 33 Antenna Installation Mounting Antenna Model WS-ANT-5DIP-3 Figure 16: WS-ANT-5DIP-3 Antenna To install the antenna, secure the antenna in place by tightening the single nut. Note The AP3825 supports up to six antennas. One 3-pack of WS-ANT-2DIP-3 antennas and one 3- pack of WS-ANT-5DIP-3 antennas.
  • Page 34 Antenna Installation Figure 17: Mounting the WS-AO-2DIPN3 Antenna to the AP3865e Antenna Standard polarity Type-N jack AP3865e Standard polarity Type-N plug Sealing tape (recommended, but not supplied) To install the antenna: Secure the antenna in place by tightening the single nut (item 2). 2 Seal the connection between the Type-N jack (item 4) of the AP3865e and the Type-N plug (item 3) of the antenna by wrapping a layer of sealing tape (item 6).
  • Page 35 Antenna Installation Figure 18: Mounting the WS-AO-5DIPN3 Antenna to the AP3865e Antenna Standard polarity Type-N jack AP3865e Standard polarity Type-N plug Sealing tape (recommended, but not supplied) To install the antenna: Secure the antenna in place by tightening the single nut (item 2). 2 Seal the connection between the Type-N jack (item 4) of the AP3865e and the Type-N plug (item 3) of the antenna by wrapping a layer of sealing tape (item 6).
  • Page 36 Antenna Installation Figure 19: Outdoor Antenna WS-AO-DX07180N with Mounting Bracket Table 12: Antenna Cables and Connectors Antenna Model Cable Type Cable Length Connector Type WS-AO-DX07180N PFP240UF 5 ft Standard Polarity, Type N Plug Mounting Antenna Models WS-AO-DX13025 and WS-AI-DX07025 The WS-AO-DX13025 is designed for outdoor installations, and the WS-AI-DX07025 is designed for indoor installations.
  • Page 37 Antenna Installation Table 13: Antenna Connector Connectors Antenna Model Type Connector Type WS-AO-DX13025 Outdoor Reverse Polarity, Type N Plug WS-AI-DX07025 Indoor Reverse Polarity, Type SMA Plug Mounting Antenna Model WS-AI-DX02360 The WS-AI-DX02360 is a dual-band six port omni-directional MIMO antenna. With separate ports that are designed to operate at 2.4 GHz and 5 GHz.
  • Page 38 Antenna Installation Figure 22: WS-AI-DX02360 Mounting Post and Mounting Nut To install the antenna in a suspended ceiling: Mark the desired mounting location on the suspended ceiling tile and cut a 40 mm (1.57 in) hole in the tile. 2 Feed the six antenna cables through the hole and press the antenna to the ceiling tile. 3 Secure the antenna with the mounting nut, as shown in the previous figure.
  • Page 39: Cable Installation Guidelines

    Antenna Installation Figure 23: WS-AO-DT05120 and Related Antenna Models Table 14: Antenna Cable and Connector Information Antenna Model Cable Type Cable Length Connector Type WS-AO-DT05120 RG316 32 inches Reverse Polarity, Type N Jack WS-AO-DT05120-1 RG316 32 inches Reverse Polarity, Type N Plug WS-AO-DT05120N RG316 32 inches...
  • Page 40: Routine Maintenance

    Antenna Installation Connecting the Cables Take the following steps to connect cables: Secure the low-loss cable to the mast such that the cable connectors do not support the full weight of the cable. Caution To avoid damage to the antenna cable and connectors, do not use tools to tighten cable connectors.
  • Page 41: Chapter 4: Antenna Specifications

    Antenna Specifications External Antennas for Use with Outdoor APs External Antennas for Use with Indoor APs This section lists the specifications and radiation patterns for the external antennas supported by various ExtremeWireless AP models. The antenna specifications are organized in this section by their design capability: •...
  • Page 42 Antenna Specifications Table 15: Outdoor Antennas (continued) Antenna Part Number Supported APs WS-AO-DX13025 AP3865e WS-AO-DX13025N AP3865e WS-AO-DX10055N AP3825e, AP3865e WS-AO-2DIPN3 AP3865e WS-AO-5DIPN3 AP3865e 30711 (WS-AO-DQ05120N) This 4-port sector antenna can be used for 802.11ac MIMO applications. The four ports can be used individually or in combination with legacy 802.11 access points.
  • Page 43 Antenna Specifications Specifications Table 16: 30711 (WS-AO-DQ05120N) Specifications Value Specification 2.4 GHz 5GHz Frequency 2.4-2.5 GHz 5.1-5.9 GHz Gain 5-5.5 dBi 4.5-5.5 dBi Vertical Beamwidth 90° 65° Horizontal Beamwidth 100° 80° VSWR 1.5-2.0 Operating Temperature Range -40°C to +70°C Polarization Dual-slant linear +-45 Weight .45kg...
  • Page 44 Antenna Specifications Figure 26: 2.4 GHz Vertical Pattern Figure 27: 5GHz Horizontal Pattern ExtremeWireless™ External Antenna with Wave 2...
  • Page 45 Antenna Specifications Figure 28: 5GHz Vertical Pattern 30712 (WS-AO-5Q04060N) This 4-port sector antenna can be used for 802.11ac MIMO applications. The four ports can be used individually or in combination with legacy 802.11 access points. ExtremeWireless™ External Antenna with Wave 2...
  • Page 46 Antenna Specifications Figure 29: Outdoor Antenna 30712 (WS-AO-5Q04060N) Specifications Table 17: 30712 (WS-AO-5Q04060N) Specifications Specification Value Frequency 5.15-5.85 GHz Gain 3-4 dBi Vertical Beamwidth 33° Horizontal Beamwidth 50° VSWR 1.5-2.0 Operating Temperature Range -40°C to +70°C Polarization Dual-slant linear +-45° Weight .45kg Mounting Style...
  • Page 47 Antenna Specifications Radiation Patterns Figure 30: 5 GHz Radiation Patterns 30713 (WS-AO-2Q05060N) This 4-port sector antenna can be used for 802.11ac MIMO applications. The four ports can be used individually or in combination with legacy 802.11 access points. ExtremeWireless™ External Antenna with Wave 2...
  • Page 48 Antenna Specifications Figure 31: Outdoor Antenna 30713 (WS-AO-2Q05060N) with Mounting Bracket Specifications Table 18: 30713 (WS-AO-2Q05060N) Specifications Specification Value Frequency 2.4-2.5 GHz Gain 4-5 dBi VSWR 2.0 Max (1.5 Typ) Vertical Beamwidth 34° Horizontal Beamwidth 73° Operating Temperature Range -40°C to +70°C Polarization Dual-slant, linear +-45°...
  • Page 49 Antenna Specifications Radiation Patterns Figure 32: 2.4 GHz Horizontal Pattern Figure 33: 2.4 GHz Vertical Pattern 30714 (WS-AO-DE07025N) This dual-band 8-port sector antenna can be used for 802.11ac MIMO applications. The antenna covers both 2.4-2.5 GHz and 5.1-5.9 GHz in one radome. The eight ports can be used individually or in combination for use with legacy 802.11 access points.
  • Page 50 Antenna Specifications Figure 34: Outdoor Antenna 30714 (WS-AO-DE07025N) Specifications Table 19: 30714 (WS-AO-DE07025N) Specifications Value Specification 2.4 GHz 5GHz Frequency 2.4-2.5 GHz 5.1-5.9 GHz Gain 6.5-7.5 dBi 5.5-6.5 dBi Vertical Beamwidth 43° 37° Horizontal Beamwidth 31° 29° VSWR < 2.25:1 Operating Temperature Range -30°C to +80°C Polarization...
  • Page 51 Antenna Specifications Radiation Patterns Figure 35: 2.4GHz Horizontal Pattern Figure 36: 2.4GHz Vertical Pattern ExtremeWireless™ External Antenna with Wave 2...
  • Page 52 Antenna Specifications Figure 37: 5GHz Horizontal Pattern Figure 38: 5GHz Vertical Pattern 30715 (WS-AO-DE13025N) This dual-band 8-port sector antenna can be used for 802.11ac MIMO applications. The antenna covers both 2.4-2.5 GHz and 5.1-5.9 GHz in one radome. The eight ports can be used individually or in combination for use with legacy 802.11 access points.
  • Page 53 Antenna Specifications Specifications Figure 39: Outdoor Antenna 30715 (WS-AO-DE13025N) Table 20: 30715 (WS-AO-DE13025N) Specifications Value Specification 2.4 GHz 5GHz Frequency 2.4-2.5 GHz 5.1-5.9 GHz Gain 12-13 dBi 11-12 dBi Vertical Beamwidth 43° 37° Horizontal Beamwidth 31° 29° VSWR < 2.25:1 Operating Temperature Range -30°C to +80°C Polarization...
  • Page 54 Antenna Specifications Radiation Patterns Figure 40: 2.4GHz Horizontal Pattern Figure 41: 2.4GHz Vertical Pattern ExtremeWireless™ External Antenna with Wave 2...
  • Page 55 Antenna Specifications Figure 42: 5GHz Horizontal Pattern Figure 43: 5GHz Vertical Pattern 30716 (WS-AO-5Q05025N) The four port sector antennas can be used for 802.11ac MIMO applications that operate in the 5.1-5.9 GHz frequency range. The four elements can be used individually or in combination for use with legacy 802.11 access points.
  • Page 56 Antenna Specifications Figure 44: Outdoor Antenna 30716 (WS-AO-5Q05025N) Specifications Table 21: 30716 (WS-AO-5Q05025N) Specifications Specification Value Frequency 5.1-5.9 GHz Gain 3.5 - 4.5 dBi Vertical Beamwidth 40° Horizontal Beamwidth 30° VSWR < 2.0:1 Operating Temperature Range -30°C to +80°C Polarization Dual linear Weight 1.36 kg...
  • Page 57 Antenna Specifications Radiation Patterns Figure 45: 5 GHz Horizontal Pattern Figure 46: 5GHz Vertical Pattern 30717 (WS-AO-5Q11025N) The four port sector antennas can be used for 802.11ac MIMO applications that operate in the 5.1-5.9 GHz frequency range. The four elements can be used individually or in combination for use with legacy 802.11 access points.
  • Page 58 Antenna Specifications Figure 47: Outdoor Antenna 30717 (WS-AO-5Q11025N) Specifications Table 22: 30717 (WS-AO-5Q11025N) Specifications Specification Value Frequency 5.1-5.9 GHz Gain 10.5 - 11.5 dBi Vertical Beamwidth 40° Horizontal Beamwidth 30° VSWR < 2.0:1 Operating Temperature Range -30°C to +80°C Polarization Dual linear Weight 1.36 kg...
  • Page 59 Antenna Specifications Radiation Patterns Figure 48: 5 GHz Horizontal Pattern Figure 49: 5GHz Vertical Pattern 30718 (WS-AO-DE10055N) The dual-band, 8 port, sector antenna provides spatial diversity coverage of 2.4 and 5 GHz broadband wireless frequencies in a low profile housing. Designed for outdoor installations utilizing 802.11ac MIMO applications.
  • Page 60 Antenna Specifications Figure 50: 30718 (WS-AO-DE10055N) Specifications Table 23: 30718 (WS-AO-DE10055N) Specifications Value Specification 2.4 GHz 5GHz Frequency 2.4-2.5 GHz 5.1-5.9 GHz Gain 10-10.5 dBi 6-7.5 dBi Vertical Beamwidth 44° 43° Horizontal Beamwidth 51° 53° VSWR < 2.25:1 Operating Temperature Range -30°C to +80°C Polarization Dual linear...
  • Page 61 Antenna Specifications Radiation Patterns Figure 51: 2.4 GHz Horizontal Pattern Figure 52: 2.4 GHz Vertical Pattern ExtremeWireless™ External Antenna with Wave 2...
  • Page 62 Antenna Specifications Figure 53: 5GHz Horizontal Pattern Figure 54: 5GHz Vertical Pattern 30720 (WS-AO-DE07100N) The dual-band, 8 port, sector antenna provides spatial diversity coverage of 2.4 and 5 GHz broadband wireless frequencies in a low profile housing. Designed for outdoor installations utilizing 802.11n multi- band wireless LAN access point radios, it provides coverage for venues with many mobile data users.
  • Page 63 Antenna Specifications Figure 55: Outdoor Antenna 30720 (WS-AO-DE07100N) and Mounting Bracket Specifications Table 24: WS-AO-DE07100N Specifications Value Specification 2.4 GHz 5GHz Frequency 2.4-2.5 GHz 5.1-5.9 GHz Gain 5.7-7 dBi 4-6 dBi Vertical Beamwidth 90° 60° Horizontal Beamwidth 100° 75° VSWR <...
  • Page 64 Antenna Specifications Radiation Patterns Figure 56: 2.4 GHz Radiation Patterns ExtremeWireless™ External Antenna with Wave 2...
  • Page 65 Antenna Specifications Figure 57: 5 GHz Radiation Patterns 30724 (WS-AO-DQ04360N) The 30724 dual-band, 4-port, omni-directional antenna can be used for 802.11ac MIMO applications. The antenna covers both 2.4-2.5 GHz and 5.1-5.9 GHz in one radome. The antenna can be mounted on a wall or mast, and mount attachments are included.
  • Page 66 Antenna Specifications Figure 58: 30724 (WS-AO-DQ04360N) Specifications Table 25: 30724 (WS-AO-DQ04360N) Specifications Value Specification 2.4 GHz 5GHz Frequency 2.4-2.5 GHz 5.1-5.9 GHz Gain 4.25-5.5 dBi 5-6 dBi Vertical Beamwidth 60° 33° Horizontal Beamwidth Omnidirectional Omnidirectional VSWR Operating Temperature Range -40°C to +85°C Polarization Linear, vertical Weight...
  • Page 67 Antenna Specifications Radiation Patterns Figure 59: 2.4G Horizontal Pattern Figure 60: 2.4 GHz Vertical Pattern ExtremeWireless™ External Antenna with Wave 2...
  • Page 68 Antenna Specifications Figure 61: 5GHz Horizontal Pattern Figure 62: 5GHz Vertical Pattern WS-AO-5D23009N (WS-AO-5D23009N) This antenna provides efficient and stable performance across the band and can be mounted on a pole or wall, indoors and outdoors. ExtremeWireless™ External Antenna with Wave 2...
  • Page 69 Antenna Specifications Figure 63: Indoor/Outdoor Antenna WS-AO-5D23009N with Mounting Bracket Specifications Table 26: WS-AO-5D23009N Specifications Specification Value Frequency 5 GHz Gain 23 dBi VSWR 1.5:1 > 2.0:1 Vertical Beamwidth 9° Horizontal Beamwidth 9° Operating Temperature Range -40°C-85°C Polarization Weight 1.6 kg Mounting Style Wall or pipe mount, optional heavy -duty mount ExtremeWireless™...
  • Page 70 Antenna Specifications Table 26: WS-AO-5D23009N Specifications (continued) Specification Value Power 20 watts Dimensions 340 mm x 340 mm x 30mm Nominal Impedance 50 ohms Radiation Patterns Figure 64: Horizontal Radiation Pattern 5GHz Figure 65: Vertical Radiation Pattern 5GHz ExtremeWireless™ External Antenna with Wave 2...
  • Page 71 Antenna Specifications WS-AO-DS02360N3 This is a 3-pack of omni-directional antennas with high performance, low profile fixed mount for outdoor applications. The N-male connector at the base allows this antenna to be mounted directly on the radio equipment or other enclosures with the mating bulkhead connector. Figure 66: Outdoor Antenna WS-AO-DS02360N3 ExtremeWireless™...
  • Page 72 Antenna Specifications Specifications Table 27: WS-AO-DS02360N3 Specifications Value Specification 2.4 GHz 5GHz Frequency 2.4-2.5 GHz 4.9-5.9 GHz Gain 2 dBi Vertical Beamwidth 60° Horizontal Beamwidth 360° VSWR Operating Temperature Range Polarization Vertical linear Weight Mounting Style Direct mount Power 25 watts Dimensions Nominal Impedance 50 ohms...
  • Page 73 Antenna Specifications Figure 68: WS-AO-DS02360N3 H-Plane WS-AO-DT05120 The WS-AO-DT05120, WS-AO-DT05120-1, and WS-AO-DT05120N antennas are 2.4 GHz and 5 GHz dual-band sector antennas that can be mounted in an outdoor location. These antennas can be used for 802.11n MIMO applications. This antenna can be used with a single access point to provide full dual-band 802.11a/b/g/n MIMO coverage.
  • Page 74 Antenna Specifications Specifications Table 28: WS-AO-DT05120 Specifications Specification Value Frequency 2.3–2.7 GHz and 4.9–6.1 GHz Gain 5 dBi x3 Typ. VSWR 2:1 Max (1.5:1 Typ) Vertical Beamwidth 70°, 3 dB Horizontal Beamwidth 120°, 3 dB Operating Temperature Range -40°C to +70°C Polarization Vertical and 2 x Dual Slant Weight...
  • Page 75 Antenna Specifications Radiation Patterns Figure 70: WS-AO-DT05120 2.5 GHz E-Plane Radiation Pattern ExtremeWireless™ External Antenna with Wave 2...
  • Page 76 Antenna Specifications Figure 71: WS-AO-DT05120 2.5 GHz H-Plan Radiation Pattern ExtremeWireless™ External Antenna with Wave 2...
  • Page 77 Antenna Specifications Figure 72: WS-AO-DT05120 5.5 GHz E-Plane Radiation Pattern ExtremeWireless™ External Antenna with Wave 2...
  • Page 78 Antenna Specifications Figure 73: WS-AO-DT05120 5.5 GHz H-Plane Radiation Pattern WS-AO-DT05120N This antenna is the WS-AO-DT05120 antenna with a Standard Polarity Type-N Plug Connector. For full information about this antenna, see WS-AO-DT05120 on page 73. For mounting instructions, see Mounting Antenna Model WS-AO-DT05120 and Related Antenna Models on page 38.
  • Page 79 Antenna Specifications Figure 74: Outdoor Antenna WS-AO-DX07180N with Mounting Bracket Specifications Table 29: WS-AO-DX07180N Specifications Specification Value Frequency Range 2.4–2.5 GHz and 5.1–5.9 GHz Impedance 50 ohms Gain 6 dBi @ 2.4 GHz 7.2 dBi @ 5 GHz VSWR < 1.5:1 (or > 14 dB) Vertical Beamwidth (3 dB) 70 @ 2.4 GHz / 30 @ 5 GHz Horizontal Beamwidth (3 dB)
  • Page 80 Antenna Specifications Radiation Patterns Figure 75: WS-AO-DX0718N E-Plane ExtremeWireless™ External Antenna with Wave 2...
  • Page 81 Antenna Specifications Figure 76: WS-AO-DX0718N H-Plane WS-AO-DX13025 This dual-band MIMO antenna provides spatial diversity coverage of 2.4 GHz and 5 GHz WiFi. It is designed to provide optimal coverage for areas with many mobile users. Designed for outdoor or in- building installations that utilize 802.11n multi-band wireless LAN access point radios.
  • Page 82 Antenna Specifications Figure 77: Outdoor Antenna WS-AO-DX13025 Specifications Table 30: WS-AO-DX13025 Specifications Specification Value Frequency 2.4–2.5 GHz and 5.1–5.9 GHz Gain 12.5 dBi / 11.5 dBi VSWR 1.7 typical, 2.0 maximum Vertical Beamwidth 48/ 40 Horizontal Beamwidth 27/ 30 Operating Temperature Range -40C to +85C Polarization Dual Linear (2 x V / 1 X H) for each band...
  • Page 83 Antenna Specifications Table 30: WS-AO-DX13025 Specifications (continued) Specification Value Power 25 watts Dimensions 18.75 in x 18.75 in x 5.125 in (476.25 x 476.25 x 130.18 mm) Nominal Impedance 50 ohms Radiation Patterns Figure 78: WS-AO-DX13025 2.4 GHz Vertical Radiation Pattern ExtremeWireless™...
  • Page 84 Antenna Specifications Figure 79: WS-AO-DX13025 2.4 GHz Horizontal Radiation Pattern ExtremeWireless™ External Antenna with Wave 2...
  • Page 85 Antenna Specifications Figure 80: WS-AO-DX13025 5 GHz Vertical Radiation Pattern ExtremeWireless™ External Antenna with Wave 2...
  • Page 86 Antenna Specifications Figure 81: WS-AO-DX13025 5 GHz Horizontal Radiation Pattern WS-AO-DX13025N This antenna is the WS-AO-DX13025 standard antenna with a Standard Polarity Type-N Plug Connector on a 58 inch cable. For more information, see WS-AO-DX13025 on page 81. WS-AO-DX10055N This dual-band MIMO antenna provides spatial diversity coverage of 2.4 GHz and 5 GHz WiFi. This antenna uses a Standard Polarity Type-N Plug Connector on a 39 inch cable.
  • Page 87 Antenna Specifications Figure 82: Outdoor Antenna WS-AO-DX10055N Specifications Table 31: WS-AO-DX10055N Specifications Specification Value Frequency 2.4–2.5 GHz and 5.15–5.85 GHz Gain 10 dBi / 6 dBi VSWR < 2.0:1 Vertical Beamwidth 30/ 35 Horizontal Beamwidth 60/ 55 Operating Temperature Range -40C to +70C Polarization Linear, vertical...
  • Page 88 Antenna Specifications Radiation Patterns Figure 83: WS-AO-DX10055N 2.4 GHz Vertical Radiation Pattern ExtremeWireless™ External Antenna with Wave 2...
  • Page 89 Antenna Specifications Figure 84: WS-AO-DX10055N 5.0 GHz Vertical Radiation Pattern WS-AO-2DIPN3 This antenna is packaged three antennas to a package (3-pack). For more information, see Mounting Antenna Model WS-AO-2DIPN3 on page 33. Specifications Table 32: WS-AO-2DIPN3 Specifications Specification Value Frequency Range 0–6 GHz Working Voltage.
  • Page 90 Antenna Specifications Radiation Patterns Figure 85: WS-AO-2DIPN3 H-Plane Radiation Pattern ExtremeWireless™ External Antenna with Wave 2...
  • Page 91 Antenna Specifications Figure 86: WS-AO-2DIPN3 E-Plane Radiation Pattern WS-AO-5DIPN3 This 5 GHz Dipole antenna is packaged three antennas to a package (3-pack). Specifications Table 33: WS-AO-5DIPN3 Specifications Specification Value Frequency Range 0–6 GHz Working Voltage. </- 1000 Vrms V.S.W.R </- 1.5 Dielectric Withstanding </- 2500 Vrms Voltage Insulation Resistance...
  • Page 92 Antenna Specifications Radiation Patterns Figure 87: WS-AO-5DIPN3 2D Radiation Pattern ExtremeWireless™ External Antenna with Wave 2...
  • Page 93: External Antennas For Use With Indoor Aps

    Antenna Specifications Figure 88: WS-AO-5DIPN3 5150 MHz 3D Radiation Pattern External Antennas for Use with Indoor APs The following antennas are intended for use with indoor APs only: Table 34: Indoor Antennas Antenna Part Number Supported APs 30702 (WS-AI-DQ05120) AP3935e 30703 (WS-AI-5Q04060) AP3935e 30704 (WS-AI-2Q05060)
  • Page 94 Antenna Specifications Table 34: Indoor Antennas (continued) Antenna Part Number Supported APs WS-AI-DQ04360 AP3935e, AP3805e WS-AI-DT05120 AP3825e WS-AI-DT04360 AP3805e WS-AI-DX02360 AP3825e WS-AI-DX07025 AP3825e WS-AI-DX10055 AP3825e WS-ANT-2DIP-2 AP3805e WS-ANT-5DIP-2 AP3805e WS-ANT-2DIP3 AP3825e WS-ANT-5DIP3 AP3825e 30702 (WS-AI-DQ05120) This dual-band, 4-port sector antenna can be used for 802.11ac MIMO applications. The antenna covers both 2.4-2.5 GHz and 5.1-5.9 GHz in one randome.
  • Page 95 Antenna Specifications Figure 89: Indoor Antenna 30702 (WS-AI-DQ05120) With Mounting Bracket Specifications Table 35: 30702 (WS-AI-DQ05120) Specifications Value Specification 2.4 GHz 5GHz Frequency 2.4-2.5 GHz 5.1-5.9 GHz Gain 5-5.5 dBi 4.5-5.5 dBi Vertical Beamwidth 90° 65° Horizontal Beamwidth 100° 80° VSWR 1.5-2.0 Operating Temperature Range...
  • Page 96 Antenna Specifications Table 35: 30702 (WS-AI-DQ05120) Specifications (continued) Value Specification 2.4 GHz 5GHz Dimensions 200 x 200 x 34 mm Nominal Impedance 50 ohms Radiation Patterns Figure 90: 2.4 GHz Horizontal Pattern Figure 91: 2.4 GHz Vertical Pattern ExtremeWireless™ External Antenna with Wave 2...
  • Page 97 Antenna Specifications Figure 92: 5GHz Horizontal Pattern Figure 93: 5GHz Vertical Pattern 30703 (WS-AI-5Q04060) This 4-port sector antenna can be used for 802.11ac MIMO applications. The randome is constructed from lightweight, durable, UV stable plastic. The four ports can be used individually or in combination for use with 802.11 legacy access points.
  • Page 98 Antenna Specifications Figure 94: Indoor Antenna 30703 (WS-AI-5Q04060) With Bracket Specifications Table 36: 30703 (WS-AI-5Q04060) Specifications Specification Value Frequency 5.15-5.85 GHz Gain 3-4 dBi Vertical Beamwidth 33° Horizontal Beamwidth 50° VSWR 1.5-2.0 Operating Temperature Range -40°C to +70°C Polarization Dual-slant linear +-45° Weight .45kg Mounting Style...
  • Page 99 Antenna Specifications Radiation Patterns Figure 95: 30703 5GHz Horizontal Pattern ExtremeWireless™ External Antenna with Wave 2...
  • Page 100 Antenna Specifications Figure 96: 30703 5GHz Vertical Pattern 30704 (WS-AI-2Q05060) This 4-port sector antenna can be used for 802.11ac MIMO applications. The randome is constructed from lightweight, durable, UV stable plastic. The four ports can be used individually or in combination for use with 802.11 legacy access points.
  • Page 101 Antenna Specifications Figure 97: Indoor Antenna 30704 (WS-AI-2Q05060) Specifications Table 37: 30704 (WS-AI-2Q05060) Specifications Specification Value Frequency 2.4-2.5 GHz Gain 4-5 dBi VSWR 2.0 Max (1.5 Typ) Vertical Beamwidth 34° Horizontal Beamwidth 73° Operating Temperature Range -40°C to +70°C Polarization Dual-slant, linear +-45°...
  • Page 102 Antenna Specifications Radiation Patterns Figure 98: 2.4 GHz Horizontal Pattern Figure 99: 2.4 GHz Vertical Pattern 30705 (WS-AI-DE07025) This dual-band 8-port sector antenna can be used for 802.11ac MIMO applications. The antenna covers both 2.4-2.5 GHz and 5.1-5.9 GHz in one radome. The eight ports can be used individually or in combination for use with legacy 802.11 access points.
  • Page 103 Antenna Specifications Figure 100: Indoor Antenna 30705 (WS-AI-DE07025) Specifications Table 38: 30705 (WS-AI-DE07025) Specifications Value Specification 2.4 GHz 5GHz Frequency 2.4-2.5 GHz 5.1-5.9 GHz Gain 6.5-7.5 dBi 5.5-6.5 dBi Vertical Beamwidth 43° 37° Horizontal Beamwidth 31° 29° VSWR < 2.25:1 Operating Temperature Range -30°C to +80°C Polarization...
  • Page 104 Antenna Specifications Radiation Patterns Figure 101: 2.4GHz Horizontal Pattern Figure 102: 2.4GHz Vertical Pattern ExtremeWireless™ External Antenna with Wave 2...
  • Page 105 Antenna Specifications Figure 103: 5GHz Horizontal Pattern Figure 104: 5GHz Vertical Pattern 30706 (WS-AI-5Q05025) The four port sector antennas can be used for 802.11ac MIMO applications that operate in the 5.1-5.9 GHz frequency range. The four elements can be used individually or in combination for use with legacy 802.11 access points.
  • Page 106 Antenna Specifications Figure 105: Indoor Antenna 30706 (WS-AI-5Q05025) Specifications Table 39: 30706 (WS-AI-5Q05025) Specifications Specification Value Frequency 5.1-5.9 GHz Gain 3.5 - 4.5 dBi Vertical Beamwidth 40° Horizontal Beamwidth 30° VSWR < 2.0:1 Operating Temperature Range -30°C to +80°C Polarization Dual linear Weight 1.36 kg...
  • Page 107 Antenna Specifications Radiation Patterns Figure 106: 5 GHz Horizontal Pattern Figure 107: 5GHz Vertical Pattern 30707 (WS-AI-DE10055) This dual-band 8-port sector antenna can be used for 802.11ac MIMO applications. The antenna covers both 2.4-2.5 GHz and 5.1-5.9 GHz in one randome. The randome is constructed from lightweight, durable, UV stable plastic.
  • Page 108 Antenna Specifications Figure 108: Indoor Antenna 30707 (WS-AI-DE10055) Specifications Table 40: 30707 (WS-AI-DE10055) Specifications Value Specification 2.4 GHz 5GHz Frequency 2.4-2.5 GHz 5.1-5.9 GHz Gain 10-10.5 dBi 6-7.5 dBi Vertical Beamwidth 44° 43° Horizontal Beamwidth 51° 53° VSWR < 2.25:1 Operating Temperature Range -30°C to +80°C Polarization...
  • Page 109 Antenna Specifications Radiation Patterns Figure 109: 2.4 GHz Horizontal Pattern Figure 110: 2.4 GHz Vertical Pattern ExtremeWireless™ External Antenna with Wave 2...
  • Page 110 Antenna Specifications Figure 111: 5GHz Horizontal Pattern Figure 112: 5GHz Vertical Pattern 30709 (WS-ANT-2DIP-4) This 2.4 GHz Dipole antenna is provided in a 4-pack of antennas supporting the AP3935 indoor access point. For more information, see WS-ANT-2DIP-2 on page 130. ExtremeWireless™...
  • Page 111 Antenna Specifications 30710 (WS-ANT-5DIP-4) This 5 GHz Dipole antenna is provided in a 4-pack of antennas supporting the AP3935 indoor access point. For more information, see WS-ANT-5DIP-2 on page 134. WS-AI-DD05120 This dual-band, two-element sector antenna can be used for 802.11n MIMO applications. The antenna covers both 2.4-2.5 GHz and 4.9-5.875 GHz in one radome.
  • Page 112 Antenna Specifications Table 41: WS-AI-DD05120 Specifications (continued) Value Specification 2.4 GHz 5GHz Mounting Style Wall mount Power 20 watts Dimensions 200 mm x 200 x 32mm Nominal Impedance 50 ohms Radiation Patterns Figure 114: WS-AI-DD05120 2.4 GHz E-Plane Figure 115: WS-AI-DD05120 2.4 GHz H-Plane ExtremeWireless™...
  • Page 113 Antenna Specifications Figure 116: WS-AI-DD05120 5GHz E-Plane Figure 117: WS-AI-DD05120 5 GHz H-Plane WS-AI-DQ04360 This dual-band 802.11n MIMO antenna provides 4-port diversity coverage of 2.4-2.5 GHz Wifi and 4.9-5.9 GHz broadband wireless frequencies. It is designed for indoor installations. ExtremeWireless™ External Antenna with Wave 2...
  • Page 114 Antenna Specifications Figure 118: Indoor Antenna WS-AI-DQ04360 ExtremeWireless™ External Antenna with Wave 2...
  • Page 115 Antenna Specifications Specifications Table 42: WS-AI-DQ04360 Specifications Value Specification 2.4 GHz 5GHz Frequency 2.4-2.5 GHz 4.9-5.9 GHz Gain 4 dBi 7 dBi Vertical Beamwidth 45° 30° Horizontal Beamwidth 60° 50° VSWR < 2.0:1 Operating Temperature Range -40°C to +80°C Polarization Linear, vertical Weight Mounting Style...
  • Page 116 Antenna Specifications Radiation Patterns Figure 119: WS-AI-DQ04360 2.4GHz ExtremeWireless™ External Antenna with Wave 2...
  • Page 117 Antenna Specifications Figure 120: WS-AI-DQ04360 5GHz WS-AI-DT05120 This dual-band 3-element sector antenna can be used for 802.11n MIMO applications. The antenna covers both 2.4-2.5 GHz and 4.9-5.9 GHz in one randome. This antenna can be used with a single access point to provide full dual-band 802.11a/g/b/n MIMO coverage.
  • Page 118 Antenna Specifications Figure 121: Indoor Antenna WS-AI-DT05120 Specifications Table 43: WS-AI-DT05120 Specifications Specification Value Antenna Type MIMO; Sector; Dual-band Frequency 2.3–2.7 GHz and 4.9–6.1 GHz Gain 5 dBi x 3 Typical VSWR 2:1 (typ. 1.5:1) Polarization Vertical and Dual Slant H-Plane Beamwidth 120°...
  • Page 119 Antenna Specifications Radiation Patterns Figure 122: WS-AI-DT05120 2.5 GHz E-Plane Radiation Pattern ExtremeWireless™ External Antenna with Wave 2...
  • Page 120 Antenna Specifications Figure 123: WS-AI-DT05120 2.5 GHz H-Plan Radiation Pattern ExtremeWireless™ External Antenna with Wave 2...
  • Page 121 Antenna Specifications Figure 124: WS-AI-DT05120 5.5 GHz E-Plane Radiation Pattern ExtremeWireless™ External Antenna with Wave 2...
  • Page 122 Antenna Specifications Figure 125: WS-AI-DT05120 5.5 GHz H-Plane Radiation Pattern WS-AI-DT04360 This is a ceiling mounted 2.4 and 5 GHz omnidirectional antenna. It has three connectors and is especially designed for MIMO APs. For more information, see Mounting Antenna Model WS-AI- DT04360.
  • Page 123 Antenna Specifications Table 44: WS-AI-DT04360 Specifications (continued) Specification Value VSWR 2.0:1 Polarization Linear Elevation Beamwidth 60° Azimuth Beamwidth Omnidirectional Mounting Style Ceiling grid/Suspension tile Power 2 watts Dimensions 12.1 in x 8.6 in x 3.6 in (308 mm x 22 m x 92 mm) Radiation Patterns Figure 126: WS-AI-DT04360 2.5 GHz E-Plane Radiation Pattern Figure 127: WS-AI-DT04360 2.5 GHz H-Plane Radiation Pattern...
  • Page 124 Antenna Specifications Figure 128: WS-AI-DT04360 5.47 GHz E-Plane Radiation Pattern Figure 129: WS-AI-DT04360 5.47 GHz H-Plane Radiation Pattern WS-AI-DX02360 This is a dual-band six port omni-directional MIMO antenna. Three ports are designed to operate at 2.4 GHz and three ports are designed to operate at 5 GHz. Each of the MIMO antenna R-SMA ports can be connected to an access point by means of a coax pigtail.
  • Page 125 Antenna Specifications Table 45: WS-AI-DX02360 Specifications (continued) Specification Value Gain @ 45° from horizon 2 dBi VSWR Polarization Linear, 6 Vertical H-Plane (3dB Beamwidth) Omnidirectional E-Plane (3dB Beamwidth) 75° @ 2.4–2.5 GHz/42° @ 5.15–5.85 GHz Operating Temperature -xx°C to +xx°C (-xx°F to +xxx°F) Weight 1.5 lb (0.7 kg) Dimensions...
  • Page 126 Antenna Specifications Figure 130: WS-AI-DX02360 2.4 MHz Radiation Pattern ExtremeWireless™ External Antenna with Wave 2...
  • Page 127 Antenna Specifications Figure 131: WS-AI-DX02360 5.15 MHz Radiation Pattern WS-AI-DX07025 This is a dual-band, six port (three for each band) MIMO antenna providing spatial diversity coverage of 2.4–2.5 GHz WiFi and 5.1–5.9 GHz WiFi WiMAX broadband wireless frequencies in a low profile housing. The antennas provide optimal coverage for areas or events with a large number of mobile data users.
  • Page 128 Antenna Specifications Specifications Table 46: WS-AI-DX07025 Specifications Specification Value Frequency 2.4–2.5 GHz and 5.1–5.9 GHz Gain 6.5 dBi / 5.5 dBi VSWR 1.7 typical, 2.0 maximum Vertical Beamwidth 48/ 40 Horizontal Beamwidth 27/ 30 Operating Temperature Range -40C to +85C Polarization Dual Linear (2 x V / 1 X H) for each band Weight...
  • Page 129 Antenna Specifications Figure 133: WS-AI-DX07025 2.4 GHz H-Plane Radiation Pattern Figure 134: WS-AI-DX07025 5 GHz E-Plane Radiation Pattern ExtremeWireless™ External Antenna with Wave 2...
  • Page 130 Antenna Specifications Figure 135: WS-AI-DX07025 5 GHz H-Plane Radiation Pattern WS-AI-DX10055 This dual-band MIMO antenna provides spatial diversity coverage of 2.4 GHz and 5 GHz WiFi. • This antenna is for indoor use. • This antenna uses a Reverse Polarity SMA Plug Connector on a 39 inch cable. For more information, see WS-AO-DX10055N on page 86.
  • Page 131 Antenna Specifications Figure 136: Indoor Antenna WS-ANT-2DIP-2 Specifications Table 47: WS-ANT-2DIP-2 Specifications Specification Value Frequency Range 0–6 GHz Working Voltage </- 170 Vrms V.S.W.R. </- 1.5 ExtremeWireless™ External Antenna with Wave 2...
  • Page 132 Antenna Specifications Table 47: WS-ANT-2DIP-2 Specifications (continued) Specification Value Dielectric Withstanding </- 500 Vrms Voltage Insulation Resistance >/- 2000 Megohms Operating Temperature Range -65°C to +165°C Recommended coupling nut torque 4.0 in-lb–8.8 in-lb Coupling nut retention force >/- 60 lb Contact Proof Torque 15 in-lb min.
  • Page 133 Antenna Specifications Figure 138: 3D Radiation Pattern 2.45GHz ExtremeWireless™ External Antenna with Wave 2...
  • Page 134 Antenna Specifications Figure 139: 3D Radiation Pattern 2.5GHz WS-ANT-5DIP-2 This two-pack, 5GHz antenna assembly is used for indoor installations to support the AP3805e. This antenna is packaged in a 3-pack under product number WS-ANT-5DIP-3, and packaged in a 4-pack under product number 30710 (WS-ANT-5DIP-4). Refer to the information provided here for all these antennas.
  • Page 135 Antenna Specifications Figure 140: Indoor Antenna WS-ANT-5DIP-2 Specifications Table 48: WS-ANT-5DIP-2 Specifications Specification Value Frequency Range 0–6 GHz Working Voltage </- 170 Vrms V.S.W.R. </- 1.5 ExtremeWireless™ External Antenna with Wave 2...
  • Page 136 Antenna Specifications Table 48: WS-ANT-5DIP-2 Specifications (continued) Specification Value Dielectric Withstanding </- 500 Vrms Voltage Insulation Resistance >/- 2000 Megohms Operating Temperature Range -65°C to +165°C Recommended coupling nut torque 4.0 in-lb–8.8 in-lb Coupling nut retention force >/- 60 lb Contact Proof Torque 15 in-lb min.
  • Page 137 Antenna Specifications Radiation Patterns Figure 141: 3D Radiation Pattern 5150 MHz ExtremeWireless™ External Antenna with Wave 2...
  • Page 138 Antenna Specifications Figure 142: 3D Radiation Pattern 5550 MHz ExtremeWireless™ External Antenna with Wave 2...
  • Page 139 Antenna Specifications Figure 143: 3D Radiation Pattern 5850 MHz WS-ANT-2DIP-3 This 2.4 GHz Dipole antenna is provided in a 3-pack of antennas. For more information, see ANT-2DIP-2 on page 130. For mounting instructions, see Mounting Antenna Model WS-ANT-2DIP-3 page 32. WS-ANT-5DIP-3 This 5 GHz Dipole antenna is provided in a 3-pack of antennas.
  • Page 140: Chapter 5: Accessory Specifications

    Accessory Specifications Low-Loss Antenna Cables Terminator: WS-CAB-RPSMATERM Terminator: WS-CAB-NTERM Attenuators Extension Bracket: 30515 (WS-MB-WALLEXT01) This section lists the specifications for cables, terminators, attenuators, and extension brackets. Low-Loss Antenna Cables This section outlines the outdoor and indoor optional antenna cables available for use with the antennas.
  • Page 141: Cable Specifications

    Accessory Specifications Table 49: Outdoor Antenna Cables with Standard N-Type Plug and Jack Connectors (continued) Cable Refer To 75 feet (22 meters) PFP400 cable (WS-CAB- Table 52 on page 142 L400C75N) 25 feet (7.6 meters) PFP600 cable (WS-CAB- Table 53 on page 143 L600C25N) 50 feet (15.24 meters) PFP600 cable (WS-CAB-...
  • Page 142 Accessory Specifications Table 51: WS-CAB-L200C20xx/WS-CAB240xx Cable Specifications (continued) Specification Value Velocity of Propagation Shielding Effectiveness Greater than 90 dBi DC Resistance Inner Conductor: 5.36 ohms/1000ft (17.6 ohms/km) Outer Conductor: 4.9 ohms/1000ft (16.1 ohms/km) Peak Power 2.5 kW Connector Type Outdoor antennas support optional cables with Standard Polarity Type-N Plug and Type-N Jack.
  • Page 143 Accessory Specifications Table 52: WS-CAB-L400Cxx Cable Specifications (continued) Specification Value Connector Type Outdoor antennas support optional cables with Standard Polarity Type-N Plug and Type-N Jack. For example, these cables are used with antennas that support the AP3965e and AP3865e. Cable Loss 50 feet: 2.4 GHz: 3.3 dB 5.3 GHz: 5.2 dB...
  • Page 144: Terminator: Ws-Cab-Rpsmaterm

    Power Rating 1 watt Terminator: WS-CAB-NTERM This Terminator is intended to be used with Extreme Networks Wireless Products. This Terminator is a 0-6 GHz, 50 Ohm, Type-N Terminator with a 1 Watt power rating. ExtremeWireless™ External Antenna with Wave 2...
  • Page 145: Attenuators

    Accessory Specifications Figure 145: WS-CAB-NTERM Table 55: Terminator Specifications Specification Value Shell and Body material Brass Connector Type Standard Type-N Frequency Range 0–6.0 GHz Impedance 50 ohms (nominal) VSWR 1.5: 1 max Power Rating 1 watt Attenuators Optional attenuators are available. There is a 6dB attenuator and a 10dB attenuator available with different connector types: Reverse Polarity SMA Plug-Female contact/Reverse Polarity SMA Jack-Male contact and a Type-N plug-Female/Jack-Male contact.
  • Page 146 Accessory Specifications Optional Attenuators: • WS-CAB-06DBATN with Reverse Polarity SMA Plug/Jack, Female/Male contacts • WS-CAB-10DBATN with Reverse Polarity SMA Plug/Jack, Female/Male contacts • WS-CAB-06DBATN-SN with Type-N plug-Female/Jack-Male contacts • WS-CAB-10DBATN-SN with Type-N plug-Female/Jack-Male contacts Figure 146: Attenuator Detail View Showing a Reverse Polarity SMA Plug and Jack Figure 147: Attenuator Detail View Showing a Standard N-Type Plug and Jack Table 56: Attenuator Specifications Value...
  • Page 147: Extension Bracket: 30515 (Ws-Mb-Wallext01)

    Accessory Specifications Table 56: Attenuator Specifications (continued) Value Specification WS-CAB-06DBATN, WS- WS-CAB-6DBATN-SN, WS- CAB-10DBATN CAB-10DBATN-SN Electrical Frequency Range Hz-6.000 GHz Impedance 50 ohms (nominal) VSWR 1.20:1 Max Hz-6.01.25:1 Power Rating Average 2 watts (5 uSec Pulse, 0.05% duty cycle) Peak 250 watts Attenuation Value...

Table of Contents
