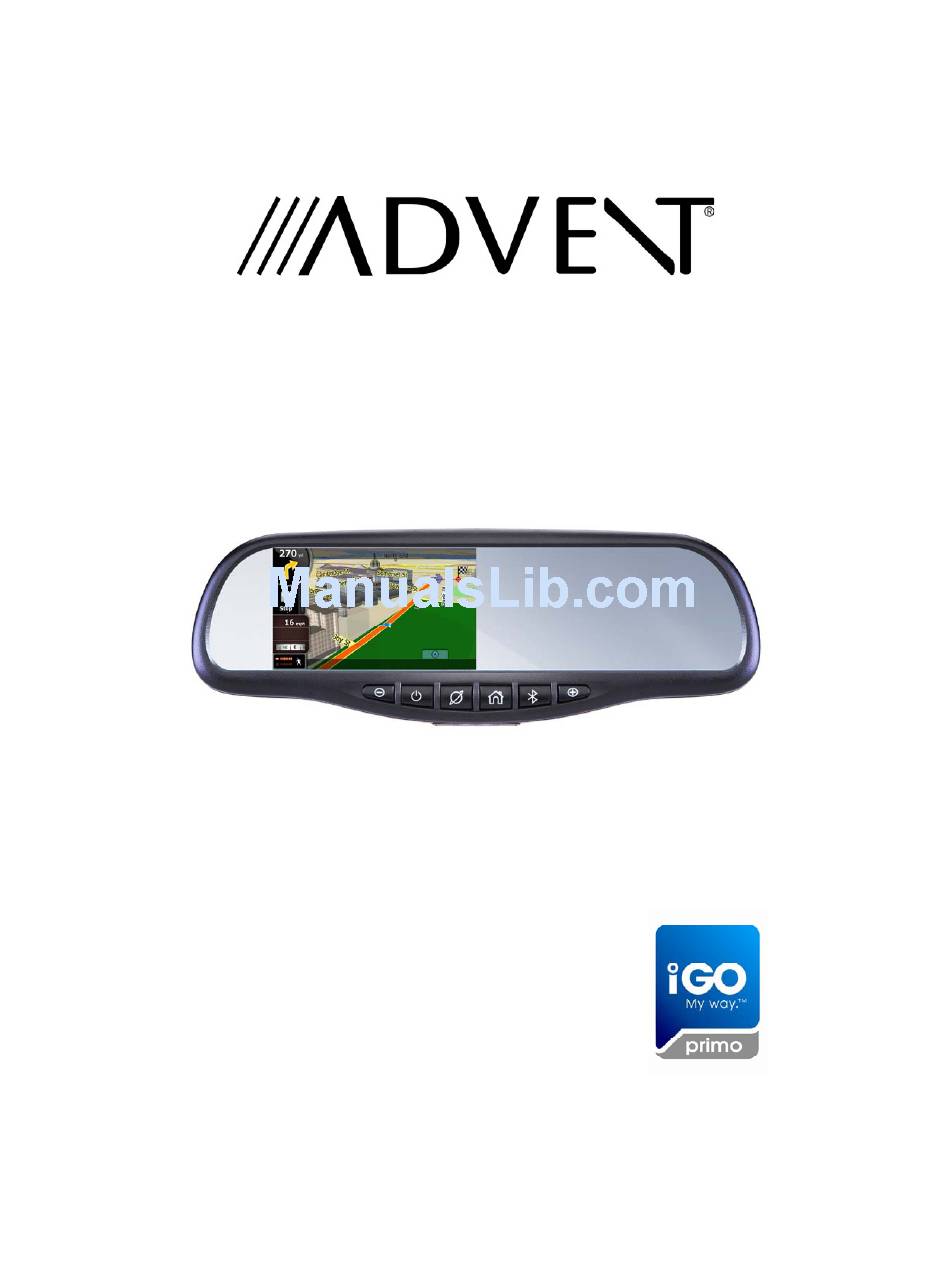

Rearview Mirror with Built-In Navigation and Touch Screen Controls
•
Built-in iGo Primo™ navigation with 19 on-screen display languages
•
US and Canada maps with 11 million POIs
•
Text-to-Speech recorded voice guidance in English, French and
and Spanish
•
Built-in Bluetooth® with Phone Book
•
Internal Microphone, Speakers and GPS Antenna
•
4.3" LED backlit digital monitor with touch screen
•
Screen not visible with camera and navigation turned off
•
Includes universal GM/Ford/Chrysler mounts
•
Additional mounts available separately
NM100
Advertisement
Related Manuals for Advent NM100
Summary of Contents for Advent NM100
- Page 1 NM100 Rearview Mirror with Built-In Navigation and Touch Screen Controls • Built-in iGo Primo™ navigation with 19 on-screen display languages • US and Canada maps with 11 million POIs • Text-to-Speech recorded voice guidance in English, French and and Spanish •...
- Page 2 Introduction Controls Icon Description Volume down Monitor Power on/off Navigation / Safety mode (see instructions) Home Menu Enter or Exit Bluetooth interface Volume up Reset System Button Screen Displays the map and Backup camera if Equipped 1. Volume Down: This adjusts the speaker volume for Navigation instructions as well as Bluetooth calls.
- Page 3 Phone or Pair another device over the current device. You can Pair up to 5 Phones in the memory of the NM100, but you can only use one at a time. The Most recently paired phone will take priority.
- Page 4 5. If searching from your phone Select ‘Advent NM100’ on your phone, and it will ask you to enter the pairing code used by the mirror unit. (The default code is 1234) Once the code is entered, your phone should indicate the pairing process is successful.
- Page 5 8. If you’re still having difficulties pairing please refer to your phones owner’s manual or call your cell service providers technical support number. Making Calls Using Bluetooth You can initiate calls four ways: 1. Use your handset to initiate a call. Your phone will automatically use the microphone and playback capability of the mirror unit.
- Page 6 Press (locate on the mirror control buttons) to control the volume. Touch to switch the voice between the mirror and mobile phone. Touch to input numbers or dial extension number. Touch to end the call. Viewing or Changing the Pairing Code 1.
- Page 7 3.3 Settings Touch icon at the main menu to enter setting interface. Volume Touch “ ” to enter the volume setting interface. You can select to set the volume. “Tap Sound” Selected will activate a confirmation tone each time you touch the screen. If not selected there will be no confirmation tone.
- Page 8 Click to adjust lightness Language Touch “ ” to enter the language setting interface. Choose the language you want, and then touch to save the language setting. System Touch “ ” to enter the system information interface.
- Page 9 GPS test will identify how many satellites are being received. Note the antenna is located in the mirror housing. Do not place any object over the mirror housing or on the windshield above the mirror or this will block the signal. This will reset the mirror to all factory settings.
- Page 10 ② When you switch to Park, neutral, or forward gear, the camera will shut off and the mirror will return to normal operation. 4. Maintaining Your NM100 1, Use a soft, dry cloth to wipe away dirt. 2. If the dirt cannot be wiped away, dampen the cloth with water to clean the unit.
- Page 12 2012 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y . 11788...
