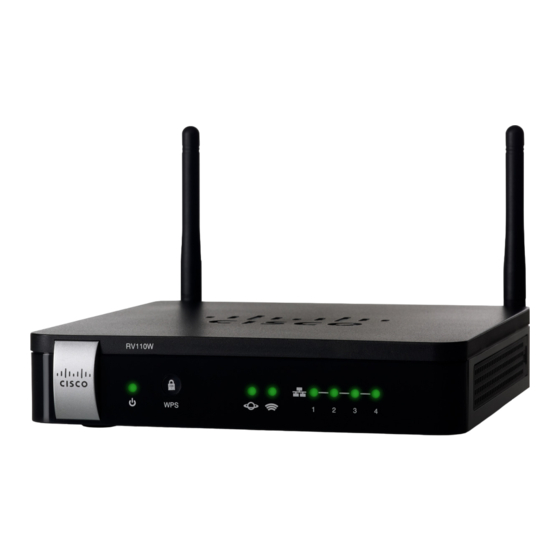

Cisco RV110W Wireless-N VPN Firewall
Package Contents
• Wireless-N VPN Firewall
• Ethernet Cable
• Power Adapter
• Quick Start Guide
• Documentation and software on CD-ROM
Quick Start Guide

Advertisement

Table of Contents
loading

Related Manuals for Cisco RV110W

Summary of Contents for Cisco RV110W

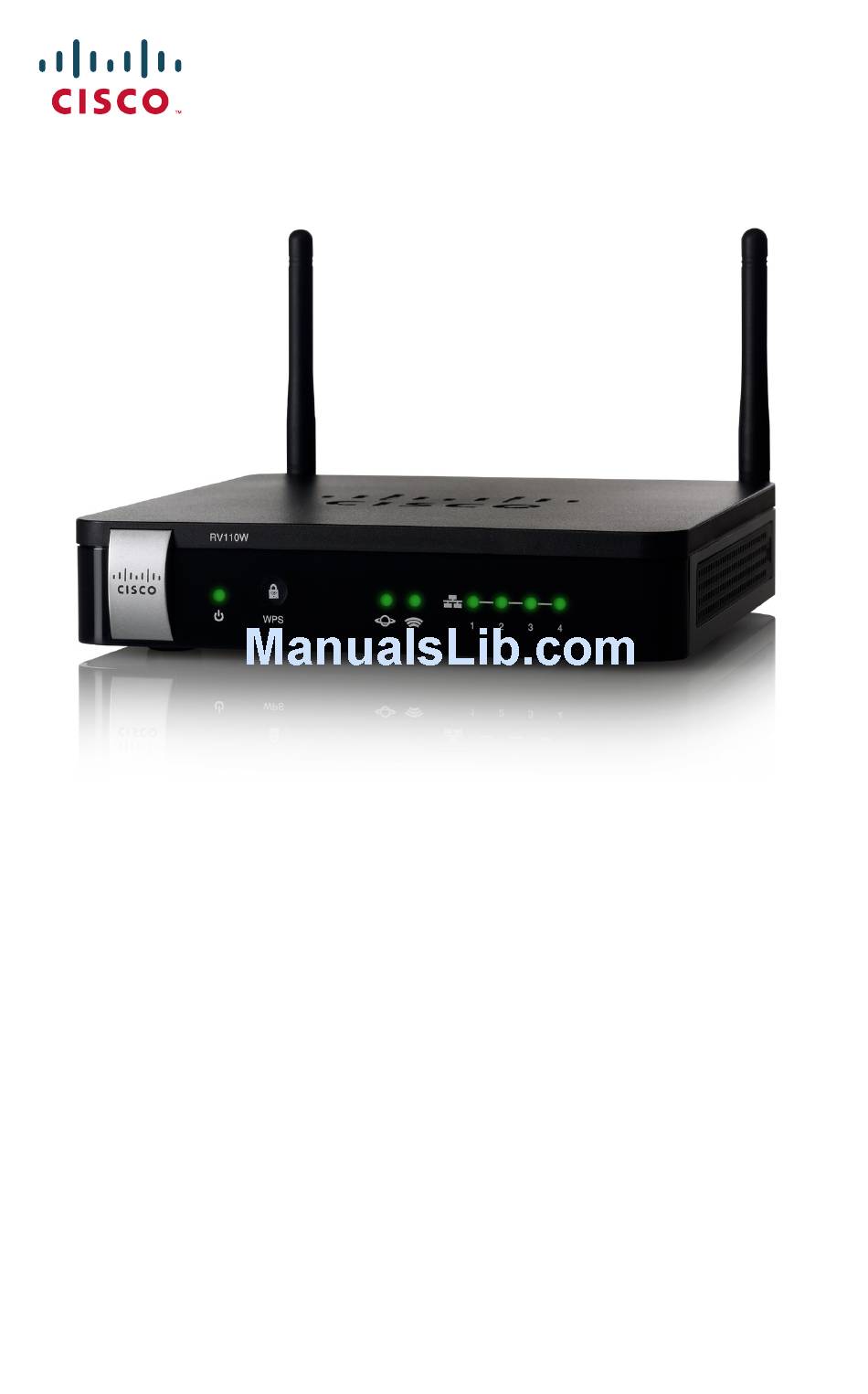

  • Page 1 Quick Start Guide Cisco RV110W Wireless-N VPN Firewall Package Contents • Wireless-N VPN Firewall • Ethernet Cable • Power Adapter • Quick Start Guide • Documentation and software on CD-ROM...

  • Page 2: Installing Cisco Rv110W

    Do not place anything on top of the firewall, as excessive weight might damage it. Place the Cisco RV110W unit horizontally on a flat surface so that it sits on its four rubber feet.

  • Page 3: Back Panel

    Back Panel RESET Button—The RESET button has two functions: • If the Cisco RV110W is having problems connecting to the Internet, press the RESET button for at least 3 but no more than 10 seconds with a paper clip or a pencil tip. This is similar to pressing the reset button on your PC to reboot it.

  • Page 4: Connecting The Equipment

    • If you are experiencing extreme problems with the Cisco RV110W and have tried all other troubleshooting measures, press and hold in the RESET button for more than 10 seconds. This reboots the unit and restores the factory defaults. Changes you have made to the Cisco RV110W settings are lost.
  • Page 5 Setup Wizard and Device Manager. Power on the cable or DSL modem and wait until the connection is active. Connect the power adapter to the Cisco RV110W POWER port. Cisco RV110W Wireless-N VPN Firewall...

  • Page 6: Using The Setup Wizard

    Plug the other end of the adapter into an electrical outlet. You may need to use a specific plug (supplied) for your country. On the Cisco RV110W, push the POWER button in to turn on the firewall. The power light on the front panel is green when the power adapter is connected properly and the unit is turned on.

  • Page 7: Changing The Administrator User Name And Password

    Start a web browser on your PC. In the Address bar, enter the default IP address of the firewall: 192.168.1.1. A message appears about the site’s security certificate. The Cisco RV110W uses a self- signed security certificate and this message appears because the firewall is not known to your PC.

  • Page 8: Connecting To Your Wireless Network

    Cisco RV110W. Choose the type of encryption and enter the security key that you chose when setting up the Cisco RV110W. If you did not enable security (not recommended), leave these fields blank. Verify your wireless connection and save your settings.

  • Page 9: Where To Go From Here

    Resources Phone Support Contacts www.cisco.com/en/US/support/ tsd_cisco_small_business _support_center_contacts.html Cisco Firmware www.cisco.com/go/smallbizfirmware Downloads Select a link to download firmware for Cisco products. No login is required. Cisco Open Source www.cisco.com/go/ Requests smallbiz_opensource_request Cisco Partner Central www.cisco.com/web/partners/sell/smb (Partner Login Required) Product Documentation Cisco RV110W www.cisco.com/go/rv110w...
  • Page 10 Cisco RV110W Wireless-N VPN Firewall...
  • Page 11 Cisco RV110W Wireless-N VPN Firewall...
  • Page 12 Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners.
