Sony VAIO PCV-E314DS Service Manual

Hide thumbs Also See for VAIO PCV-E314DS:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual, User Manual
PCV-E314DS
SERVICE MANUAL
US Model
REVISED
Specifications
PERSONAL COMPUTER VAIO
9-928-304-12

Advertisement

Table of Contents
loading

Related Manuals for Sony VAIO PCV-E314DS

Summary of Contents for Sony VAIO PCV-E314DS

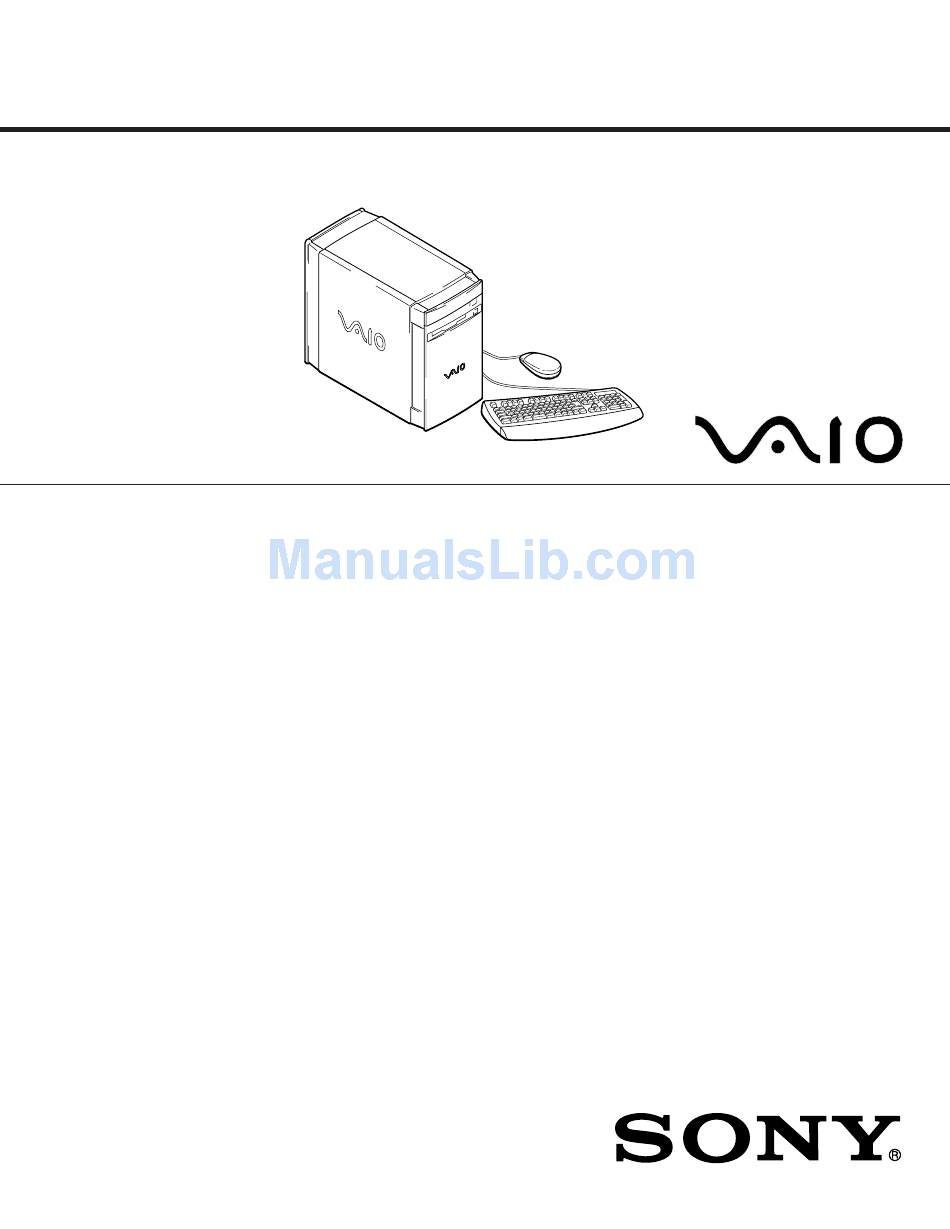

  • Page 1 PCV-E314DS SERVICE MANUAL US Model REVISED Specifications PERSONAL COMPUTER VAIO 9-928-304-12...
  • Page 2 – 2 – PCV-E314DS...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS OPERATION ..............1-1 DISASSEMBLY 2-1. Flow Chart ................ 2-1 2-2. Side Cover (L) ..............2-2 2-3. Escutcheon (DVD) ............2-2 2-4. Front Panel Ass’y (H) ............2-3 2-5. Top Cover ................. 2-3 2-6. FDD Bracket and FDD ............ 2-4 2-7.

  • Page 4: Operation

    SECTION 1 Reproduced from User Guide [4-641-377-01] OPERATION PCV-E314DS...

  • Page 5: Disassembly

    SECTION 2 DISASSEMBLY 2-1. FLOW CHART SIDE FRONT PANEL HEAT SINK COVER (L) BRACKET ASS’Y (H) P2-2 P2-3 P2-4 P2-4 P2-10 P2-10 ESCUTCHEON MEMORY BRACKET (DVD) P2-4 P2-4 P2-11 ESCUTCHEON HOLDER P2-2 PS BRACKET POWER MAIN ASS’Y SUPPLY BOARD P2-5 P2-5 P2-12 DVD-ROM...

  • Page 6: Side Cover (L)

    2-2. SIDE COVER (L) 1 two ornamental screws 2 three claws 3 Remove the side cover (L) to direction of the arrow A . 2 three claws 2-3. ESCUTCHEON (DVD) AND ESCUTCHEON HOLDER 6 three claws 5 claw 7 Remove the escutcheon holder to direction of...

  • Page 7: Front Panel Ass'y (H)

    2-4. FRONT PANEL ASS’Y (H) 2 front panel ass’y 1 Remove two claws long-nose screwdriver. by long-nose screw driver. claw 2-5. TOP COVER 1 claw 2 Remove the top cover to direction of the arrow A . PCV-E314DS...

  • Page 8: Fdd Bracket And Fdd

    2-6. FDD BRACKET AND FDD 2 power cable 4 FDD bracket 1 harness (FDD) 5 two screws (P3 × 5) 3 screw (P3 × 5) 6 FDD 3 screw (P3 × 5) 5 two screws (PWH3 × 5) 2-7. HDD BRACKET AND HDD •...

  • Page 9: Ps Bracket Ass'y And Power Supply

    2 three claws 2-8. PS BRACKET ASS’Y AND POWER SUPPLY 1 three screws 3 Remove the PS bracket ass’y to direction of the arrow A . 5 three screws (P3 × 5) 6 Remove the power supply 4 Disconnect respective power connectors on the to order of arrow B –...

  • Page 10: Wiring Route

    2-10. WIRING ROUTE harness (USB) cable clamp i.Link harness (1394) 2-11. IFX-57/Y ASS’Y 3 screws (P3 × 5) 2 harness (SPDIF) 4 IFX-57/Y ass’y 1 harness (SER2) PCV-E314DS...

  • Page 11: Ifx-61 Ass'y

    2-12. IFX-61 ASS’Y 3 screws (P3 × 5) 2 harness (1394) 4 IFX-61 ass’y 1 harness (power) 2-13. MODEM CARD 2 modem card [CPI] 1 screw (P3 × 5) 3 harness (MODEM) 1 screw (P3 × 5) 2 modem card (PCI/U) [GVC] PCV-E314DS...

  • Page 12: I/O Shield (For Slot)

    2-14. I/O SHIELD (FOR SLOT) 3 I/O shield (for slot) 1 screw (P3 × 5) 2 slot cover 2-15. SWITCH/LED ASS’Y 5 Switch/LED ass’y 3 LED holder shield 4 claw 2 screw (P3 × 5) 1 harness PCV-E314DS...

  • Page 13: Cnx-54 Ass'y

    2-16. CNX-54 ASS’Y 3 CNX-54 ass’y 2 two screws 2 harness (USB) 1 harness (1394) PCV-E314DS...

  • Page 14: Cpu And Heat Sink

    2-17. CPU AND HEAT SINK 4 Remove the heat sink to direction of the arrow A . 3 Remove two clips. 2 CPU 1 Remove two hooks. • HEAT SINK INSTALLATION 1 Mount with two clips of heat sink met. 2 Press two clips to fix the heat sink.

  • Page 15: Memory (Dimm)

    2-18. MEMORY (DIMM) 2 memory (DIMM) Note 1: In opening the clips, hold lightly the top of the memories with your fingers to prevent a drop. Note 2: In removing the memories, always start from the one having largest bank number. 1 Open two clips.

  • Page 16: Main Board

    2-19. MAIN BOARD 3 Remove the 1 harness main board (FDD) to direction of the arrow A . 2 three screws 1 harness (USB) 1 harness (SER2) 1 harness 1 harness (CD/DVD AUDIO) (SPDIF) 2 five screws 1 harness (IDE CD/DVD) 1 harness 1 harness 1 harness...

  • Page 17: Dr736 Motherboard Description

    SECTION 3 DR736 MOTHERBOARD DESCRIPTION PCV-E314DS...
  • Page 18 PCV-E314DS...
  • Page 19 3-3 [END] PCV-E314DS...

  • Page 20: Service Information

    SECTION 4 SERVICE INFORMATION 4-1. Jumper Setting on Hard Disk Drive The hard disk drive of service parts can be used without changing factory jumper setting, when it was replaced for service. Capacity Model Part No. Maker Code (formatted) PCV-E314DS 1-759-991-11 MAXTOR 90840D5...

  • Page 21: Jumper Setting Of Main Board

    4-2. Jumper Setting of Main Board The Main board of service parts can be used without changing factory jumper setting, when it was replaced for service. Configuration Jumper Settings Function Jumper JP1, 2, 3 Configuration JP1: 1-2, 5-6, 7-8 CPU speed: 300MHz JP1: 1-2, 5-6 CPU speed: 350MHz CPU FREQ...

  • Page 22: Frame Harness

    SECTION 5 FRAME HARNESS 5-1. Connector List PS/2 Keyboard/Mouse Connectors (J2) USB Connectors (J3) Signal Name Signal Name Data Power No connect USBP0# [USBP1#] Ground USBP0 [USBP1] +5 V (fused) Ground Clock Serial Port Connectors (J4) No Connect Signal Name CD IN Connector (J10) Signal Name Serial In #...
  • Page 23 Floppy Drive Connector (J28) Signal Name Signal Name Ground DENSEL Ground Reserved Ground FDEDIN Ground FDINDX# (Index) Ground FDM00# (Motor Enable A) Ground FDDS1# (Drive Select B) Ground FDDS0# (Drive Select A) Ground FDM01# (Motor Enable B) Ground FDDIR# (Stepper Motor Direction) Ground FDSTEP# (Step Pluse) Ground...
  • Page 24 Parallel Port Connector (J7) Signal Name Signal Name Strobe# Auto Feed# Data bit 0 Fault# Data bit 1 INIT# Data bit 2 SLCT IN# Data bit 3 Ground Data bit 4 Ground Data bit 5 Ground Data bit 6 Ground Data bit 7 Ground ACK#...
  • Page 25 PCI Bus Connector Signal Name Signal Name Signal Name Signal Name TRST#* –12 V AD16 AD17 +12 V TCK* +3.3 V C/BE2# TMS* Ground FRAME# Gruond TDI* no connect (TDO)* Ground IRDY# +5 V +5 V TRDY# +3.3 V INTA# +5 V Ground DEVSEL#...
  • Page 26 Power Supply Connector (J20) Signal Name Signal Name +3.3 V –12 V +3.3 V Ground Ground PS-ON# (power supply remote on/off control) +5 V Ground Ground Ground +5 V Ground Ground –5 V PWROK (Power Good) +5 V +5 VSB 1 +5 V +12 V 11 +3.3 V VGA Connector (J1)
  • Page 27 SPDIF (J23) Signal Name Signal Name N.C. N.C. NO-PIN (KEY) N.C. STDOUT N.C. RET (GND) There will be no-pin in position 8 & 10 on motherboard. Cable will have a key in position 10. USB2 (J8) Signal Name Signal Name USBV1 USBP1+ USBP1–...

  • Page 28: Frame Harness Diagram

    5-2. Frame Harness Diagram Harness (USB) Harness (SER2) Paddle Card DIGITAL OUTPUT Rear OPTICAL CN201 Rear Panel AC-3 IC301 CN301 J2-2 CONTROL A1 CN101 MOUSE J2-1 MAIN BOARD kEYBOARD 400MHz DR736 Paddle Card SLOT1 IDA Connector Pentium II PROCESSOR Processor Card MODEM Connector Harness (SPDIF)

  • Page 29: Repair Parts List

    SECTION 6 REPAIR PARTS LIST NOTE: Ref. • The parts listed here are for service, and therefore they may be different No. Part NO. Description Remark The components identified by from the parts shown in circuit diagrams or used in the set. mark ! or dotted line with mark 1 1-958-970-11 HARNESS (IDE HDD)

  • Page 30: Accessories And Parts List

    6-2. ACCESSORIES AND PARTS LIST Ref. No. Part NO. Description Remark ACCESSORIES & PACEKING MATEIRALS ********************************* 4-641-377-01 USER GUIDE POWER CORD (1) 4-641-378-01 READ ME FIRST 201 1-777-786-11 CORD, AC W203 1-759-760-11 p EZ KEY BOARD (USB) W204 1-759-290-11 MOUSE The components identified by mark ! or dotted line with mark ! are critical for safety.

  • Page 31: Barcord Label

    6-3. BARCORD LABEL : Part No. : Serial No. : Revision No. How to see barcode label : Maker Barcode 1 The shaded barcode label is used for repair data. C: Barcode [FDD] [HDD] A, B A, B [DVD-ROM] [POWER SUPPLY] A, B [KEY BOARD] [MAIN BOARD]...
  • Page 32 [MODEM CARD] [IFX-57/Y ASSY] A, B A, B [IFX-61 ASSY] A, B [DIMM] A, B 6-5 [END] PCV-E314DS...
  • Page 33 PCV-E314DS (US) English Sony Corporation 99Bxxx-1 Printed in USA Information Technology Company © 1999. 2 9-928-304-12 Published by VAIO Customer Link...
