Page 1: Instructions For Use

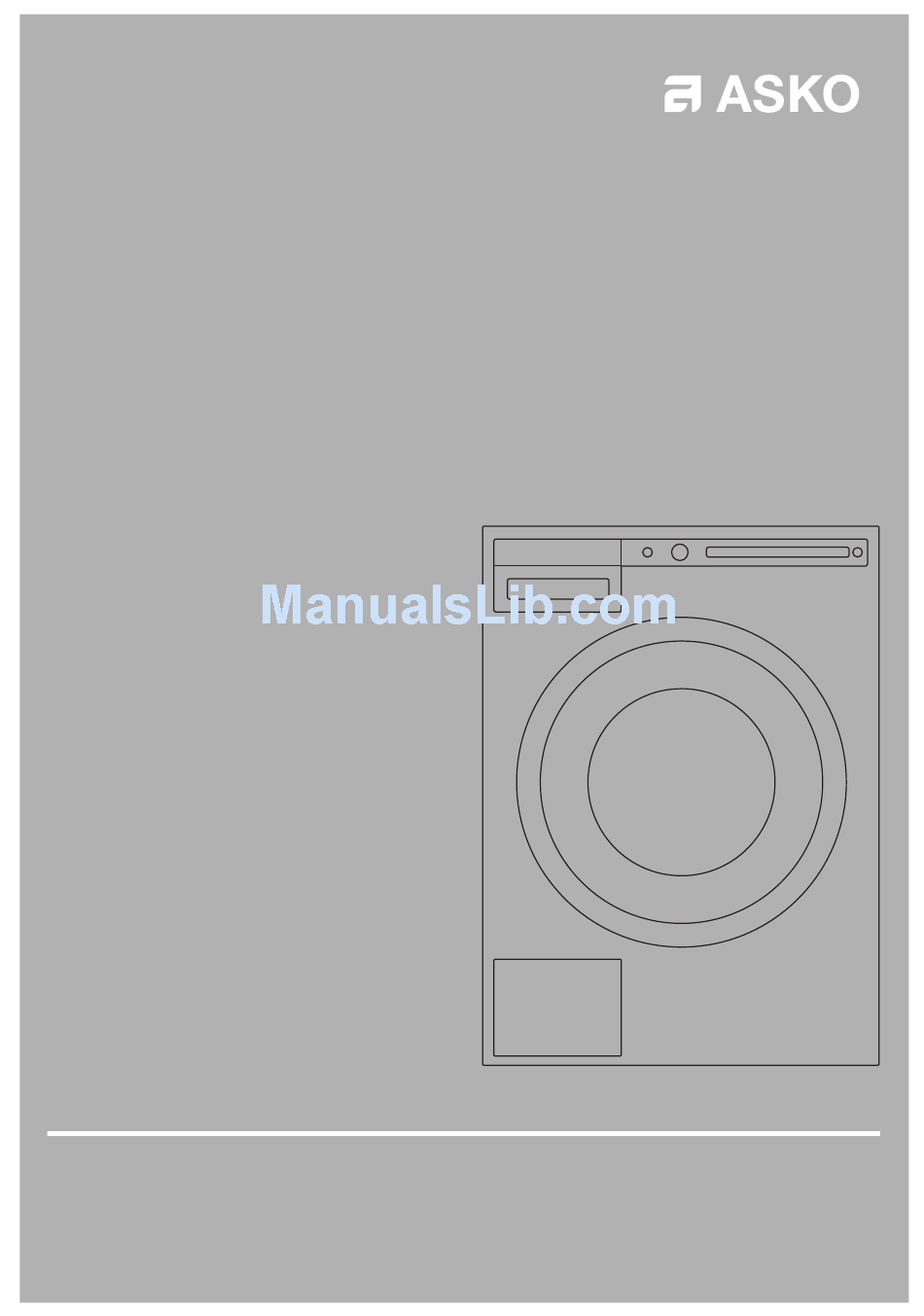

INSTRUCTIONS FOR USE Washing machine W4086C WM75.1 W4096P Carefully read the instructions for use before using the washing machine. -
Page 2: Table Of Contents
Dear Customer, We thank you for purchasing this quality ASKO product. We hope it meets all your expectations. Scandinavian design combines pure lines, everyday functionality, and high quality. These are the key characteristics of all our products, and the reason why they are highly appreciated across the globe. -
Page 3: Safety Precautions
Keep the instruction manual handy, near the washing machine. • Instructions for use are available on our website at www.asko.com. • Your washing machine is intended solely for household use. - Page 4 • Bleaches that contain chlorine can be replaced with oxygen-based bleaches. Otherwise, a neutralization cycle should be performed by running the Cotton program at the highest temperature. For best results, use hydrogen peroxide or oxygen-based detergents. • Do not use colourants (dyes) or bleaching substances (substances for discolouration or removal of colourants) as they contain sulphuric compounds that could cause corrosion.
- Page 5 hazards of inappropriate use. Make sure children do not play with the appliance. Make sure the children do not clean the washing machine or perform any maintenance tasks without supervision. DANGER OF HOT SURFACE • At higher washing temperatures, the door glass will heat up. Be careful to avoid burns.
-
Page 6: Washing Machine Description
WASHING MACHINE DESCRIPTION Main switch (ON/OFF) Program selector knob Display unit Program settings buttons Button (start/pause/stop) Dispenser tray Rating plate with information about the washing machine (on the inside of the washing machine door) QR and AUID code (on the inside of the washing machine door) Washing machine door 10. -
Page 7: Before Using The Appliance For The Fi Rst Time
BEFORE USING THE APPLIANCE FOR THE FIRST TIME PACKAGING Remove all packaging. Please sort the materials in compliance with local recommendations (see chapter ”DISPOSAL”). TRANSPORT PROTECTION Before using the appliance, remove the three transport bolts and plastic plugs which protect the appliance during transport. - Page 8 CLEANING Disconnect the washing machine from the power mains and open the door. Clean the washing machine drum with a damp cloth and a mild detergent. No program can be started while the door is open. SETTINGS BEFORE FIRST USE After connecting the washing machine and running it for the fi...
-
Page 9: Installation And Connection
To stack an ASKO dryer on top of a washing to stack it on top of the washing machine, or place it machine, use the extra vacuum feet and the tipping next to it. - Page 10 ADJUSTING THE FEET CONNECTING TO WATER SUPPLY Place the washing machine so that it is stable. 1. Level the washing machine in longitudinal and The machine has to be connected to water traverse direction by rotating the adjustable feet. supply by an adequately trained person. The feet allow levelling by +/- 1 cm.
- Page 11 CONNECTING TO HOT/COLD WATER INSTALLING THE DRAIN HOSE SUPPLY (Only in some models) If your appliance has connections for both hot and cold water, then connect one hose to the cold water connection and the other hose to the hot water connection, as indicated on the back of the appliance: COLD = cold and HOT = hot.
- Page 12 CONNECTING TO THE POWER MAINS After installation, the washing machine should stand still for two hours before it is connected to the power mains. Connect the appliance to an earthed power outlet. After installation, the wall outlet should be freely accessible.
-
Page 13: Tips Before Washing
TIPS BEFORE WASHING LAUNDRY SYMBOLS This chapter includes several tips on how to prepare the laundry for washing. Observe the laundry symbols. Textile maintenance symbols: LAUNDRY SORTING Washing Sort the laundry according to: • how soiled it is, Normal Delicate •... - Page 14 DYED COTTON ECONOMY AND EFFICIENCY Laundry made of dyed cotton which is to be washed You can save a lot of energy by not using the at 60 °C should be fi rst washed at a temperature of programs operating at higher temperatures. 60 °C to remove the excess dye.
-
Page 15: Washing Process, Step By Step (1 - 8)
WASHING PROCESS, STEP BY STEP (1 – 8) STEP 1: SORT THE LAUNDRY See chapter "TIPS BEFORE WASHING" Use a washing net for underwire bras. Empty the pockets. Coins, nails etc. could damage the machine and the fabric. STEP 2: TURN ON THE MAIN SWITCH. - Page 16 STEP 4: ADD THE DETERGENT AND THE CONDITIONER. Recommended amount of detergent is usually specifi ed on the detergent packaging. When washing a smaller amount of laundry, the amount of detergent used can be decreased. Observe manufacturers' recommendations regarding the type of detergent suitable for certain temperatures, load size, and water hardness.
- Page 17 STEP 5: CHOOSE THE PROGRAM. Choose the program by rotating the Program selector knob in either direction. The Program selector knob can be used when arrows appear on the display. Choose the program depending on the type of laundry and how heavily soiled it is (see chapter "TIPS BEFORE WASHING").
- Page 18 Program Description 7. AUTO PROGRAM This program automatically adjusts the duration of the main wash and (Auto) number of rinses depending on the amount of laundry in the machine. No extra program settings are possible. 8. QUICK PROGRAM Quick program for laundry that only needs refreshing. The program (Quick) operates at certain temperatures;...
- Page 19 Program Description 19. ANTI-ALLERGY This program is used to wash normal to heavily soiled clothes that require PROGRAM COTTON special care, such as clothes for people with highly sensitive skin or skin (Allergy program allergies. We recommend turning the garments inside out as this will also cotton) thoroughly wash out the skin and other residues.
- Page 20 STEP 6: CHOOSING THE PROGRAM SETTINGS Using the program settings, the washing programs can be further adjusted to your wishes. Some program settings may not be available for your selected program. Selected program settings will remain stored after the end of the washing cycle and may be changed subsequently (except for delayed start which is not stored after the wash is complete).
- Page 21 3. Spin speed By consecutively pressing the button 3, you can set the spin speed, choosing from the following available values: d (no drain) /... / max. (rpm) (max rpm = depends on the model) Default setting is 1400 rpm; it depends on the selected program (spin rate can be changed – reduced or increased (only in some models)).
- Page 22 6. Start delay Press the button 6 to choose the delayed start when you wish the washing program to start after a certain period of time (30´ to 24 hours after you press the Start button). The estimated time remaining until the Everyday wash Allergy 40°C...
- Page 23 STEP 7: START THE WASH Close the washing machine door and press the Start/Pause/Stop button. Start (short press of the button – start/resume) Pause (short press of the button – pause) Stop (press and hold for 3 seconds – stop or cancel) 2:20 Starting Remaining time...
- Page 24 Pausing, stopping or changing the program To pause the program, shortly press the Stop program Paused Add clothes Start/Pause/Stop button. To resume a program, press the Start/ Pause/Stop button again. To change or stop the washing program, press the Start/Pause/Stop button and hold it for 3 seconds. Use the button 1 to choose "Stop program".
- Page 25 STEP 8: END OF PROGRAM After the end of the washing program, Start Cycle completed succsessfully the display will indicate that the program has been successfully completed ("Cycle completed successfully"). If you have selected the Anti-Crease Anti Stop Anti creasing Cycle completed succsessfully creasing extra function, gentle tumbling will...
- Page 26 Changing a favourite program If you wish to store a program after the end of the washing cycle, but there is no more room for another favourite program (only 4 favourite program slots are available), then one of the existing stored favourite programs can be substituted with a new one.
-
Page 27: System Settings
SYSTEM SETTINGS In the main menu, use the Program Enter System settings selector knob to select System Settings. Confi rm the selection by pressing the button 2. Then, use the Program selector knob to scroll the list of the following settings that you can adjust: •... - Page 28 LANGUAGE You can choose between 25 languages. Russian Language Press the button 3 for the arrows to appear. Use the Program selector knob or the button 3 to scroll the list of languages. Use the button 6 to confi rm the selected language.
- Page 29 DISPLAY UNIT Set the contrast and logo display. Display Contrast Logotype Back Use the buttons 1 to 5 to set the Contrast Back contrast. Use the button 1 to toggle logo display Logotype Back or off If you choose on , the logo will be displayed on the display unit when the washing machine is turned on.
-
Page 30: Cleaning And Maintenance
CLEANING AND MAINTENANCE CLEANING THE FILTER The washing machine has a fi lter that will retain smaller objects such as coins, buttons, hair etc. Before cleaning, drain the water from the washing machine using the Drain program, and disconnect the washing machine from the power mains. Open the pump fi... - Page 31 CLEANING THE DISPENSER TRAY AND DOOR RUBBER GASKET Press the tab to completely remove the dispenser tray from its housing. Rinse and thoroughly clean the tray. You may also remove the cap from the plug in the conditioner compartment (A). Clean any residue from the cap and tube.
- Page 32 CLEANING THE APPLIANCE EXTERIOR Wipe the washing machine exterior and the display unit using a soft damp cotton cloth and mild detergent. Do not use any solvents or cleaning agents that could damage the washing machine (please observe the recommendations and warnings provided by the manufacturers of the cleaning agents). Do not clean the washing machine with a jet of water! Always disconnect the washing machine from the power mains before cleaning.
- Page 33 CLEANING THE RINSING HOLES (UNDER THE AGITATOR IN THE DRUM) If you believe that objects like nails or paper clips fell into the washing machine drum, check the area underneath the rib. Such objects may rust (corrode) and cause stains on your clothes. Nails and other sharp objects can also cause holes in the fabric.
-
Page 34: Errors - What To Do
ERRORS – WHAT TO DO? Disturbances from the environment (e.g. the power grid) may result in various error reports (see Troubleshooting table). In such case: • Switch off the appliance, wait for 1 minute, switch the appliance back on, and repeat the washing program. •... - Page 35 Problem/error Cause What to do? Wet laundry • A small amount of laundry will • Loosen and redistribute the laundry and select the often be unevenly distributed. Drain or Spinning program. • Increase the amount of laundry in the washing machine and restart the program (see "STEP 7: Start the wash / Adding or removing laundry after the start of the program").
- Page 36 Manual opening of washing machine door Washing machine door may be opened manually if the appliance is not connected to the power mains and if the water has been pumped out of the machine. A Choose the Spinning or Drain program to pump the water from the machine. If this does not work, water has to be drained from the washing machine drum manually.
- Page 37 FAILURE DISPLAY In case of a failure while a program is in progress, the relevant Error X is indicated on the display unit. Press the INFO button to display the Error 3 Info EXIT error description. Switch off the appliance and turn it back Errors indicated on the display unit may include the following: Error Error indication on the display unit...
- Page 38 Error Error indication on the display unit What to do? DOOR UNLOCK ERROR Door is closed, but it cannot be unlocked. Turn off Error while unlocking the door. the washing machine, then turn it back on. If the error reoccurs, call a service technician. See instructions for opening the door –...
-
Page 39: Servicing
SERVICING BEFORE CALLING A SERVICE TECHNICIAN 1, 2, 3 When you contact a service centre, please state the model (1), type (2), and serial number (3) of your washing machine. Model, type, and serial number are indicated on the rating (type) plate located on the washing machine door casing. -
Page 40: Technical Information
TECHNICAL INFORMATION INFORMATION ON ENERGY LABELLING Information sheet pursuant to the Commission Regulations (EU) No. 1061/2010 and 1015/2010 Model WM75.1 Maximum washing load 8 / 9 kg* Energy efficiency class A+++ / A+++ Annual energy consumption (AE 190 / 212 kWh na year Power consumption Standard cotton + ECO 60 °C with a full load (E... - Page 41 PERFORMANCE DATA Program Maximum load Temp. °C Standard cotton + ECO 8 / 9 kg (depending 60 °C 40 °C on model) Mix/Synthetics 3,5 kg Test program for connection to cold water supply, pursuant to EN 60456. 40 °C program for testing institutes. The 40 °C option has to be set. ENERGY LABELLING European test standard EN 60456...
-
Page 42: Program Table
PROGRAM TABLE Program 1. Everyday wash 1600 1,60 2:10 2. Standard cotton 1600 1,30 2:40 ⌑ Standard cotton +ECO 1600 44 8/4* 1,07/0,76* 2:48/2:38* 60 °C 40 °C 1600 44 8/4* 0,80/0,59* 2:28/2:18* 3. Mix/Synthetics X 40 1000 0,35 1:52 4. - Page 43 Program 1. Everyday wash 1600 2,10 2:20 2. Standard cotton 1600 1,80 2:20 ⌑ Standard cotton +ECO 1600 44 9/4,5* 1,22/0,82* 2:48/2:38* 60 °C 40 °C 1600 44 9/4,5* 1,00/0,66* 2:28/2:18* 3. Mix/Synthetics X 40 1000 0,35 1:52 4. Wool/Hand wash 0,28 0:55 5.
- Page 44 Adjustment of the displayed washing time Advanced technology allows the appliance to sense the amount of laundry and add the required amount of water during the washing process. Depending on the washing load, washing time can be longer or shorter and the time displayed will be adjusted accordingly.
-
Page 45: Disposal
DISPOSAL Disposal / recycling of packaging Our product packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. To this end, packaging materials are labelled appropriately. The symbol on the product or its packaging indicates that the product should not be treated as normal household waste. - Page 46 NOTES...
-
Page 47: Quick Guide
QUICK GUIDE SORT THE LAUNDRY. Close the zip fasteners. Check the laundry care symbols. Sort the laundry based on how heavily soiled it is, by colour, and by material. SWITCH ON THE MAIN ON/OFF SWITCH (ON/OFF) OPEN THE WASHING MACHINE DOOR AND INSERT THE LAUNDRY. - Page 48 Gorenje, Partizanska 12, 3320 Velenje, Slovenija www.asko.com WM75.1 en (09-17)
