MAP-330R
This guide shows you how to set up a MAP-330R MultiService Access Point. For detailed configuration and operating information see
the MAP-300 Series Administrator's Guide, which is available on the Colubris Networks documentation CD or at www.colubris.com
(select Support and then Product Registration).
NOTE: The MAP-330R is a ruggedized version of the MAP-330 and shares the same feature set. However, due to its weather-proof
enclosure, Ethernet port 2 and the reset button are not available. When using the management tool, ignore references to port 2. For units
purchased after March 1, 2006, see the Administrator's Guide for instructions on how to reset to factory default settings.
IMPORTANT NOTE ABOUT WIRELESS SECURITY: To provide easy wireless access to the management interface, the MAP-330R ships
with all wireless security options disabled. Colubris strongly recommends that once the MAP-330R is installed you enable a wireless
security option to properly safeguard the wireless network from intruders. For more information see the Administrator's Guide.

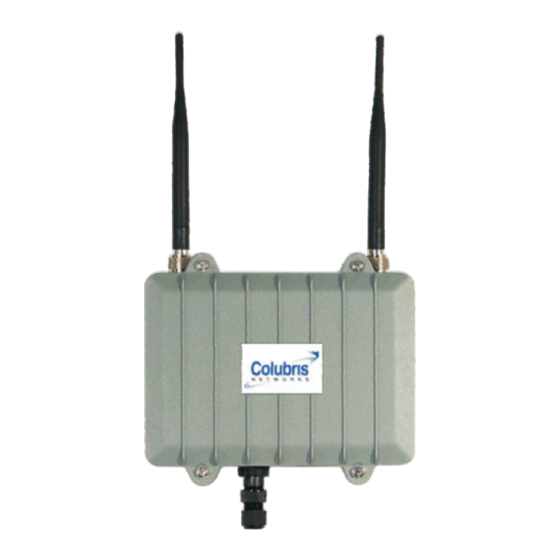

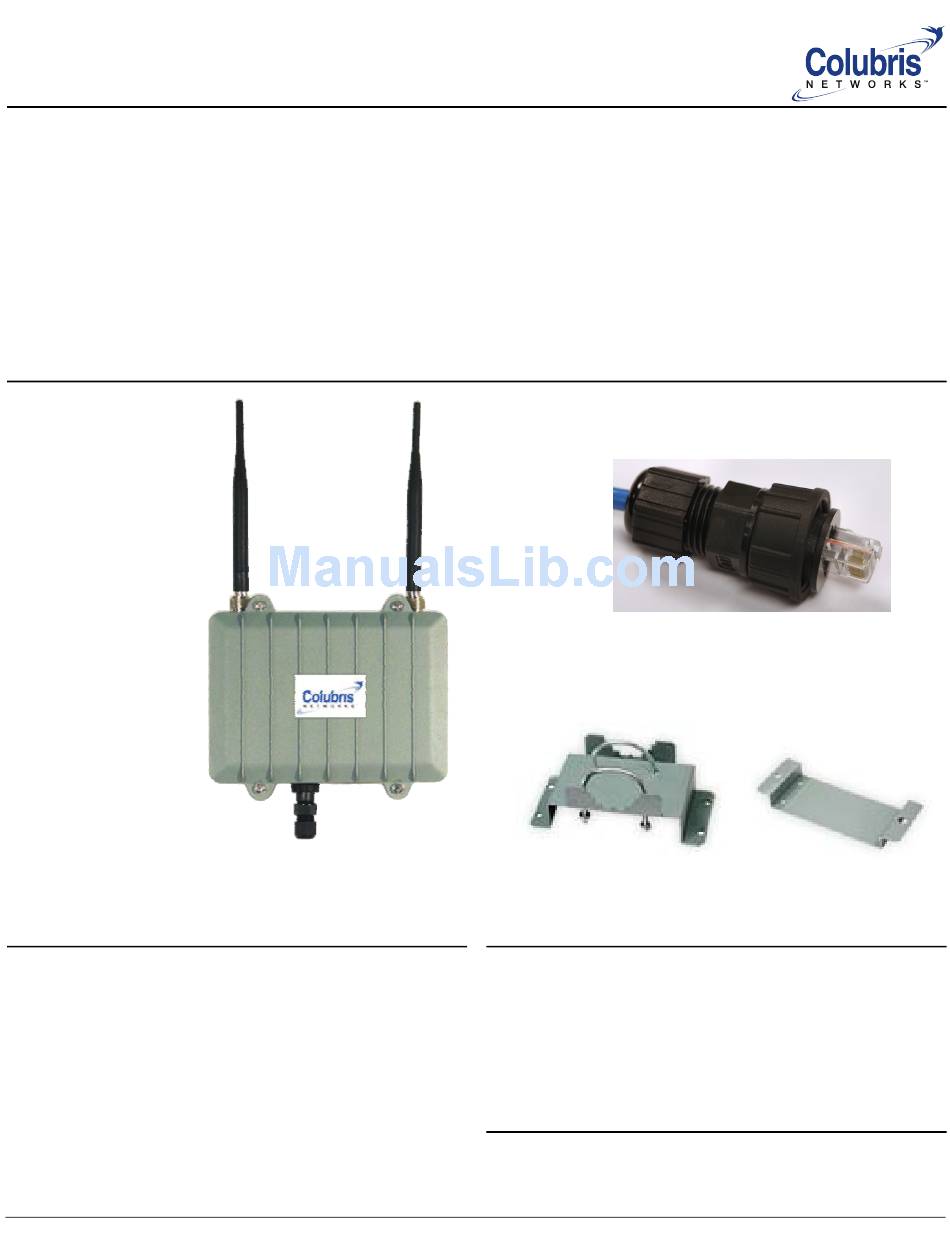

Hardware overview

Radio 1
MAP-330R sealed in
weather-proof enclosure
Opening enclosure voids warranty.

Package contents

• MAP-330R unit featuring die-cast aluminum enclosure with
three-point silicone rubber gasket.
• Two 5.5-dBi 2.4-GHz omnidirectional antennas. These antennas
support 802.11b and 802.11g modes only. They do not support
802.11a.
• Weather-proof quick-disconnect RJ45 connector (disassembled).
• Standard mounting bracket.
• Pole-top mounting assembly.
• Documentation CD.
42-11-0330-09
Quickstart
Ethernet port with PoE support
and a weather-proof connector
Radio 2
Pole-top mounting assembly
Antennas
The MAP-330R has two radios, each with one antenna connector. Each
radio can create a single wireless cell or be used as an Integrated Sensor
as described on page 6. The antenna connectors are weather-proof
straight-polarity N-type female bulkhead antenna connectors with
diversity
Note: By default radio 1 is set to b/g mode, and radio 2 is set to Monitor.

Ethernet port

The MAP-330R has a single 10/100 Mbps Ethernet port with weather-
proof RJ45 connector. Power over Ethernet (PoE) is used to power the
MAP-330R on this port.
Weather-proof quick-disconnect
(shown assembled)
RJ45 connector
Standard mounting bracket
1 of 6

Advertisement

loading

Related Manuals for Colubris Networks MARP-330r

Summary of Contents for Colubris Networks MARP-330r

  • Page 1: Hardware Overview

    This guide shows you how to set up a MAP-330R MultiService Access Point. For detailed configuration and operating information see the MAP-300 Series Administrator’s Guide, which is available on the Colubris Networks documentation CD or at www.colubris.com (select Support and then Product Registration).

  • Page 2: Typical Deployment

    In a typical installation the MAP-330R is mounted outdoors (in a salt-free environment), providing a wireless cell. It is connected to a PoE injector (not supplied) and then to a hub or switch that connects it to a Colubris Networks MultiService Radio 1 Radio 2 Controller.
  • Page 3 • When a long outdoor run of Ethernet cable is used, maximum length 300 feet (100 meters), install an Ethernet surge suppressor as close 15.Mate the RJ45 Plug (G) with the socket on the Colubris Networks as possible to the MAP-330R—ideally within 2 feet (.5 meters). This...

  • Page 4: Controlled Mode

    Controlled and Autonomous modes The MAP-330R supports two modes of operation: controlled mode and autonomous mode. Controlled mode Autonomous mode Controlled mode is the default operating mode for the MAP-330R when In autonomous mode, the MAP-330R operates as an independently shipped with 5.1 firmware and higher.
  • Page 5 Wireless security Power-on the MAP-330R filters checkbox. Connect a PoE source (not supplied) to the MAP-330R. • To install a MAP-330R that connects to a Colubris Networks access controller, under General, select the Use Colubris Connect your computer access controller checkbox.
  • Page 6 42-11-0330-09 © 2006 Colubris Networks, Inc. Specifications are subject to change without notice. Colubris is a registered trademark, and the Colubris logo is a trademark, of Colubris Networks, Inc. All other names mentioned herein are trademarks or registered trademarks of their respective owners. Printed in the USA.
