- Page 1 Rocket 750 40-Channel SATA 6Gb/s PCI-Express 2.0 x8 HBA Quick Installation Guide v1.0 Nov. 27, 2015...
-
Page 2: Table Of Contents
HighPoint Rocket 750 HBA ............3 Kit Contents .................. 3 Board Layout ................4 Hardware Installation ..............6 Using the Rocket 750 HBA ............6 Customer Support ................ 7 FCC Part 15 Class B Radio Frequency Interference Statement ..8... -
Page 3: Highpoint Rocket 750 Hba

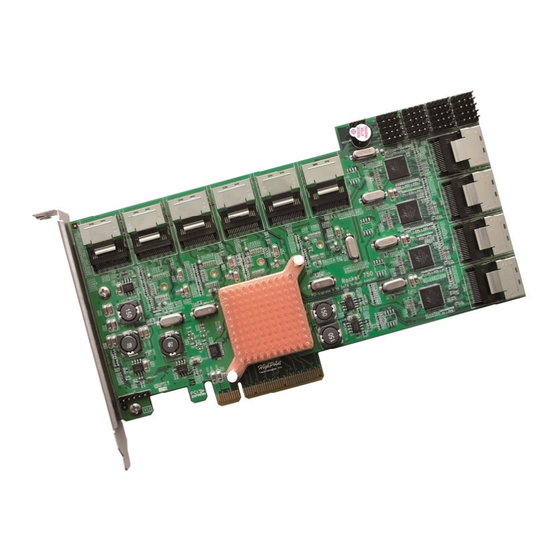

HighPoint Rocket 750 HBA The HighPoint Rocket 750 is the industry’s first 40-Port 6Gb/s SATA HBA, powered by a PCIe 2.0 host interface and HighPoint’s Intelligent Storage Health Management Suite, and was designed for use with any standard PC hardware and software platform. -
Page 4: Board Layout
Board Layout Rocket 750 PCB Board Layout A1-A10 F1-F10 Active LED Failure LED BEEP1 Port10 Port9 Port8 Port7 Port6 Port5 Port4 Port3 Rocket 750 Port2 Port1 Connector and Jumper Description Disk Activity LED connector pins. A1-A10... - Page 5 Drive1 Drive2 Drive3 Drive4 Drive5 Drive6 Drive7 Drive8 Drive9 Drive10 Drive11 Drive12 Drive13 Drive14 Drive15 Drive16 Drive17 Drive18 Drive19 Drive20 Drive21 Drive22 Drive23 Drive24 Drive25 Drive26 Drive27 Drive28 Drive29 Drive30 Drive31 Drive32 Drive33 Drive34 Drive35 Drive36 Drive37 Drive38 Drive39 Drive40 Disk Failure LED connector pins.
-
Page 6: Hardware Installation
Active/FAIL LED PIN connector: Active/Failed LED Pin Connectors Two pins are provided for each of the Rocket 750’s 40 device channels: one for disk activity, and one for disk failure. For more information about LED functionality and connection requirements, please refer to: http://www.highpoint-tech.com/PDF/LED_connection.pdf... -
Page 7: Customer Support
3. Select “Browse my computer for driver software”. 4. Browse to the location of the driver and click “Next”. 5. Reboot the system when prompted. The Rocket 750 host adapter will be ready for use after Windows reboots. 6. Browse to the location of the HighPoint Intelligent Storage Health Manager Suite and double click the setup program to install. -
Page 8: Fcc Part 15 Class B Radio Frequency Interference Statement
European Union Compliance Statement This Information Technologies Equipment has been tested and found to comply with the following European directives: European Standard EN55022 (1998) Class B European Standard EN55024 (1998) © Copyright 2015 HighPoint Technologies, Inc. All right reserved.
