Philips DA1000 User Manual

Dual band dab pocket radio
Hide thumbs Also See for DA1000:
Table of Contents

Advertisement

Quick Links

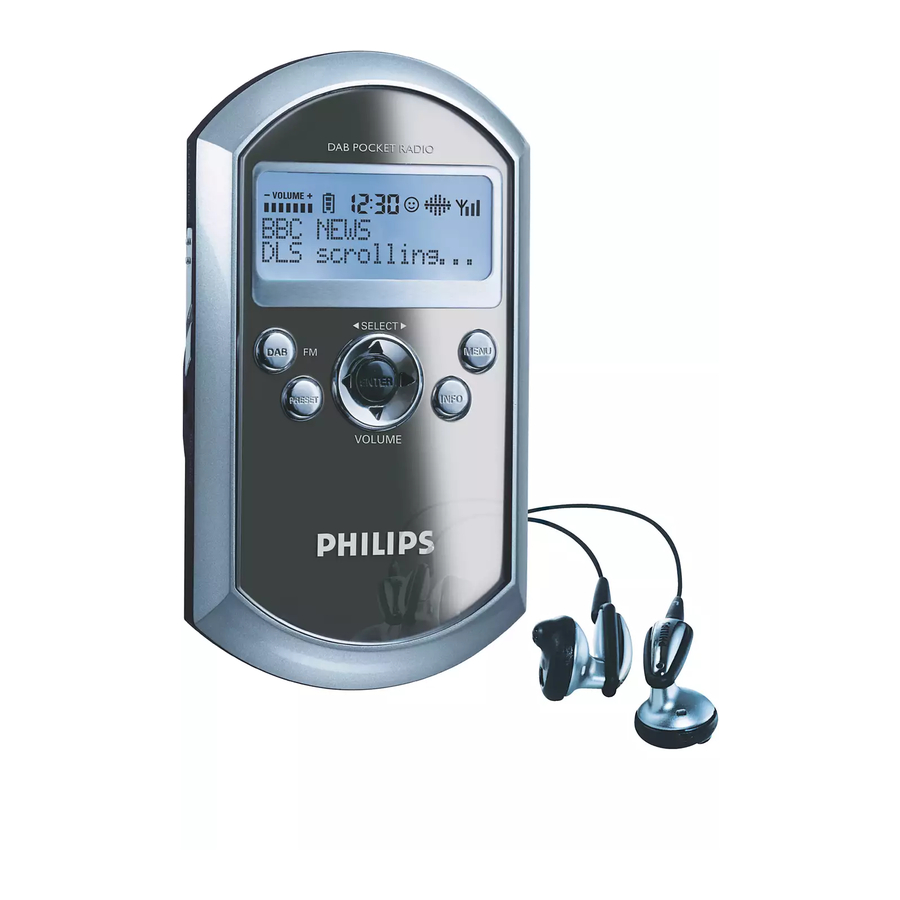

Dual Band DAB Pocket Radio
DA1000
User manual
Manuel d'utilisation
Manual del usuario
Benutzerhandbuch
Gebruikershandleiding

Advertisement

Table of Contents
loading

Related Manuals for Philips DA1000

Summary of Contents for Philips DA1000

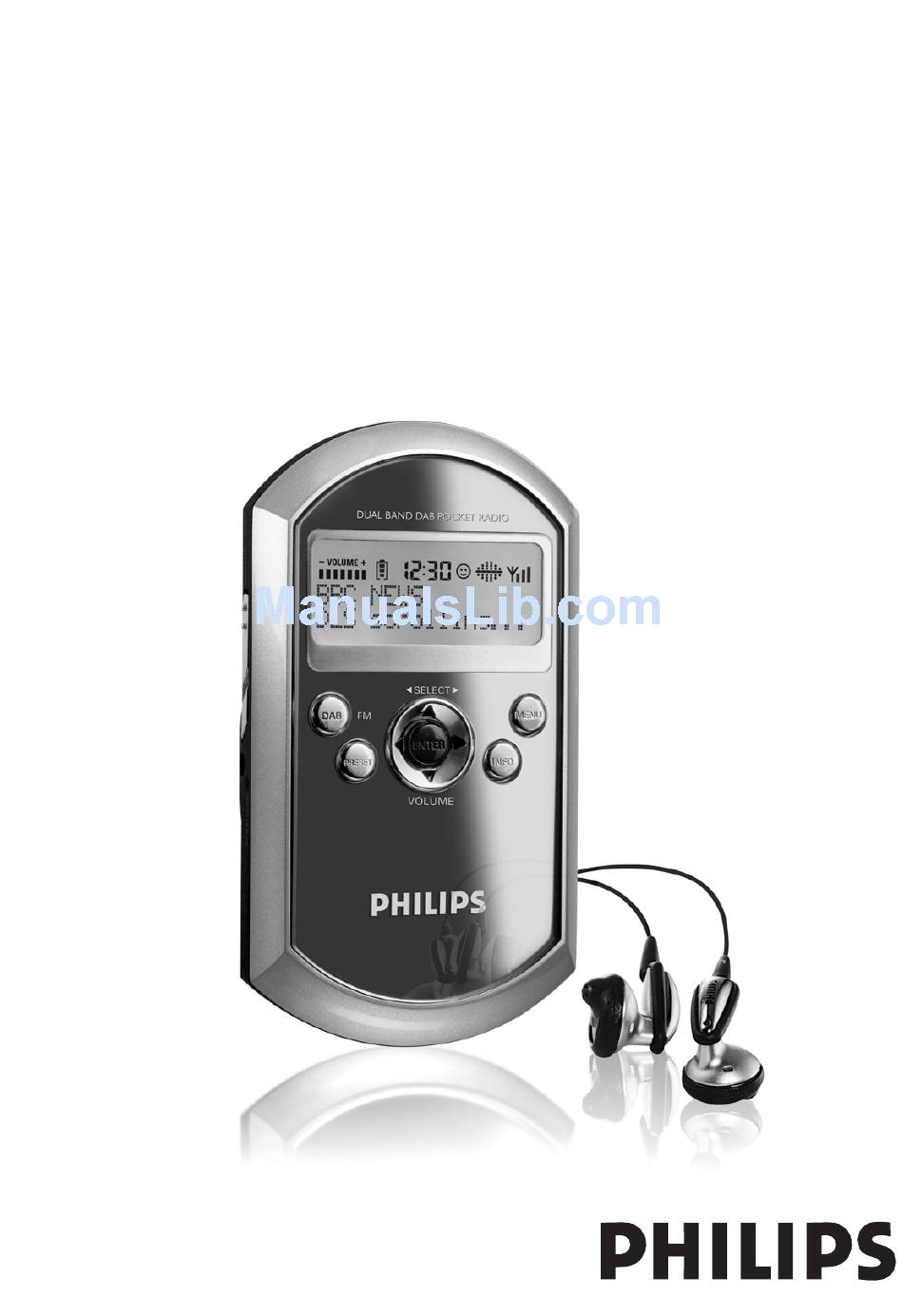

  • Page 1 Dual Band DAB Pocket Radio DA1000 User manual Manuel d'utilisation Manual del usuario Benutzerhandbuch Gebruikershandleiding...
  • Page 3 DUAL BAND DAB POCKET RADIO VOLUME SELECT MENU ENTER INFO PRESET VOLUME...
  • Page 4 8 9 0 ! Left hand panel RECHARGE LOCK • UNLOCK 6V DC Right hand panel POWER ON/OFF 2 X AA...
  • Page 5 English ––––––––––––––––––––––––––––––––––––––––––– 6 Français ––––––––––––––––––––––––––––––––––––––––– 21 Español ––––––––––––––––––––––––––––––––––––––––– XX Deutsch –––––––––––––––––––––––––––––––––––––––– XX Nederlands –––––––––––––––––––––––––––––––––––––– XX...

  • Page 6: Table Of Contents

    Contents Controls –––––––––––––––––––––––––––––––––––––––––––––––– 7 General Information Display screen guide –––––––––––––––––––––––––––––––––––– 8 Maintenance ––––––––––––––––––––––––––––––––––––––––– 8 Environmental information –––––––––––––––––––––––––––––––– 8 About Digital Audio Broadcasting (DAB) –––––––––––––––––––––––9 Power supply Batteries ––––––––––––––––––––––––––––––––––––––––––– 10 ECO-PLUS NiMH batteries ––––––––––––––––––––––––––––––– 10 Mains adapter ––––––––––––––––––––––––––––––––––––––– 11 Basic functions Headphones –––––––––––––––––––––––––––––––––––––––––...

  • Page 7: Controls

    DAB Band III, Band L and FM. This set complies with the radio interference requirements of the European Union. PHILIPS reserves the right to make design and specification changes for product improvement without prior notice. Controls (see figure 8 LOCK•UNLOCK adjust slider to select lock function on/ off.

  • Page 8: General Information

    General information Display screen guide Icon VOLUME volume (up/ down). battery level status. selected radio station clock time (DAB only). when the station order is set to your most listened to stations. current equalizer setting (DAB only). signal reception strength when weak. signal reception strength when strong.

  • Page 9: About Digital Audio Broadcasting (Dab)

    About Digital Audio Broadcasting (DAB) DAB digital radio is a new way of broadcasting radio via a network of terrestrial transmitters. It provides listeners with more choice and information delivered in crystal clear, crackle-free sound quality. – The technology allows the receiver to lock on to the strongest signal it can find. –...

  • Page 10: Power Supply

    Power Supply BATTERIES (supplied or optionally available) You can use the following batteries with Philips' DAB pocket radio. • rechargeable batteries type AY3362 • alkaline batteries type AA (LR6, UM3) preferably Philips. Inserting batteries ( see figure 3) • Open the battery door and insert 2 x AY3362 rechargeable batteries or 2 x AA batteries with the correct polarity as indicated.

  • Page 11: Mains Adapter

    Helpful Hints : – It is normal for the batteries to become warm during recharging. – If the batteries become too warm, recharging will be interrupted for approximately 30 minutes . – To ensure proper recharging on board, take care that contacts are clean. –...

  • Page 12: Basic Functions

    Basic functions HEADPHONES • Connect the supplied headphones to the p socket of the radio. • The headphone cable also serves as an aerial. To get optimal signal reception, avoid coiling the headphone cord. Take care when using headphones Hearing safety: Listen at a moderate volume. Using headphones at high volume can impair your hearing.

  • Page 13: Features

    Features RADIO RECEPTION With this Dual Band DAB pocket radio, you can tune to both DAB and FM modes. The headphone cable also serves as an aerial. 1 Connect the supplied headphones to the p socket of the radio. 2 Press and hold POWER ON/OFF briefly to switch on the radio.

  • Page 14: Tuning/Retuning

    Features SELECTING DAB/FM • Press DAB/FM once or more to toggle. ™ Display shows FM tuning. ™ FM and station frequency appear in the 1 st display line for the detected/selected station. ™ The current radio station plays. TO SWITCH OFF THE RADIO •...

  • Page 15: Selecting A Station

    Helpful Hints : – If no station is found during autoscan, the display will return to or SELECT, Manual tune. Select Manual tune to tune to a specific frequency. indicates maximum reception during tuning. indicates minimum reception during tuning. Manual tune 1 Push left/right SELECT 1/2 once or more until you stop in the desired frequency.

  • Page 16: Saving & Recalling Presets

    Features In FM mode To select a station after you have tuned the radio : • Press ENTER. Display shows Searching ..To select another station, ™ press ENTER repeatedly. Helpful Hints : – If no station is selected or no action is executed for more than 5 seconds, the last selected station will continue to play.

  • Page 17: Recalling A Preset

    RECALLING A PRESET 1 Press PRESET. Display shows: current station name at the top display ™ line and available presets at the bottom. Push left/right SELECT 1/ 2 once or more to find your desired preset. Press ENTER to confirm. Your desired preset radio station plays.

  • Page 18: Sorting Stations (Dab Only)

    Features SORTING STATIONS (DAB ONLY) You can use MENU and the navigator control to sort and view DAB stations in various list options. 1 Press MENU. 2 Push left/right SELECT 1/ 2 and press ENTER to select Station order. Display shows: FAV station, Alphanumeric station, ™...

  • Page 19: Lock•Unlock : Locking All Buttons

    LOCK•UNLOCK : Locking all buttons You can lock the buttons of the set by switching the slider to LOCK. With Lock activated, you can avoid accidental action of other functions, and help save battery power (accidental switching on). 1 Adjust the slider to LOCK to activate. All buttons are locked.

  • Page 20: Troubleshooting

    Troubleshooting Warning: Under no circumstance should you try to repair the set yourself as this will invalidate the guarantee. If a fault occurs, first check the points listed before taking the unit to repair. If you are unable to solve a problem by following these hints, consult your dealer or service centre.
  • Page 21 Meet Philips at the Internet http://www.philips.com DA1000 LC/bk-0411 Issue 1 Printed in China...

This manual is also suitable for:

Da1000/05Da1000/00
