Philips PET824/17B Quick Start Manual

PET825_QSG_wk6372.qxd 2006-09-18

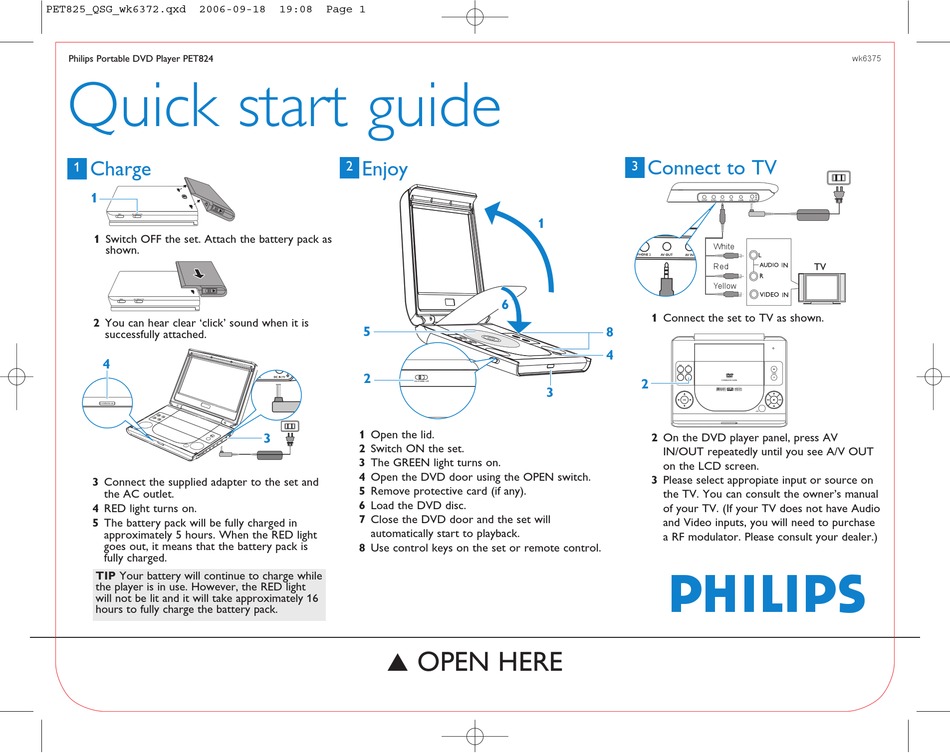

Philips Portable DVD Player PET824

Quick start guide

Charge
1
1
1 Switch OFF the set. Attach the battery pack as
shown.
2 You can hear clear 'click' sound when it is
successfully attached.
4
3 Connect the supplied adapter to the set and
the AC outlet.
4 RED light turns on.
5 The battery pack will be fully charged in
approximately 5 hours. When the RED light
goes out, it means that the battery pack is
fully charged.
TIP Your battery will continue to charge while
the player is in use. However, the RED light
will not be lit and it will take approximately 16
hours to fully charge the battery pack.
19:08 Page 1
2 Enjoy
5
2
1 Open the lid.
3
2 Switch ON the set.
3 The GREEN light turns on.
4 Open the DVD door using the OPEN switch.
5 Remove protective card (if any).
6 Load the DVD disc.
7 Close the DVD door and the set will
automatically start to playback.
8 Use control keys on the set or remote control.
3 OPEN HERE
Connect to TV
3
1
6
1 Connect the set to TV as shown.
8
4
2
3
2 On the DVD player panel, press AV
IN/OUT repeatedly until you see A/V OUT
on the LCD screen.
3 Please select appropiate input or source on
the TV. You can consult the owner's manual
of your TV. (If your TV does not have Audio
and Video inputs, you will need to purchase
PHILIPS
a RF modulator. Please consult your dealer.)
wk6375
White
Red
Yellow
