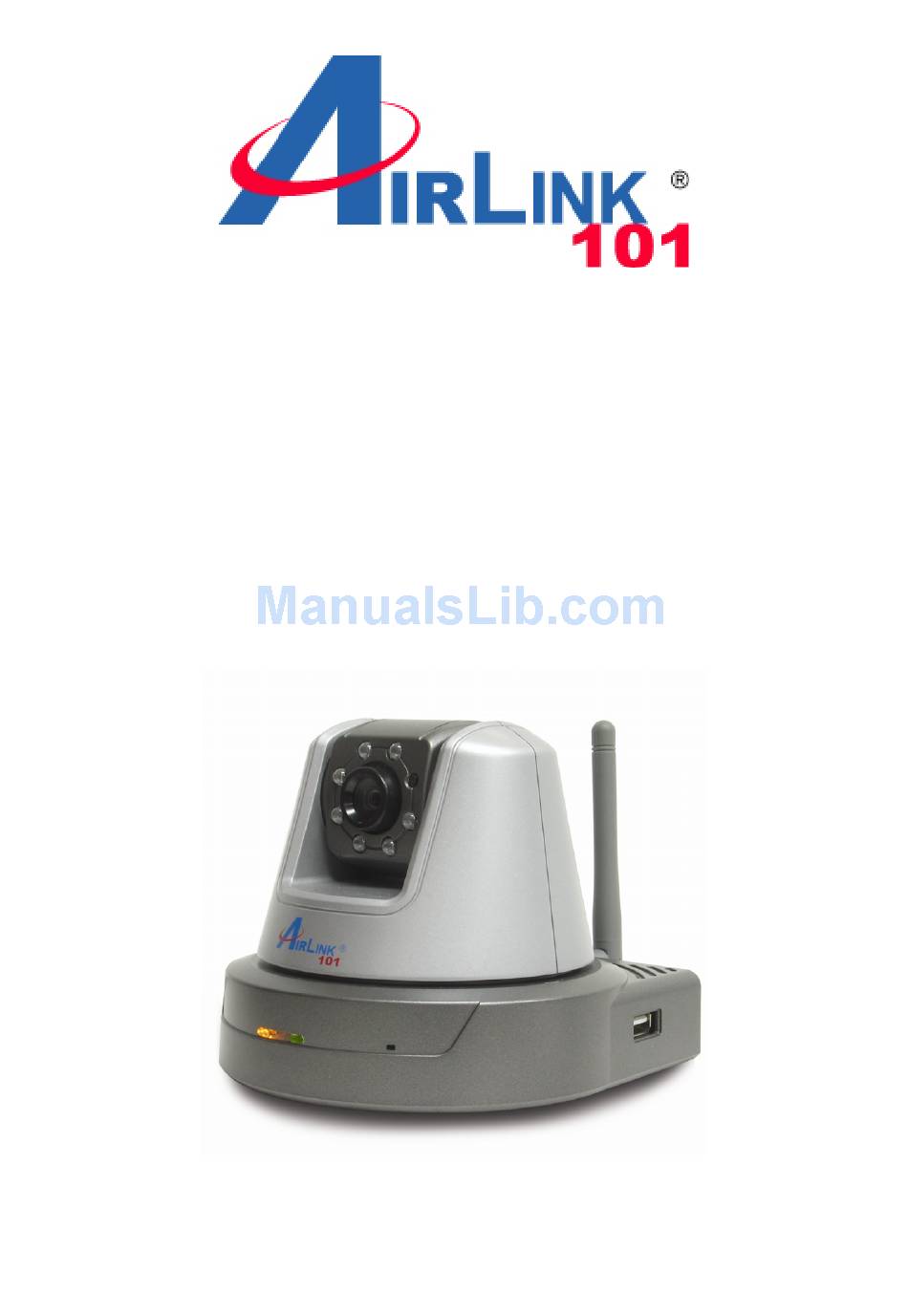

- Page 1 Quick Installation Guide SkyIPCam1777W Wireless N MPEG4 Night Vision Pan & Tilt Network Camera Model # AICN1777W Ver. 1A...
-
Page 2: Package Contents
Package Contents • Wireless N Night Vision Pan & Tilt Network Camera • AC Power Adapter • Wall Mount Kit • GPIO & RS485 Adapter • Ethernet Cable (RJ-45 type) • Setup CD • Quick Installation Guide System Requirement Accessing the Camera using Web Browser - Supported Browsers: Microsoft®... -
Page 3: Getting To Know Your Camera
Section 1 Getting to Know Your Camera Front and Top View Infrared LEDs (X7) allow the camera to capture clear images in a dark environment. Light Sensor is used to trigger on LED Indicators: and off the Infrared LEDs depending Power (left, steady amber light) on the surrounding light level. - Page 4 Rear View Reset Button will restart the camera when it is pressed quickly; GPIO when it is pressed and held for five is used to connect the seconds, the camera will restore external devices. the factory default settings. USB Dismount Button Audio-Out Connector is used to safely connects to an external...
-
Page 5: Hardware Installation
Section 2 Hardware Installation Step 2.1 Attach the included external antenna to the camera. Step 2.2 Connect one end of the Ethernet cable to the IP Camera and connect the other end to one of the LAN ports on your router or switch. Step 2.3 Power on the IP Camera by connecting one end of supplied power adapter to the power jack of the Camera and connecting the other end to an... - Page 6 Section 3 Installing SkyIPCam Utility and UltraView Step 3.1 Insert the provided CD into your computer’s CD ROM drive. Step 3.2 Click on Install Utility and Software when the autorun menu pops up on the screen.
- Page 7 Note: If you do not see the above autorun menu pops up on the screen, please go to your CD-ROM drive > UltraView folder > run “Setup.exe”. Windows 7 and Vista users: an AutoPlay window pops up on screen, please make sure you give permission to run the setup program by clicking Autorun.exe.
- Page 8 Step 3.3 Click Install to install the SkyIPCam utility and UltraView. Step 3.4 Click Finish when installation finishes.
-
Page 9: Configuring The Camera
Section 4 Configuring the Camera Step 4.1 Go to Start > (All) Programs > Airlink101 SkyIPCam UltraView > SkyIPCam Utility. Step 4.2 Click on Search to find the camera on your network. Select the Camera you wish to configure and click on Link. - Page 10 Step 4.3 When you are prompted for the user name and password, enter “admin” for both User name and Password, and click OK. Step 4.4 The camera viewing window will appear. Click on Setup, then click on Smart Wizard.
- Page 11 Step 4.5 Enter a name for your camera and a location (i.e. RoomA01). Create a password and enter to Admin Password and Confirm Password. This will change the admin password of the camera. It is recommended to modify the admin’s password to protect your privacy. Click Next. Step 4.6 You may simply accept the suggested default setting DHCP if your router’s DHCP server is enabled, so the router will automatically assign a...
- Page 12 Step 4.7 If you would like to set up email alerts that you can receive in the future, enter your email information here. You can get this information from your Internet Service Provider. You can also set this up at a later time. Click Next.
- Page 13 Step 4.9 Confirm your settings at this page. If everything is correct, click Apply to save the settings, then the camera will restart in 50 seconds.
-
Page 14: Viewing Image
Section 5 Viewing Image Method A > Access Camera from SkyIPCam Utility Step 5.1A Open Airlink101 SkyIPCam Utility, select the camera you wish to connect to and click on Link button. Go to Step 5.3. - Page 15 Method B > Access Camera from Web Browser Step 5.1B If you assigned a static IP address for your camera (at Step 4.6), you may open the Web Browser on your computer. Step 5.2B Type the IP address of your camera in the Address bar, and press Enter.
- Page 16 Step 5.4 Internet Explorer User: If this is the first time for your computer to view image from the web configuration page, you will be prompted to install the ActiveX Control. Click on the bar on top of the screen and click on Run Add-on or Install ActiveX Control (depends on different IE versions).
- Page 17 Step 5.6 To get a clear view of images, you can simply rotate the camera’s lens clockwise or counter-clockwise to adjust the focus.
-
Page 18: Technical Support
Toll Free: 1-888-746-3238 Website: www.airlink101.com * AICN1777W supports most of the mobile devices, but compatibility with every mobile device is not guaranteed. ** Monitoring multiple cameras simultaneously demands high performance computer system. *** Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic as well as network overhead lower actual data throughput rate.
