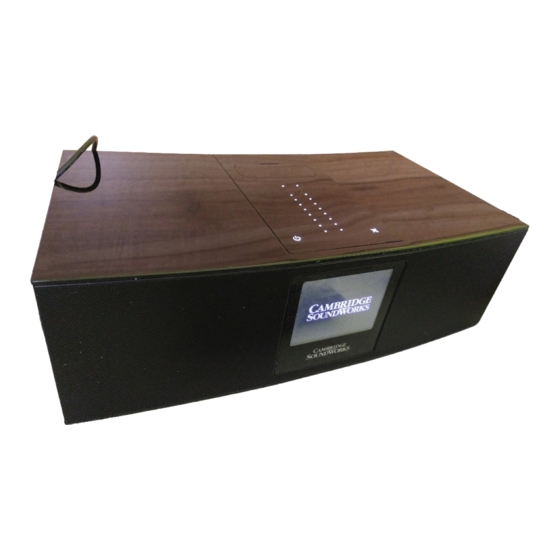

CSW Ambiance Touch Radio_EN.fm Page 3 Friday, July 8, 2011 5:18 PM About Your Radio Front / Top Volume touch panel iPod/iPhone dock cover Mute On/Off Power On/Off Color touchscreen Back Ethernet LAN 18V DC Auxiliary AM Antenna FM/DAB connector Power In Line In jack...
Page 4
CSW Ambiance Touch Radio_EN.fm Page 4 Friday, July 8, 2011 5:18 PM Remote Control Inserting Batteries Shuffle Power On/Standby Source Repeat Sleep Playback Menu Back Home Directional Pad Select Scan Up/Down Volume Up/Down Mute Love It/Like Ban It/Don’t like Favorites 1 to 8 Backlight Snooze...
CSW Ambiance Touch Radio_EN.fm Page 5 Friday, July 8, 2011 5:18 PM Congratulations! Introduction Thank you for purchasing Cambridge SoundWorks® As a standalone device, your radio functions as a DAB, Ambiance Touch Radio! We are sure that it will provide...
CSW Ambiance Touch Radio_EN.fm Page 6 Friday, July 8, 2011 5:18 PM Using the Touchscreen Interface The touchscreen is the key point of interaction with The Main Menu is the primary screen to navigate Ambiance Touch Radio. The radio’s many functions can around the main radio functions and settings.
CSW Ambiance Touch Radio_EN.fm Page 7 Friday, July 8, 2011 5:18 PM Navigating Around Tapping on a mode will take you to the main screen of that mode. Each mode will have its own set of buttons that you can interact with. An example is shown below: This upper area is not touch-activated but provides quick summary information on Time, Alarm, Sleep and Network status.
CSW Ambiance Touch Radio_EN.fm Page 8 Friday, July 8, 2011 5:18 PM Radio Mode (AM/FM) Radio Mode recieves analog radio from the AM or FM Favorite Station Presets band and displays Radio Data System (RDS) You can store up to 10 favorite station presets in Radio information about the station and show being Mode.
CSW Ambiance Touch Radio_EN.fm Page 9 Friday, July 8, 2011 5:18 PM Last.fm Mode Last.fm is one of the largest online music services in Using Last.fm the world and it makes it incredibly easy and fun to Once you have started playing a radio station using one discover new music.
CSW Ambiance Touch Radio_EN.fm Page 10 Friday, July 8, 2011 5:18 PM Pandora Mode Pandora is a personalized Internet radio that is Using Pandora designed to help you discover new music you’ll love Once you have started playing a radio station using one mixed in with music you already know.
CSW Ambiance Touch Radio_EN.fm Page 11 Friday, July 8, 2011 5:18 PM Music Player Mode In Music Player mode, you can browse and play audio Submenu Options files wirelessly from any PC or Mac computers across Repeat your network. Once you’ve set up your computer for Toggle repeat playback on/off.
CSW Ambiance Touch Radio_EN.fm Page 12 Friday, July 8, 2011 5:18 PM Settings The System Settings menu provides a convenient place • Jazz to configure all the radio settings. The following options • Pop are available: • Rock • Alarms •...
Page 13
CSW Ambiance Touch Radio_EN.fm Page 13 Friday, July 8, 2011 5:18 PM Current settings Set Register This displays the full details of your currently active ???? network profile. This can be useful for troubleshooting, Setup Wizard WLAN region This lets you change the global location of your radio. ???? The currently selected location is outlined.
CSW Ambiance Touch Radio_EN.fm Page 14 Friday, July 8, 2011 5:18 PM DAB Radio Mode DAB Radio mode receives DAB/DAB+ digital radio and due to poor antenna reception. Also, you may wish to do displays information about the station and show bring this when current stations stop broadcasting, or to find broadcast.
CSW Ambiance Touch Radio_EN.fm Page 15 Friday, July 8, 2011 5:18 PM Internet Radio Mode Ambiance Touch Radio can play radio broadcasts from Podcasts stations all around the world using your broadband Browse for podcasts sorted by location or genre. You Internet connection.
CSW Ambiance Touch Radio_EN.fm Page 16 Friday, July 8, 2011 5:18 PM Auxiliary Mode Auxiliary mode allows you to play audio from almost any external source (e.g. MP3 player) through your Ambiance Touch Radio. Turn the volume of both Ambiance Touch Radio and your external device low before connecting.
CSW Ambiance Touch Radio_EN.fm Page 17 Friday, July 8, 2011 5:18 PM iPod Mode Ambiance Touch radio has a dock that is effortless to The track title, artist name, album title, current setup with your iPod or iPhone. You can use Ambiance position and track duration information are displayed Touch Radio as a high quality amplifier and even charge on screen when the track is being played.
CSW Ambiance Touch Radio_EN.fm Page 18 Friday, July 8, 2011 5:18 PM Alarm Settings The radio comes with two alarm clocks and each of Tap anywhere on the touchscreen to “Snooze” the these can be programmed differently. To configure the alarm.
CSW Ambiance Touch Radio_EN.fm Page 19 Friday, July 8, 2011 5:18 PM Other Information Product Registration Registering your product ensures you receive the most appropriate service and product support available. You can register your product at www.creative.com/ register. Please note that your warranty rights are not dependent on registration.
