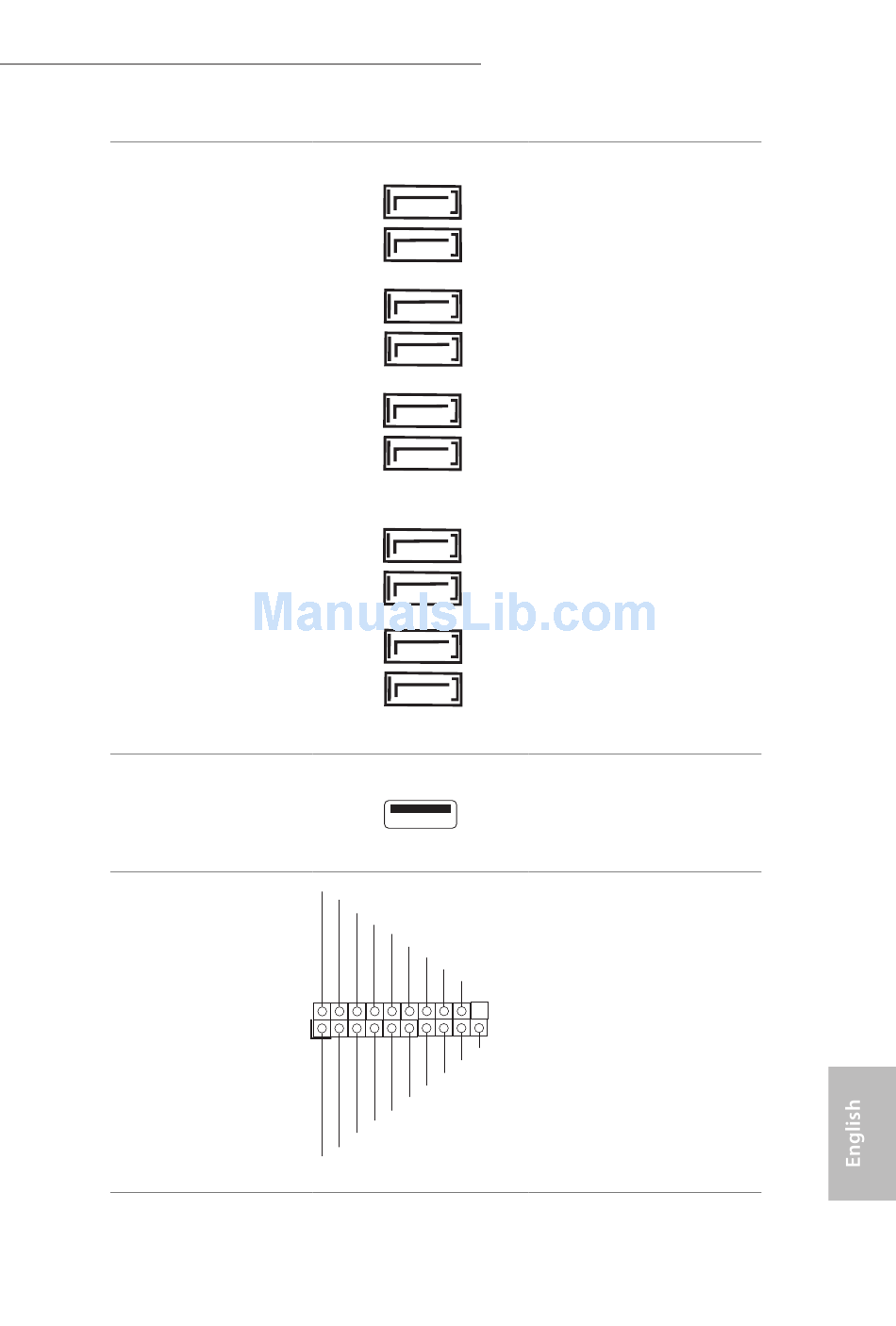

Serial ATA3 Connectors
(SATA_0)
(see p.7 or 10)
(SATA_1)
(see p.7 or 10)
(SATA_2)
(see p.7 or 10)
(SATA_3)
(see p.7 or 10)
(SATA_4)
(see p.7 or 10)
(SATA_5)
(see p.7 or 10)
(SSATA_0)
(see p.7 or 10)
(SSATA_1)
(see p.7 or 10)
(SSATA_2)
(see p.7 or 10)
(SSATA_3)
(see p.7 or 10)
USB 3.0 Connector
(USB3_5)
(see p.7 or 10)
USB 3.0 Header
(19-pin USB3_3_4)
(see p.7 or 10)
SATA _0
SATA_1
SATA _2
SATA_3
SATA_4
SATA_5
SSATA_0
SSATA_1
SSATA_2
SSATA_3
IntA_PA_D+
IntA_PA_D-
GND
IntA_PA_SSTX+
IntA_PA_SSTX-
GND
IntA_PA_SSRX+
IntA_PA_SSRX-
Vbus
1
IntA_PB_SSRX-
IntA_PB_SSRX+
GND
IntA_PB_SSTX-
IntA_PBA_SSTX+
GND
IntA_PB_D-
IntA_PB_D+
Dummy
EP2C612D24 / EP2C612D24-4L
hese ten SATA3 connectors
support SATA data cables for
internal storage devices with
up to 6.0 Gb/s data transfer
rate.
*If the M.2 Socket (M2_1) has been
occupied, the internal SSATA_3 will
not function.
Besides two default USB 3.0
ports on the I/O panel, there
is one USB 3.0 header on this
motherboard. This USB 3.0
header can support two USB
3.0 ports.
Vbus
33
