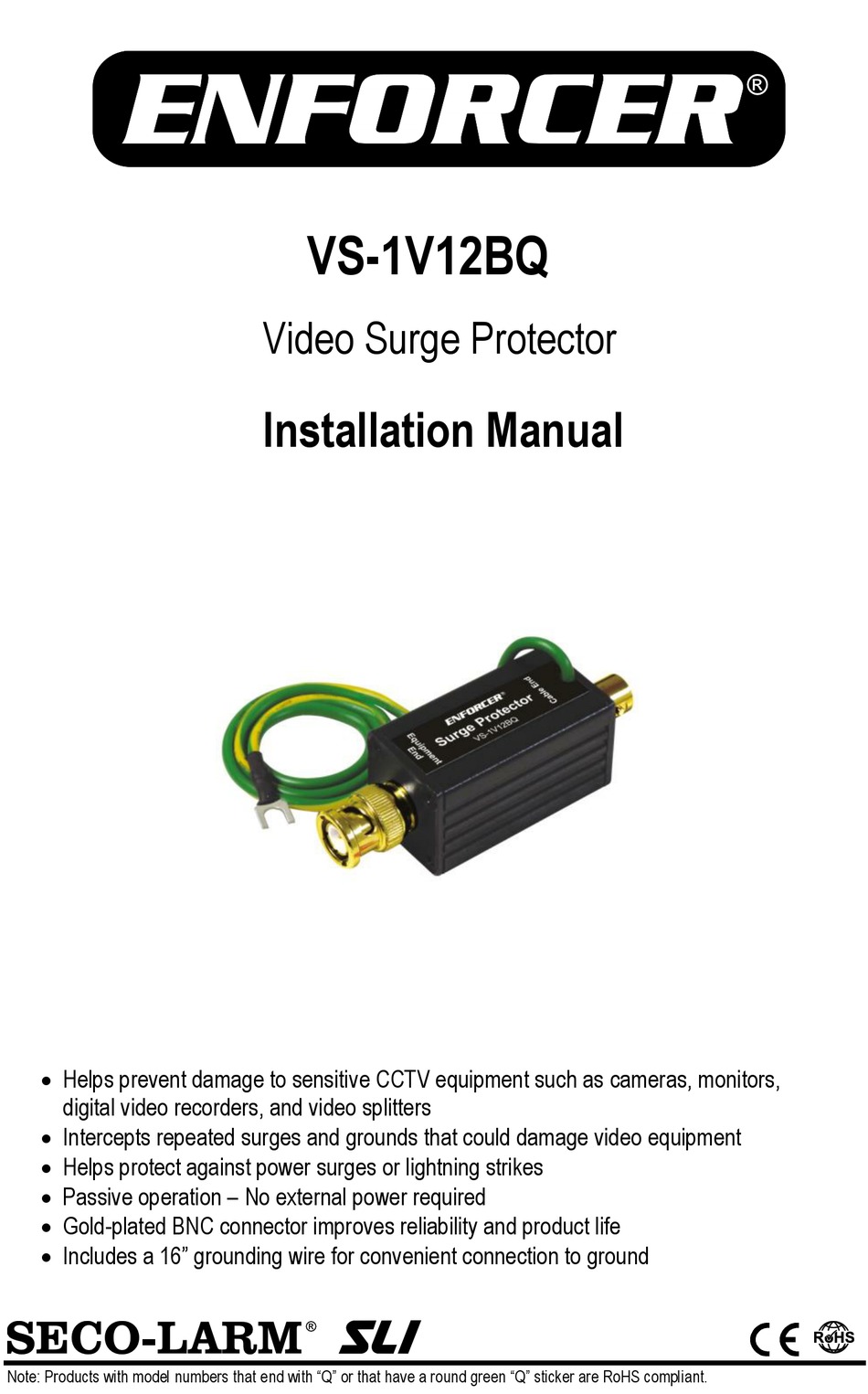

VS-1V12BQ
Video Surge Protector
Installation Manual
Helps prevent damage to sensitive CCTV equipment such as cameras, monitors,
digital video recorders, and video splitters
Intercepts repeated surges and grounds that could damage video equipment
Helps protect against power surges or lightning strikes
Passive operation – No external power required
Gold-plated BNC connector improves reliability and product life
Includes a 16" grounding wire for convenient connection to ground
Note: Products with model numbers that end with "Q" or that have a round green "Q" sticker are RoHS compliant.
Advertisement
Related Manuals for SECO-LARM Enforcer VS-1V12BQ
Summary of Contents for SECO-LARM Enforcer VS-1V12BQ
- Page 1 VS-1V12BQ Video Surge Protector Installation Manual Helps prevent damage to sensitive CCTV equipment such as cameras, monitors, digital video recorders, and video splitters Intercepts repeated surges and grounds that could damage video equipment Helps protect against power surges or lightning strikes ...
- Page 2 BNC connector. 7. Attach the DVR/Multiplexor BNC connector to the equipment side (male connector) of the second video surge protector. 8. Connect the ground wire of the second VS-1V12BQ to the metal chassis of the protected equipment. SECO-LARM U.S.A., Inc.
-
Page 3: Troubleshooting
Replace with a higher-grade cable. CAT5 cable meets Image is weak or faded. the specifications in the manual. CAT6 cable allows longer range. Double-check that the cables were connected properly. No image. Run a continuity test on all wires in the cable. SECO-LARM U.S.A., Inc. - Page 4 This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for a period of one (1) year from the date of sale to the original consumer customer. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM.
