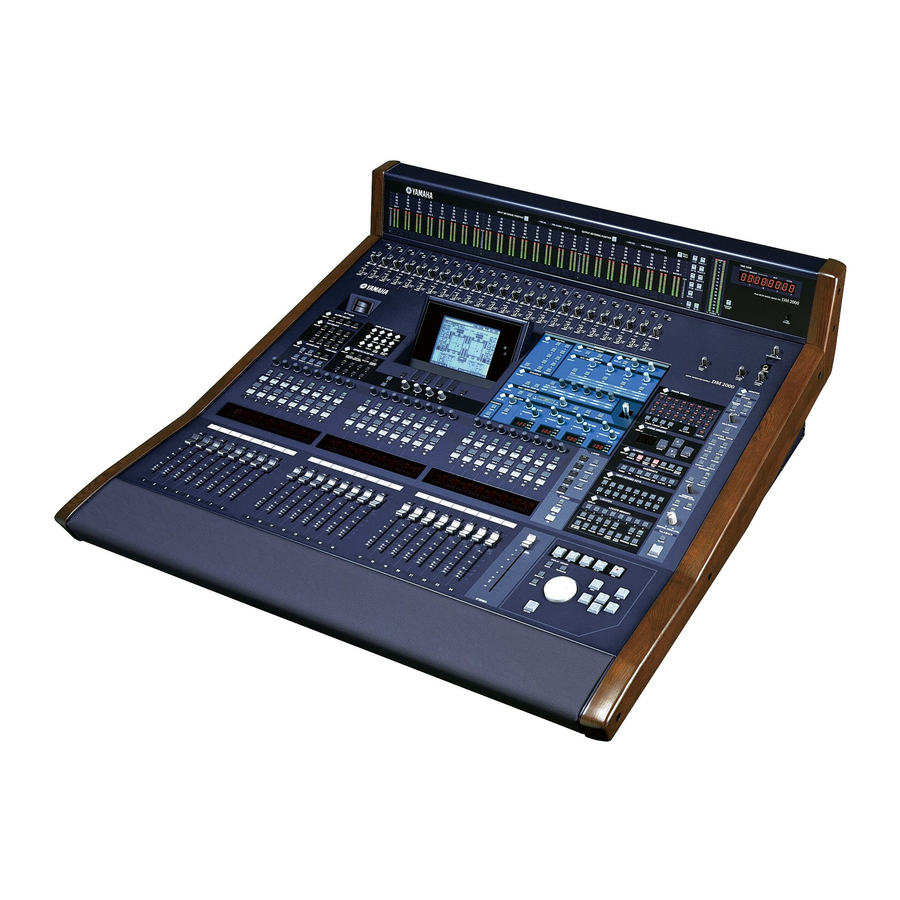

Yamaha DM2000 Digital Production Console
What You Need To Know At Startup:
Control Surface Layout
* System Setup
* Input Patching
* Input Channel Naming
* Effects Input Patching
* Output Patching
* Output Channel Naming
Input Channel Setup
Output Channel Setup
Assigning Subgroups
Storing & Recalling Scenes
* Once done, these are used infrequently unless system is modified.
Other important topics you will want to become familiar with:
Automation Computer
—
Aux Send Mode Change
—
Block Diagram (Signal Flow)
—
Copying Parameters
—
DAW Control
—
Diamond Buttons
—
Effects Processors
—
Fader & Mute Groups
—
Fader Recall Safe
—
GPI
—
Graphic Equalizers
—
Grouping Parameters
—
Initializing Console
—
I/O Patch Linking – v1.1 or later
—
Libraries
—
NOTE: Many signal path and function edits can be done more than one way
(hardware keys or via software). Choose your preference for each.
Orientation Guide
Machine Control
—
Metering, Levels & G.R.
—
Monitoring & Talkback / Oscillator
—
Pairing Inputs or Outputs
—
Pre / Post Sends
—
Preferences (your custom settings)
—
Rotary Encoders
—
Sixteen Ch. Card Use – v1.14 or later
—
SmartMedia
—
Stereo Inputs & Outputs
—
Studio Manager Software
—
Surround Sound – v1.1 or later
—
Time Fades
—
Updating the Operating System
—
User Defined Keys
—
Card Backup
™
Advertisement
Related Manuals for Yamaha DM2000
Summary of Contents for Yamaha DM2000
- Page 1 Yamaha DM2000 Digital Production Console Orientation Guide What You Need To Know At Startup: Control Surface Layout * System Setup * Input Patching * Input Channel Naming * Effects Input Patching * Output Patching * Output Channel Naming Input Channel Setup...
- Page 3 System Setup ≠ 1. Press DISPLAY ACCESS / [DIO]. 2. Keep pressing this button to locate “Word Clock Select” page. 3a. Set internal sampling rate as needed* OR… 3b. Select word clock input as needed. 4. Verify Fs box indicates “48KHz” and does not flash “UNLOCK”. 5.
- Page 4 Output Channel Names ≠ 1. Press LAYER / [MASTER]. 2. Press DISPLAY ACCESS / [OUTPUT PATCH]. 3. Keep pressing this button to locate “Output Channel Name” page. 4. Select output channel to name. 5. Edit long and/or short output channel names as needed. 6.
- Page 5 Assign Channel to Aux Output 1. Select the channel 2. On SELECTED CHANNEL / AUX/MATRIX, press [ON] switches as needed. 3. Adjust send [LEVEL] rotary encoder (pot) as needed. 4. Press [BANK] as needed to select other sends. Set Channel Pan Position 1.
- Page 6 Set Input Compressor 1. Select the channel 2. On SELECTED CHANNEL / DYNAMICS, press [COMP ON] button if unlit. 3. On SELECTED CHANNEL / DYNAMICS, press [DISPLAY]. 4. Keep pressing this button to locate “Compressor Library” page. 5. Recall program desired and edit if needed… OR…...
- Page 7 Set Output Delay 1. Select the output channel. 2. On SELECTED CHANNEL / DELAY, press [ON] button if unlit. 3. Adjust [TIME] knob as needed. Set Output Compressor 1. Select the output channel. 2. On SELECTED CHANNEL / DYNAMICS, press [COMP ON] button if unlit.
- Page 8 2. Press SCENE MEMORY [RECALL]. Important Comment on Digital Mixer System Operation: If your DM2000 is in a configuration with more than 24 microphone inputs, the remote microphone inputs are probably connected to the DM2000 with a digital signal connection; other components may also have digital signal connection with DM2000.
