Riello RS 70/M Installation, Use And Maintenance Instructions

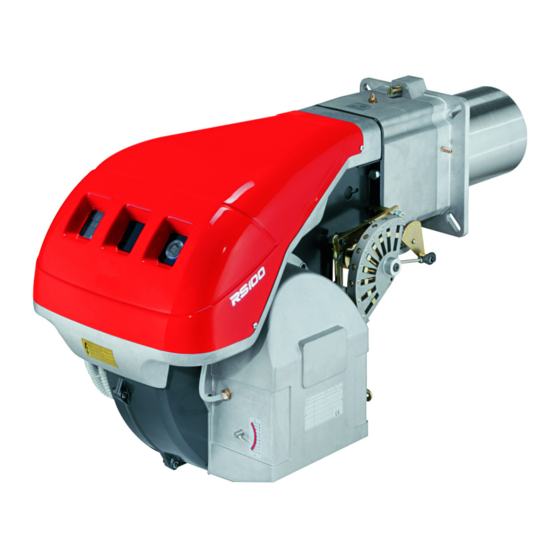

Forced draught gas burner
c9524300;c9524301;
c9524303;c9525300; c9525301;c9525302;
c9526300;c9526301
Hide thumbs
Also See for RS 70/M:
- Installation, use and maintenance instructions (76 pages) ,
- Installation, use and maintenance instructions (25 pages) ,
- Installation, use and maintenance instructions (72 pages)
Table of Contents
Related Manuals for Riello RS 70/M
Summary of Contents for Riello RS 70/M
- Page 1 Installation, use and maintenance instructions Forced draught gas burner Low-high-low or modulating operation CODE MODEL C9524300 - C9524301 - C9524303 RS 70/M C9525300 - C9525301 - C9525302 RS 100/M C9526300 - C9526301 RS 130/M 2915993 (6) - 11/2014...
-
Page 3: Table Of Contents
CONTENTS INFORMATION ABOUT THE INSTRUCTION MANUAL INFORMATION ABOUT THE INSTRUCTION MANUAL ..page 1 INTRODUCTION The instruction manual supplied with the burner: SAFETY AND PREVENTION ......2 is an integral and essential part of the product and must not be sepa- TECHNICAL DATA. -
Page 4: Safety And Prevention
SAFETY AND PREVENTION GUARANTEE AND RESPONSIBILITY The manufacturer guarantees its new products from the installation date, in accordance with the regulations in force and/or the sales contract. At INTRODUCTION the moment of the first start-up, check that the burner is integral and com- The burners have been designed and built in compliance with current plete. -
Page 5: Technical Data
TECHNICAL DATA Model RS 70/M RS 100/M RS 130/M Output High MBtu/hr 1761 - 3084 2644 - 4405 3521 - 5545 516 - 904 775 - 1291 1032 - 1625 MBtu/hr Fuel Natural or Propane gas - Max. delivery SCFH... -
Page 6: Burner Models Designations
Model RS 70/M RS 100/M RS 130/M Control circuit power supply V/Ph/Hz 120/1/60 Main electrical supply (+/- 10%) V/Ph/Hz 575/3/60 Fan motor IE2/EPACT 3475 3500 3500 W - HP 1100 - 1.5 2200 - 3 2200 - 3 Ignition transformer... -
Page 7: Burner Description
8)(A). PACKAGING - WEIGHT (B) - Approximate measure- inch A (1) ments • The burners are shipped skid mounted. RS 70/M 27 / 32 “ - 52 5 / 32 “ 1 / 8 “ 27 1 / 4 “... -
Page 8: Firing Rates
During operation, burner output varies between: • MAXIMUM OUTPUT, selected within area A, • and MINIMUM OUTPUT, which must not be lower than the minimum limit in the diagram. RS 70/M = 512 MBtu/hr RS 100/M = 568 MBtu/hr RS 130/M = 607 MBtu/hr Note... -
Page 9: Gas Pressure
GAS PRESSURE RS 70/M The adjacent diagrams are used to calculate manifold pressure taking into account combustion chamber pres- sure. Diagrams (A) Gas manifold pressure measured at test point 1)(B), with: • Combustion chamber at 0 “WC • Burner operating at maximum output •... -
Page 10: Installation
D455 boiler, it must be greater than the thickness of the boiler door complete with its insulation. The length available, L (inches), is as follows: Blast tube 12) RS 70/M RS 100/M RS 130/M • short “ “ “ 27 /32... -
Page 11: Combustion Head Setting
2 notches. Continuing with the previous example, page 7 indicates that for burner RS 70/M with output of 2200 MBtu/hr a pressure of approximately 2.36 “WC is necessary at test point 6)(A). If the pressure cannot be reached, open the ring 2)(B) to notch 4 or 5. -
Page 12: Gas Piping
GAS PIPING • The main gas train must be connected to the gas attachment 1)(A), using flange 2), gasket 3) and screws 4) supplied with the burner. • The gas train can enter the burner from the right or left side, depending on which is the most convenient, see fig. -
Page 13: Adjustments Before First Firing
ADJUSTMENTS BEFORE FIRST FIRING LOW GAS PRESSURE SWITCH HIGH GAS PRESSURE SWITCH AIR PRESSURE SWITCH Adjustment of the combustion head, and air and gas deliveries has been illustrated on page 9. In addition, the following adjustments must also be made: Open manual valves up-stream from the gas train. -
Page 14: Servomotor
SERVOMOTOR The servomotor gives simultaneous regulation of the air damper through the variable cam profile 4)(F) and the gas butterfly valve. It rotates by 130° in approx. 35 s. The factory settings must not be changed for the first fir- ing, just check that they comply with the details below. -
Page 15: Burner Starting
BURNER STARTING Position jumpers Trim potentiometers Close the control circuit, with the switch in fig. C) in the AUTO position. On firing (pilot burner and main valve) turn the switch (C) to MAN and the switch 1)(E) in the AUT position. Slide switch MAXIMUM OUTPUT Using button (B), "increase output"... -
Page 16: Air Pressure Switch
AIR PRESSURE SWITCH (A) AIR PRESSURE SWITCH Adjust the air pressure switch after having performed all other burner adjustments with the air pressure switch set to the start of the scale (A). With the burner operating at min. output, increase adjust- ment pressure by slowly turning the relative dial clock- wise until the burner locks out. -
Page 17: Burner Operation
BURNER OPERATION LFL 1.335 Series 01 BURNER STARTING Full Modulation • Load control close. Fan motor starts. • Servomotor starts: 130° rotation to right, until contact is made on cam 1)(A) page 13. The air damper is positioned to MAX. output. •... -
Page 18: Maintenance
MAINTENANCE FLAME INSPECTION WINDOW Combustion The optimum calibration of the burner requires an analy- sis of the flue gases. Significant differences with respect to the previous measurements indicate the points where more care should be exercised during maintenance. Gas leaks Make sure that there are no gas leaks on the pipework between the gas meter and the burner. -
Page 19: Burner Fault
BURNER FAULTS Control program under fault In case of any disturbance, the sequence mechanism stops and with it the lock-out indicator. The symbol above the reading mark of the indicator gives the type of disturbance: conditions and lock-out indication No start, e.g. because one contact is not closed. Lock-out during or after control program sequence due to extraneous light (e.g. -
Page 20: Electrical Wiring
ELECTRICAL WIRING NOTES ON SAFETY FOR THE ELECTRICAL WIRING The electrical wiring must be carried out with the electrical supply disconnected. Electrical wiring must be carried out by qualified personnel and in compliance with the regulations currently in force in the country of destination. -
Page 21: Calibration Of The Thermal Relay
To reset, in the case of an intervention of the thermal relay, press the but- ton 1). D8267 FUSE AND THREE PHASE CABLE CALIBRATION Three phase (IE 2/Epact) RS 70/M RS 100/M RS 130/M 208 - 230 V 460 V... -
Page 22: Motor Connection
Motor connection at 208-230 or 460V WARNING: the motors, manufactured for 208-230/460 IE2/Epact voltage, have a different connection than IE1 motors, no more star/delta but star/double star. Please, pay attention to the indications in case of modification of voltage, maintenance, or substitution. IE2/Epact S8380 S8379... -
Page 23: Spare Parts
APPENDIX - SPARE PARTS... - Page 24 RS 70/M RS 100/M RS 130/M CODE DESCRIPTION BURNER SERIAL NUMBER • • • • • • • • 3003948 AIR DAMPER ASSEMBLY • • • • • • • • 3003949 GRID • • • • • • •...
- Page 25 RS 70/M RS 100/M RS 130/M CODE DESCRIPTION BURNER SERIAL NUMBER • • 3012176 PROBE • • • 3012023 TUBE • • • 3012024 TUBE • • 3012025 TUBE • • • 3012961 DISC • • • • • 3012962 DISC •...
- Page 26 RS 70/M RS 100/M RS 130/M CODE DESCRIPTION BURNER SERIAL NUMBER • • • • • • • • 3012350 LEVER • • • • • • • • 3006098 PIN JOINT • • • • • • • •...
-
Page 27: Accessories
Kit for lengthening the combustion head = Standard length L1 = Length obtainable with the kit COD. 3010259 L = 9 “ L1 = 15 “ • RS 70/M 27 /32 5 /32 COD. 3010260 L = 9 27 /32 “ L1 = 15 5 /32 “... -
Page 28: Procedure To Refer Burner Operating Condition In High Altitude Plants
APPENDIX - PROCEDURE TO REFER BURNER OPERATING CONDITION IN HIGH ALTITUDE PLANTS Find the corrected burner capacity for the plant’s altitude in chart 1 and the corrected pressure in chart 2. Check in the firing rate graph of the burner (page 7), if the working point defined by the values above is within the range limits. If not, higher burner size is needed.
