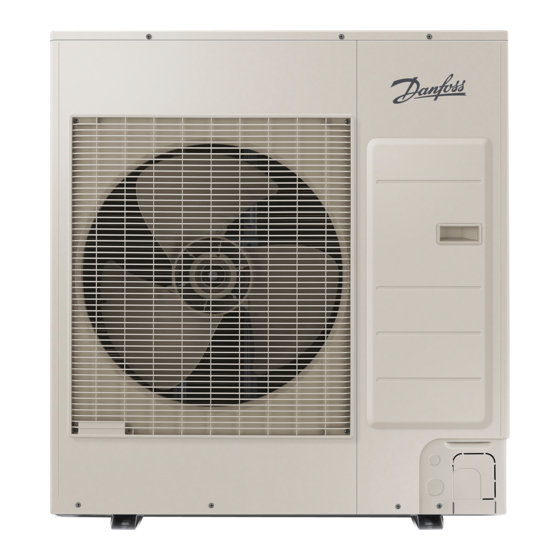

- Page 1 MAKING MODERN LIVING POSSIBLE Installation Guide DHP-iQ www.heating.danfoss.com...
- Page 2 Danfoss A/S is not liable or bound by warranty if these instructions are not adhered to during installation or service. The English language is used for the original instructions. Other languages are a translation of the original instructions. (Directive 2006/42/EC)
-
Page 3: Table Of Contents
6.4.3 DHP-iQ Maxi electrical components in the indoor unit ....... . - Page 4 Checking the electrical installation ..........VIJSS102 Danfoss Heating Solutions...
-
Page 5: About Documents And Decals
A fourth symbol is used to give practical information or tips on how to perform a procedure. Information regarding making the handling of the installation easier or a possible operational technical disadvantage. Danfoss Heating Solutions VIJSS102... -
Page 6: Symbols On Decals
Component, ordinary delivery according to proposed system solutions Components, accessories according to proposed system solutions 1.3.3 Pipe connections Tap water Heating system Expansion tank with safety valve, brine Air bleeding Temperature and pressure relief valve Outdoor unit Water heater VIJSS102 Danfoss Heating Solutions... -
Page 7: Important Information/Safety Regulation
General safety precautions Carefully follow the precautions listed as below because they are essential to guarantee the safety of Danfoss product. Store the manual in a safe place in order to be able to use it as reference after installation. Remember to hand it over to the new owner if the heat pump unit is sold or transferred. - Page 8 Protect the unit from rats or small animals. If an animal makes a con- Caution tact with the electric parts, it can cause malfunctions, smoke or fire. Please instruct the customer to keep the area around the unit clean. VIJSS102 Danfoss Heating Solutions...
- Page 9 The heat pump must be located on a stable base. The floor must be Caution able to support the gross weight of the heat pump with filled hot wa- ter tank. (DHP-iQ Maxi) It is important that the heating system is bled after installation. Bleed valves must be installed where necessary.
- Page 10 The safety valve overflow pipes must have an open con- nection to the drain and visibly flow into this in a frost-free environ- ment. Do not start the unit ( DHP-iQ Maxi) if there is a possibility of frozen Caution water in the immersion heater.
-
Page 11: Heat Pump Data
998 mm 1420 mm Height to supply line pipe 497 mm 513,4 mm 151,5 mm Height to return line pipe 227 mm 244,4 mm 83,5 mm Depth with protruding feets 364 mm 384 mm 384 mm Danfoss Heating Solutions VIJSS102... -
Page 12: Description Indoor Unit
Installation Guide DHP-iQ 3.1.2 Description indoor unit Indoor unit DHP-iQ Mini 1. Lead-in for supply, sensor and communication cables Indoor unit DHP-iQ Maxi 1. Supply line heating system,28 mm Cu 2. Return line heating system,28 mm Cu 3. Connection for bleed valve,22 mm Cu 4. - Page 13 Refrigerant Factory Charging (CO2 1150 (2401) 1400 (2923) 1500 (3132) 2600 (5428) 2600 (5428) equivalent) Φ, #, E(220~240V, E(220~240V, G(380~415V, E(220~240V, G(380~415V, Power Supply V, Hz 50Hz, 1Ф) 50Hz, 1Ф) 50Hz, 3Ф) 50Hz, 1Ф) 50Hz, 3Ф) Danfoss Heating Solutions VIJSS102...
-
Page 14: Dhp-Iq System Solution
According to F-gas directive EC 517/2014 ※ Heat Exchanger type : Condensor - Fin & Tube (Fin : Al, Tube : Cu), Plate Heat Exchanger(PHE) (STS) 3.1.4 DHP-iQ System solution Symbol key The following symbol key applies to all system solutions:... - Page 15 Shunt valve (distribution circuit 2) Flow switch Supply line sensor (distribution circuit 2) Shunt for additional heat Circulation pump (distribution circuit 2) Diverting valve hot water System circulation pump A Reversing valve cooling tank Heating out sensor Shut-off valve Danfoss Heating Solutions VIJSS102...
- Page 16 System solution DHP-iQ Mini DHP-iQ Mini includes the control module with supply and return line sensors. The heat pump produces only heat or cooling. Two heat- ing circuits can be connected, one using a shunt. The shunt is controlled by the heat pump control system. The flow line temperature is controlled with reference to the outside temperature following a set heat curve.
- Page 17 DHP-iQ System solution DHP-iQ Maxi DHP-iQ Maxi includes the control module with supply and return pipe sensors, circulation pump, 3-way valve, electric auxiliary heater and water heater. The heat pump produces heat, cooling and hot water. Production of heating and hot water cannot occur at the same time because the exchange valve for heating and hot water is positioned after the heat pump and the auxiliary heater.
- Page 18 Follow the supplier's instructions for mixing, but if none is given 35% is the lowest concentration recommended. To order and for more information about the intermediate exchanger and the circulation pump, contact Danfoss. No glycol mixtures may be used in systems with hot zinc dipped pipes Caution or components.
- Page 19 Installation Guide DHP-iQ Position Name Position Name Heat pump unit Adjustment valve Circulation pump Flexible hose Intermediate exchanger Safety valve (1.5 bar) Flow sensor Expansion vessel, closed Danfoss Heating Solutions VIJSS102...
-
Page 20: Transporting, Unpacking And Setting-Up
Make sure to safely dispose of packing materials. Packing materials, Caution such as nails and other metal or wooden pallets may cause children get injured. All the materials used for the manufacture and packaging of the air to water heat pump are recyclable. VIJSS102 Danfoss Heating Solutions... -
Page 21: Delivery Check
DHP-iQ 4.2.2 Delivery check Check that the delivery contains the following components: Quantity Heat pump (Outdoor unit) Indoor unit DHP-iQ Mini Indoor unit DHP-iQ Maxi Document set 1 Outdoor sensor (NTC) 1 Outdoor sensor (NTC) Package (drain plug, rubber leg) -
Page 22: Check List Before Installing
▪ The unit is designed to be used in a closed-loop system. Do not use any other components which are designed only for a open-loop system. ▪ Never use Zn-coated parts in the water circuit. VIJSS102 Danfoss Heating Solutions... -
Page 23: Heat Pump Foundation
▪ Ensure the wall will be able to suspend the weight of rack and outdoor unit. ▪ Install the rack close to the column as much as possible. ▪ Install proper grommet in order to reduce noise and residual vibration transferred by outdoor unit towards wall. Danfoss Heating Solutions VIJSS102... -
Page 24: Drain Work
If you don't have a good enough drain work, ice accumulates on the base, it may cause critical damage to the product. (e.g., a lakeside in a cold area, the seashore, an alpine region, etc ) VIJSS102 Danfoss Heating Solutions... - Page 25 3. When installing the unit in a place frequently exposed to snow, pay special attention to elevate the foundation as high as possible. Danfoss Heating Solutions VIJSS102...
- Page 26 ▪ If the product is installed in a region of heavy snow, allow enough separation distance between the product and the ground. ▪ When installing the product, make sure that the rack is not placed under the drain hole. ▪ Ensure that the drained water runs off correctly and safely. VIJSS102 Danfoss Heating Solutions...
-
Page 27: Select A Location In Windy Areas
When tightening the anchor bolt, tighten the rubber washer to pre- Caution vent the outdoor unit bolt connection part from corroding. Make a drain outlet around the base for outdoor unit drainage. 9-16kW 1. Anchor bolt hole Danfoss Heating Solutions VIJSS102... -
Page 28: Noise Information
▪ The outdoor unit must not be placed on its side or upside down, as the compressor lubrication oil will run into the cooling circuit and seriously damage the unit. ▪ Choose a location that is dry and sunny, but not exposed to direct sunlight or strong winds. ▪ Do not block any passageways or thoroughfares. VIJSS102 Danfoss Heating Solutions... - Page 29 Avoid locating the outdoor unit: ▪ Close to windows or walls to bedrooms etc. ▪ Facing nearby neighbours. ▪ In an inner corner of the building. It gives a very large effect on the direction of sound propagation. Danfoss Heating Solutions VIJSS102...
-
Page 30: Space Requirements For Outdoor Unit
The units must be installed according to distances declared, in order Caution to permit accessibility from each side, either to guarantee correct op- eration of maintenance or repairing products. The unit’s parts must be reachable and removable completely under safety condition (for peo- ple or things). VIJSS102 Danfoss Heating Solutions... - Page 31 The upper part of the outdoor unit and the air outlet is towards the wall (1500/2000 mm or more) When front and rear side of the outdoor unit is towards the wall (300/1500 mm or more) Danfoss Heating Solutions VIJSS102...
- Page 32 When front and rear side of the outdoor unit is towards the wall (300/600/1500 mm or more) When front and rear side of the outdoor unit is towards the wall (300/600/1500/3000 mm or more) 1500 3000 3000 VIJSS102 Danfoss Heating Solutions...
-
Page 33: Removing The Front Cover
1. Press against the front cover and turn the catch 90° degrees anti-clockwise to release the front cover. 2. Tilt the front cover outwards. 3. Lift the front cover upwards to remove it from the heat pump. Danfoss Heating Solutions VIJSS102... -
Page 34: Piping Installation
Cold and hot water pipes and overflow pipes from safety valves must Caution be made of heat resistant and corrosion-resistant material, e.g. copper. The safety valve overflow pipes must have an open connection to the drain and visibly flow into this in a frost-free environment. VIJSS102 Danfoss Heating Solutions... -
Page 35: Water Volume In Heating System
The flow switch must be installed described in the installation guide of Caution DHP-iQ. All electric wiring works shall be implemented by manuals which Danfoss provides . Before completing the installation works, make sure to check if the flow switch is installed horizontal and if flow direction is in parallel with pipe direction. -
Page 36: Charging Water
▪ Open the shut-off & drain valve in the water supply connection. ▪ Water pressure of supply line must over 2.0 bar for good charging work. ▪ Stop water supply when the pressure indicates around 2.0 bar. 9 kW 16 kW 1. Water outlet 2. Water inlet VIJSS102 Danfoss Heating Solutions... -
Page 37: Minimum Flow In The Heating System
Make sure that the dimensioning of the piping in the heating system is sufficient to get the minimum flow presented below: HP Size 16kW l/min Insufficient flow in the system may result in high pressure-, or low heat circulation flow alarms. Danfoss Heating Solutions VIJSS102... -
Page 38: Safety Valves
Installation Guide DHP-iQ Safety valves The water heater tank in Danfoss SP (1-phase) heat pumps are equip- Warning ped with a factory fitted temperature and pressure relief valve, (10 bar 90-95°C). The connection from this valve must not be used for other purpo- ses other than discharge pipe connection. -
Page 39: Piping Work
4. Fill water into the Outdoor Unit by opening shut-off & drain valve. 5. Purge the air. (Fill with a flushing unit with sufficient capacity: avoid aerating the water) 6. Circulate for long enough to ensure that all air has been bled from the complete water piping system. Danfoss Heating Solutions VIJSS102... -
Page 40: Pressure Relief Valve
In areas where there are exceptional water conditions with regards to hard water, a softening filter may be necessary to use/install (ap- plies to heating system, hot water and brine circuit). The softening filter softens the water, cleans any impurities and prevents the build- up of calcification. VIJSS102 Danfoss Heating Solutions... -
Page 41: The Outdoor Unit
(< 15°C ). The reason is to avoid the potential risk of freezing of the outdoor unit. Leave all radiator valves fully open. Danfoss Heating Solutions VIJSS102... -
Page 42: Electrical Installation
Always verify that all connections comply with the standards applicable to the installation of air to water heat pumps. Devices disconnected from the power sup- ply should be completely disconnected in the condition of overvolt- age category. VIJSS102 Danfoss Heating Solutions... - Page 43 -If it is not installed properly, it may cause electric shocks and fire. Fuse table Outdoor Unit Mains Fuse size Indoor Unit DHP- DHP-iQ Maxi (including immersion heat- Supply Mains Supply er) Fuse size 16kW Mini 12kW 15kW...
-
Page 44: How To Unmount The Outdoor Unit Electrical Cabinet
Then pull the side of the cover downward, as shown by the ar- rows in the image. For the 16kW outdoor unit, loosen the three screws, as shown in the image. Then pull the side of the cover downward, as shown by the ar- rows in the image. VIJSS102 Danfoss Heating Solutions... -
Page 45: Electrical Connection Points
208.3 and Com Circulation pump (distribution circuit 2) 201.5 and N Connecting self-regulating heating cable for draining L1.1, PE and N Flow switch connection Connect the flow switch to the yellow connector. 9 and 16 kW Danfoss Heating Solutions VIJSS102... -
Page 46: Indoor Unit
The indoor unit contains the necessary components for voltage supply, control systems and operation. The indoor unit must be installed in a frost-free environment. Caution 6.4.2 DHP-iQ Mini electrical components in the indoor unit Position Description Terminal block Hub card... -
Page 47: Cable Connections
When the power cable is to be connected to the terminal block a screwdriver is used to open the terminal block. Supply and return pipe sensor connection DHP-iQ Mini - no sensors connected upon delivery. DHP-iQ Maxi - both sensors connected upon delivery. -
Page 48: Sensors To External Water Heater Connection
Fig. 10: Connect control signal to circulation pump with variable speed 6.12 Circulation pump and distribution circuit 1 connection -M21 102.5 101.3 102.6 Fig. 11: Connect circulation pump distribution circuit 1 Fig. 12: Connect circulation pump distribution circuit 1 230VAC VIJSS102 Danfoss Heating Solutions... -
Page 49: Communication Cable Connection
Devices disconnected from the power supply should be completely Caution disconnected with a circuit breaker according to over voltage category 3. Keep distances of 50mm or more between power cable and communi- Caution cation cable.. Danfoss Heating Solutions VIJSS102... -
Page 50: Swimming Pool Sensor Connection
▪ The connection cord between indoor unit and outdoor unit. ▪ The power cable between outdoor unit and auxiliary circuit breaker. ▪ Specially for Russian and European market, before installation, the supply authority should be consulted to determine the supply system impedance to ensure compliance. VIJSS102 Danfoss Heating Solutions... -
Page 51: 1Between Indoor Unit And Outdoor Unit Connection Cable Specifications (Common In Use)
When installing the indoor unit in a computer room or network room, use the double shielded (Tape aluminum / polyester braid + cop- per ) cable of FROHH2R type. 6.17.2 1 Phase terminal block spec 5 kW 1(L) 2(N) 11.4 10.1 10.1 11.4 AC power : M5 screw Communication : M4 screw Danfoss Heating Solutions VIJSS102... -
Page 52: 33-Phase Terminal Block Spec
Connecting the power terminal ▪ Connect the cables to the terminal board using the compressed ring terminal. ▪ Cover a solderless ring terminal and a connector part of the power cable and then connect it. 1. Silver solder VIJSS102 Danfoss Heating Solutions... -
Page 53: Check List
Unit 5 kW 9 kW 16 kW Min water volume in heating system. DHP-iQ Mini Min water volume in heating system. DHP-iQ Maxi If the amount of water in the heating system is not sufficient, alarms may occur. Danfoss Heating Solutions... -
Page 54: Check List Before Commissioning The Unit
Installation Guide DHP-iQ For DHP-iQ Maxi, also check: Water heater checklist Not OK Bleed valve installed For DHP-iQ Mini, also check: External Water heater checklist Not OK Exchange valve installed 7.1.1 Check list before commissioning the unit Before commissioning the unit, make sure to check the following... - Page 55 Installation Guide DHP-iQ Danfoss Heating Solutions VIJSS102...
- Page 56 Internet: www.heating.danfoss.com Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective companies.
