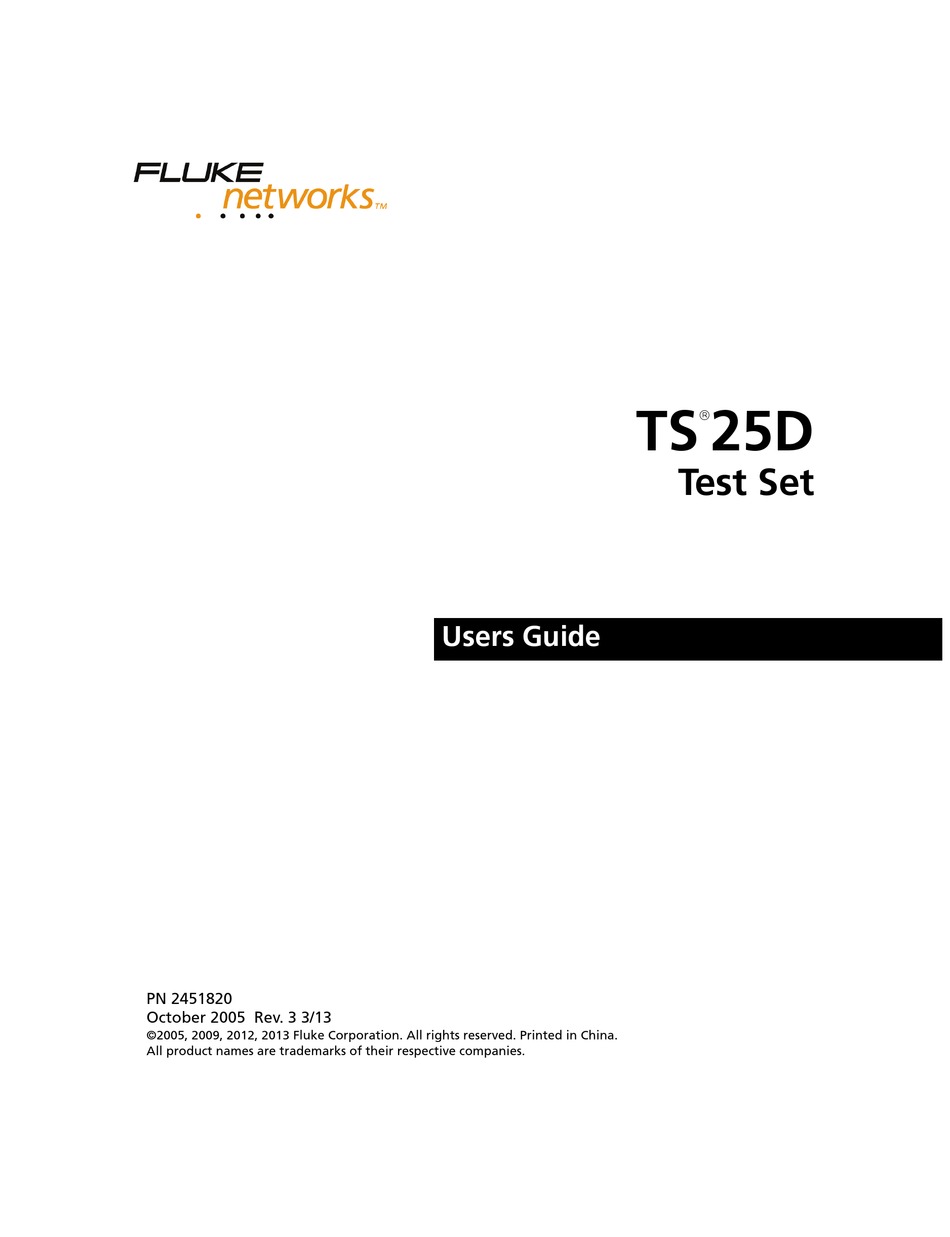

- Page 1 Test Set Users Guide PN 2451820 October 2005 Rev. 3 3/13 ©2005, 2009, 2012, 2013 Fluke Corporation. All rights reserved. Printed in China. All product names are trademarks of their respective companies.
- Page 2 Networks warrants that software will operate substantially in accordance with its functional specifications for 90 days and that it has been properly recorded on non-defective media. Fluke Networks does not warrant that software will be error free or operate without interruption.
-
Page 3: Table Of Contents
Table of Contents Title Page Introduction ..............................1 Registration ............................... 1 Contacting Fluke Networks ..........................1 Safety Information ............................2 Design Features ..............................2 Differences Between TS25D and TS25D CO Models ..................2 Physical Characteristics ............................. 2 Speaker ............................... 4 Belt Clip .............................. - Page 4 TS25D Test Set Users Guide Pause Duration ............................14 Flash Duration .............................14 System Timeout ............................15 Speaker Timeout ............................15 Data Lockout ..............................15 Firmware Version ............................15 Factory Settings ............................16 Maintenance ..............................16 Keypad Care ...............................16 Replacing the Battery ..........................16 Replacing the Line Cord ..........................17 Specifications ..............................18...
-
Page 5: Introduction
Hong Kong: 852 2721-3228 • Japan: 03-3434-0510 Registration • Korea: 82 2 539-6311 • Registering your product with Fluke Networks gives Singapore: 65-6799-5566 you access to valuable information on product updates, • Taiwan: (886) 2-227-83199 troubleshooting tips, and other support services. To •... -
Page 6: Safety Information
TS25D Test Set Users Guide • Safety Information Three main modes: Talk (off-hook), Monitor (on- hook and listening), and Off • The following IEC symbols are used either on the test Data Lockout and Override • set or in the manual: Low and High Voltage Lockout •... - Page 7 Physical Characteristics cac01.eps Power and Talk/ Puts the test set in Talk (T) or Monitor (M) mode. The center position turns the test set off. Monitor switch Arrows keys The left/up arrow key moves the LCD display’s cursor left or up. The right/down arrow key moves the cursor right or down.
-
Page 8: Speaker
Caution If the test set ever stops working, replace the battery. If Be sure the test set is not near your ear it still doesn’t work, contact Fluke Networks Technical when you turn on the speaker, as the Support. volume can be quite loud. - Page 9 Physical Characteristics cac02.eps Polarity In Monitor or Talk mode, the polarity icon indicates the dc polarity of the line. The Tip-Ring icon with no X indicates the red test lead is connected to the Ring (negative) side of the line and the black test lead is connected to the Tip (positive) side of the line.
-
Page 10: Modes And Functions
TS25D Test Set Users Guide Modes and Functions Talk Mode When the test set is connected to a working analog Warning telephone line and is switched to Talk mode, the test set will go off-hook and draw dial tone. An off-hook When testing circuits which are close to a TS25D test Set works like a standard telephone. -
Page 11: Data Lockout Override
Modes and Functions There is often no way to know by inspection or by The test set will override the lockout, will go off-hook audio monitoring if the wire pair you are connecting to and draw dial tone without disturbing the co-existing is a high-speed data line or not. -
Page 12: Low Voltage Lockout
TS25D Test Set Users Guide Going off-hook on a line carrying a high dc voltage can Talk Battery damage the power supply feeding the line. The test set The TS25D Test Set can power a dry telephone wire pair will prevent this from occurring. Unlike the data to enable voice communications between itself and lockout, there is no provision for the operator to another test telephone connected to the other end of... -
Page 13: Caller Id/Call Waiting Id
Modes and Functions Caller ID/Call Waiting ID Toner The TS25D Test Set will detect and display both on- The Toner function is useful when tracing the routing hook and off-hook caller ID messages. This is useful for of a pair of wires. When the Toner is activated, the verifying that a customer’s Caller ID service is working TS25D Test Set generates a tone onto the wire pair the properly. -
Page 14: Dtmf Detection
TS25D Test Set Users Guide Call and Dialing Functions DTMF Detection The TS25D Test Set allows the user to capture DTMF Note tones generated on a telephone line by telephones, fax Remove the protective film that covers the LCD machines, modems or any other DTMF generating display before using your test set. -
Page 15: Answering A Call
Call and Dialing Functions Answering a Call Memory Dialing To answer an incoming call: The TS25D Test Set allows the user to dial pre- programmed numbers in either Tone or Pulse mode. If Place the test set in Monitor mode to respond to dialing in Pulse mode and the stored number contains ∗... -
Page 16: Memory Programming
TS25D Test Set Users Guide Memory Programming After the entry is complete, press the SEL key to save the entry and return to the list of editing Each memory location will store a phone number up to options. 23 digits in length. If you enter more than 23 digits only the first 23 will be remembered. -
Page 17: Call List
Call and Dialing Functions The screen displays NAME and the text entry 11 Pressing the BACK key three times will take you previously stored in this location. Modify the text back up through the menu selections to the main using the Up arrow to erase text and the test set’s operating screen. -
Page 18: Configuring The Test Set
TS25D Test Set Users Guide If the test set is off-hook, press the SEL key to dial Timing the selected entry. Use the Timing option to set the Pause duration and the Flash duration. Configuring the Test Set Pause Duration This section tells you how to use the menus to To set the Pause duration: configure the test set. -
Page 19: System Timeout
Configuring the Test Set System Timeout Highlight the desired time with the arrow keys, then press the SEL key, or press one of the The System Timeout function turns off the tester after following keys on the keypad: a selected period of inactivity. After the test set turns off, you can turn it on by switching the Talk/Off/ 1 - 2 minutes (TS25D CO default) Monitor switch to off then to either Talk or Monitor. -
Page 20: Factory Settings
TS25D Test Set Users Guide Factory Settings If moisture should get inside the test set, let the test set dry at normal room temperature for 24 hours. DO NOT You can reset the TS25D Test Set to its original factory HEAT THE TEST SET. -
Page 21: Replacing The Line Cord
Figure 3 so the polarity icon will the user. To obtain a replacement line cord contact work correctly. your local distributor or Fluke Networks. 10 Push both line cord wires down into the notch in the case. -
Page 22: Specifications
TS25D Test Set Users Guide DTMF Output Tone Frequency ±1.5 % maximum Error Tone Level –1 dBm combined (typical) High versus Low 2 dB ± 2 dB Tone Difference Memory Dialing Memory 10 speed dial memories plus Capacity one last number redial memory Digit Capacity 23 digits per memory...
