Summary of Contents for TCL MB20G MOVEBAND Display

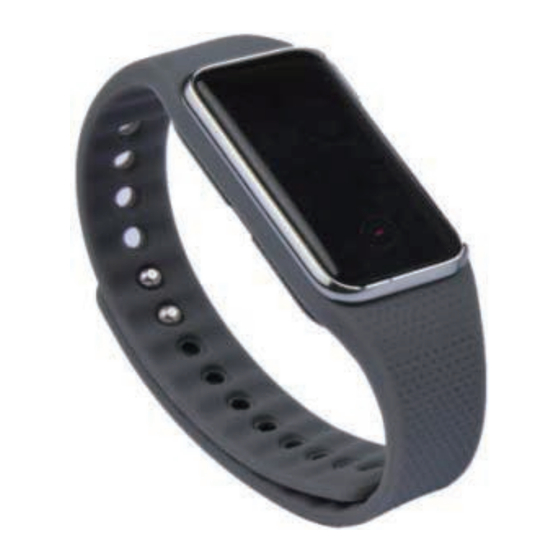

- Page 1 MOVEBAND Display User Manual...
- Page 2 Overview Features • Track daily fitness activity including steps taken, distance covered, calories burned, etc. • Track sleep quality including hours slept, time taken to fall asleep, wake-up times, etc. • Reminders to push you move when you have been sedentary for too long. • In depth data analysis and customised targets. • Ergonomic design, comfortable to wear. • Simple synchronisation via Bluetooth. • Up to five days of battery life. • Splash proof.
-
Page 3: Getting Started
Getting Started Charging Remove the MOVEBAND Display from the wristband and place inside the charging dock. Plug the USB port into a computer or USB charger for power. Charging Charge complete Notes: • Following air regulation, the battery of your product is not charged. Charge it first before using. • If the charging port is corroded or dirty, it will seriously affect the charging process. After playing sports, wipe away any sweat or dirt from your band before charging. -
Page 4: Download And Install The Application
Download and install the application Long press the touch button for 3 seconds to power on. Scan the QR code to download and install the application. Launching the application Connection 1. Turn on Bluetooth. 2. Touch the App icon. After the introduction interface, touch "Experience now" to enter the Home page. 3. Select "Tracker mode" and click "Pair device". A dialog box will then appear on your device and simultaneously 6 digits will appear on the screen of your MOVEBAND Display. Input the 6 digits and then click "Pair". 4. Once paired successfully, the date, battery status, fitness activity status and sleep status will display on your band. Login Click to enter the user interface, then click to create an account to log in. - Page 5 Friends Add friends registered in the same group and invite friends from your phone contacts. Device configuration Configure the time display, alarms and notification settings. Remind Clock alarm: Click to set your clock. Remind: Set reminders to push yourself to get up and get active. Settings Start up mode: Select phone mode or tracker mode. Equipment pairing: Search and pair tracker. Updates: Hardware updates. App updates: Updates for App. Contact us: Display contact information. Feedback: Send your feedback to supplier. Tracker mode Sport monitoring Click to check distance covered, steps taken, time taken, calories burnt and targets.
- Page 6 Monthly data: Shows daily data/weekly data (optional). (Click 3 times.) Sleep monitoring Click to check your sleep status. Sleep cycle: Monitor your sleep cycle automatically and record the quality of your sleep, such as deep, light and awake. Daily data: Shows 1 day’s data. (Click 1 time.) Weekly data: Shows 7 days' data. (Click 2 times.) Monthly data: Shows daily data/weekly data (optional). (Click 3 times.) Phone mode Slide "Slide to begin", and your MOVEBAND Display will record distance, times, calculate speed etc. Click "Set target" to set and save your sport target. Click to check distance covered, time taken and calories burned.
- Page 7 Once: The time is displayed. Twice: The date is displayed. Three times: The number of steps taken is displayed. Four times: The distance covered is displayed.
- Page 8 Five times: The number of calories burned is displayed. Certification WEEE Approval This device is in compliance with the essential requirements and other relevant provisions of the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE Directive). This symbol on device means that these products must be taken to collection points at the end of their life: - Municipal waste disposal centres with specific bins for these items of equipment. - Collection bins at points of sale. They will then be recycled, preventing substances being disposed of in the environment, so that their components can be reused. In European Union countries: These collection points are accessible free of charge.
- Page 9 Licences The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by TCL Communication Ltd. and its affiliates is under license. Other trademarks and trade names are those of their respective owners. TCL MB20G Bluetooth Declaration ID D031563 We hereby point out that the end user warranty for infringement IPR is solely limited to the EU.
-
Page 10: General Information
This radio equipment operates with the following frequency bands and maximum radio-frequency power: Bluetooth: < 20 dBm Hereby, TCL Communication Ltd. declares that the radio equipment type TCL MB20G is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http:/ /www.tclcom.com/ wearables/EU_doc. -
Page 11: Warranty
Warranty The device is warranted against any deviation from technical specifications for a period of twelve (12) months from the date specified on your original invoice. Under the terms of this warranty, you must immediately inform your vendor in case of a conformity defect on this device, and present a proof of purchase. The vendor or repair center will decide whether to replace or repair this device, as appropriate. Repair or replacement of this device is warranted for ONE (1) month unless there are statutory provisions to the contrary. This warranty shall not apply to damage or defects to this device due to: 1) Not following the instructions for use or installation. 2) Not being compliant with technical and safety standards applicable in the geographical area where this device is used. - Page 12 6) Any servicing, modification or repair performed by individuals not authorised by the manufacturer, the vendor or the approved maintenance centre. 7) Use of this device for a purpose other than that for which it was designed. 8) Malfunctions caused by external causes (e.g., radio interference from other equipment, power voltage fluctuations). 9) Faulty connections resulting from unsatisfactory radio transmission or caused by the absence of radio relay coverage.
