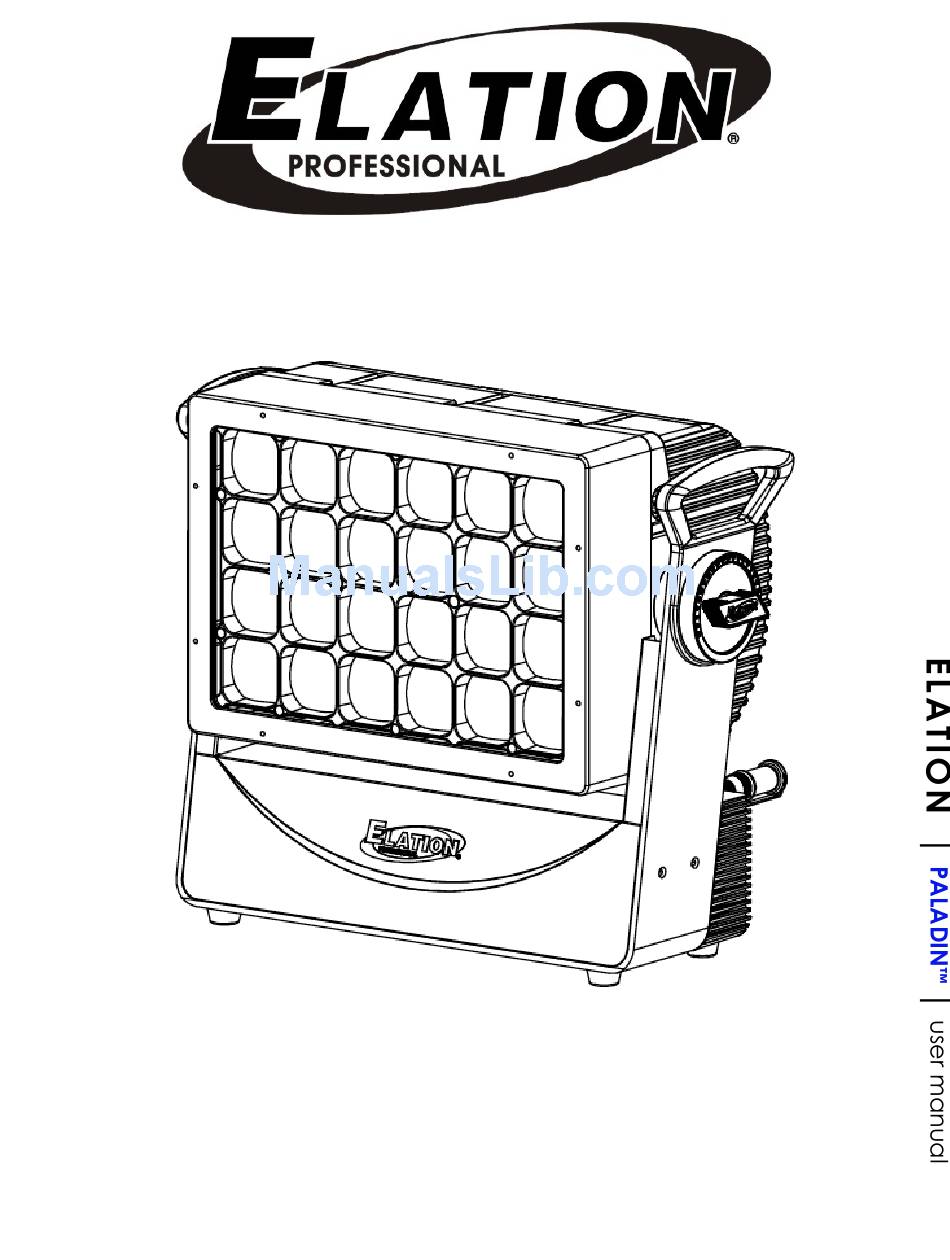

- Page 1 PALADIN™ user manual ...
- Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com Elation Professional B.V.
-
Page 3: Table Of Contents
. e l a t i o n l i g h t i n g . c o m C O N T E N T S General Information Warranty Safety Instructions and Guidelines Overview Installation Fixture Menu DMX Channel Functions And Values Pixel Control Cleaning and Maintenance Technical Specifications Optional Accessories PALADIN™ User Manual... -
Page 4: General Information
O P T I O N A L C O R R O S I O N - R E S I S T A N T C O A T I N G Optional Corrosion-Resistant Coatings may be available for this fixture. Please consult your Elation Professional sales representative for details. PALADIN™ User Manual... - Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...
- Page 6 Damages resulting from modifications to this fixture and/or the disregard of safety and general user instructions found in this user manual void the manufactures warranty and are not subject to any warranty claims and/or repairs. PALADIN™ User Manual...
-
Page 7: Warranty
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. -
Page 8: Safety Instructions And Guidelines
RETINA INJURY RISK - MAY INDUCE BLINDNESS! SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK! ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY SEALED WITH A DIELECTRIC GREASE (AVAILABLE AT MOST ELECTRICAL SUPPLIERS) TO PREVENT WATER CORROSION AND/OR ELECTRICAL SHORT CIRCUIT. PALADIN™ User Manual... - Page 9 Consistent operational breaks will ensure the fixture will function properly for many years to come. Use the original packaging and materials to transport the fixture in for service. PALADIN™ User Manual...
-
Page 10: Overview
O V E R V I E W 1. LCD Menu Display, MENU, UP, DOWN, ENTER Buttons 2. Manual TILT Adjustment Knobs 3. powerCON TRUE1 IN 4. 5pin DMX IN 5. 5pin DMX OUT 6. powerCON TRUE1 OUT PALADIN™ User Manual... -
Page 11: Installation
10 times the weight of the fixture. Fixture installation must always be secured with a secondary safety attachment, such as an appropriate safety cable. Never stand directly below the device when mounting, removing or servicing. PALADIN™ User Manual... - Page 12 SAFETY CABLE RIGGING POINT S A F E T Y C A B L E ALWAYS ATTACH A SAFETY CABLE TO THE FIXTURE WHENEVER INSTALLING IN A SUSPENDED ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT DROP IF CLAMP FAILS. PALADIN™ User Manual...
- Page 13 If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury. PALADIN™ User Manual...
- Page 14 . e l a t i o n l i g h t i n g . c o m CONNECTIONS TO MAINTAIN IP65 RATING INTEGRITY AND PREVENT WATER FROM ENTERING THE FIXTURE, ALL UNUSED CONNECTION RUBBER CAPS MUST BE SEALED. PALADIN™ User Manual...
- Page 15 K N O B S T O P R E V E N T U N W A N T E D F I X T U R E H E A D M O V E M E N T . PALADIN™ User Manual...
-
Page 16: Fixture Menu
LCD control panel display will turn OFF and become LOCKED after non-use. To UNLOCK, press the MODE button. INFORMATION DISPLAYED DURING INITIAL POWER ON When the fixture is initially powered ON, the display shows the following information: DMX: 21CH Reset... Update Wait... ADDR:001 PALADIN™ User Manual... - Page 17 . e l a t i o n l i g h t i n g . c o m ELATION© PALADIN™ | S Y S T E M M E N U Supports Software Versions: ≥ 1.06 Features are subject to change without any prior written notice.
-
Page 18: Dmx Channel Functions And Values
0 to 100% RED [PIXEL SET #4 Extend] 0-255 0 to 100% GREEN [PIXEL SET #4 Extend] 0-255 0 to 100% BLUE [PIXEL SET #4 Extend] 0-255 0 to 100% WHITE [PIXEL SET #4 Extend] 0-255 0 to 100% PALADIN™ User Manual... - Page 19 Pulse Effect in Sequences 160-191 LED ON 192-223 Random Strobe Effect SLOW to FAST 224-255 LED ON DIMMER INTENSITY 0-255 Dimmer 0 to 100% DIMMER INTENSITY FINE 0-255 Dimmer FINE Adjustment ZOOM 0-255 Zoom 0% to 100% PALADIN™ User Manual...
- Page 20 175-190 PROGRAM MACRO 11 191-206 PROGRAM MACRO 12 207-222 PROGRAM MACRO 13 223-238 PROGRAM MACRO 14 239-255 PROGRAM MACRO 15 PROGRAM MACRO SPEED 0-255 SLOW to FAST Speed PROGRAM MACRO FADE 0-255 FAST to SLOW Fade Time PALADIN™ User Manual...
- Page 21 COLOR PRESET 23 93-96 COLOR PRESET 24 97-100 COLOR PRESET 25 101-104 COLOR PRESET 26 105-108 COLOR PRESET 27 109-112 COLOR PRESET 28 113-116 COLOR PRESET 29 117-120 COLOR PRESET 30 121-124 COLOR PRESET 31 125-128 COLOR PRESET 32 PALADIN™ User Manual...
- Page 22 237-240 COLOR PRESET 60 241-244 COLOR PRESET 61 245-248 COLOR PRESET 62 249-252 COLOR PRESET 63 253-255 COLOR PRESET 64 DIMMING CURVE MODES 0-20 STANDARD 21-40 STAGE 41-60 61-80 ARCHITECTURAL 81-100 THEATRE 101-255 Default to Unit Setting PALADIN™ User Manual...
-
Page 23: Pixel Control
P I X E L C O N T R O L The fixture features pixel control, which varies depending on the selected DMX channel mode. See the diagrams below, which illustrate the specific pixel mapping for each DMX channel mode. PALADIN™ User Manual... - Page 24 Each pixel set includes a group of 4 adjacent LEDs and there are a total of 6 pixel sets. (See diagrams below) *PIXEL CONTROL AND DIRECTION OF EFFECTS ARE BASED ON TILT POSITION ILLUSTRATED BELOW. PALADIN™ User Manual...
-
Page 25: Cleaning And Maintenance
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer. -
Page 26: Technical Specifications
990W Max Power Consumption 5°F to 113°F (-15°C to 45°C) APPROVALS / RATINGS IP65 Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. PALADIN™ User Manual... - Page 27 . e l a t i o n l i g h t i n g . c o m DIMENSIONAL DRAWINGS PALADIN™ User Manual...
-
Page 28: Optional Accessories
Heavy Duty 2 inch Pro Clamp SCABLE60 Safety Cable 24” (610mm) 60 lbs. (27kg) Rating DRCPALADIN PALADIN Quad Road Case * * * TBA * * * PALADIN Barn Doors * * * TBA * * * PALADIN Egg Crate NEU088 3 ft. - Page 29 . e l a t i o n l i g h t i n g . c o m (left blank) PALADIN™ User Manual...
