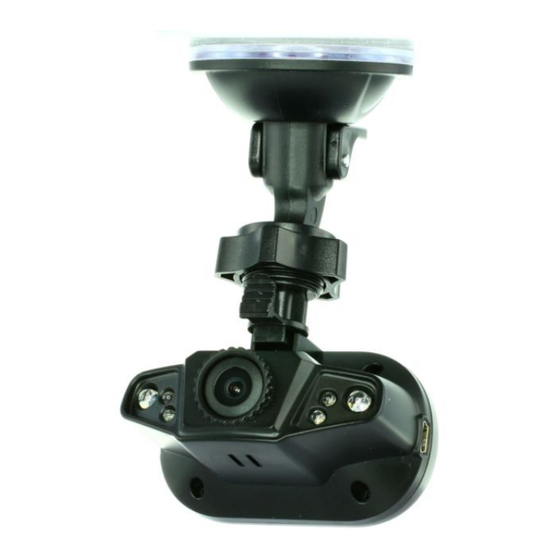

US ER MANUAL NAV-502FHDi Please read carefully before use It is recommended to use a C lass 4 ( 4Mb/ s write speed) Micro SDHC card for optimal performance.
US ER MANUAL NAV-502FHDi Important S afety Instructions and Precautions Product Connections and Use What’s in the box FEATURES AND OPERATION Power on/ off function (auto on/ off) Auto Record when turned on Installation on the car windscreen Recording Video Mode S etting (on screen menu options)
FEATURES AND OPERATION * Memory Card required for operation The NAV-502FHDi requires a Micro S D card (not included) to record video / image content. (see page 9 for a table showing S D card capacity and the relevant amount of video / image content able to be stored).
NAV-502FHDi Power on/ off function (auto on/ off) To turn on the NAV-502FHDi, press the power button on the side of the device. To turn off, press the same power button. When connected to the 12v DC socket (cigarette socket) of your car, the NAV- 502FHDi will turn on and off automatically when the car’s ignition is turned on or off.
NAV-502FHDi Video Mode Setting (on screen menu options) Turn on the NAV-502FHDI and press the “OK” button to stop recording. Press the MENU button to enter the VIDEO MODE settings menu. Press the ▲/ ▼ buttons to select one of the setting options and press then OK to select that option.
Page 6
US ER MANUAL NAV-502FHDi Available Options: Menu Selection Options Option Description Option Date / S elect [OK] Use this option to set the date and Time: time on the device. S hould the device not be used for a long period of time...
Digital Still Camera (DSC) Mode S ettings: Turn on the NAV-502FHDI and press the “OK” button to stop recording. Press the MODE button until the camera icon appears in the top left of the LCD display. Next press MENU to enter into DS C mode settings.
Review: Playback Mode Setting Turn on the NAV-502FHDI and press the “OK” button to stop recording. Press the MODE button until the either the “play” triangle icon icon appears in the top left of the LCD display. Next press MENU to enter into Playback mode settings. Press the ▲/ ▼ buttons to...
US B Connection Connect the NAV-502FHDI to a Windows (XP or 7) PC with the US B cable (included). The screen will display MAS S S TORAGE and PC CAMERA. S elect MAS S S TORAGE. MAS S S TORAGE will Under “My computer”...
Page 10
Once the wiring and installation of the NAV-502FHDi have been completed, please check the following: - With the car’s ignition on (or engine started), the red LED indicator on the NAV-502FHDi will light up and the LCD screen should turn on. Recording should start automatically. This will indicate a successful installation –...
US ER MANUAL NAV-502FHDi TROUBLE SHOOTING / Q & A Fault Suggestion Device does not If in vehicle: check that the 12V socket is not still powered (on) when the key is turn off removed (as with some European cars).
Page 12
Warranty Against Defects Navig8r is a brand sold and marketed by Laser Corporation Pty Ltd (“Laser”). Laser hereby warrants your new product to be free from defects in materials and workmanship for 12 months, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided.
