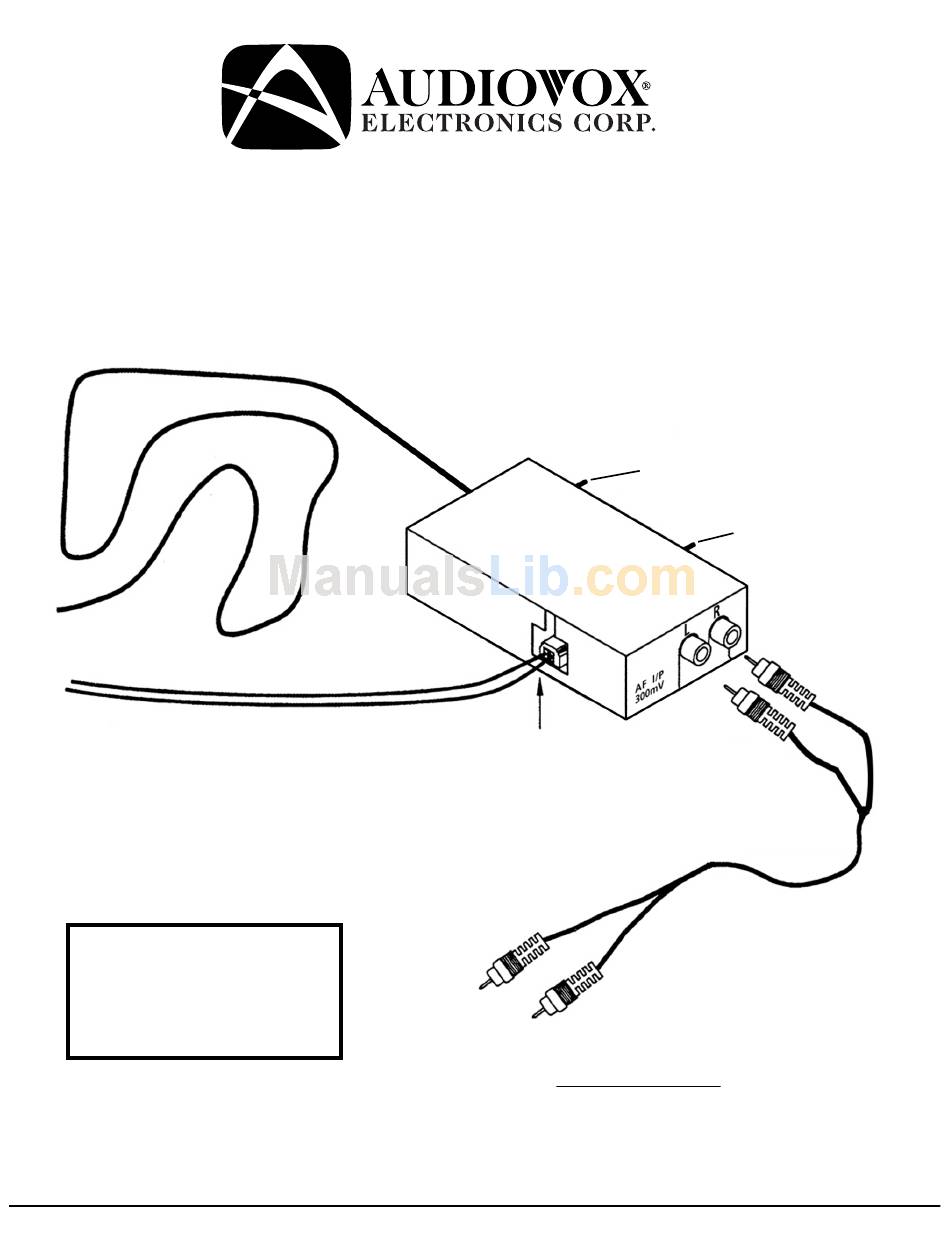

Wireless RF Transmitter Installation Sheet
POWER INPUT
RED = 12V + ACCESSORY
BLACK = GROUND
CONNECT THE AUDIO OUTPUT
OF THE FOLLOWING:
VOH641/642/681/682
AVP7000/7180/7200/7280
TO THE RED AND WHITE AUDIO
INPUTS OF THE TRANSMITTER
ANTENNA CORD
ANTENNA CABLE SHOULD
BE UNROLLED FOR BEST
PERFORMANCE
WTXRF01
TRANSMITTER
DOUBLE SIDED VELCRO
FOR EASE OF MOUNTING
(ON UNDERSIDE-NOT SHOWN)
RED RCA JACK
Channel Selection
Ch. 1 ........... 49.1MHz
Ch. 2 ........... 49.7MHz
CHANNEL SELECT SWITCH
CHANNEL 1, CHANNEL 2
POWER SWITCH
ON / OFF
WHITE RCA
JACK
WHITE RCA JACK
RED RCA JACK
128-5971
