Use and Care Manual
SERVICE MANUAL

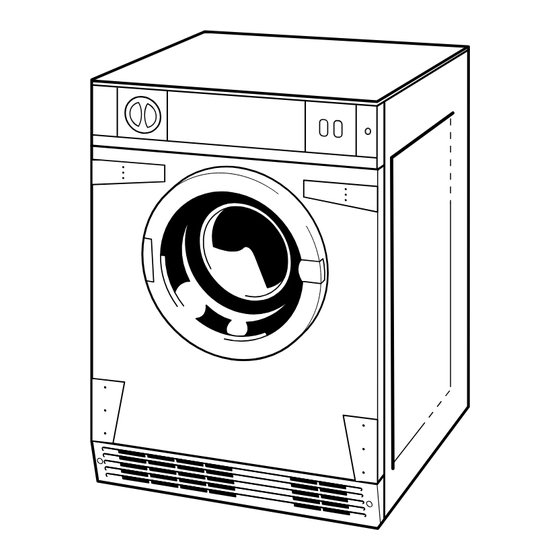

White Knight - 831WV
Integrated Sensing Dryer - UK
0312 831 15020
Technical Data
Exploded Views
Wiring Diagram
Parts List
November 2016
Advertisement
Related Manuals for White Knight 831WV
Summary of Contents for White Knight 831WV
- Page 1 SERVICE MANUAL White Knight - 831WV Integrated Sensing Dryer - UK 0312 831 15020 Technical Data Exploded Views Wiring Diagram Parts List November 2016...
- Page 2 Exploded View 1 203a 363a...
- Page 3 Exploded View 2 445a...
-
Page 4: Exploded View
Exploded View 3... - Page 5 Rotary Sensing Air Vented Dryer - Wiring Diagram Anticrease Neon ST-SW K D D 8 Position 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 Rotary Selector TB-L B/K D-SW TB-N...
- Page 6 Sensing Integrated Dryer - Parts List Item Description Code Expl.View 4213 092 25611 Motor & 8uf Capacitor Assembly - See Below * 8µf Capacitor 4213 092 08091 Drive Belt 4213 092 18601 Mains Cable 4213 076 35123 Terminal Block 4213 078 44613 Earth Tab Assembly 4213 092 41181 Cabinet Assembly...
- Page 7 Sensing Integrated Dryer - Parts List Sensing Strip Assembly 4213 092 05691 Banjo Assembly 4213 092 17811 Front Bearing (short) 4213 077 40952 Front Seal 4213 077 40942 Lifter 4213 077 41248 Front Bearing (long) 4213 077 40962 445a Bearing Pads & Brush Seal Kit 4213 092 21171 4213 077 40896 2 &...
