Instruction Manual

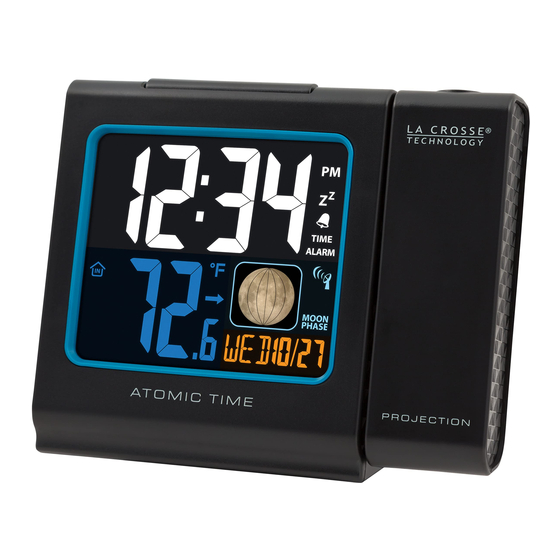

Atomic Projection Alarm Clock
BUTTONS
FRONT
VIEW
Time, Alarm
with Snooze
Indoor
Temperature +
Trends
BACK
VIEW
Compartment
AC Power Jack
HX-0500600U
Model: 616-146A
Snooze/Backlight
Battery
2 "AAA"
www.lacrossetechnology.com/support
Model: 616-146A
Quick Setup Guide
DC: 070314
Projection
Arm
Rotates 180°
Moon Phase
+ Calendar
USB
Charge
Port 0.5A
Page | 1
Advertisement
Related Manuals for La Crosse Technology 616-146A
Summary of Contents for La Crosse Technology 616-146A
- Page 1 Model: 616-146A Quick Setup Guide DC: 070314 Atomic Projection Alarm Clock BUTTONS Snooze/Backlight FRONT VIEW Time, Alarm Projection with Snooze Rotates 180° Indoor Moon Phase Temperature + + Calendar Trends BACK VIEW Battery Compartment 2 “AAA” AC Power Jack HX-0500600U Charge Port 0.5A...
-
Page 2: Get Started
Hold the ALARM button to enter alarm time set mode. Use the +/TEMP or -/TIME buttons to adjust values. Press the ALARM button to confirm adjustments and move to the next item. Alarm Time setting order: Hours Minutes Model: 616-146A www.lacrossetechnology.com/support Page | 2... -
Page 3: Activate / Deactivate Time Alarm
Change Projection Modes: Hold, then release the PROJECTION button to switch projection modes. Watch the projection image to view the changes. • Time and Indoor Temperature: alternate every 5 seconds (default) • Time • Indoor Temperature USB CHARGE PORT Model: 616-146A www.lacrossetechnology.com/support Page | 3... - Page 4 Temperature has not changed in the past 3 hours. • Temperature has fallen in the past 3 hours. LOW BATTERY ICON If the icon is displayed in Indoor Temperature section, Battery replace batteries in the projection clock. Icon CARE AND MAINTENANCE Model: 616-146A www.lacrossetechnology.com/support Page | 4...
- Page 5 Battery life is over 24 months when using the AC adapter for primary power Battery Backup: Dimensions: 5.23” L x 1.96” W x 4.33” H Projection Alarm: (133 x 50 x 110 mm) POSITION PROJECTION ALARM Model: 616-146A www.lacrossetechnology.com/support Page | 5...
-
Page 6: Warranty And Support
Position near an exterior wall that faces Ft. Collins Colorado for WWVB time signal reception. WARRANTY AND SUPPORT La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship.
