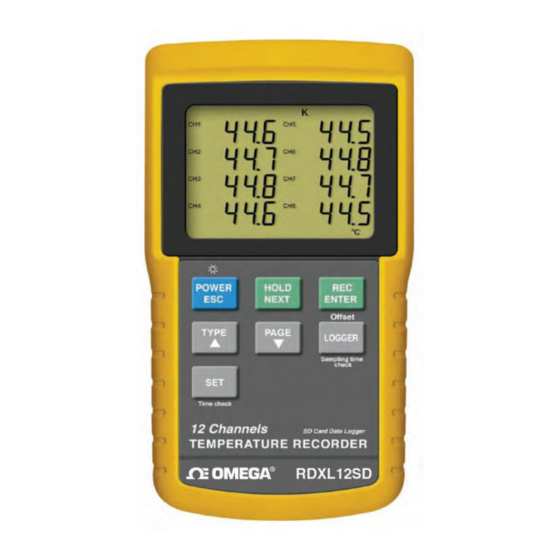

- Page 1 User’ s Guide Extended Warranty Program Shop online at omega.com e-mail: info@omega.com For latest product manuals: omegamanual.info MADE IN TAIWAN RDXL12SD 12-Channel Temperature Recorder with Data Logging SD Card...
- Page 2 ® Online Service Internet e-mail omega.com info@omega.com Servicing North merica: U.S.A.: Omega Engineering, Inc., One Omega Drive, P.O. Box 4047 ISO 9001 ertified Stamford, CT 06907-0047 USA Toll Free: 1-800-826-6342 TEL: (203) 359-1660 FAX: (203) 359-7700 e-mail: info@omega.com Canada: 976 Bergar...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Table of Contents Section Page Introduction ....................... 1 Key Features ....................... 1 Operating Instructions ..................2 What’s in the case ..................2 Setup 3 Adjusting thermocouple offsets ..............5 Normal operation..................5 Holding and storing measurements............6 Automatic vs. manual datalogging............6 Transferring data from an SD card to a computer........7 Specifications ..................... -
Page 4: Introduction
SD card reader. The data logs are stored on the card as files with the .xls extension, which can be opened by Microsoft’s Excel application. The RDXL12SD has a backlit 2-1/2 inch diagonal display and is powered by eight AA Alkaline batteries or an optional 9-VDC AC adapter. -
Page 5: Operating Instructions
OPERATING INSTRUCTIONS What’s in the case The RDXL12SD comes fully assembled in a hard carrying case along with two Type K thermocouples, a 2 GB SD memory card and this user’s manual. Optional accessories available from OMEGA include: • Additional Type K thermocouples of various diameters, types and measurement ranges •... -
Page 6: Setup
Now power on the instrument by pressing the POWER/ESC button (callout 1-2) to generate a short beep. (To power off the RDXL12SD, press the POWER/ESC button and hold it until the instrument responds with a long beep.) When the temperature recorder powers on, a series of transient startup screens will briefly appear. - Page 7 Type ▲ or Page ▼ button until the desired automatic power off management scheme (“yES” for enable; “no” for disable) is displayed. Press the REC/ENTER button to store the selection. If enabled, the power off function shuts off the RDXL12SD after a period of inactivity of ten minutes.
-
Page 8: Adjusting Thermocouple Offsets
Repeat the procedure for each thermocouple to be used. Normal operation 1. To prepare to make measurements, power on the RDXL12SD and make sure an SD card is firmly seated in the socket on the bottom of the instrument. -
Page 9: Holding And Storing Measurements
Automatic vs. manual datalogging The RDXL12SD can automatically log data at a user-selected sampling period from 1 second 3,600 seconds (one hour). To view the sampling time that the instrument has been set up to use, press the LOGGER button (which has the words “Sampling time check”... -
Page 10: Transferring Data From An Sd Card To A Computer
10. To log data manually, set the sampling time to zero using Step 9 of the setup procedure. Then press the REC/ENTER button once. The display will show the term “REC” on the top line, a value in the middle, and below it the letter “P” on the left and a number from 1 to 99 on the same line to the right. - Page 11 2. Typical Excel data-only screen 3. Typical Excel graphics-only screen...
-
Page 12: Specifications
SPECIFICATIONS Embedded Custom one-chip LSI device microcontroller Display type Liquid-crystal with green backlight Display size 3.2 x 2.4 in. (82 x 61 mm) Parameter measured Temperature (in °F or °C) Measurement range With Type K thermocouples: -148° to 2372°F (-100° to 1300°C) With Type J: -148°... - Page 13 W RR NTY/DISCL IMER OMEG ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of purchase. OMEG ’s W RR NTY adds an additional one (1) month grace period to the normal one (1) year product warranty to cover handling and shipping time.
