Summary of Contents for iBasso DX200

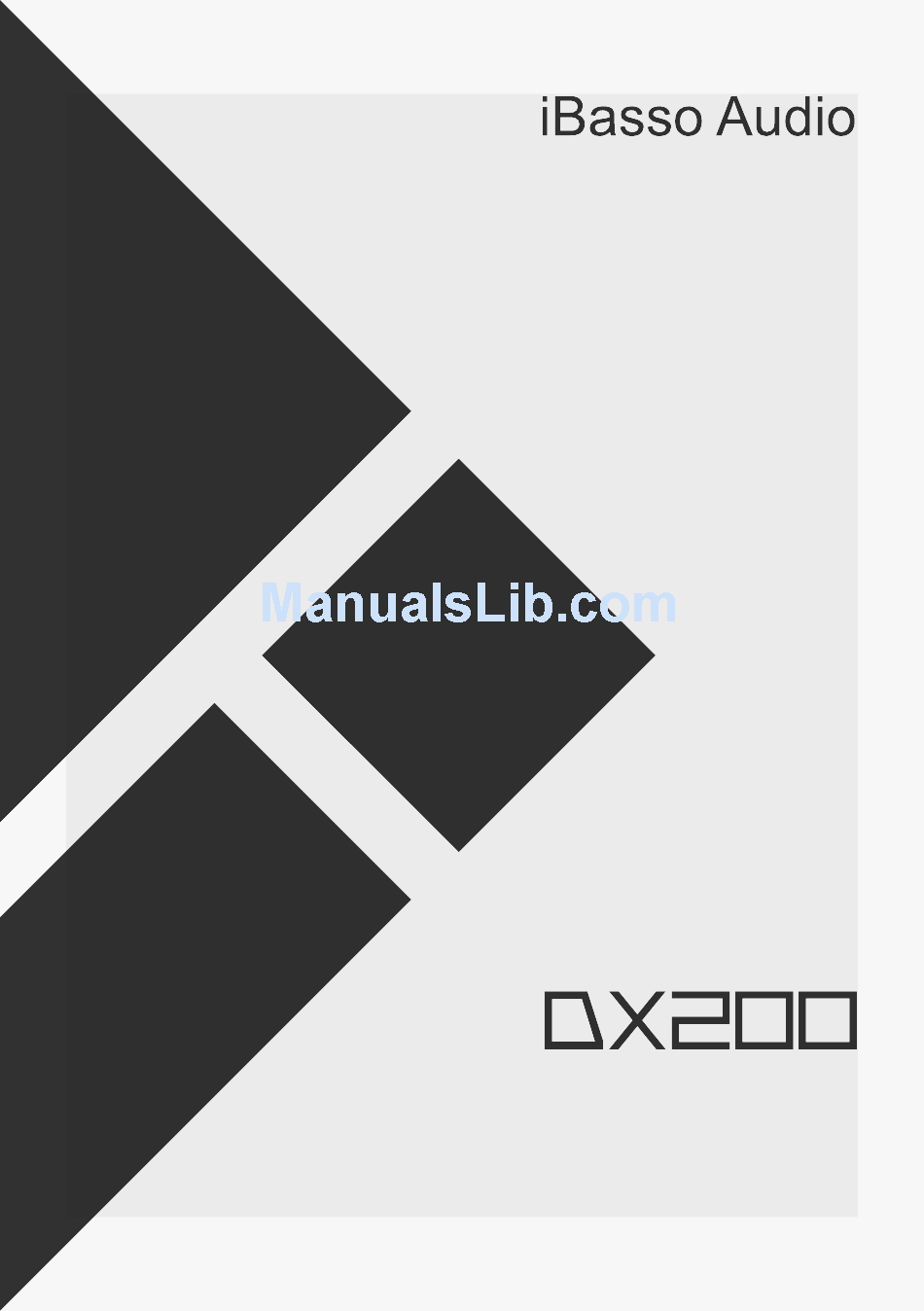

- Page 1 Reference Digital Audio Player Thank you for purchasing the DX200 http://www.iBasso.com...
-
Page 2: Table Of Contents
Contents Package components Main Features Specifications Names of Parts & Functions 6-10 Basic Operation 11-12 Power on/off; Power on/off the screen; Reset; Charging; USB-DAC function Android Basic Features 13-17 Introduction WiFi Connection; Application Installation; App, to uninstall; USB Connections; Firmware update; Power off, reboot, and system switching Mango Player Application 18-20... -
Page 3: Package Components
Package components DX200 Player Leather Case Quick Start Guide Warranty card Balanced Burn-in cable Type-C cable Coaxial cable... -
Page 4: Leather Case
The burn-in process helps the DX200's sound reach its full potential by forming the capacitors and stabilizing the electronic components used. Coaxial cable: Connect the coaxial cable to an external DAC, to allow the DX200 working as a digital transport. -
Page 5: Main Features
Main Features - Dual SABRE ES9028PRO DAC Chips. - Bit for Bit Playback Support up to 32bit/384 kHz. - Support of Native DSD up to 512x. - XMOS USB Receiver with Thesycon USB Audio Driver, Easy to use USB DAC. - Dual Accusilicon Ultra Low Phase Noise Femtosecond Oscillators. - Page 6 - Patented User Exchangeable AMP Card. - Three Physical Buttons (Previous, Play/Pauses, Next) - 150-Steps Digital Volume Control. - Audio Formats Supported: APE, FLAC,WAV, WMA, AAC, ALAC, AIFF, OGG, MP3, DFF, DSF, DXD. - Support for M3U Playlist - 4400mAh 3.8V Li-Polymer battery (Play time vary with AMP card)
-
Page 7: Specifications
Specifications 2.5mm Balanced Output: Output voltage 6Vrms Frequency Response: 20Hz-20KHz -0.16dB Signal to Noise Ratio：125dB Crosstalk: -122dB THD+N: < 0.0002%, -114dB (64Ω@3Vrms) 3.5mm HP Output: Output voltage 3Vrms Frequency Response: 20Hz-20KHz -0.16dB Signal to Noise Ratio：122dB Crosstalk: -118dB THD+N: < 0.00032%,-110dB (32Ω@1.8Vrms) Lineout: Output voltage 3Vrms Frequency Response: 20Hz-20KHz -0.16dB... -
Page 8: Names Of Parts & Functions
Names of Parts & Functions... - Page 9 a. Power： Short Press-Power the LCD screen on and off. Long Press-To display the pop up window with three options that are Power off, Reboot, and To Mango. b. Volume Control Wheel: Rotate the wheel upward to increase the volume. Rotate the wheel downward to decrease the volume.
- Page 10 1. Mini Optical/Coaxial Output Port: Use a mini optical cable or the furnished coaxial cable to play music stored in the DX200 on an external device with a coaxial input port or an optical input port. Mini optical/coaxial output has the highest...
- Page 11 DX200 to work as a card reader. Connect the DX200 to an OTG storage device to play music files. Connect the DX200 to a PC or a Mac computer to work as a USB DAC. 3. Balanced Phone Port: Plug in the 2.5mm balanced earphone and...
- Page 12 6. Micro SD Card Slot: Insert a Micro SD card into the DX200 to access its stored files. The following screen pops up after Micro SD card inserted. Scan SD Card: Press “YES” to fully scan the Micro SD card.
-
Page 13: Basic Operation
Power on/off: 1. Press and hold the power button to power on. 2. After the DX200 is powered on, a long press of the Power button to display the pop up window, press Power Off button to power off the DX200. - Page 14 Connecting to a computer to work as a USB DAC: The DX200 can work as a USB DAC for Windows PC, Mac computer, and Linux computer. It is driver free on Mac computer and Linux computer. For Windows PC, one can download the driver from iBasso.com...
-
Page 15: Android Basic Features Introduction
Android Basic Features introduction WiFi Connection: ① On the Android desktop, from the top, swipe down the screen to display the notification bar. ② Press the Wireless local area network (WLAN) to turn on the WiFi function. The first time you enter the WLAN , you need to choose the hot spot you will be using and enter the password. - Page 16 Application (APP) Installation: ① Press the internet browser on the desktop. ② Enter the website address of the APP. ③ Find the download icon on the website and start the download. ④ Return to the desktop and open the download manager. ⑤...
-
Page 17: Usb Connections
USB Connections: ① Connect the DX200 to a computer using the furnished type-C cable. ② Swipe down the screen from the top to display the notification bar. ③ Press the USB connection icon to choose the type of USB use. -
Page 18: Firmware Update
② On the Android desktop, press Settings ->About DX200->System updates -> local update->default and tap the zip file. ③ Press update button to start the update. ④ The whole update will take about 10 minutes. Reboot the DX200 after update completed. -
Page 19: Power Off, Reboot, And System Switching
Power off, Reboot, and System Switching: ① Long press the power button for 3 seconds. ② There is a pop up window with three options. ③ When To Mango is selected, system will be switched to Mango OS. ④ To return to the Android System, go into the Advanced menu of Mango. -
Page 20: Mango Player Application Introduction
Mango Player Application Introduction The DX200 User interface is composed of four parts: Music playback screen (homepage), my music, settings, and advanced. On the homepage, one can swipe the screen to right for My Music, or swipe the screen to left for Settings, swipe the screen to left from Settings for advanced. -
Page 21: Music Playback Screen
Music Playback Screen Volume indicator Battery indicator EQ indicator Album artwork Track name Artist name Album name Play mode Progress bar Play/Pause Previous/Rewind Next/Fast forward... - Page 22 Add to playlist Music info Track name Delete Music unfold/fold Function menu Track number Music format bit/sec Bit rate Sample rate...
